Name: 13A Power Distribution Unit, True 1 In/Out PDU16-5UK-T1 - Crystal Sound and Light
SKU: PENN171
Price: 275.00 GBP
Availability: InStock

Description

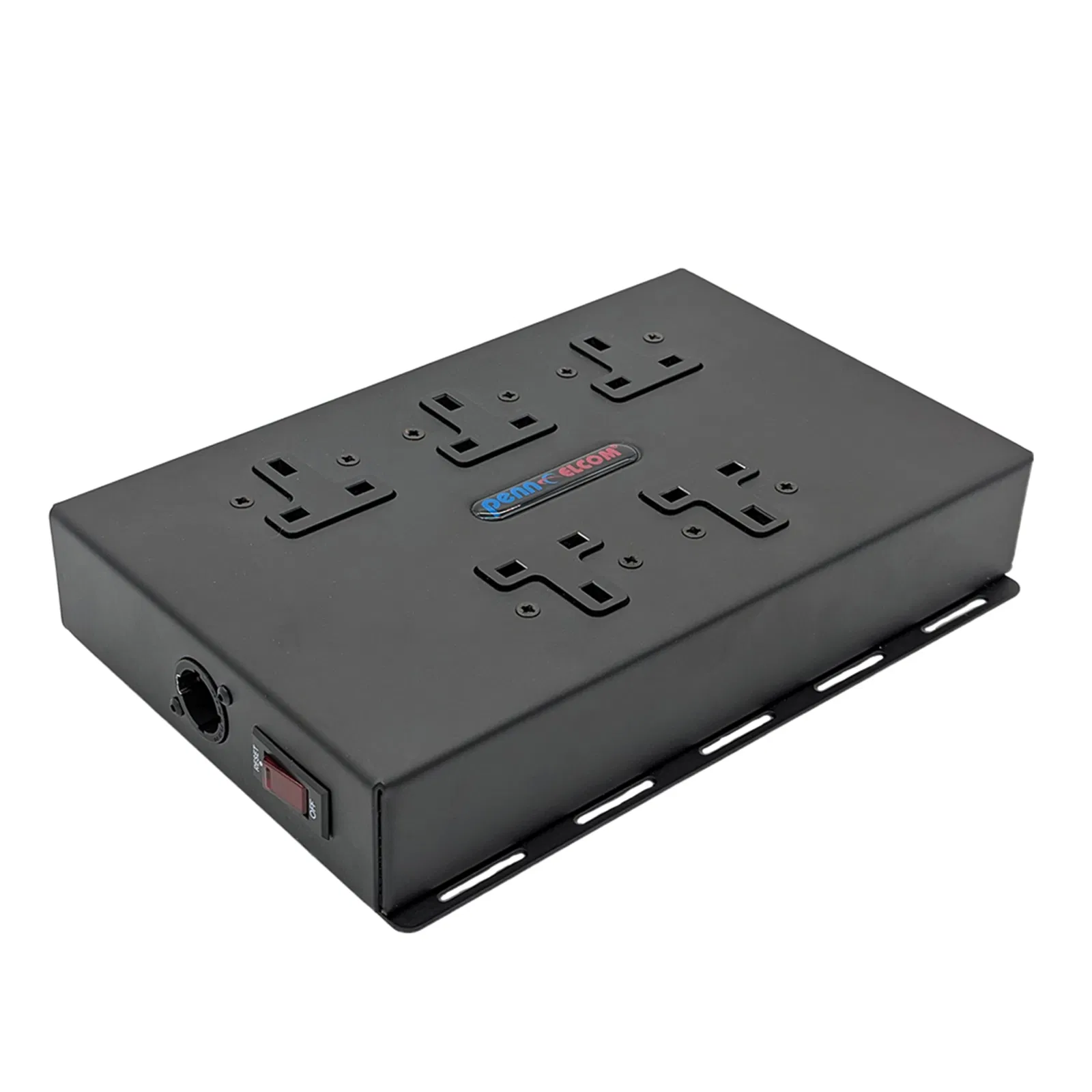

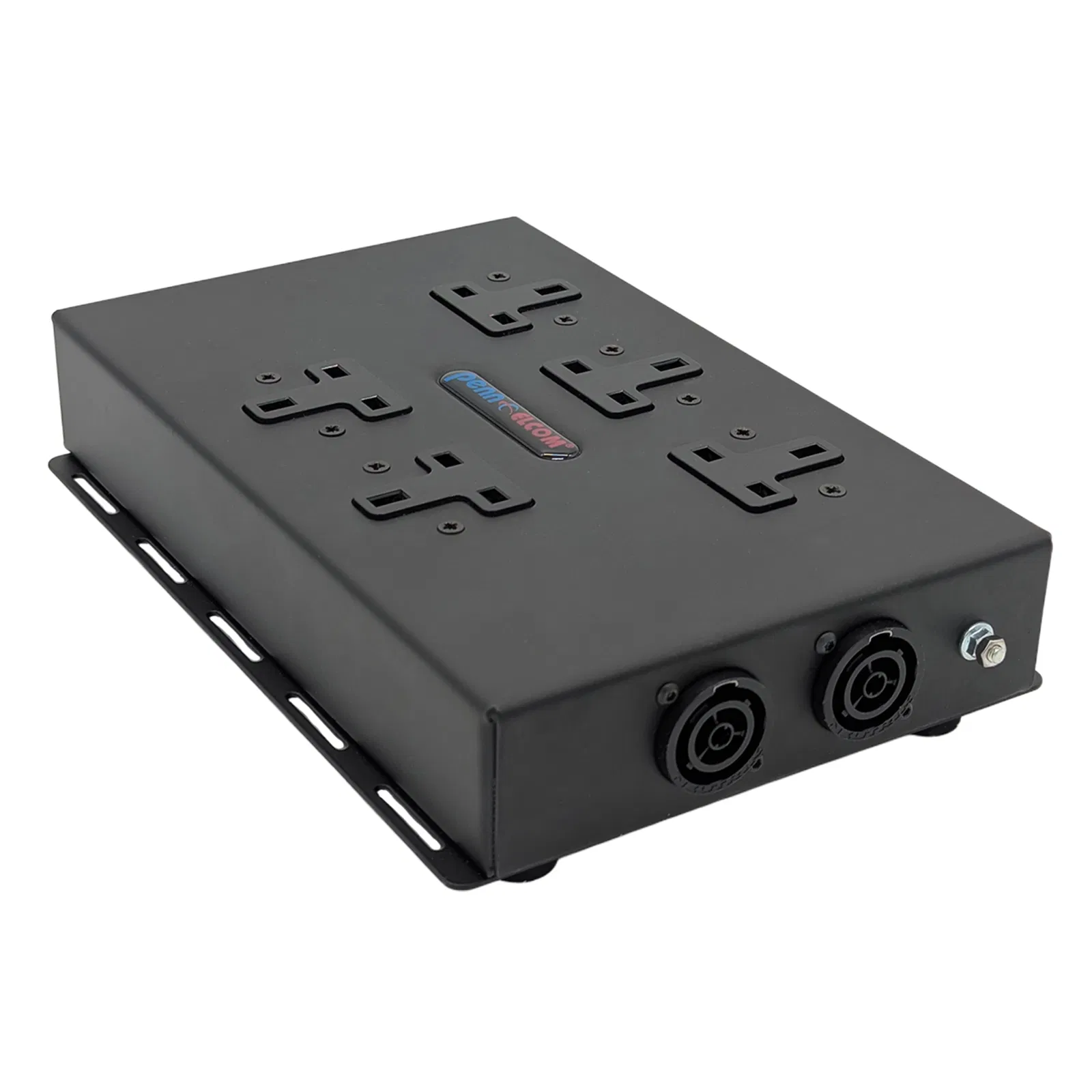

The Penn Elcom PDU16-5UK-T1 is a robust 13A power distribution board designed for professional stage and truss mounting applications. Featuring five UK 13A sockets, Neutrik PowerCON True1-TOP in and dual link outputs, and a 16A illuminated thermal breaker, this unit delivers reliable, high-performance power distribution for events, touring, and fixed installs.

Housed in a durable steel chassis with truss and cable mounting points, it supports a maximum load of 20A and is ideal for daisy-chaining multiple units safely and efficiently.

Features

5 x 13A UK sockets

Neutrik PowerCON True1-TOP input and dual link outputs

16A illuminated thermal breaker for protection

Rear M10 captive nut for truss mounting

Side slots for cable tie or Velcro securing

Specifications

Voltage: 250V max
Frequency: 50/60Hz
Maximum combined load: 20A
Dimensions: 44x166x243mm
Weight: 1.5kg
