Description

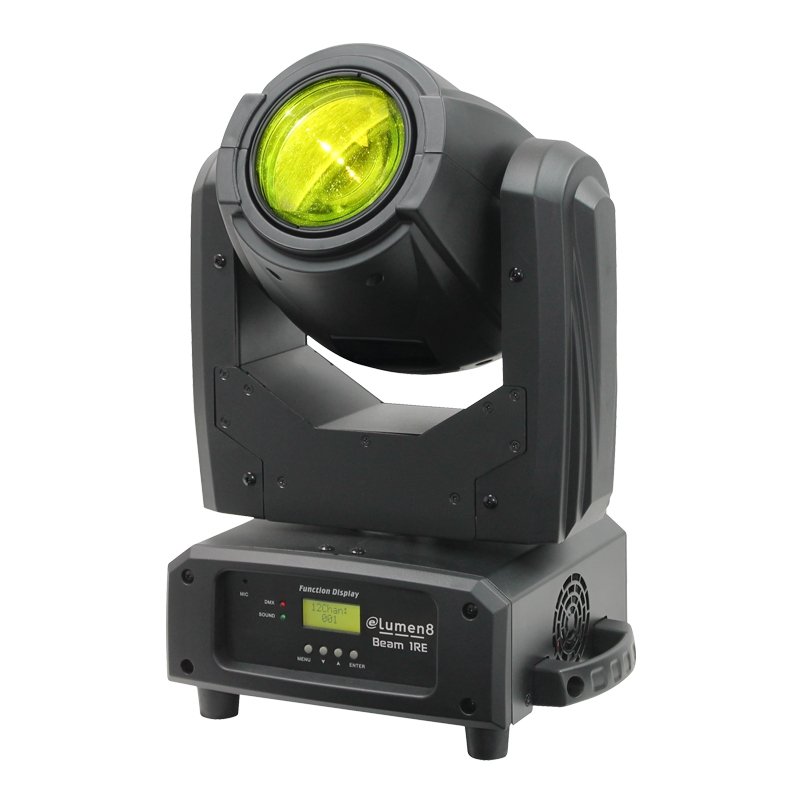

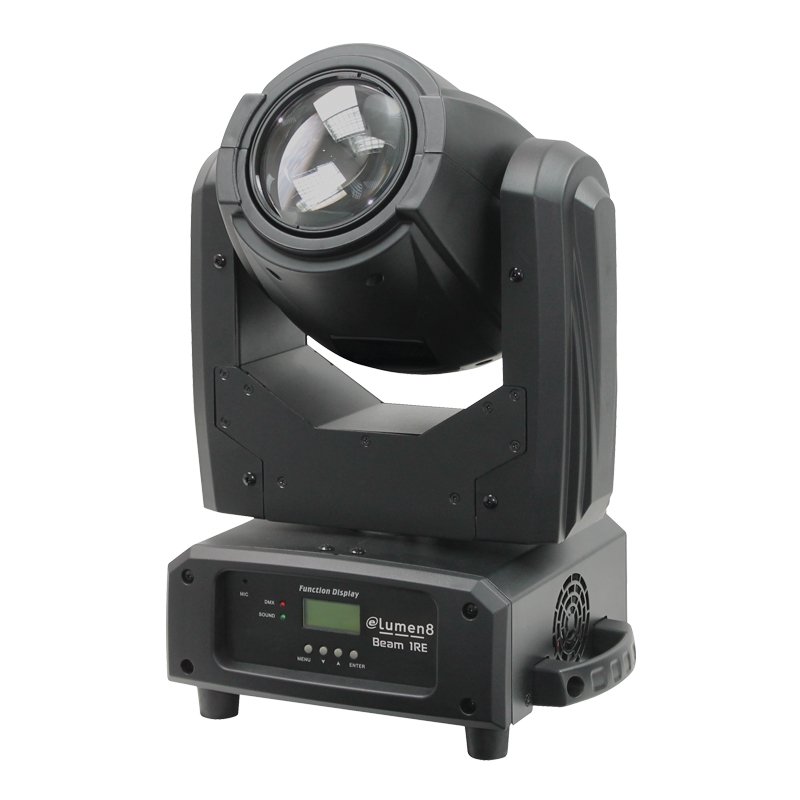

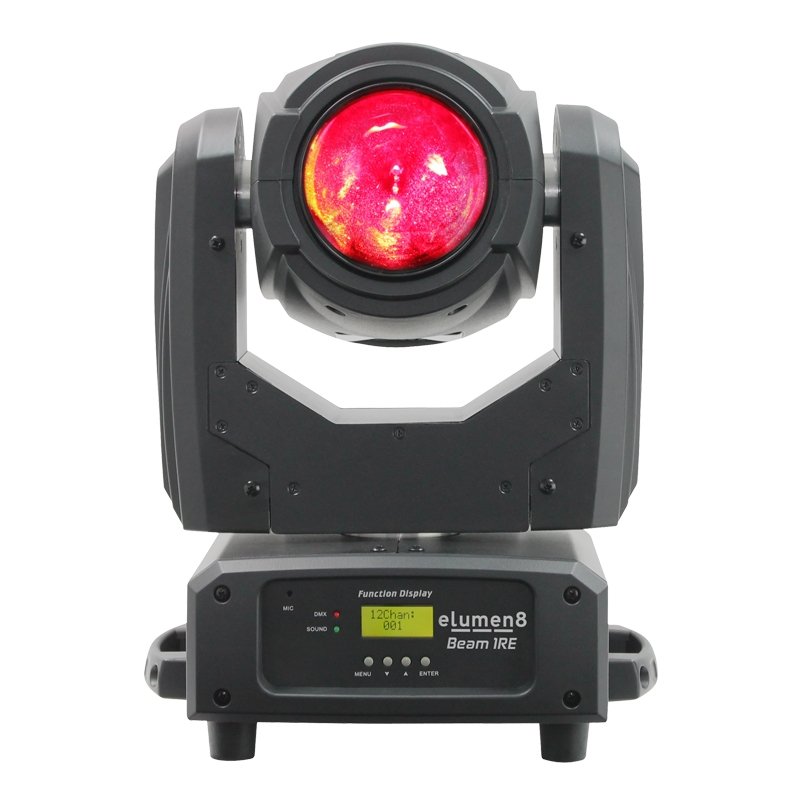

Loaded with a powerful Osram 1R discharge lamp, the Elumen8 1RE Beam features independent colour and gobo wheels, and a tight 3° beam angle.

This compact moving head creates sharp beams of light and features 14 colours plus open and 15 gobos plus open.

Also on board is an 8-facet prism for multi-beam effects. The superb optics allow this fixture’s beam to be seen over 100m away.

Features

• 2-year warranty
• Lamp: Osram® SIRIUS HRI 1R discharge (100W)
• Beam angle: 3°
• 76,800  Lux @ 10m

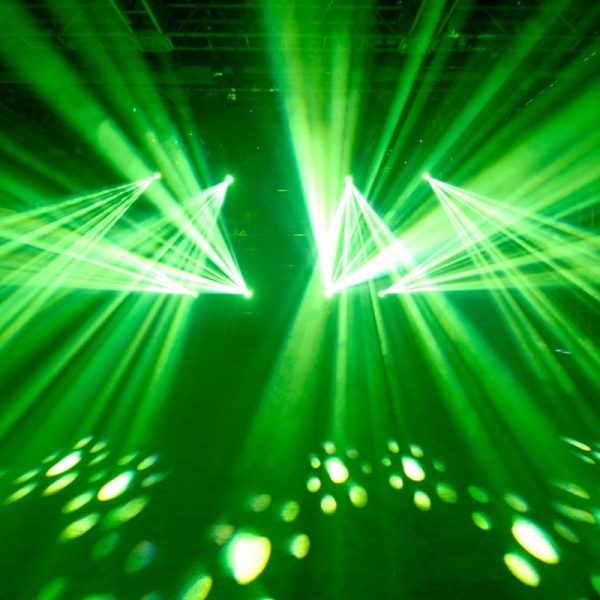

• 8 facet rotating prism with macros

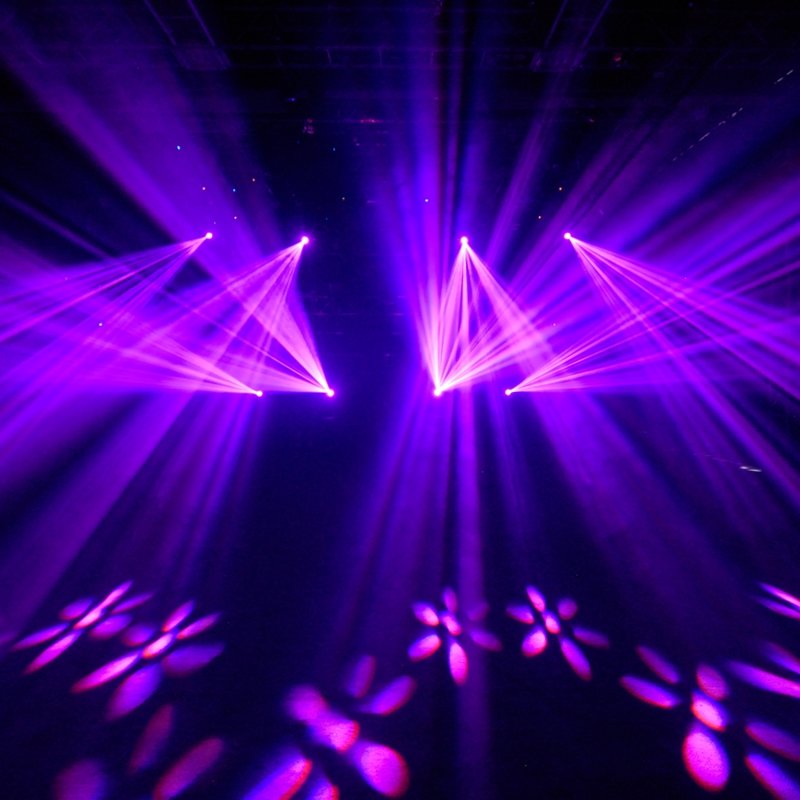

• Gobo wheel: 15 static gobos + open
• Colour wheel: 14 colours + open and split colours
• Built-in macros accessible via DMX
• DMX channels: 12
• Auto, sound active and master/slave modes
• Forward-facing show mode
• Pan/tilt auto correction
• 16-Bit Pan/tilt positioning
• Pan/tilt invert
• Pan: 540°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe
• Quick-release omega clamp included

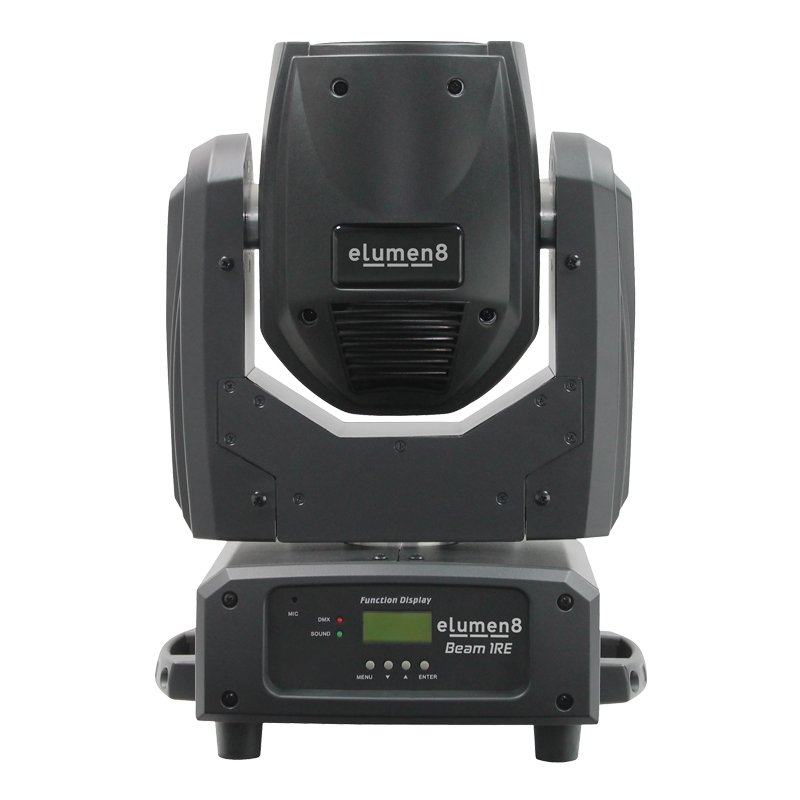

• 4-button menu with LCD display

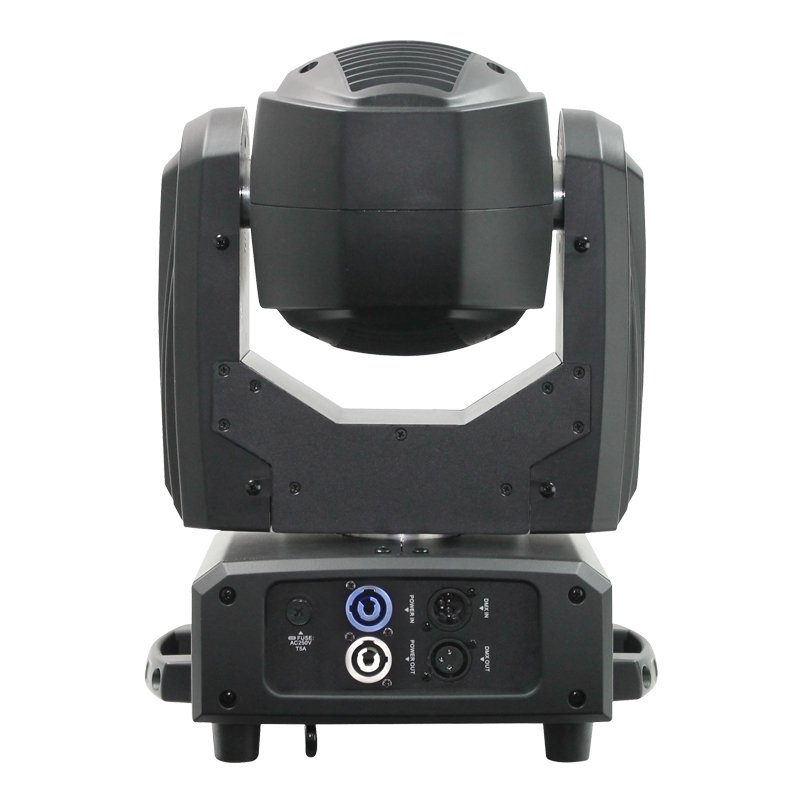

• powerCON input/output
• 3-Pin XLR input/output

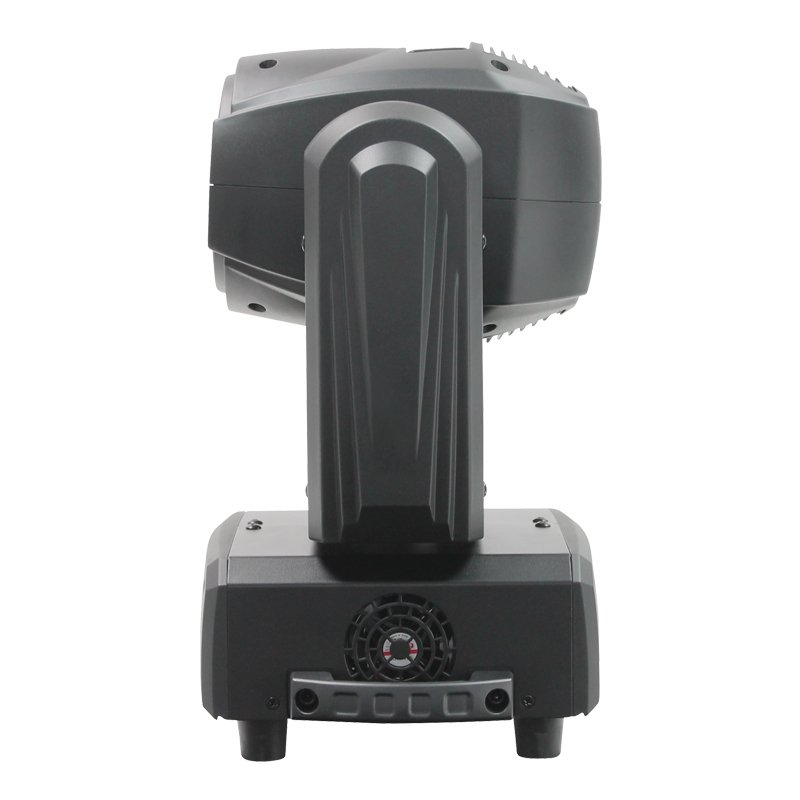

• Fan cooled

Specifications

• Power consumption: 199W
• Power supply: 100~240V, 50/60Hz
• Fuse: T5A 250V
• Dimensions (H x W x D): 405 x 279 x 225mm
• Weight: 9.2kg
