Description

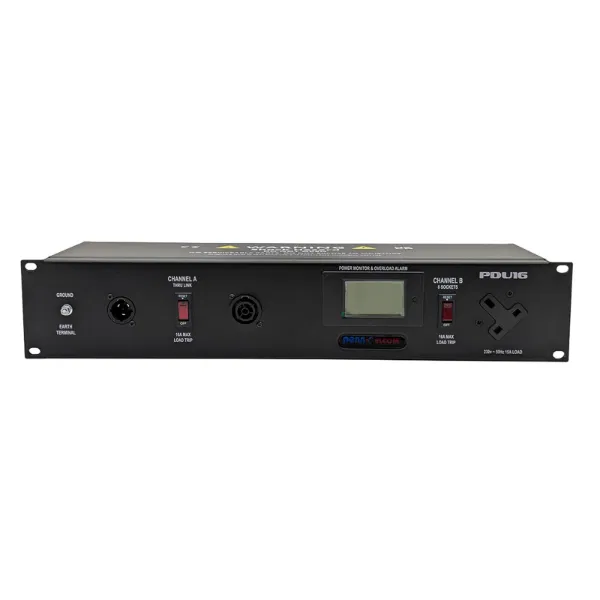

The Penn Elcom PDU16-UKTR1 is a rugged 2U 19″ power distribution unit designed for demanding stage, studio, and touring environments. Featuring a Neutrik powerCON True1-TOP inlet and outlet, it includes 8x 13A UK sockets split across two protected circuits.
Circuit A handles inlet and loop-through functions with its own 16A breaker, while Circuit B supplies the UK sockets with a dedicated illuminated breaker and integrated LCD monitor displaying voltage, current, power, and energy. Steel housing, rackmount format, and rear earth bonding point make this a dependable and intelligent distro choice for professionals.
Features
- 8 x UK outlet sockets with 16A overload trip switch – ideal for stage, studio, and touring power distribution
- Circuit A
- Main Input: Neutrik True1-TOP panel mount appliance inlet
- Protection: Illuminated circuit breaker with overload protection between dual 16A sockets
- Output: Neutrik True1-TOP panel mount appliance outlet
- Circuit B

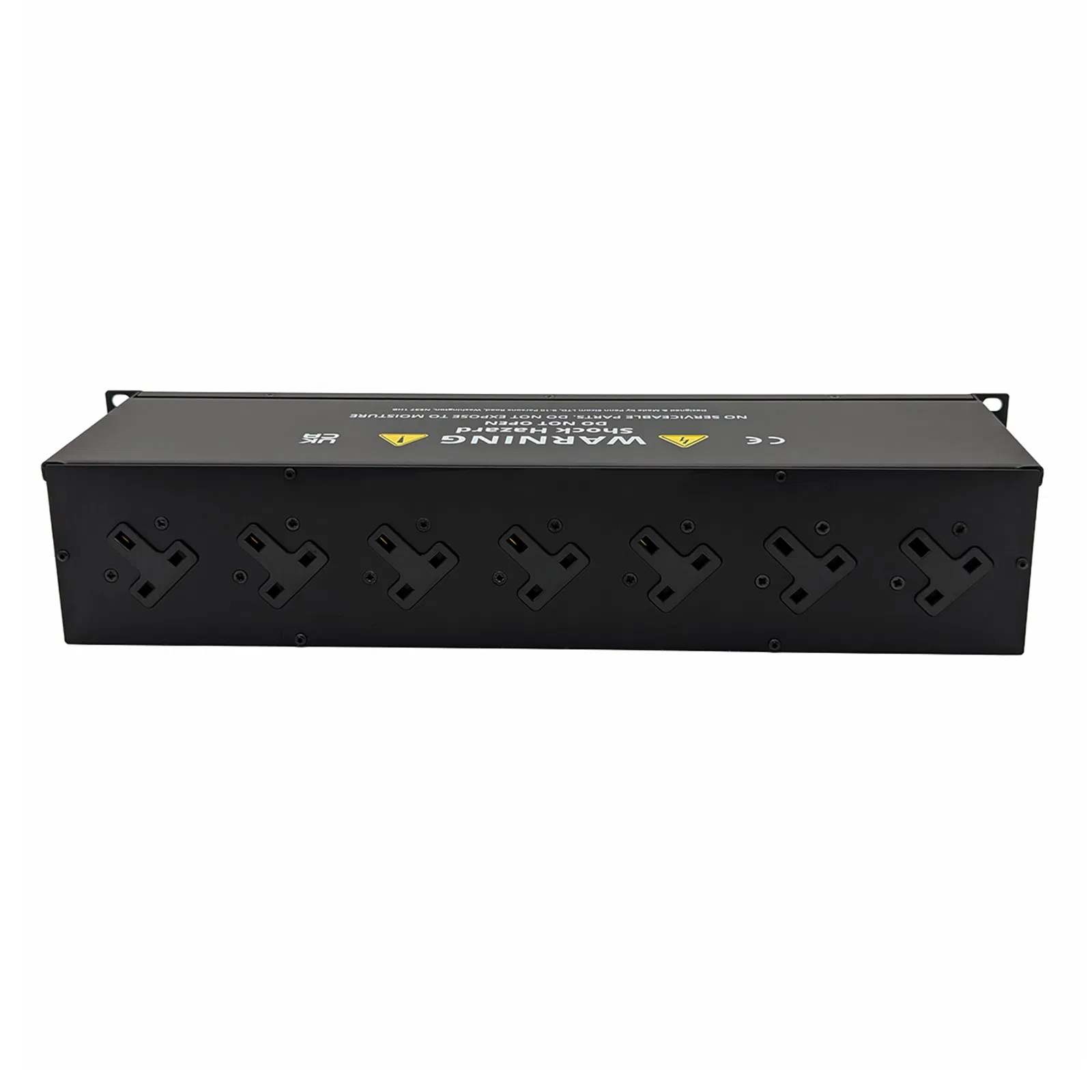

- Output: 8 x 13A UK sockets with a maximum combined load of 16A
- Protection: Illuminated 16A circuit breaker for overload protection
- LCD Monitor: Displays voltage, current, power, and energy levels
- Earth Link: Rear M4 screw terminal for rack grounding
Specifications
- Nominal voltage: 110V–230V
- Usable voltages: 110V–240V (full range)
- Frequency: 50/60Hz
- Max output current: 16A
- Dimensions: 140 x 98 x 430mm
- Weight: 2.8kg
