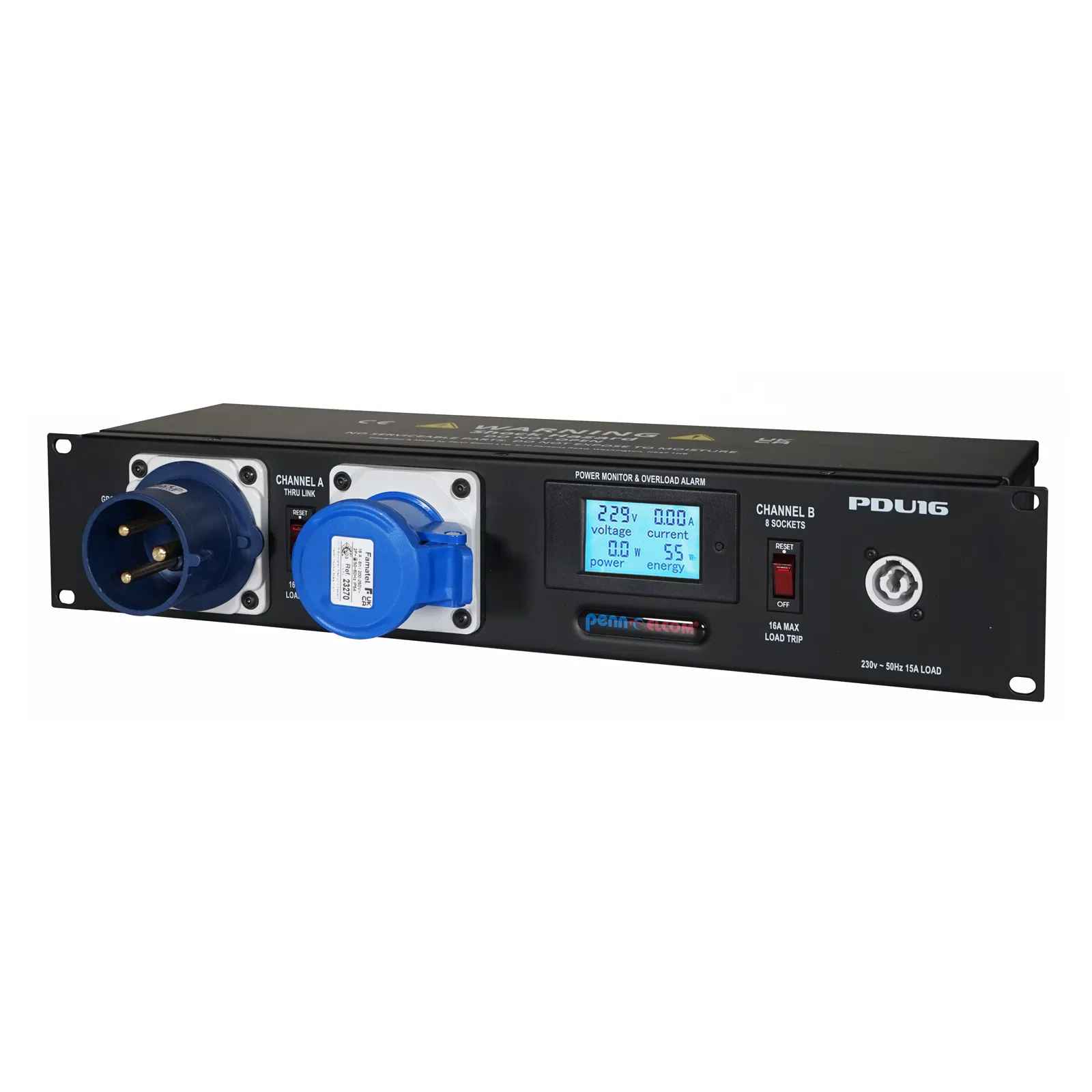

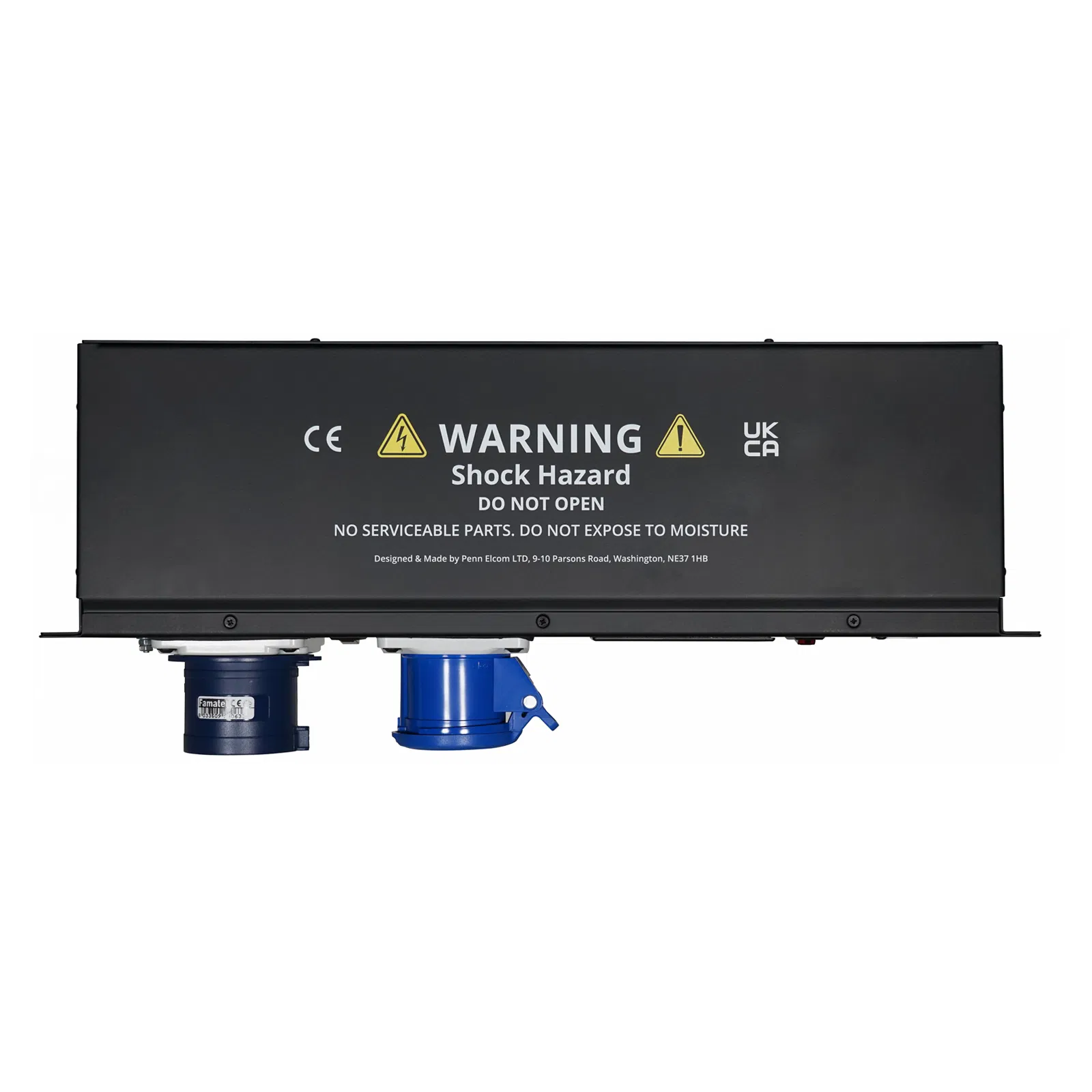

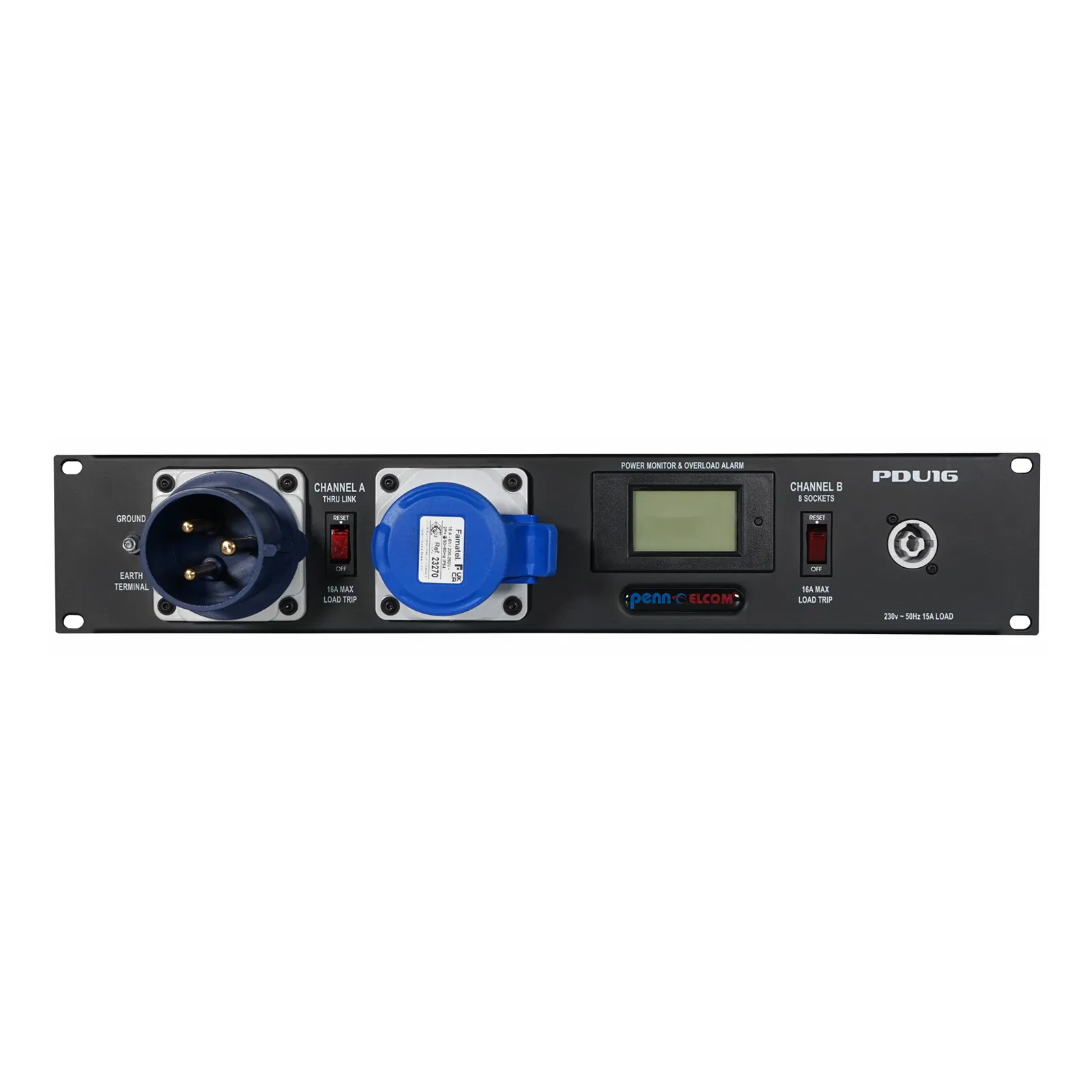

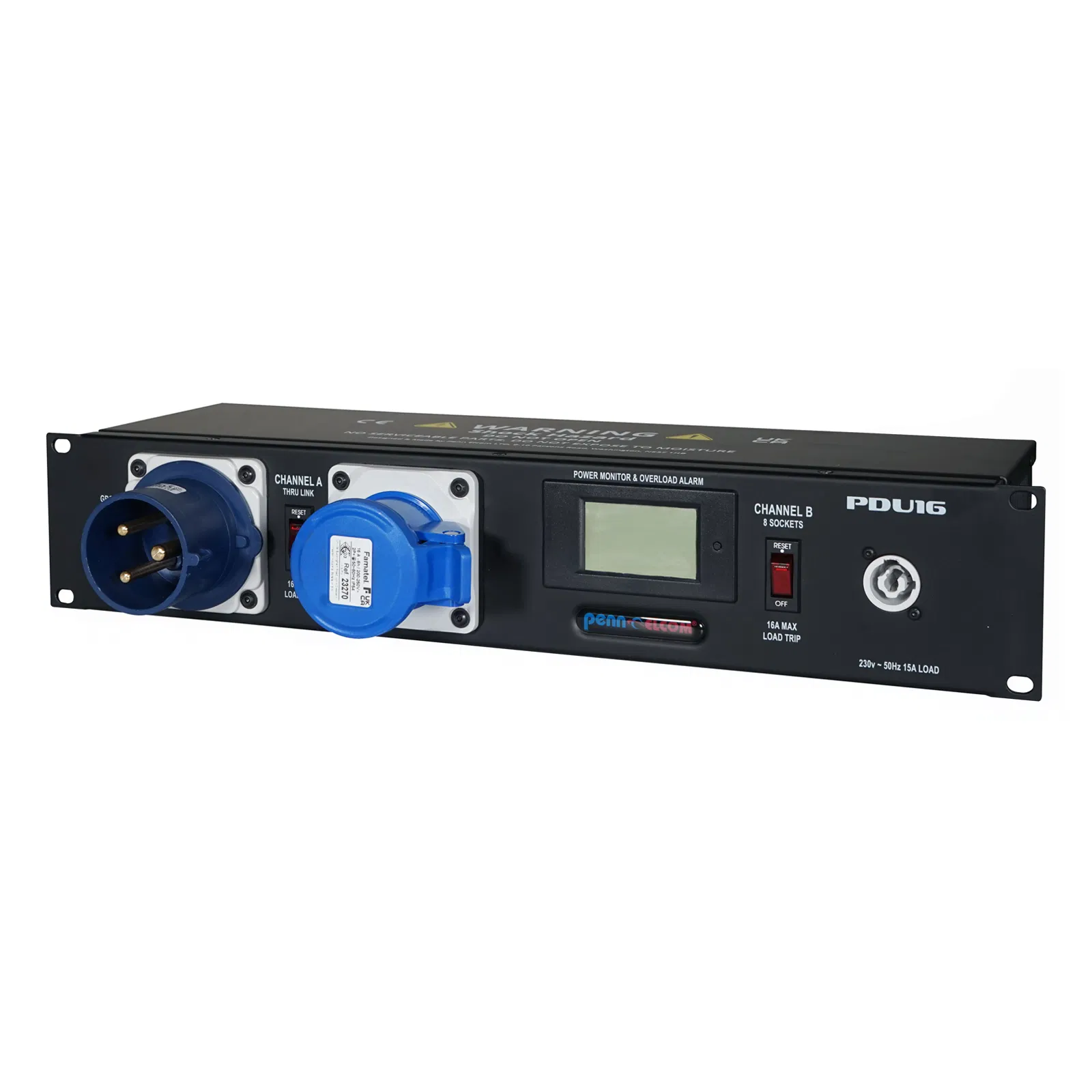

2U 32A Rackmount Power Distribution Unit (PDU16-32PC)
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 2
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 3
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 4
2U 32A Rackmount Power Distribution Unit (PDU16-32PC) - Image 5

2U 32A Rackmount Power Distribution Unit (PDU16-32PC)



SKU: PENN147 Categories: , Tags: , ,

2U 32A Rackmount Power Distribution Unit

(PDU16-32PC)

2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets, overload protection and power monitoring. 2U high horizontal mounting unit designed to provide a versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.



£399.00

View your Basket

Description

2U 32A AC rack mount PDU With 8 x Neutrik powerCON sockets, overload protection and power monitoring. 2U high horizontal mounting unit designed to provide a versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.

Features

  • Main input – C-FORM 240V 32A IP44 panel mount appliance inlet
  • Circuit A:
    • Output – C-FORM 240V 16A IP44 panel mount appliance outlet
    • Protection: Illuminated 16A circuit breaker for overload protection
  • Circuit B:

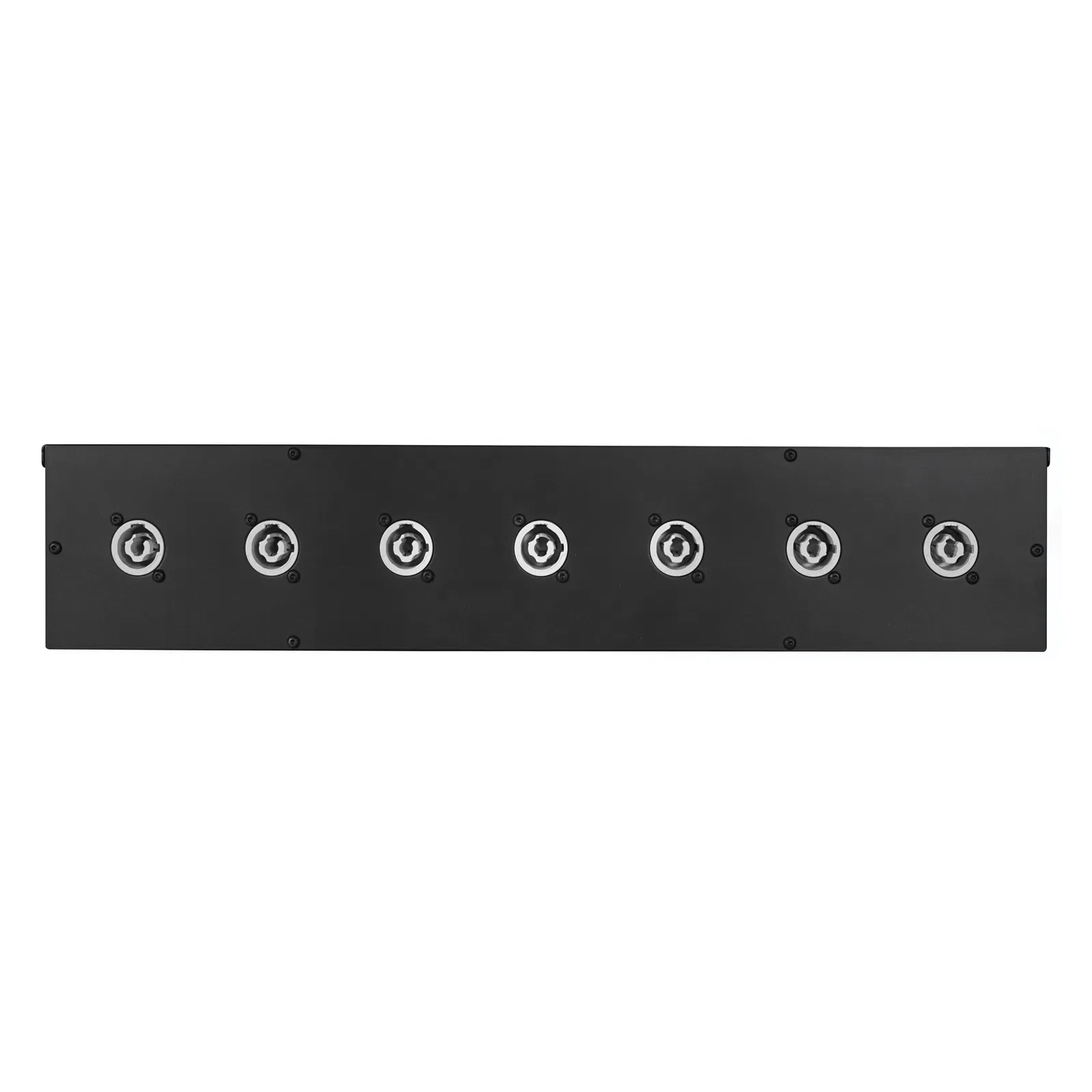

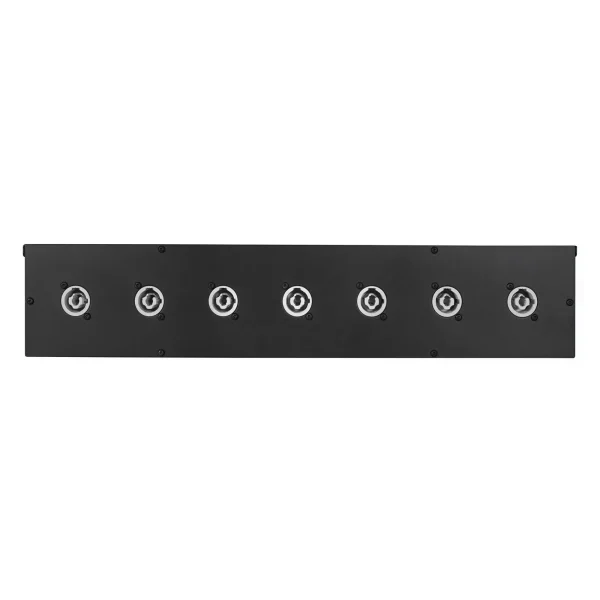

    • Output – 8 x Neutrik powerCON sockets with a maximum combined load of 16A
    • Protection – Illuminated circuit breaker 16A overload protection
  • LCD monitor: LCD power monitor giving voltage, current, power, energy levels and overload alarm
  • Earth link – M4 screw terminal for rack grounding

Specifications

  • Compliance: All components used in this conform to current RoHS, CE and UL certification – E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
  • Nominal voltage: 110V~240V
  • Usable voltages: 110V~240V
  • Frequency: 50/60Hz
  • Max. output current: 16A
  • Dimensions (H x W x D): 88 x 430 x 140mm (Overall width including rack ears 483mm)
  • Weight: 2.5kg

Additional information

Weight 2.5 kg
Dimensions 14 × 43 × 8.8 cm
Product Brands

Penn Elcom
×
