2U 32A Rackmount Power Distribution Unit (PDU16-UN32)
2U 32A Rackmount Power Distribution Unit (PDU16-UN32) - Image 2
2U 32A Rackmount Power Distribution Unit (PDU16-UN32) - Image 3
2U 32A Rackmount Power Distribution Unit (PDU16-UN32) - Image 4
SKU: PENN148 Category:

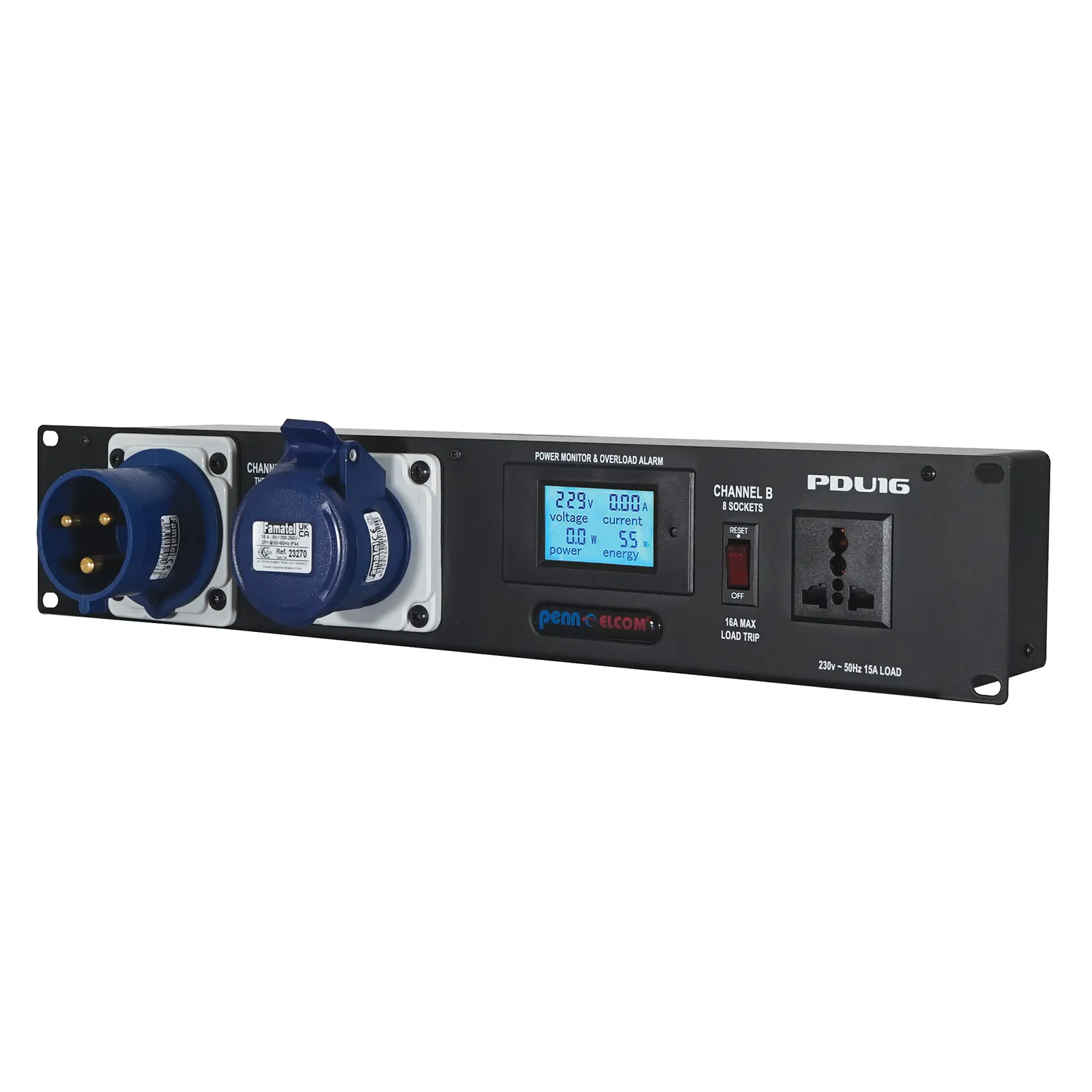

2U 32A Rackmount Power Distribution Unit (PDU16-UN32)

2U 32A AC rack mount PDU with 8 x universal sockets, overload protection and power monitoring, designed to provide a versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.



£265.00

View your Basket

Description

2U 32A AC rack mount PDU with 8 x universal sockets, overload protection and power monitoring, designed to provide a versatile hook-up for the distribution of AC power within multimedia, theatre and touring rack applications.

Features

  • Circuit A
    • Main input – C-FORM 240V 32A IP44 panel mount appliance inlet
    • Protection: Illuminated 16A circuit breaker for overload protection
    • Output – C-FORM 240V 16A IP44 panel mount appliance outlet
  • Circuit B

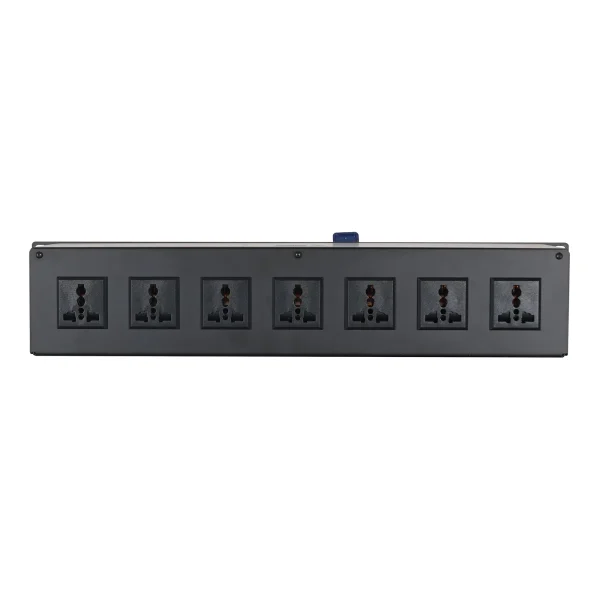

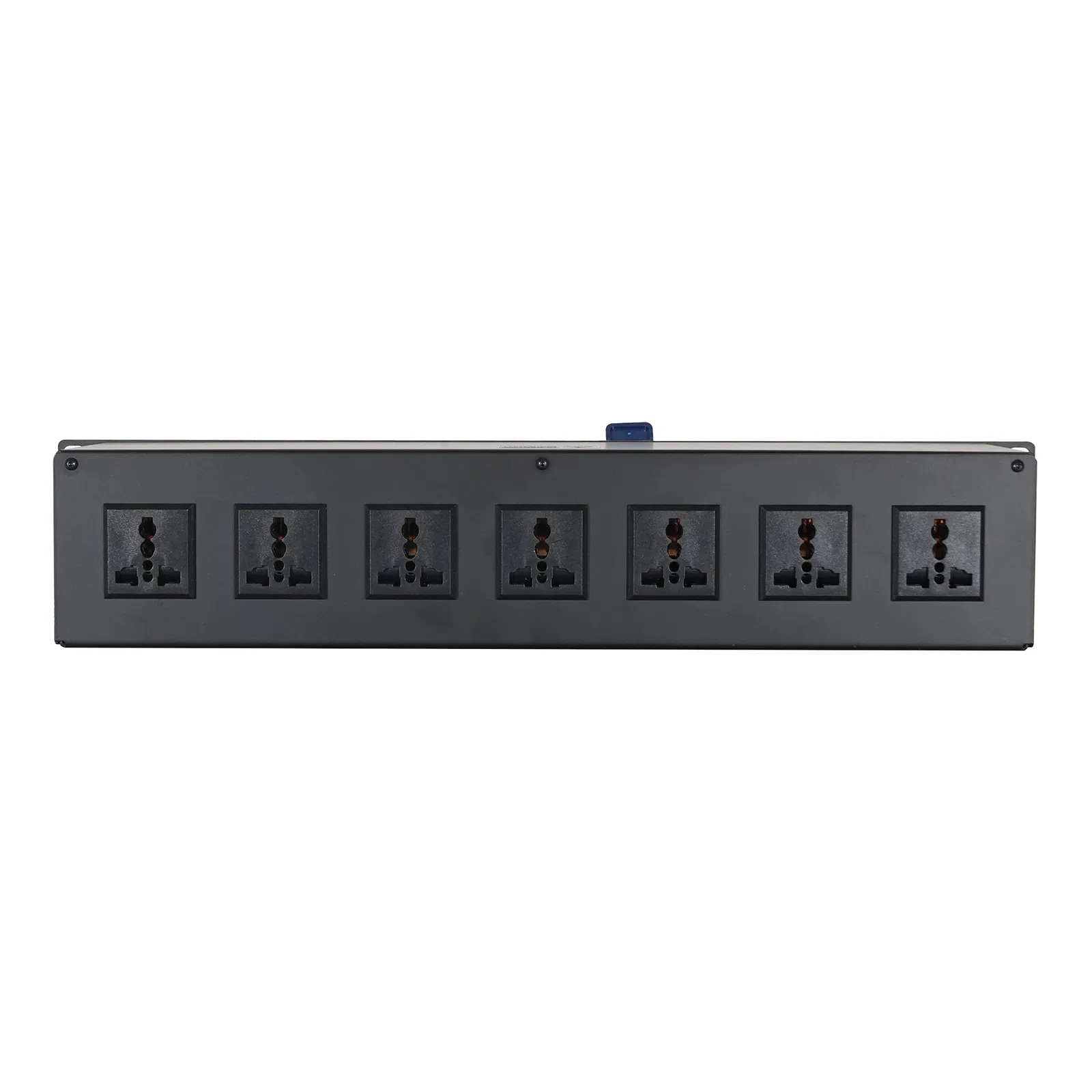

    • Output – 8 x Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum 16A combined load. (Schuko type plugs have a 2-Pin connection only)
    • Protection: Illuminated circuit breaker 16A overload protection
    • LCD monitor: LCD power monitor giving voltage, current, power, energy levels and overload alarm
    • Earth link: M4 screw terminal for rack grounding

Specifications

  • All components used in this conform to current RoHS, CE and UL certification – E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
  • Usable voltages: 110V~240V
  • Frequency: 50/60Hz
  • Max. output current: 32A
  • Dimensions (H x W x D): 90 x 436 x 100mm (Overall width including rack ears 483mm)
  • Weight: 2.7kg

Additional information

Weight 5 kg
