SKU: PENN146 Category:

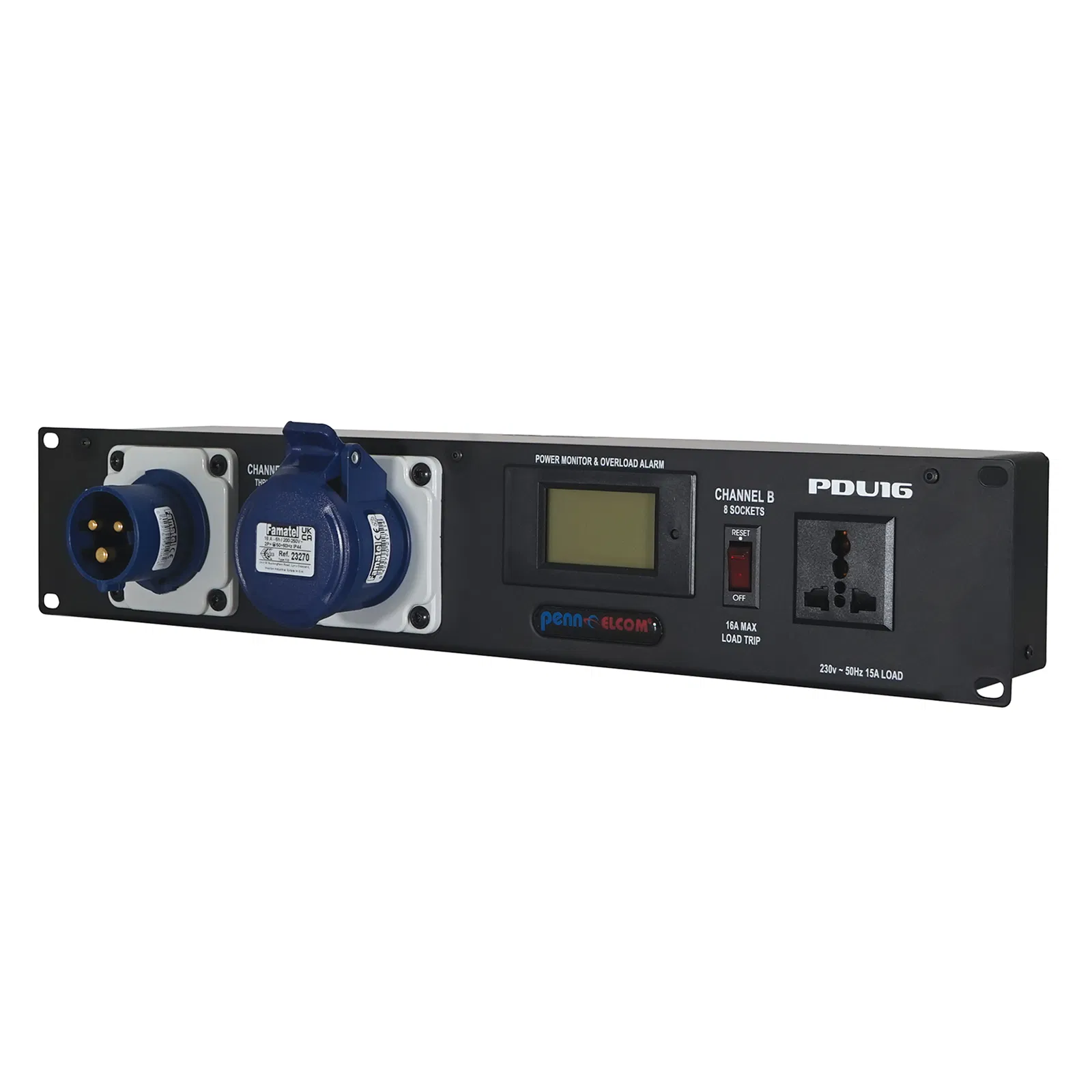

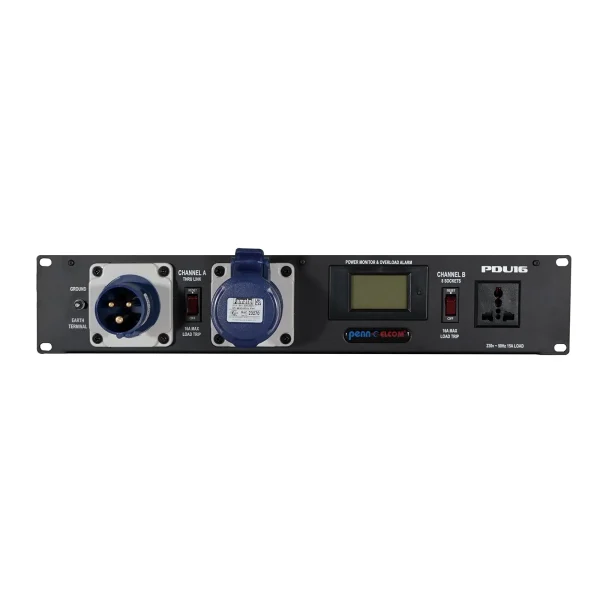

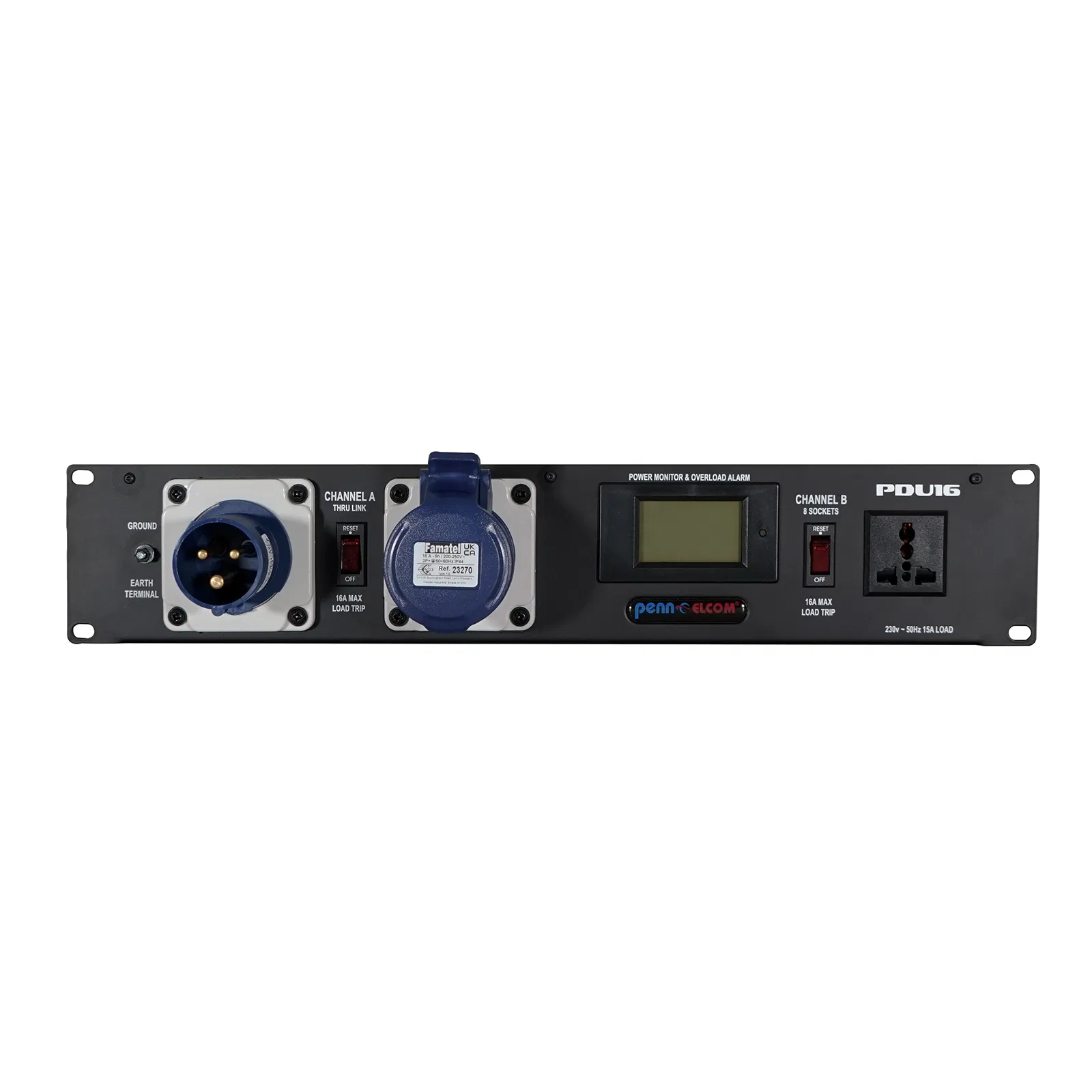

2U Rackmount Power Distribution Unit (PDU16-UN)

2U 16A rack mount PDU with power monitor and C-FORM in/out with overload trip switch. 8 x world wide universal outlet sockets with 16A overload trip switch. Ideal solution for fast power distribution in stage, studio and touring environments.



£275.00

Description

Features

  • Circuit A
  • Main input: C-FORM 240V 16A IP44 panel mount appliance inlet
  • Protection: Illuminated 16A circuit breaker for overload protection
  • Output: C-FORM 240V 16A IP44 panel mount appliance outlet
  • Circuit B

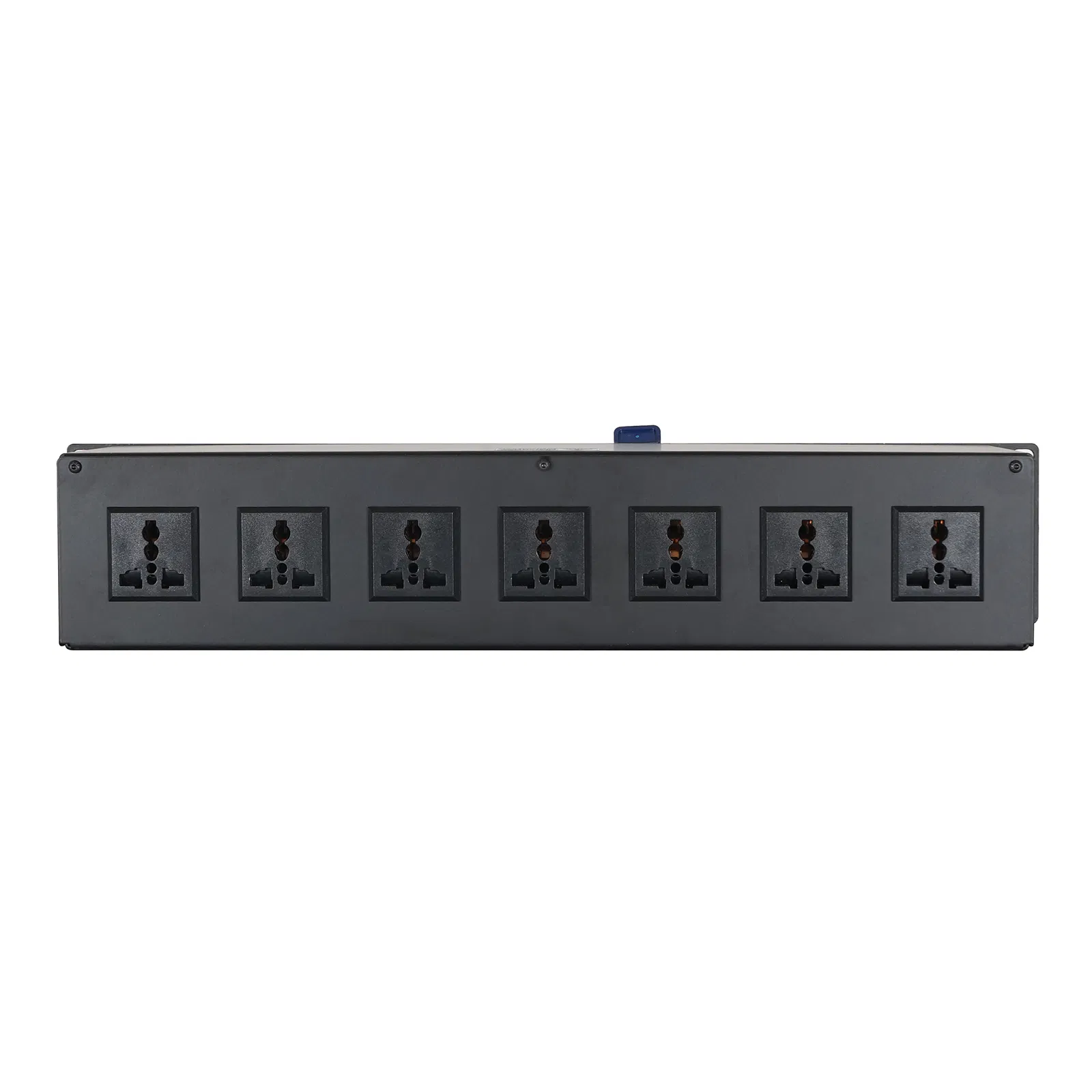

  • Output: 8 x Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum 16A combined load (Schuko type plugs have a 2-Pin connection only)
  • Protection: Illuminated circuit breaker 16A overload protection

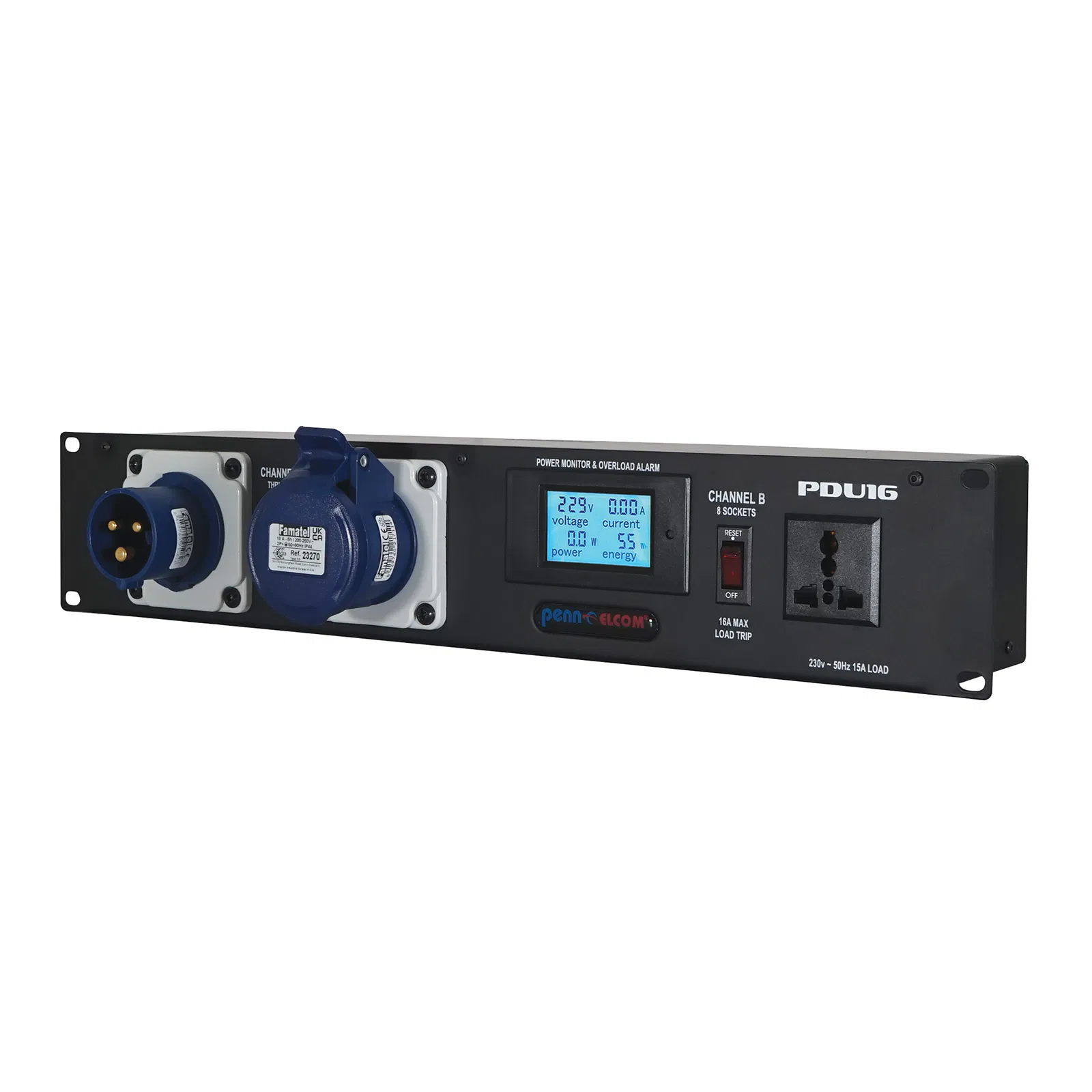

  • LCD monitor: LCD power monitor giving voltage, current, power, energy levels and overload alarm
  • Earth link: M4 screw terminal for rack grounding

Specifications

  • Compliance: All components used in this conform to current RoHS, CE and UL certification – E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
  • Usable voltages: 110V~240V
  • Frequency: 50/60Hz
  • Max. output current: 16A
  • Dimensions (H x W x D): 90 x 436 x 100mm (Overall width including rack ears 483mm)
  • Weight: 2.7kg

Additional information

Weight 5 kg
