Description

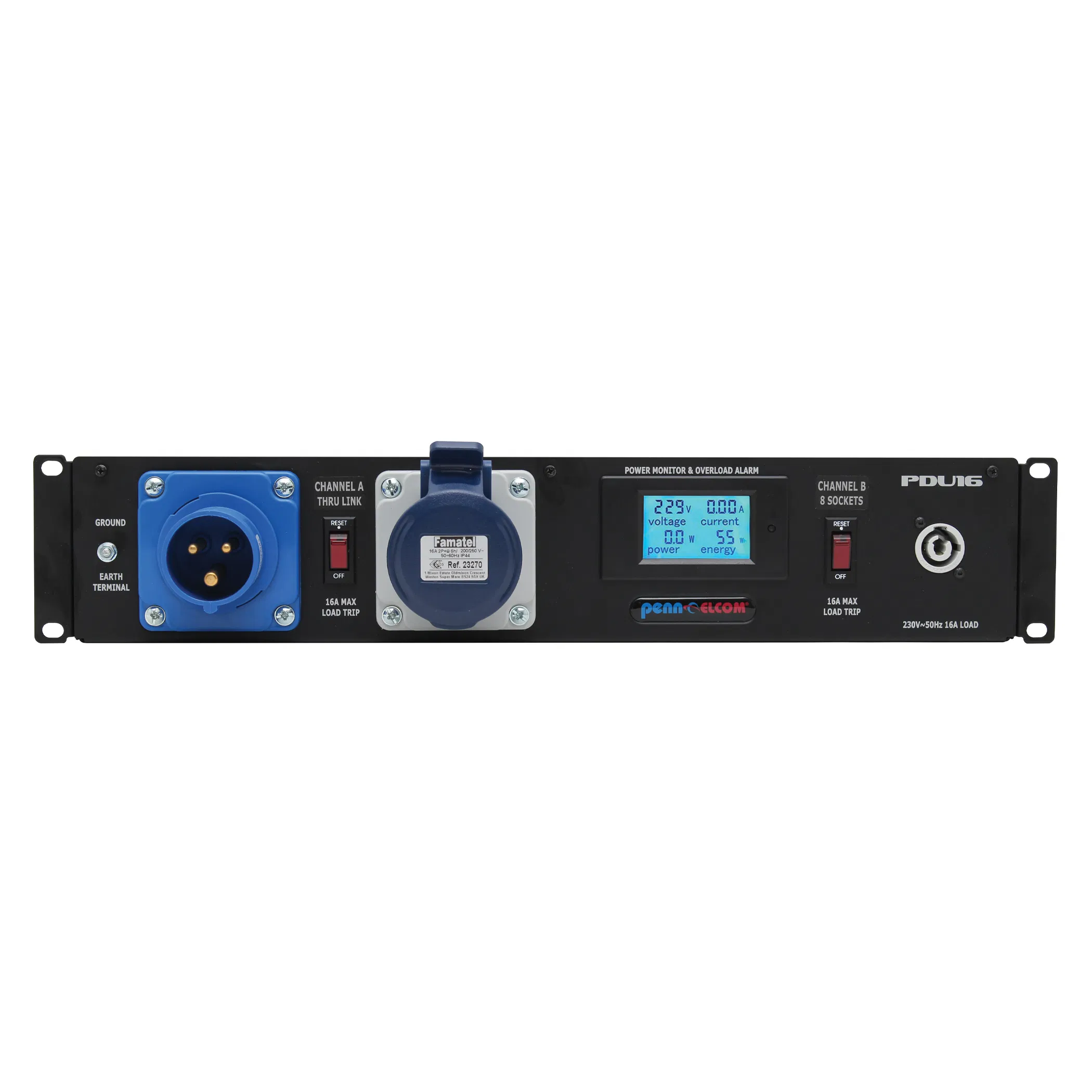

2U 19″ rack mount 16A PDU with power monitor and overload trip switches. Dual circuit design features 1 x 16A C-Form socket on circuit A and 8 x Neutrik powerCON outlet sockets on circuit B, each circuit with its own 16A overload trip switch. An ideal solution for fast power distribution in stage, studio and touring environments.

Features

• Mains input: C-FORM 240V 16A IP44 panel mount appliance inlet
• Earth link: M4 screw terminal for rack grounding
• Circuit A:
• Protection: Illuminated 16A circuit breaker for overload protection
• Output: C-FORM 240V 16A IP44 panel mount appliance outlet
• Circuit B:

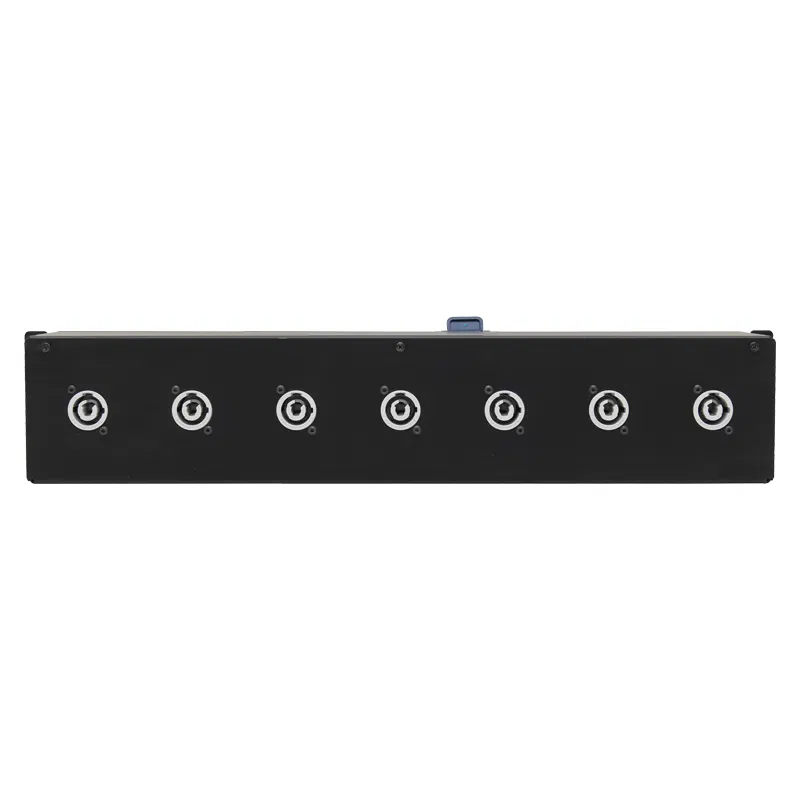

• Output: 8 x Neutrik powerCON with an illuminated circuit breaker for overload protection
• Protection: Illuminated 16A circuit breaker for overload protection
• LCD monitor: LCD power monitor giving voltage, current, power, energy levels and overload alarm
