Description

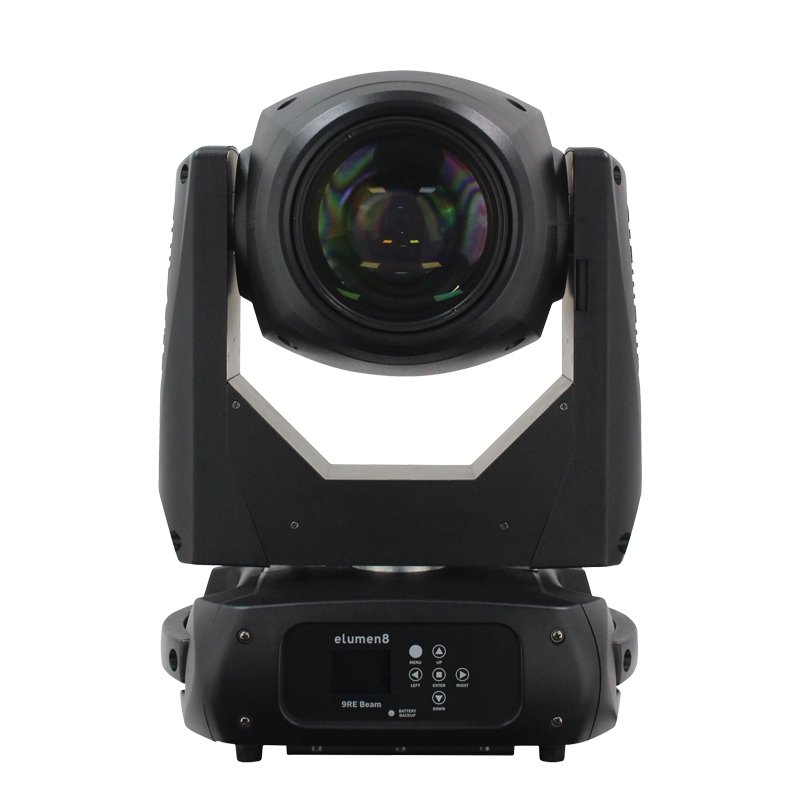

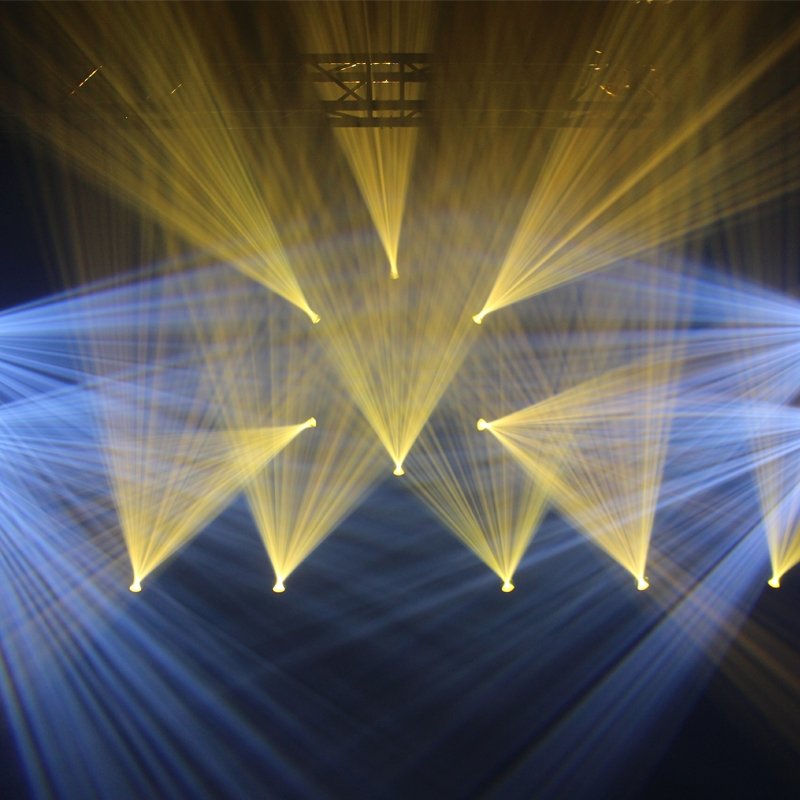

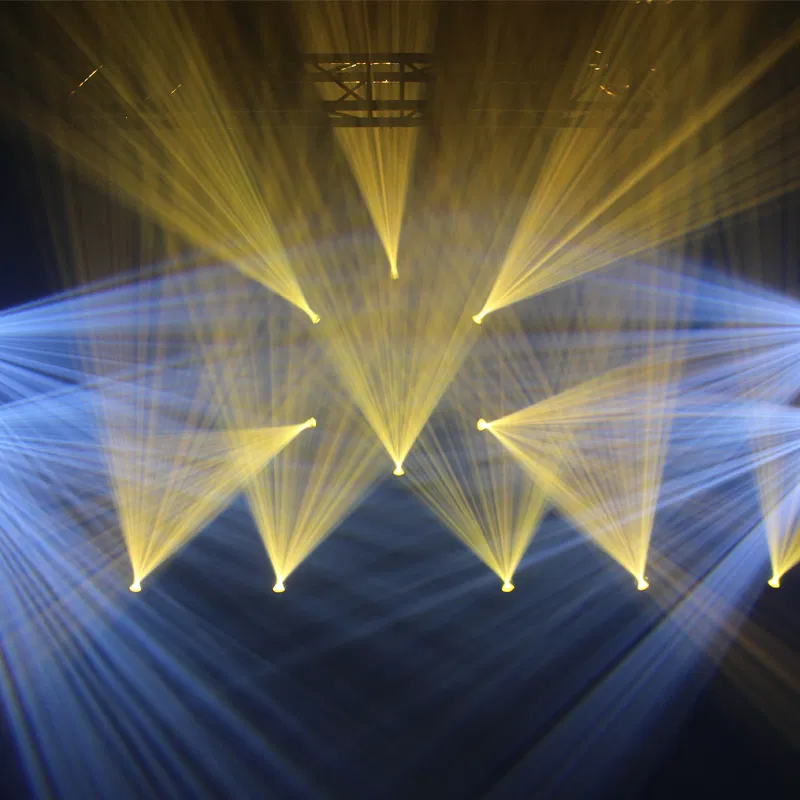

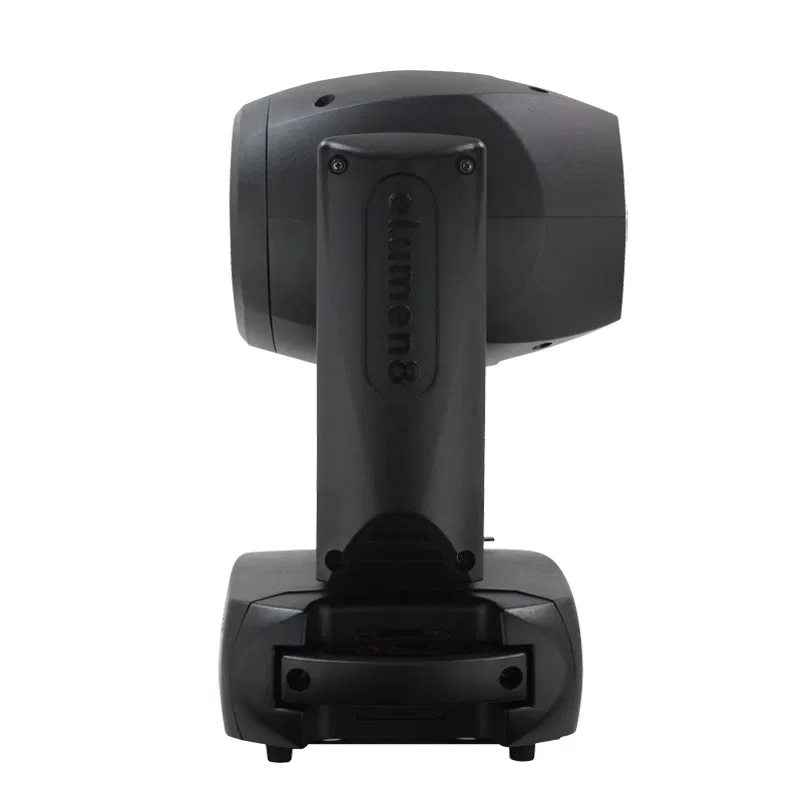

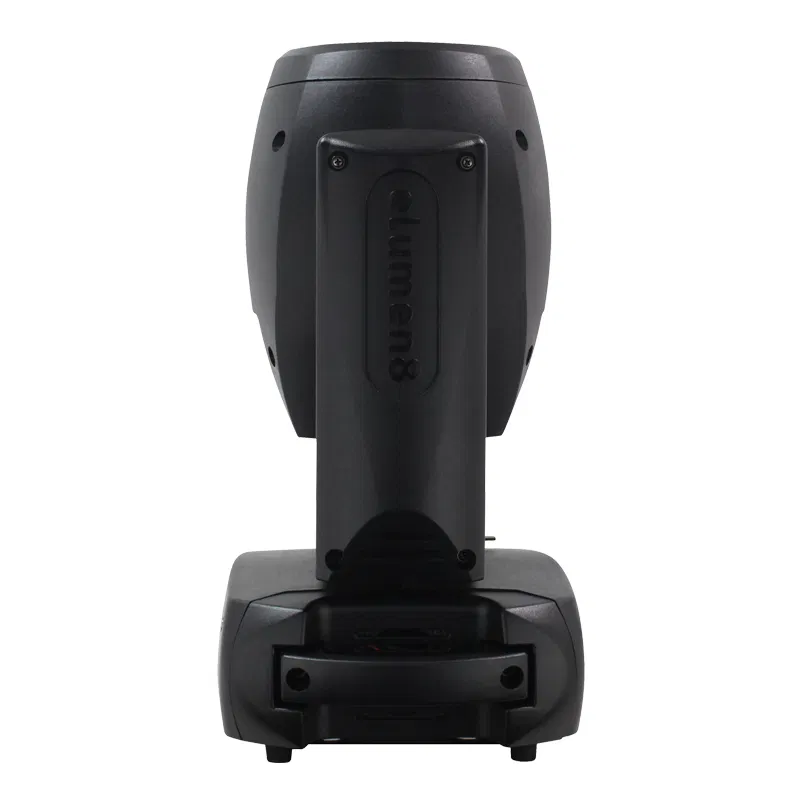

The powerful 9RE Beam allows users to create sharp, well-defined 2.5° beams, powered by an MSD 260R9 (8,000K) discharge lamp.

The fixture not only has superb optics and motorised focus, but it also features 2 prisms that can be used simultaneously, giving the lighting designer or user a host of options to create stunning light shows.

This moving head also features 12 colours (plus 5,600K, 3,200K and open) and 17 fixed gobos (plus open), along with an onboard 6-button menu with 1.8” LCD display, and selectable 16-bit pan and tilt with auto correction.

The 9RE Beam boasts all the fundamental features you would expect from Elumen8, making this a truly ‘event-ready’ fixture.

Features

• 2-year warranty
• YODN MSD 260R9 discharge lamp (8,000K)
• Beam angle: 2.5°
• 201,000 Lux @ 10m
• Motorised focus
• CRI: 75
• 16 facet circular rotating indexable prism plus 4 facet linear rotating indexable prism
• Frost filter (21°)

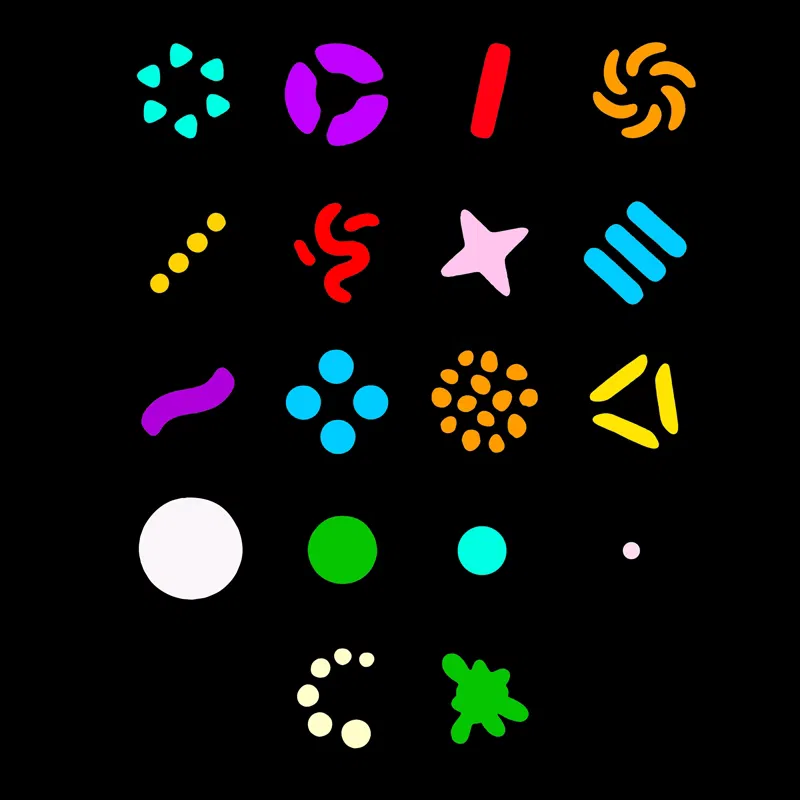

• Gobo wheel: 17 static gobos + open
• Colour wheel: 12 colours + 5,600K + 3,200K + open
• DMX channels: 16 or 18 selectable
• Manual mode
• Pan/tilt transit lock
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Built-in pan/tilt macros
• Pan: 630°, Tilt: 270°
• 0 – 100% dimming
• Variable strobe

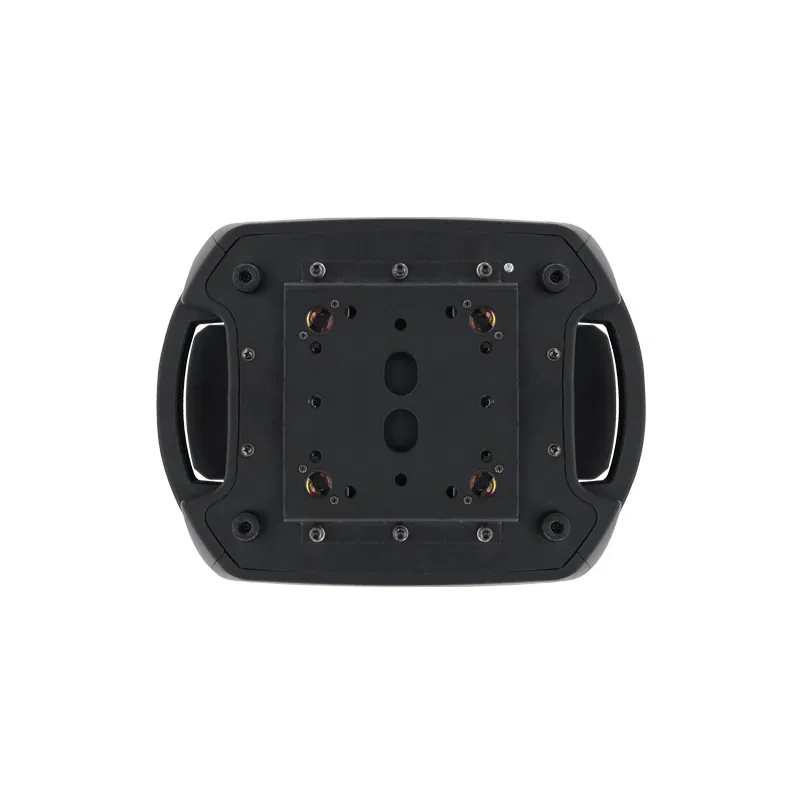

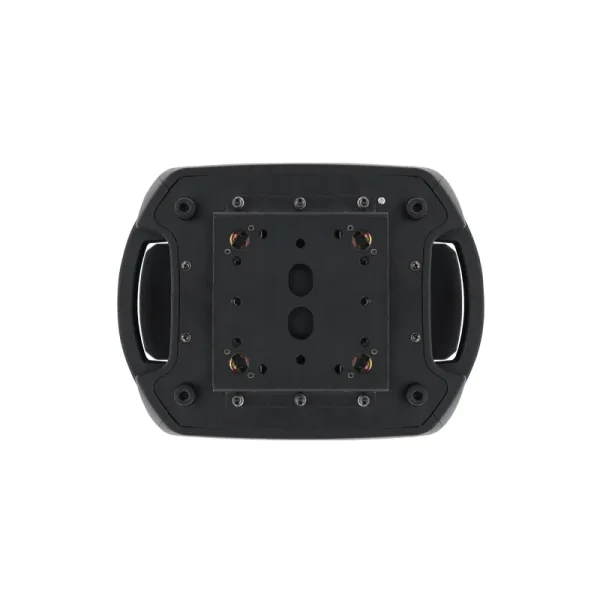

• Quick release omega clamps included

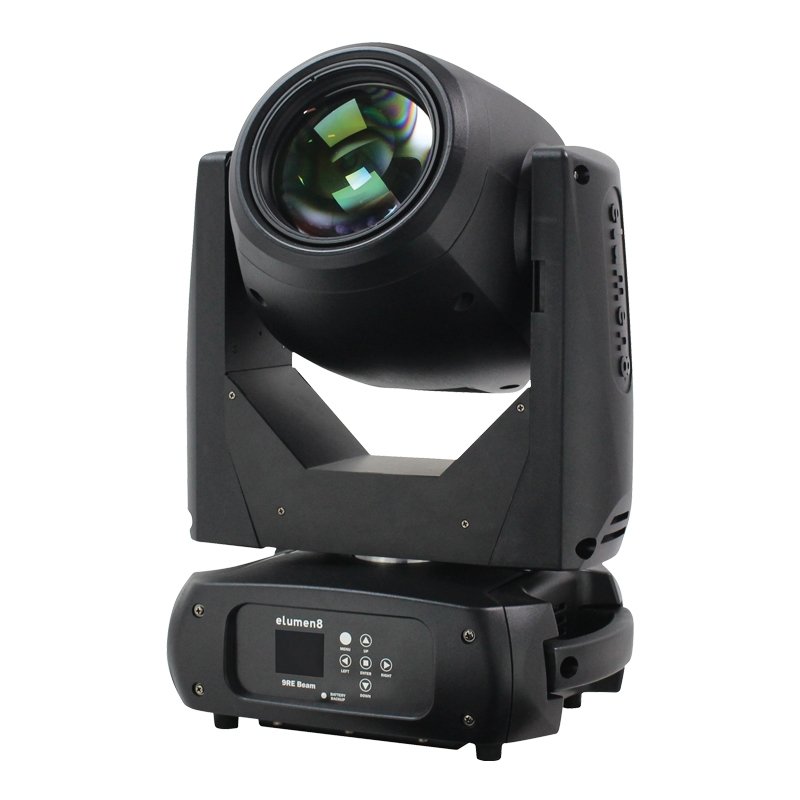

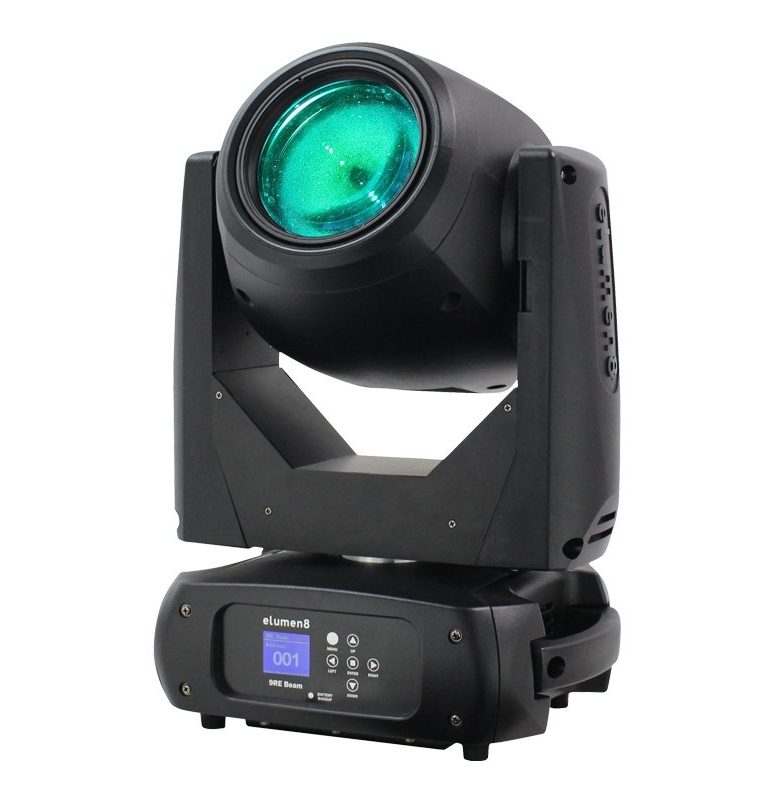

• 6 button menu with 1.8” LCD display
• Display battery backup for offline configuration

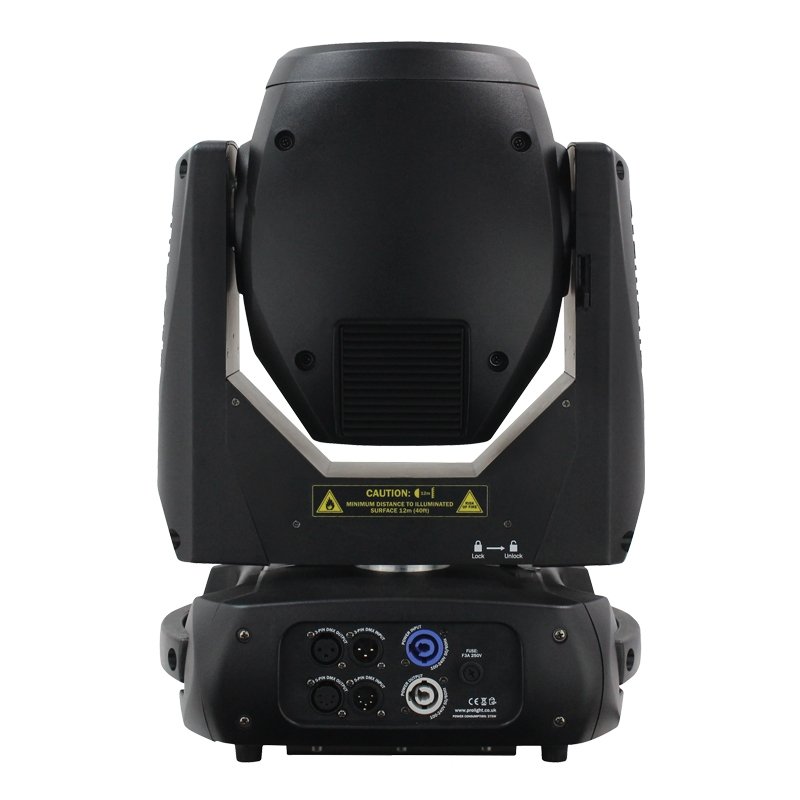

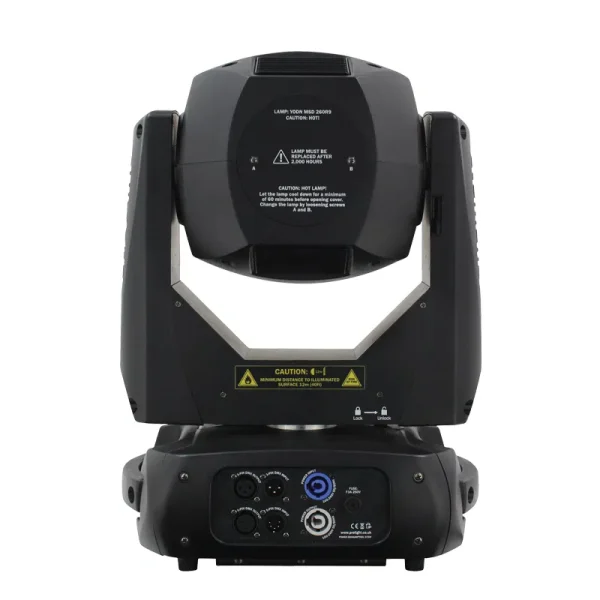

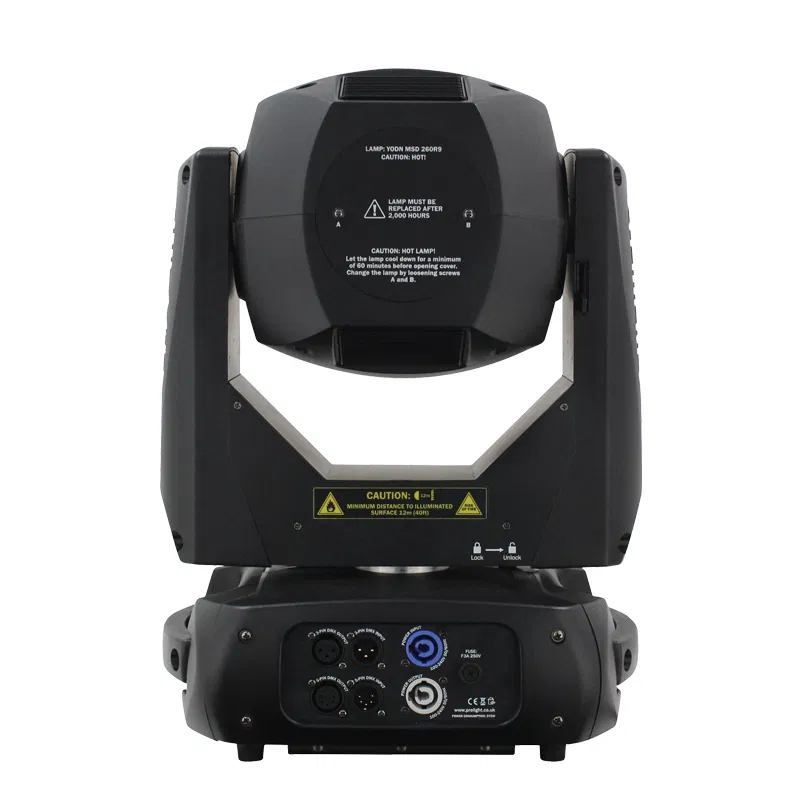

• powerCON input/output
• 3-Pin XLR input/output
• 5-Pin XLR input/output
• Fan cooled

Specifications

• Power consumption: 340W
• Power supply: 100~240V, 50/60Hz
• Fuse: F3A 250V
• Dimensions (H x W x D): 469 x 337 x 243mm
• Weight: 15.6kg
