Description

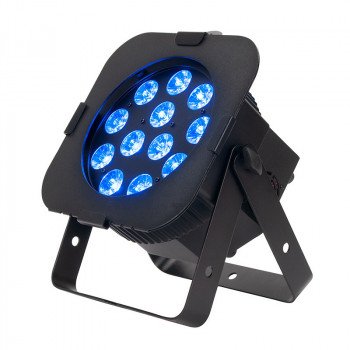

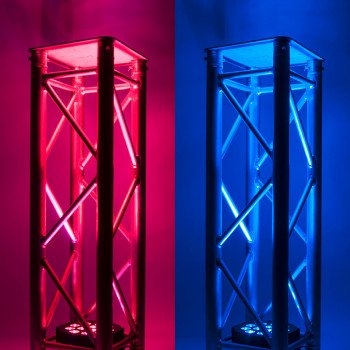

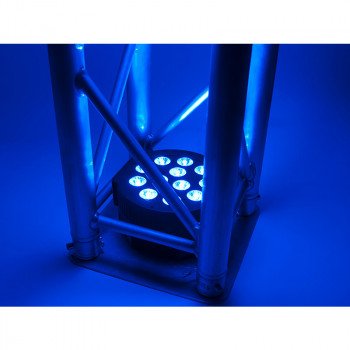

The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for stage lighting, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue, or used as a stage wash.

12PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors

The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit built-in programs.

Features

• 12PX HEX PAR Can
• Versatile LED Par fixture
• 12 x 12-Watt, 6-IN-1 HEX LEDs

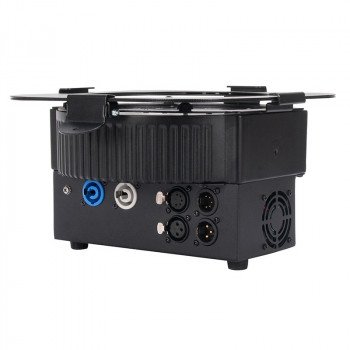

• powerCON In/Out
• 3-pin and 5-pin DMX In/Out
• Compatible with the Dotz Par RF

Specifications

• OPTICAL:
  • Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
  • LED life rated at approximately 50,000 hrs.
  • Beam angle: 30-degree
• CONTROL:

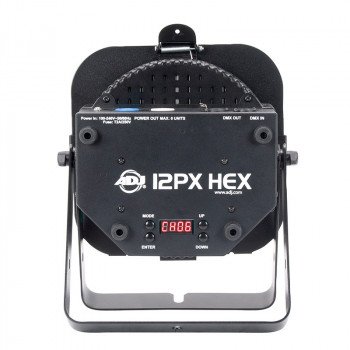

  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • 7 Built-In Programs
  • 63 built-in Colour Macros
  • 4 DMX Modes: 6, 7, 8, & 12 channel
  • 5 Operational modes: Static Colour Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• CONNECTIONS:
  • Data linkable via 3-pin or 5-pin DMX connections
  • Daisy chain power from powerCON In/Out connection
  • With Wired Digital Communication Network
• ELECTRICAL:
  • Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)

Physical & Dimensions

• Height: 297.5mm
• Width: 249mm
• Depth: 136mm
• Weight: 4kgs

What’s in the Box?

• powerCON power cable
• Scissor yoke
• Gel frame to use with diffusion filters (Diffusion filters sold separately)
