Description

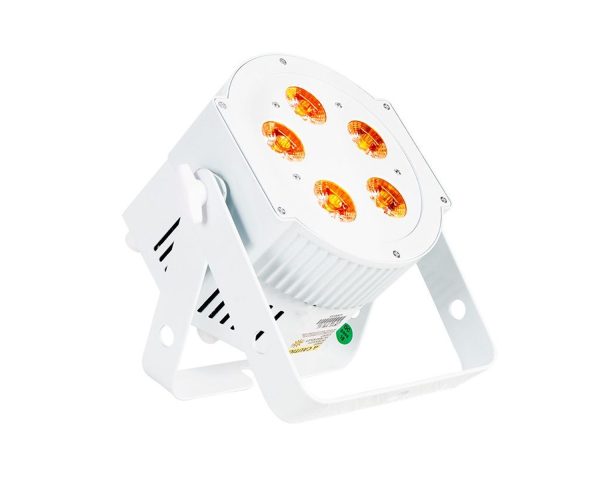

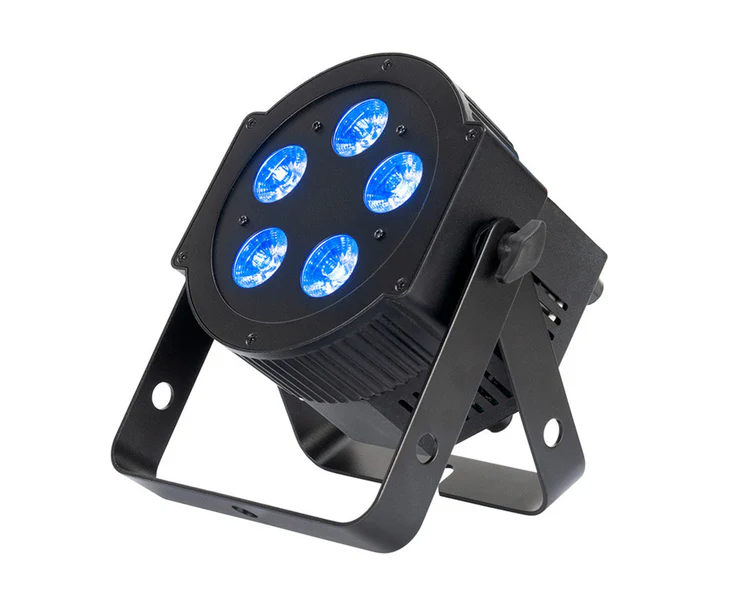

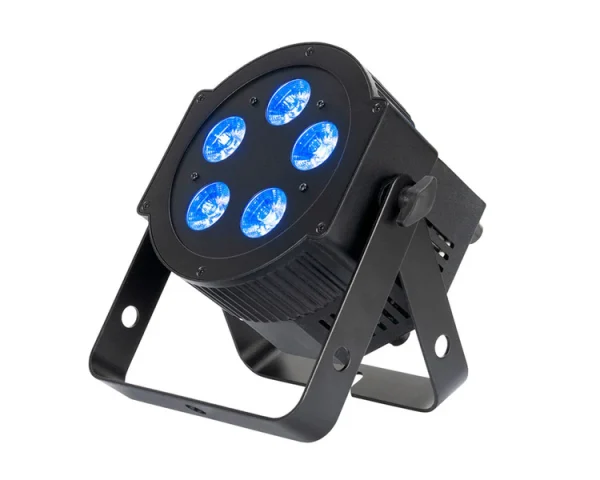

5PX HEX PAR LED Fixture 5x 12W 6-in-1 HEX LEDS inc UV

5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in powerCON In/Out power connectors. Users may choose 3-pin or 5-pin DMX connectors

The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote. Alternatively, the fixture may be operated via a DMX controller or the unit’s built-in programs.

Features

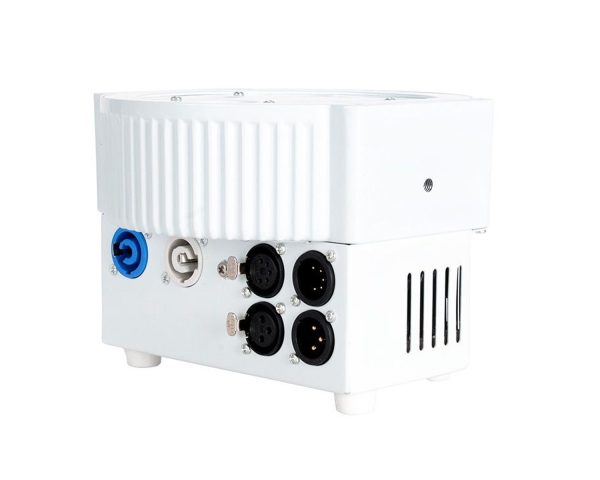

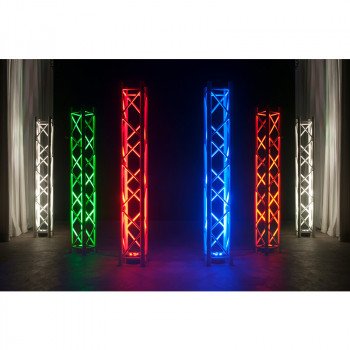

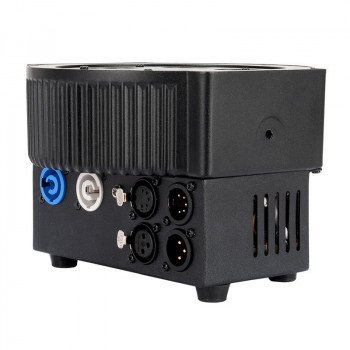

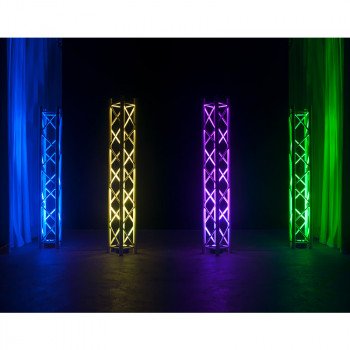

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

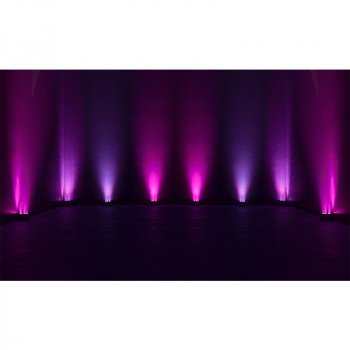

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV colour mixing
• All metal black exterior housing

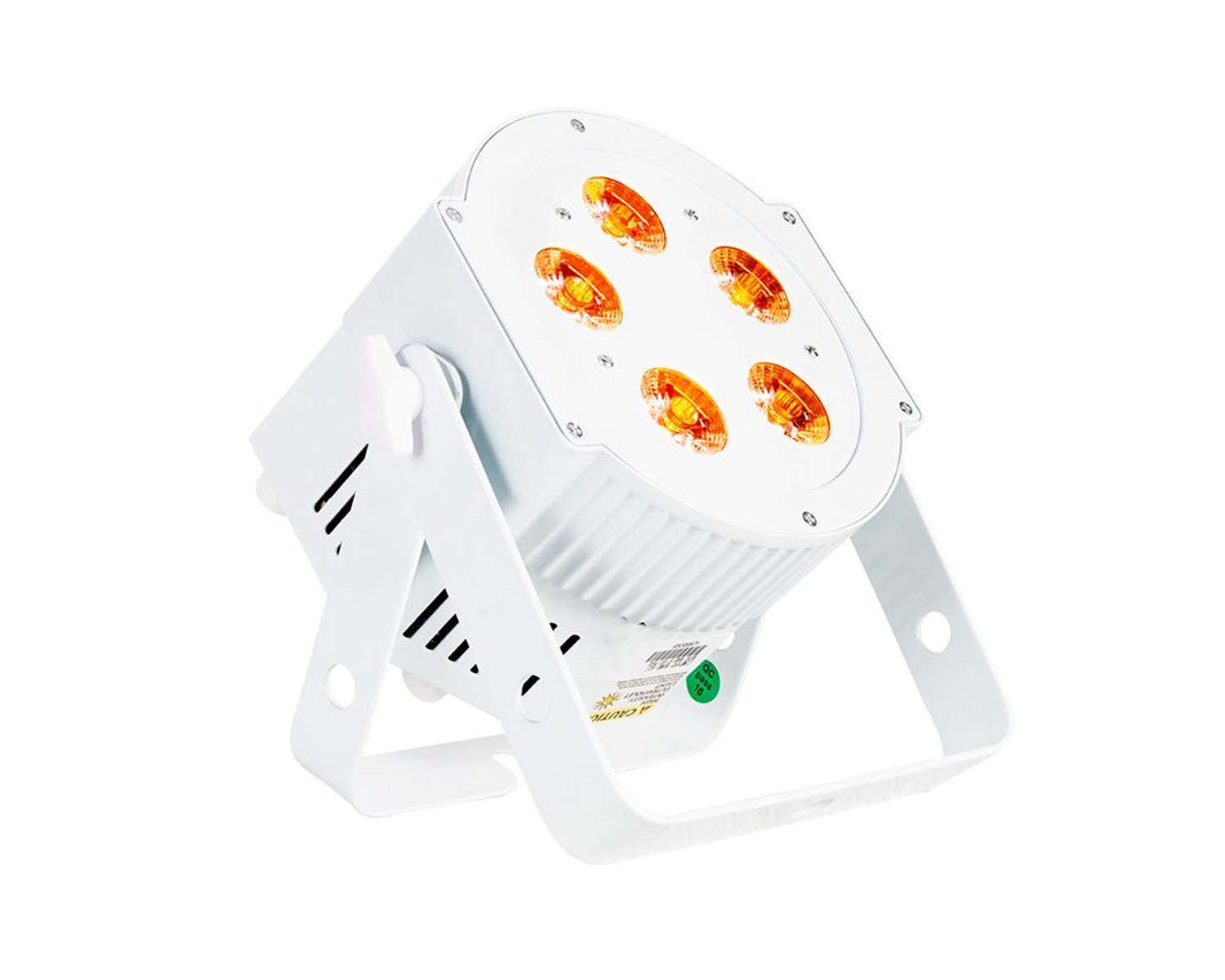

• Colour: Black or White

Specifications

• OPTICAL:
  • Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
  • LED life rated at approximately 50,000 hrs.
  • Beam angle: 30-degree
• CONTROL:

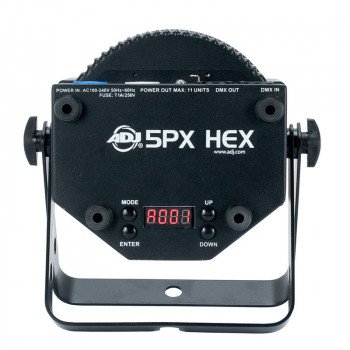

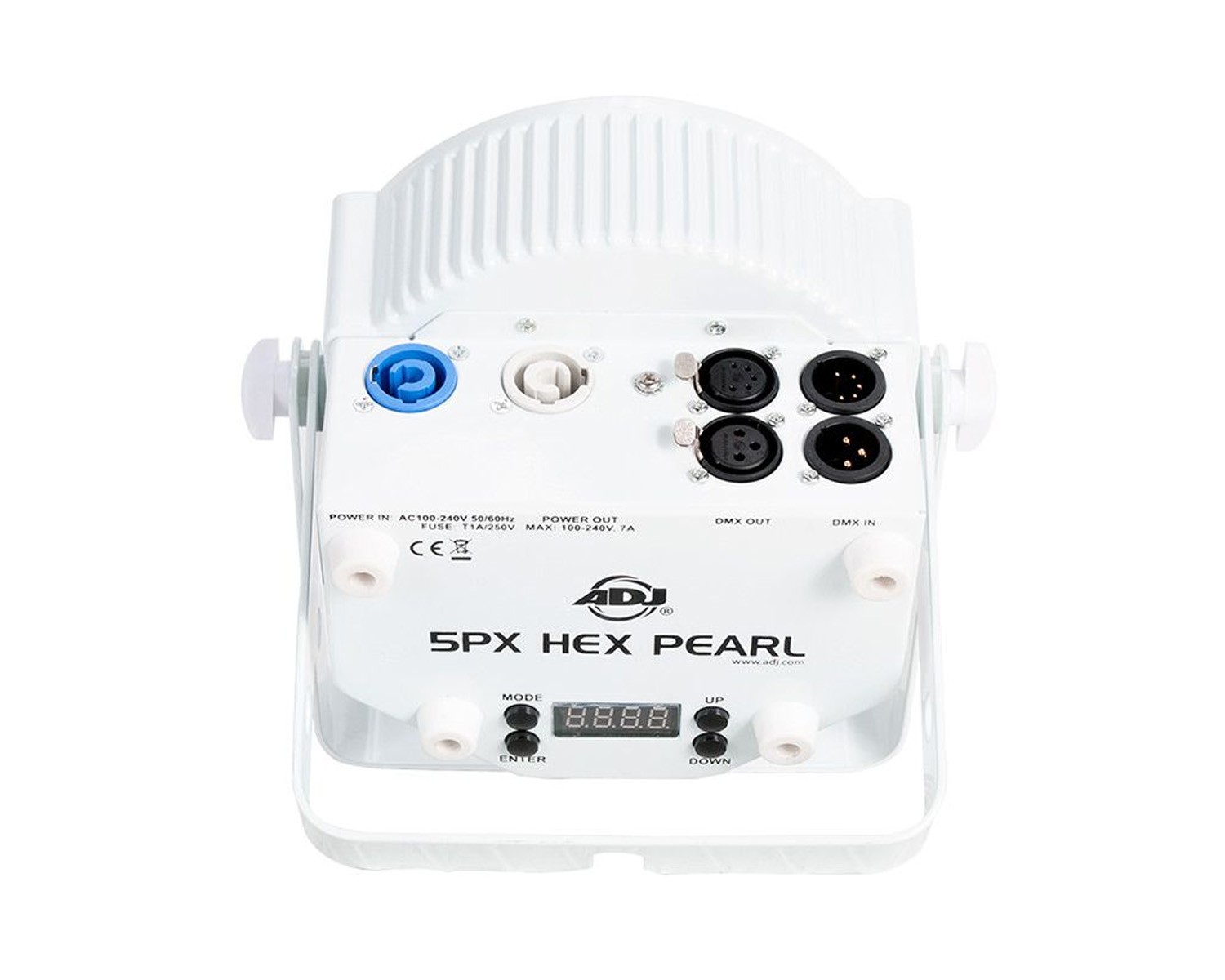

  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • 7 Built-In Programs
  • 63 built-in Colour Macros
  • 4 DMX Modes: 6, 7, 8, & 12 channel
  • 5 Operational modes: Static Colour Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 – 100%
• CONNECTIONS:
  • Data linkable via 3-pin or 5-pin DMX connections
  • Daisy chain power from powerCON In/Out connection
  • With Wired Digital Communication Network
• ELECTRICAL:
  • Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON In/Out)

Physical & Dimensions

• Height: 114mm
• Width: 208mm
• Length: 222mm
• Weight: 2.6 kgs
