Description

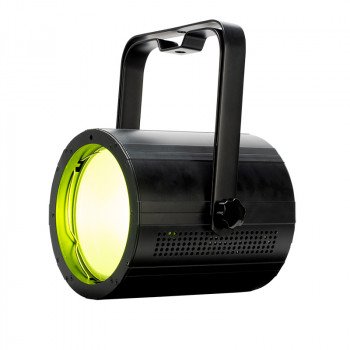

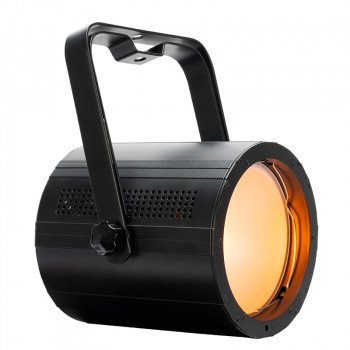

ADJ COB Cannon ST LP200 200W RGBAL LED Wash Light Black

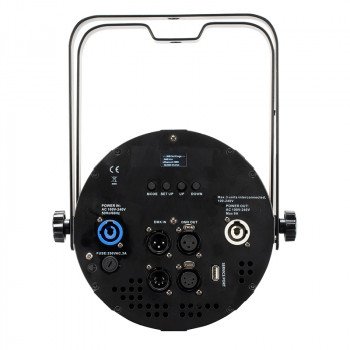

Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant coloured light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, both 3-pin and 5-pin DMX input and output sockets are included on the unit’s rear panel.

There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory.

Features

• Primary / Secondary Mode
• Flicker Free operation (No flickering on camera)
• Produces powerful, smooth RGBAL colour mixing with rich palettes of colour
• Scissor yoke allows fixture to be mounted on truss or set on the ground
• Locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet
• The inclusion of the lime LED chip helps certain colours to appear more vivid and also boosts the CRI to in excess of 90
• Optional Barn Doors (BAR001) sold separately

Specifications

Optical

• Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
• LED Engine Life Rating: Approximately 50,000 hrs.
• CRI: >90
• Colour Temperature: 2300~9900K
• 80-degree beam angle
• Includes lens kit to change to 40-degrees or 50-degrees beam angle

Control

• 10 DMX Channel modes (5, 8, 9, 10Ch-A, 10CH-B, 11, 12, 14, 17 and 21CH)
• Linear colour temperature control via DMX
• Built-in colour temperature presets accessible via DMX
• 64 built-in colour macros
• 4-button OLED digital DMX display on rear panel
• Compatible with the ADJ UC IR remote control (included)
• LED pulse and strobe effect
• Electronic Dimming: 0 – 100%
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)
• 4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
• Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)

Connections

• 3-pin & 5-pin XLR connectors for DMX data linking
• Indoor locking power In & Out connections to daisy chain power
• USB Service Port

Electrical

• Auto sensing power supply: AC 100V/60Hz – 240V/50Hz
• Power Draw: 175W max
• Daisy chain up to 7 fixtures (120V) or 14 fixtures (230V) maximum

Dimensions / Weight

• Dimensions (LxWxH):
  • (with bracket): 13” x 10” x 7.5” / 330x256x190mm
  • (without bracket): 8.75” x 7.5” x 7.5” / 218.5x190x190mm
• Weight: 9.26 lbs. / 4.2 kg.

What’s in the Box?

• (1) 50-degree lens
• (1) 40-degree lens
• UC IR Wireless Remote
• Power Cord
• Scissor Yoke
