Description

With individual pixel control, built-in foreground and background LED programs, and a variable white colour temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its colour-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-rated housing, OLED digital display, L Track system, and adjustable feet make installation and customisation a breeze. The fixture’s control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65 rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

Features

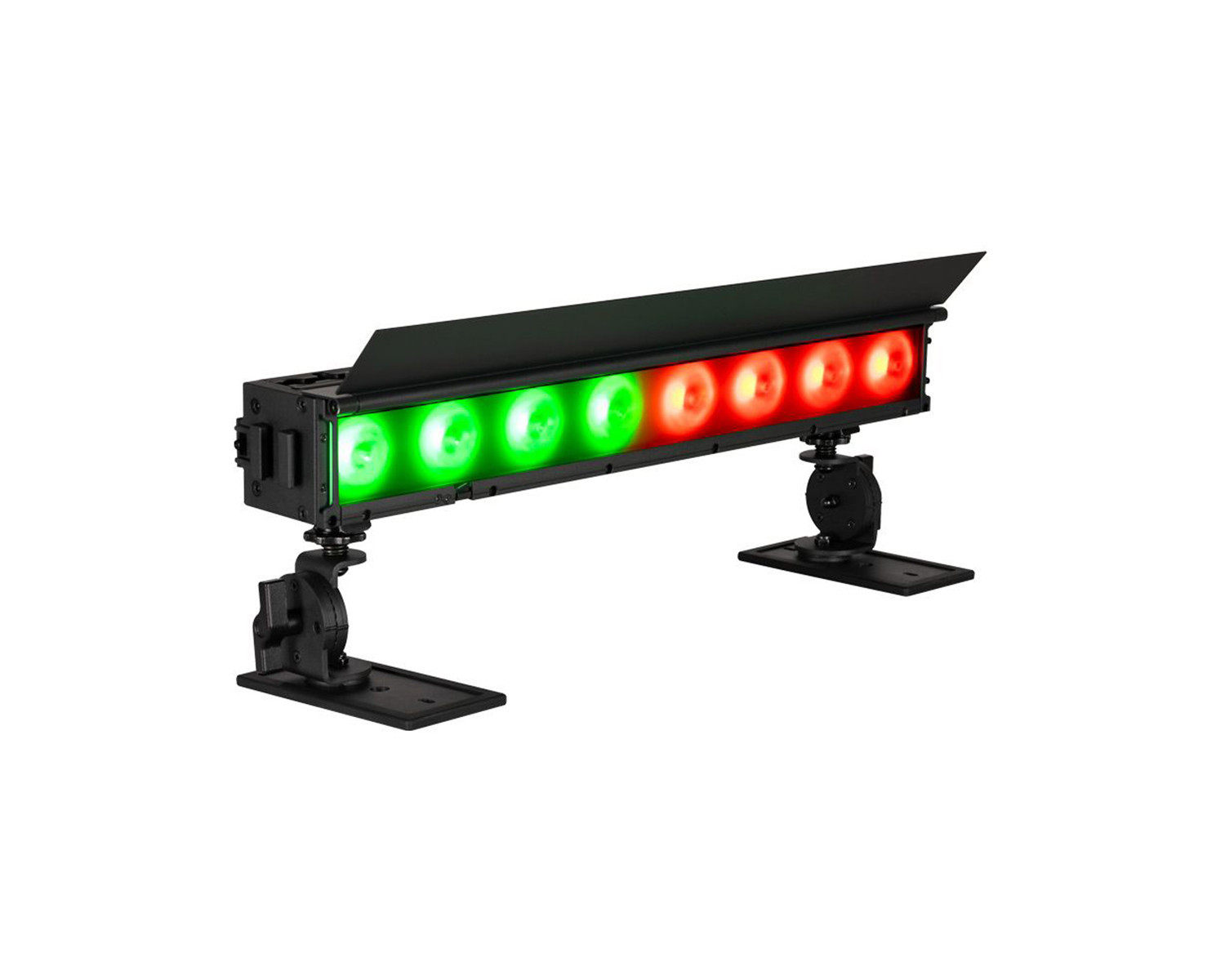

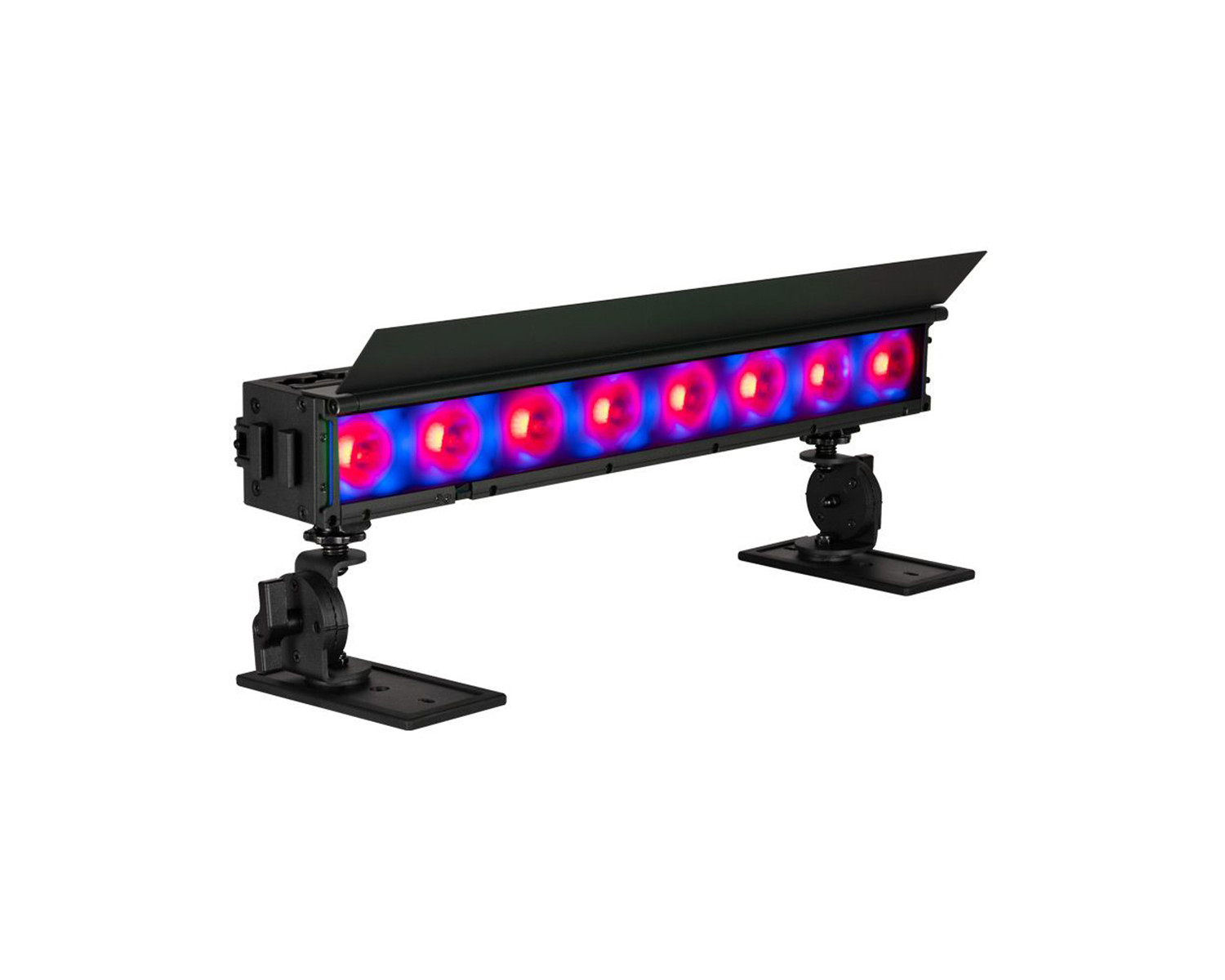

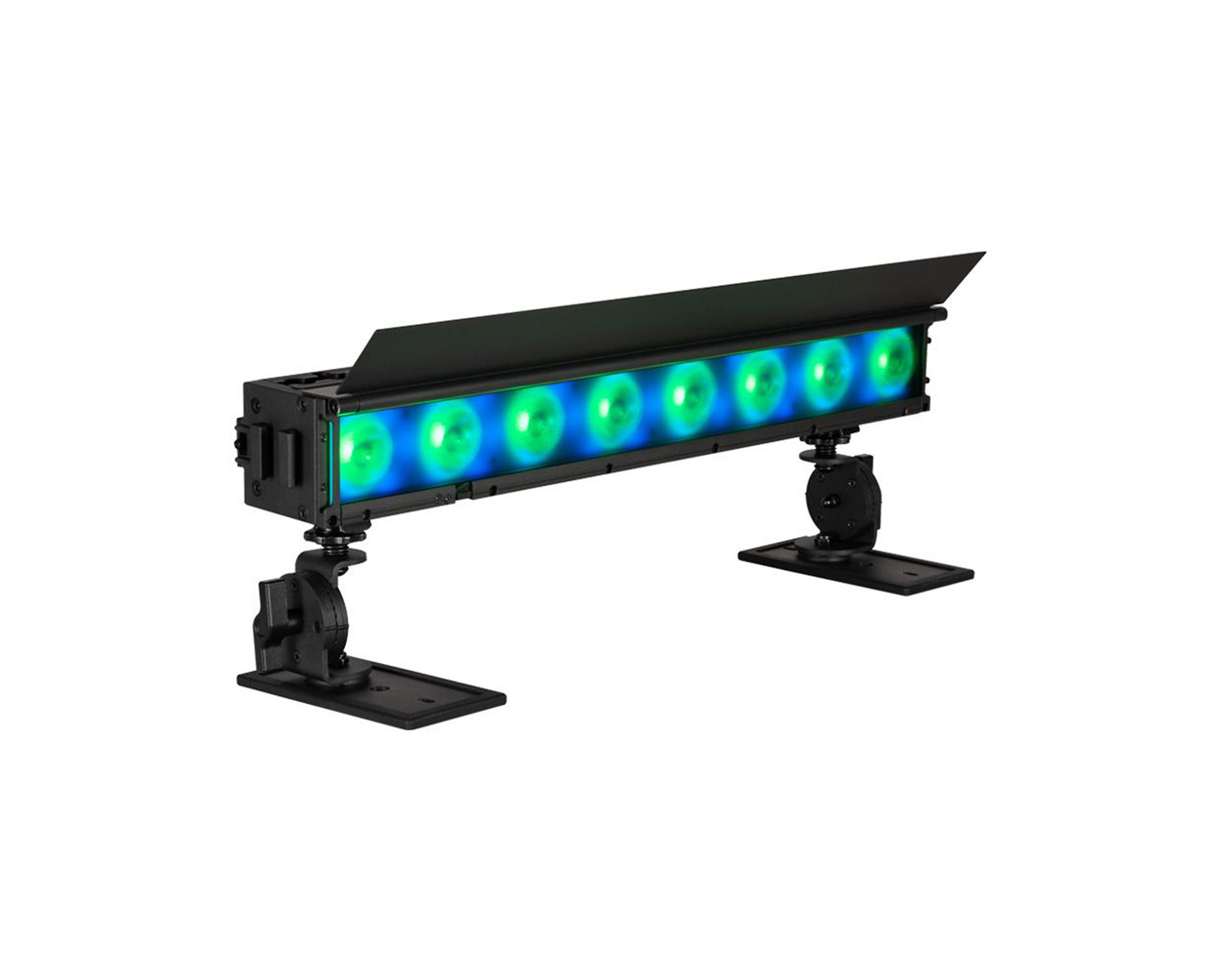

• 8 Pixel, Hex Colour LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• 5-Hour Standard Battery Operation and 10-Hour Saver Battery Operation (Menu Option)

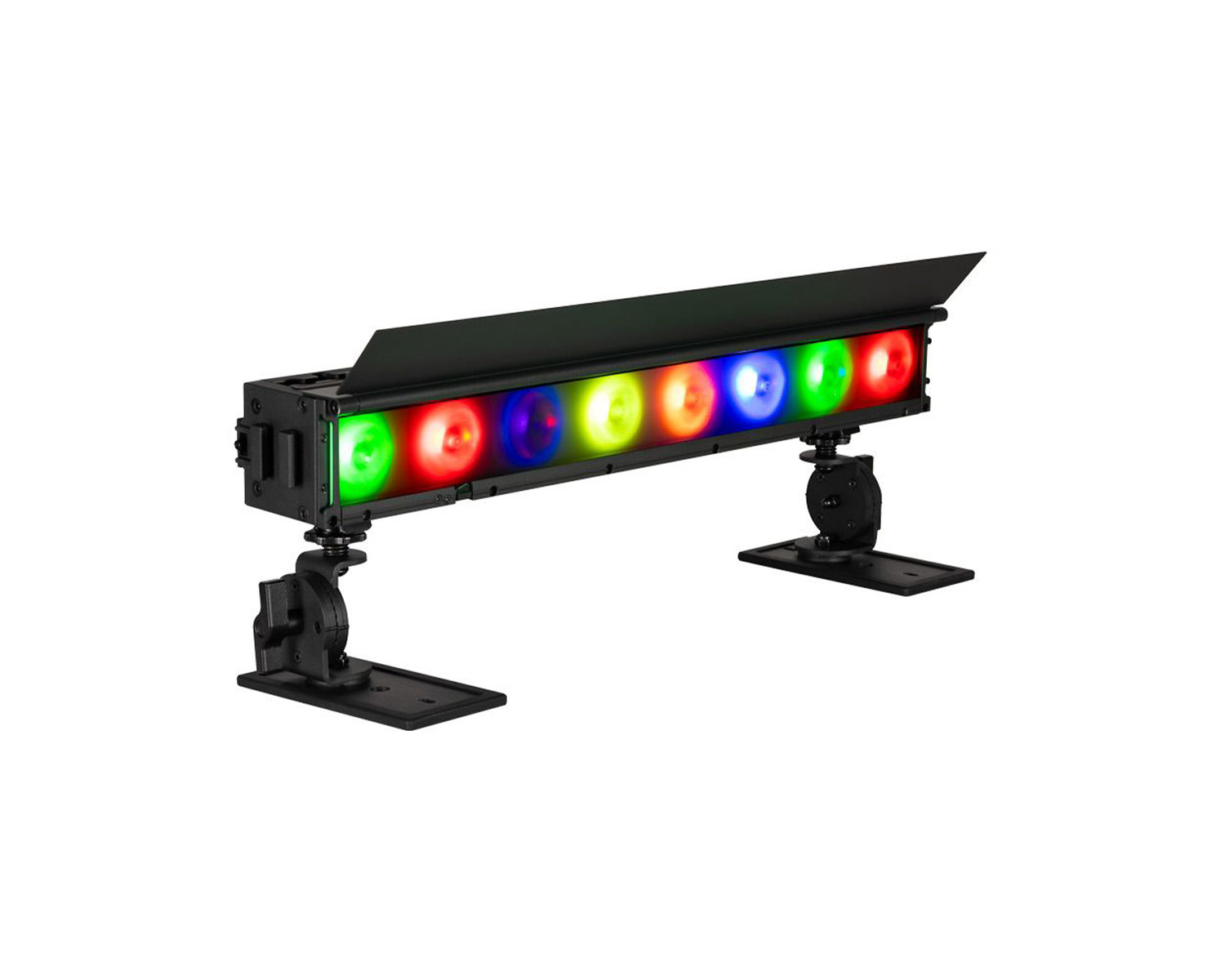

• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Colour Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Colour Calibrated LED’s
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Source

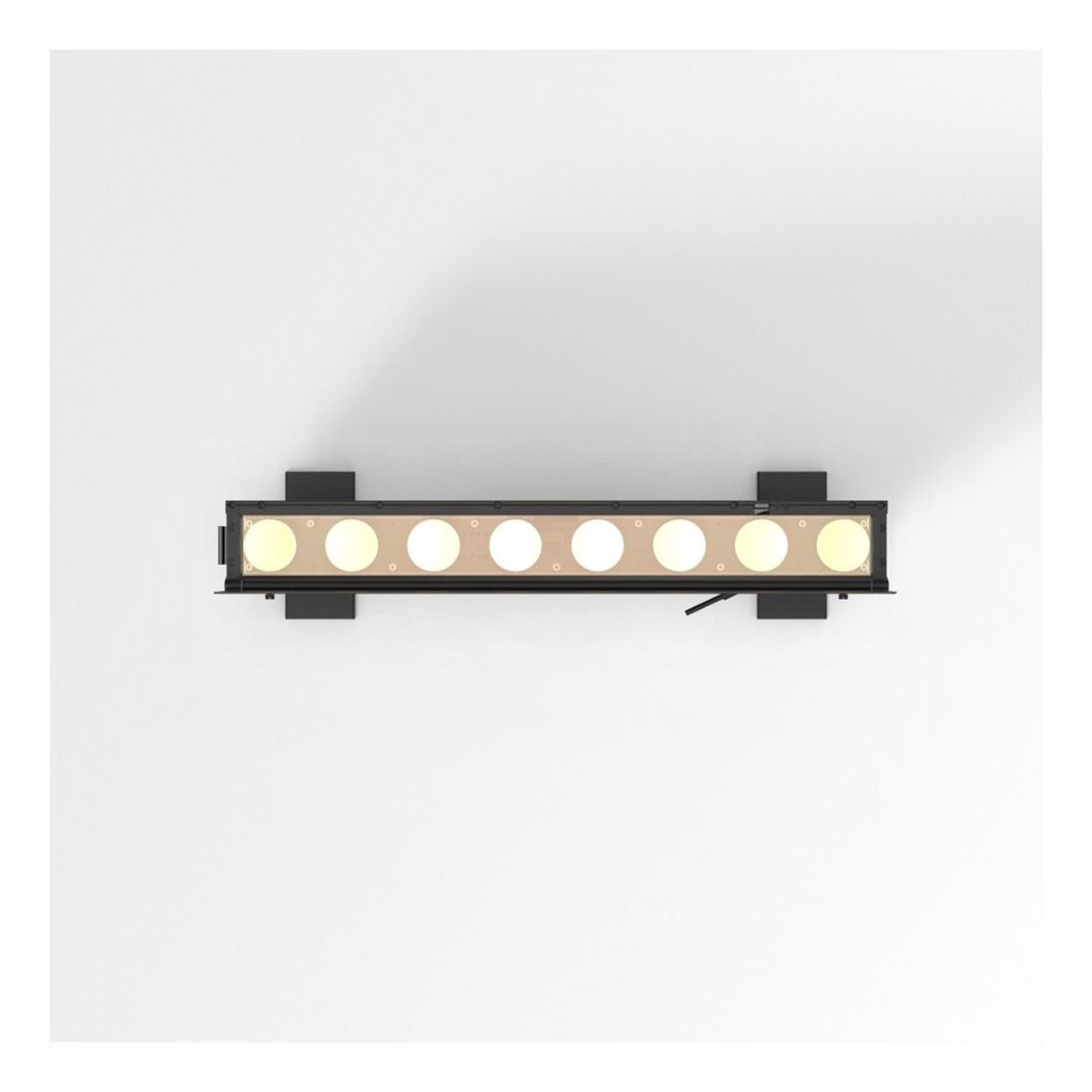

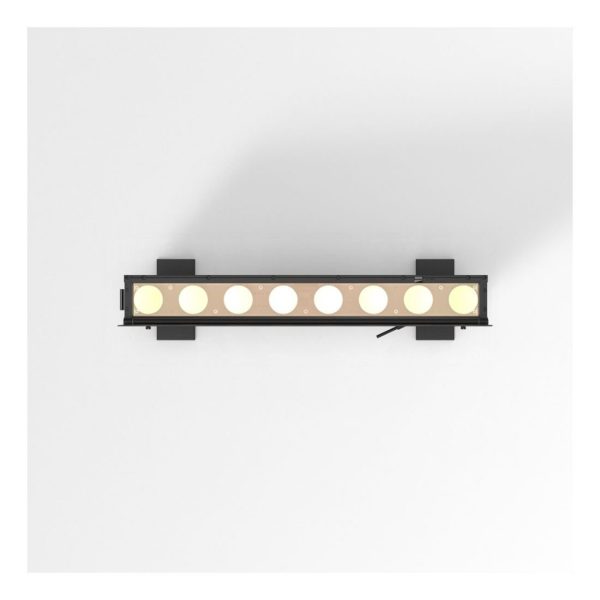

• (8) 20W Hex Colour RGBAL+UV Foreground LED’s
• (32) 0.2W RGB Background LED’s
• 50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical

• 2,300K ~ 9,900K White Colour Temperature Range
• 17° Beam Angle
• 45mm Lens Diameter x8

Physical

• IP65 Housing

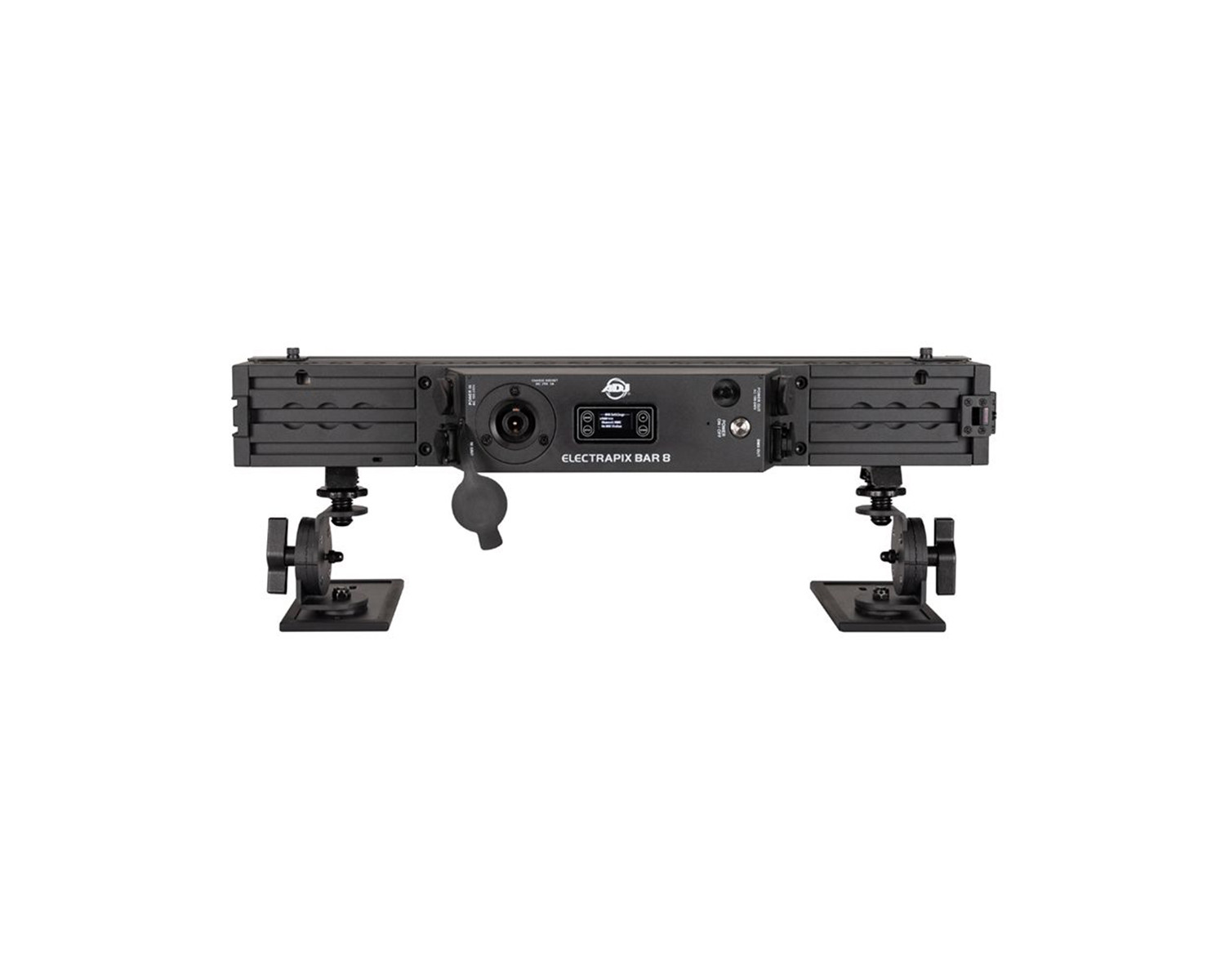

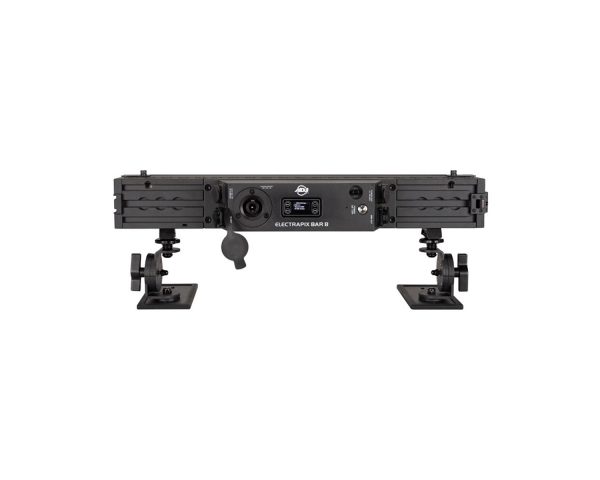

• OLED Digital display

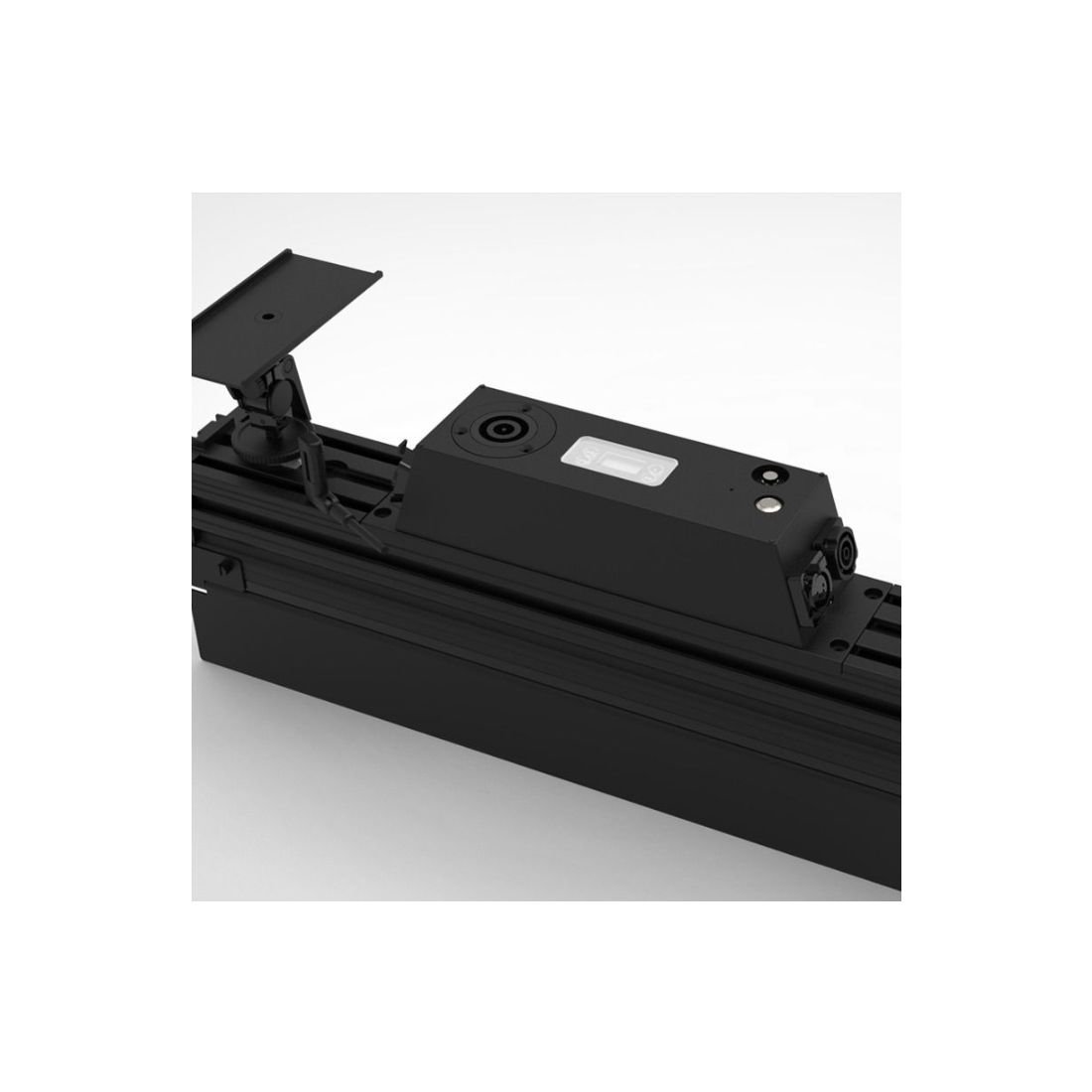

• L Track system for locking accessories / rigging

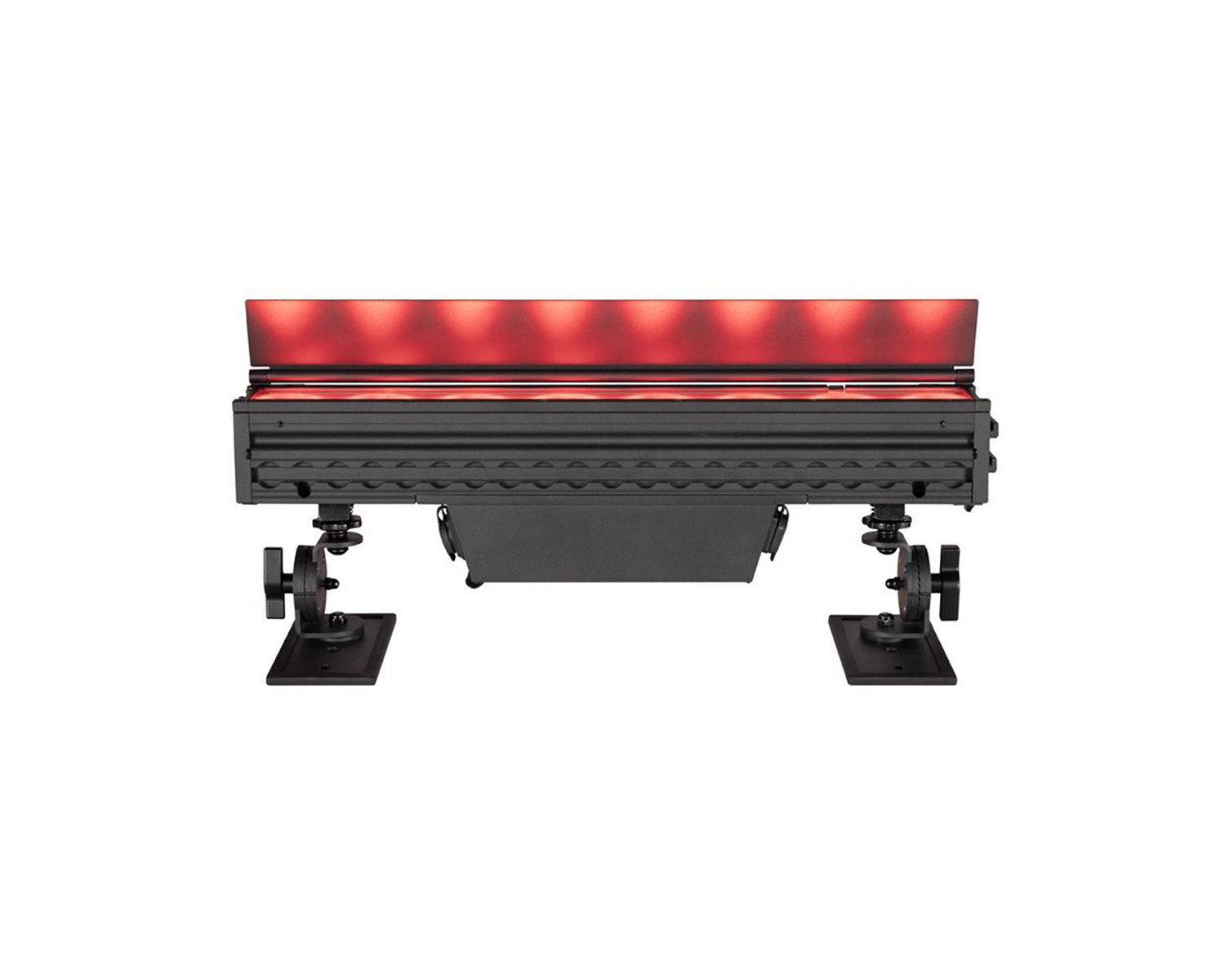

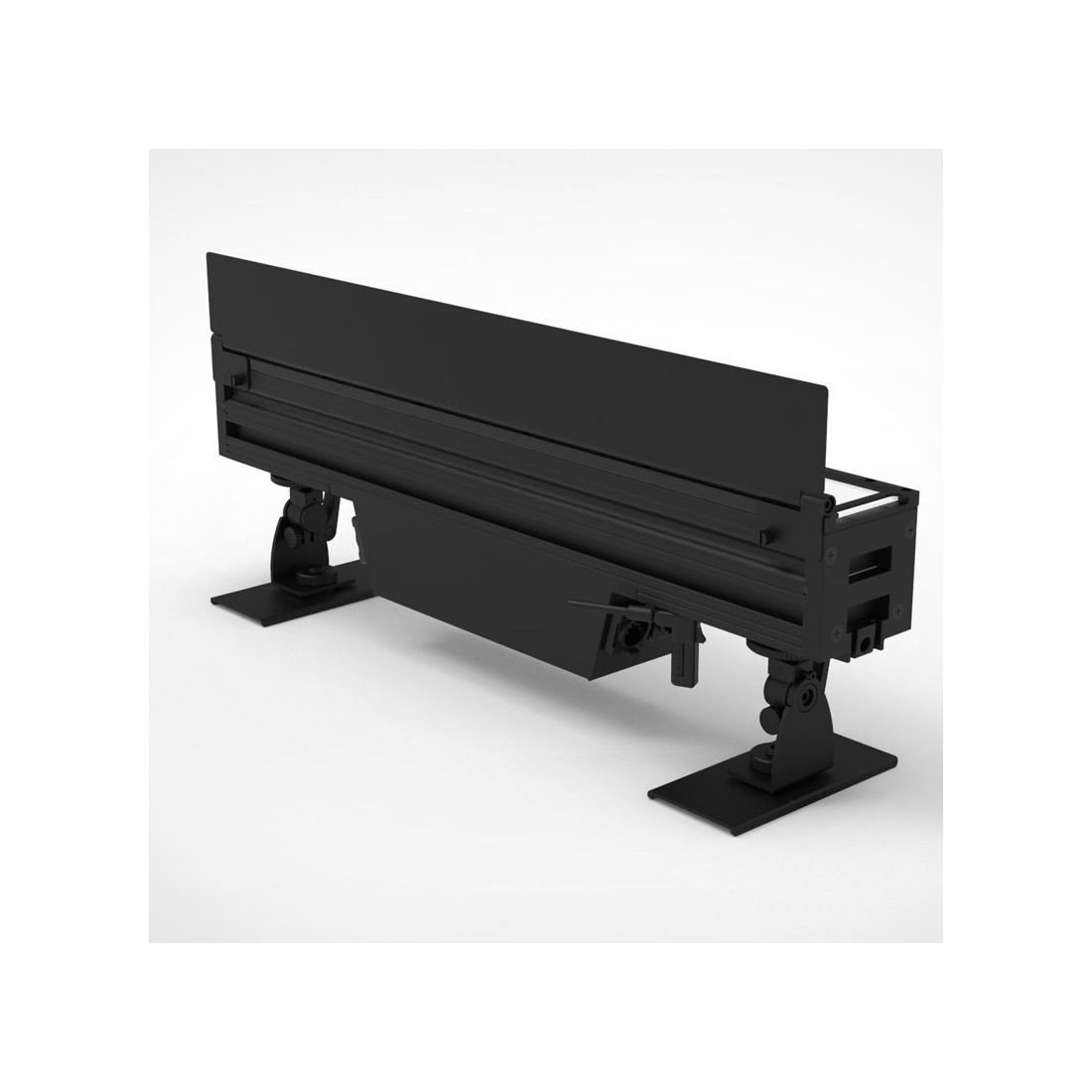

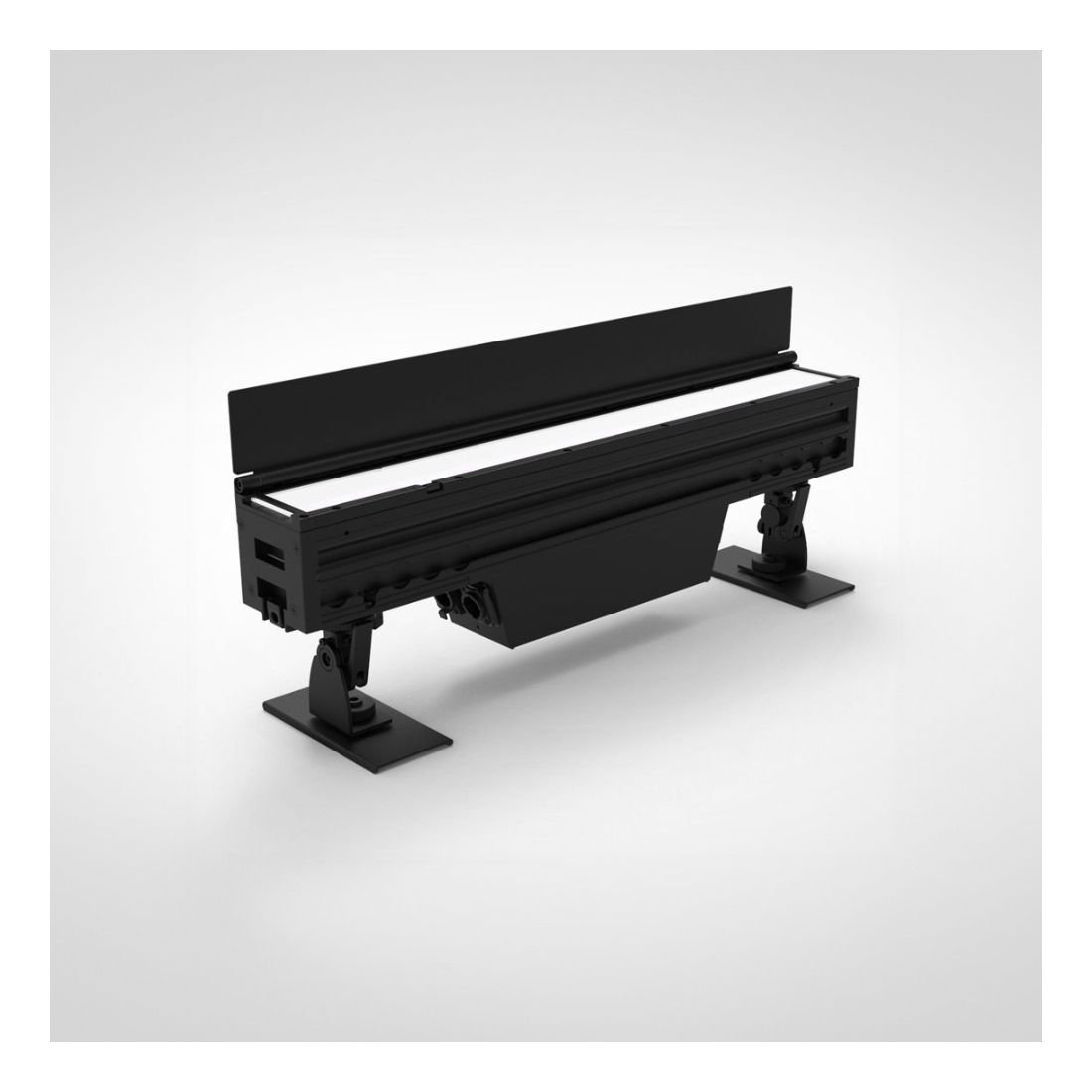

• Glare Shield
• Diffusion Filter slot

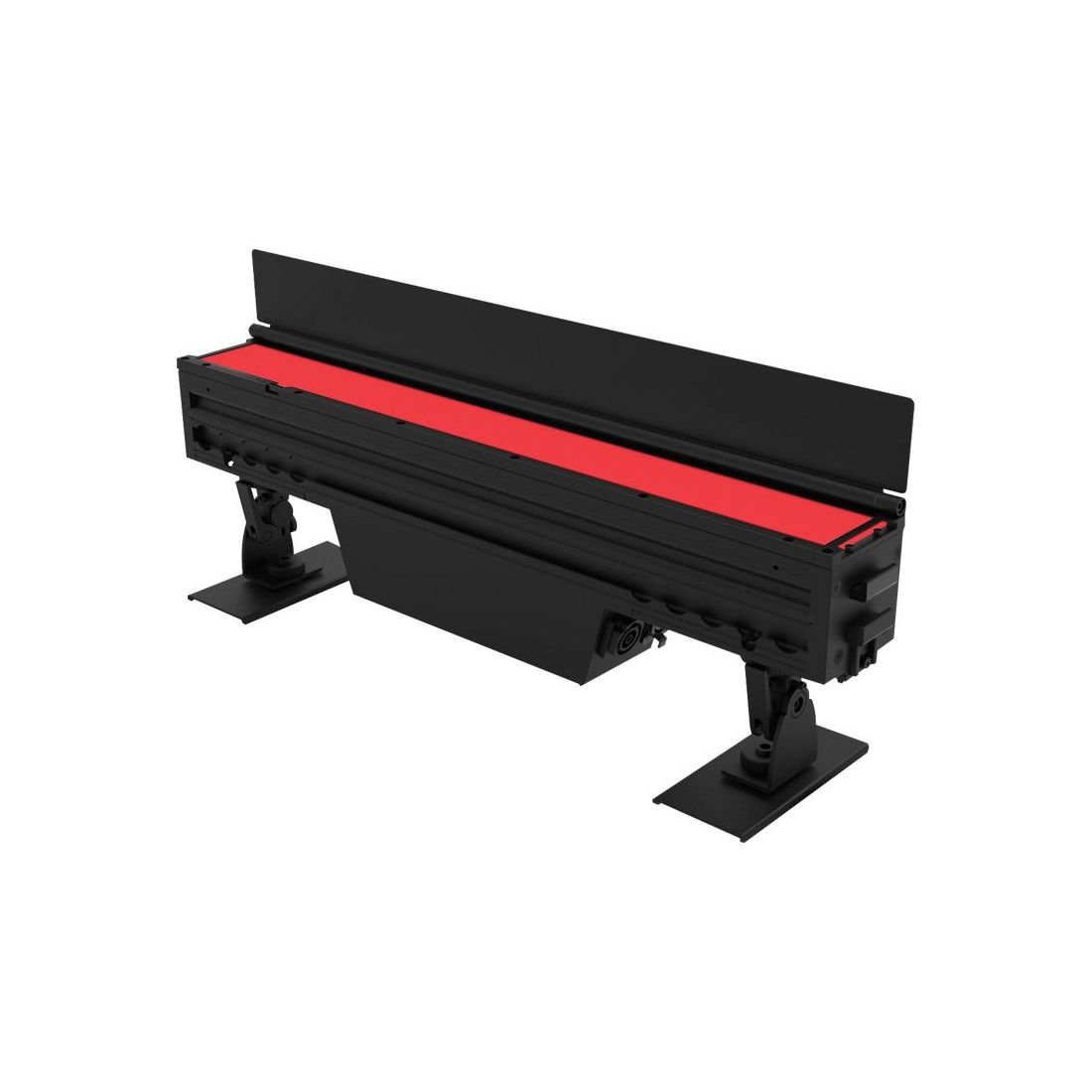

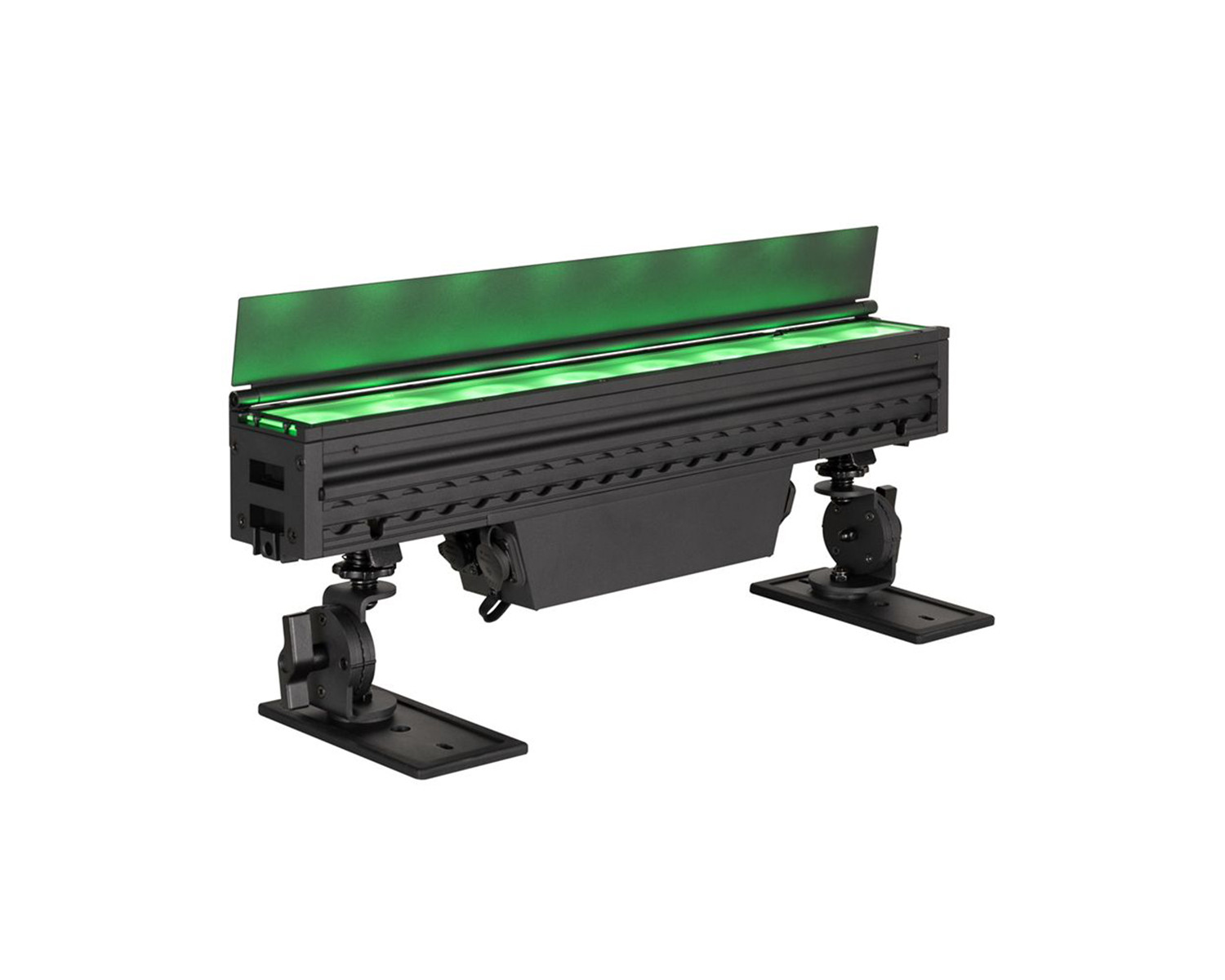

• Angle adjustable feet
• Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16

Control

• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (4) DMX Channel Modes (5, 6, 9,13, 21, 24, 48, 52 & 66 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

Connections

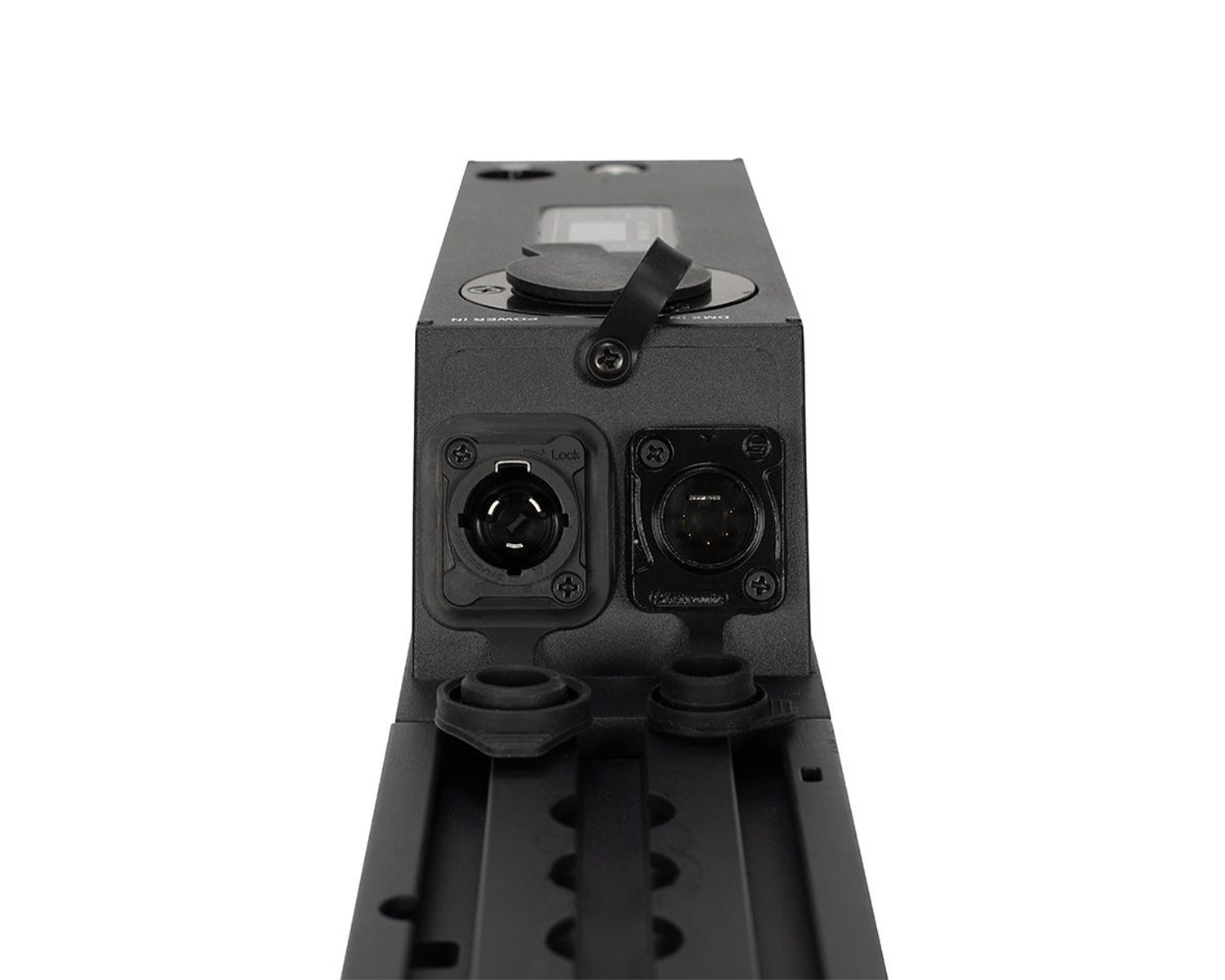

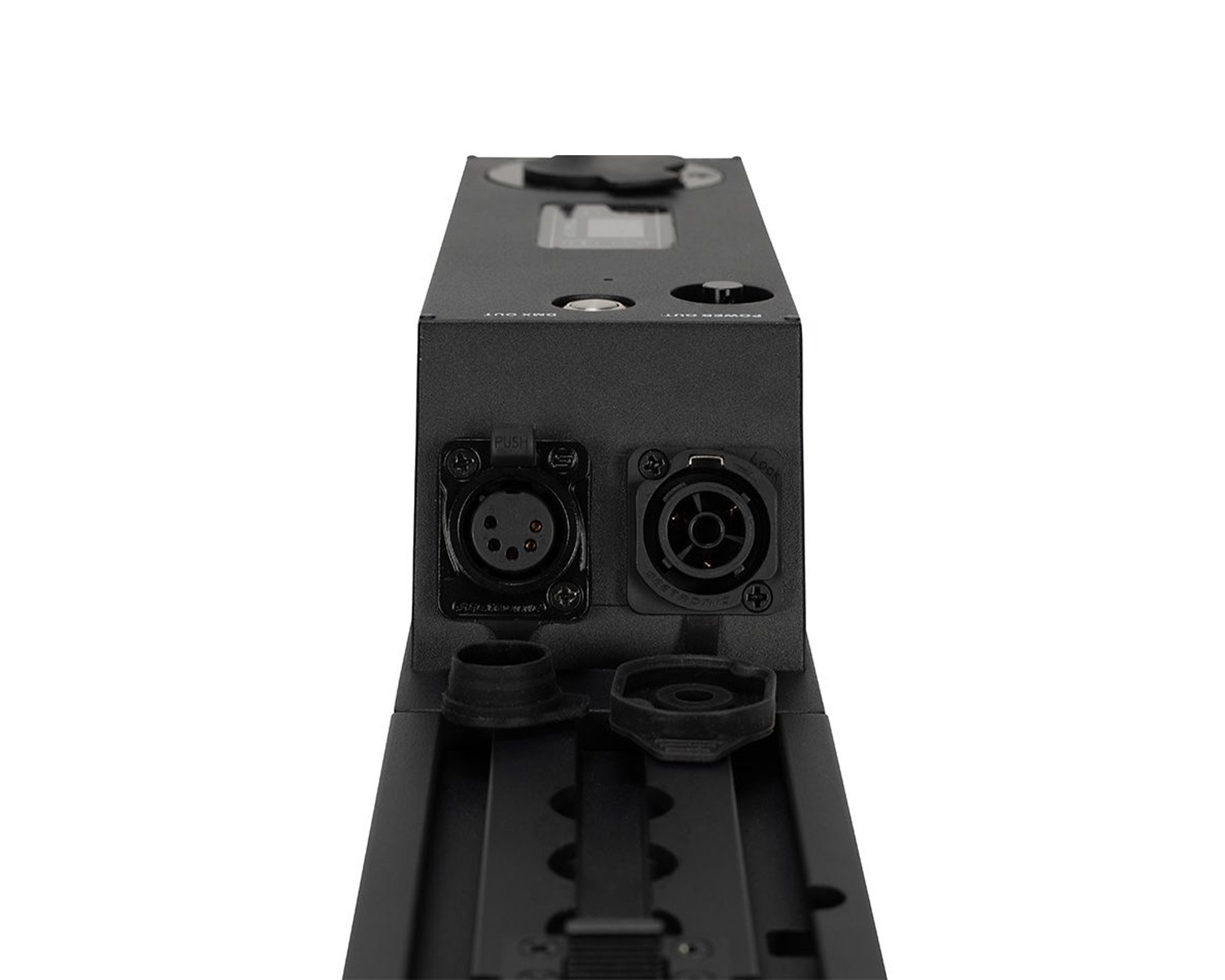

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Dimensions

• Dimensions (LxWxH): 590.3 x 85.7 x 191.2mm
• Weight: 8 kg

Power

• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 28 pieces @ 230VAC

Battery

• Rechargeable Lithium ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
• Battery Cycles: 500

Thermal

• Ambient Operational Temperature: -20°C to 45°C
• Storage Temperature: -30°C to 45°C

Certifications & IP Rating

• CE
• cETLus (Pending)
• FCC
• IP65

Included Accessories

• (1) Outdoor Locking Power Cable
• (1) UCIR24 Remote
• (1) 20° Diffusion Filter

Optional Accessories

• ElectraPix Bar FB
• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)

Downloads

• adj_electrapix_bar_8_-_user_manual_2.pdf
