Description

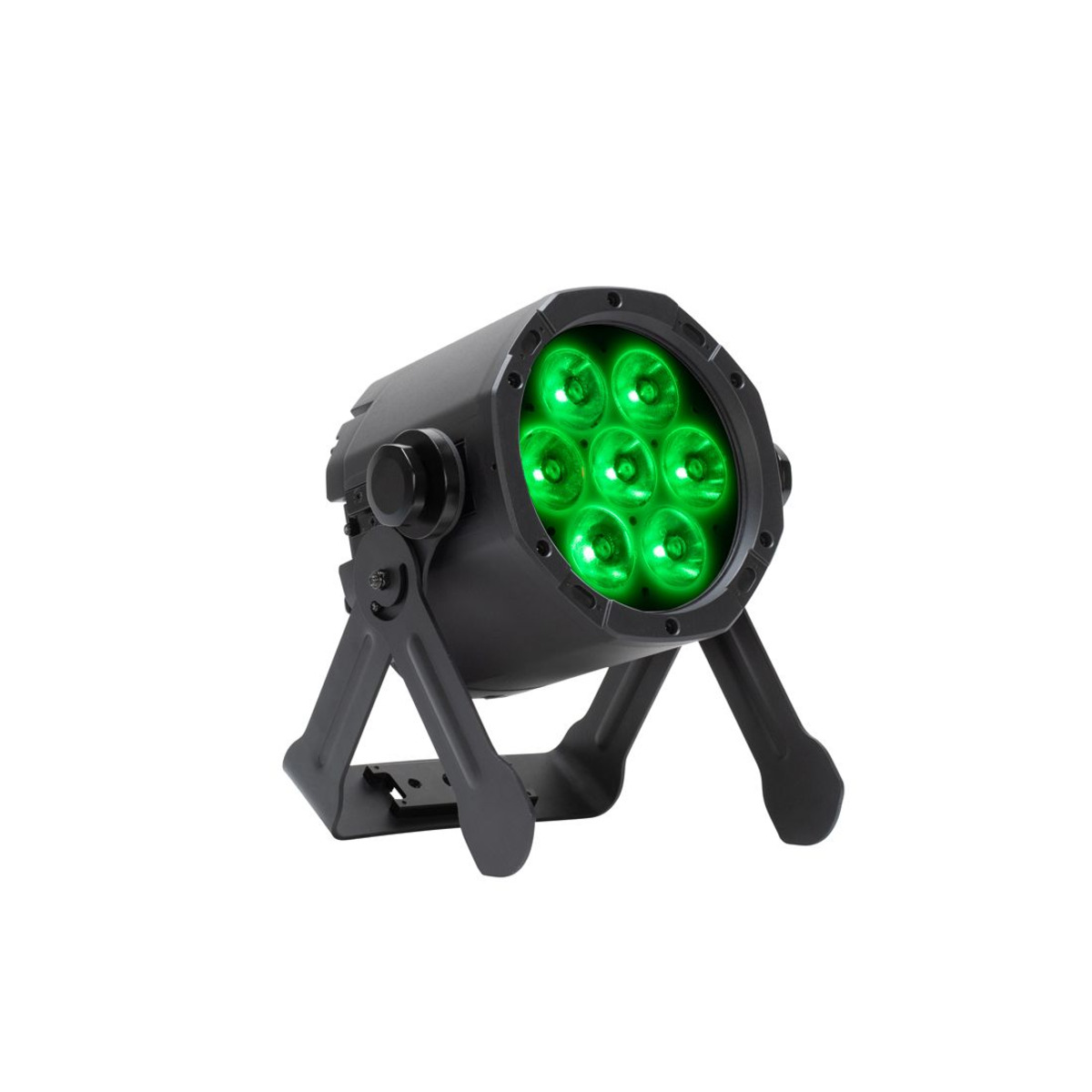

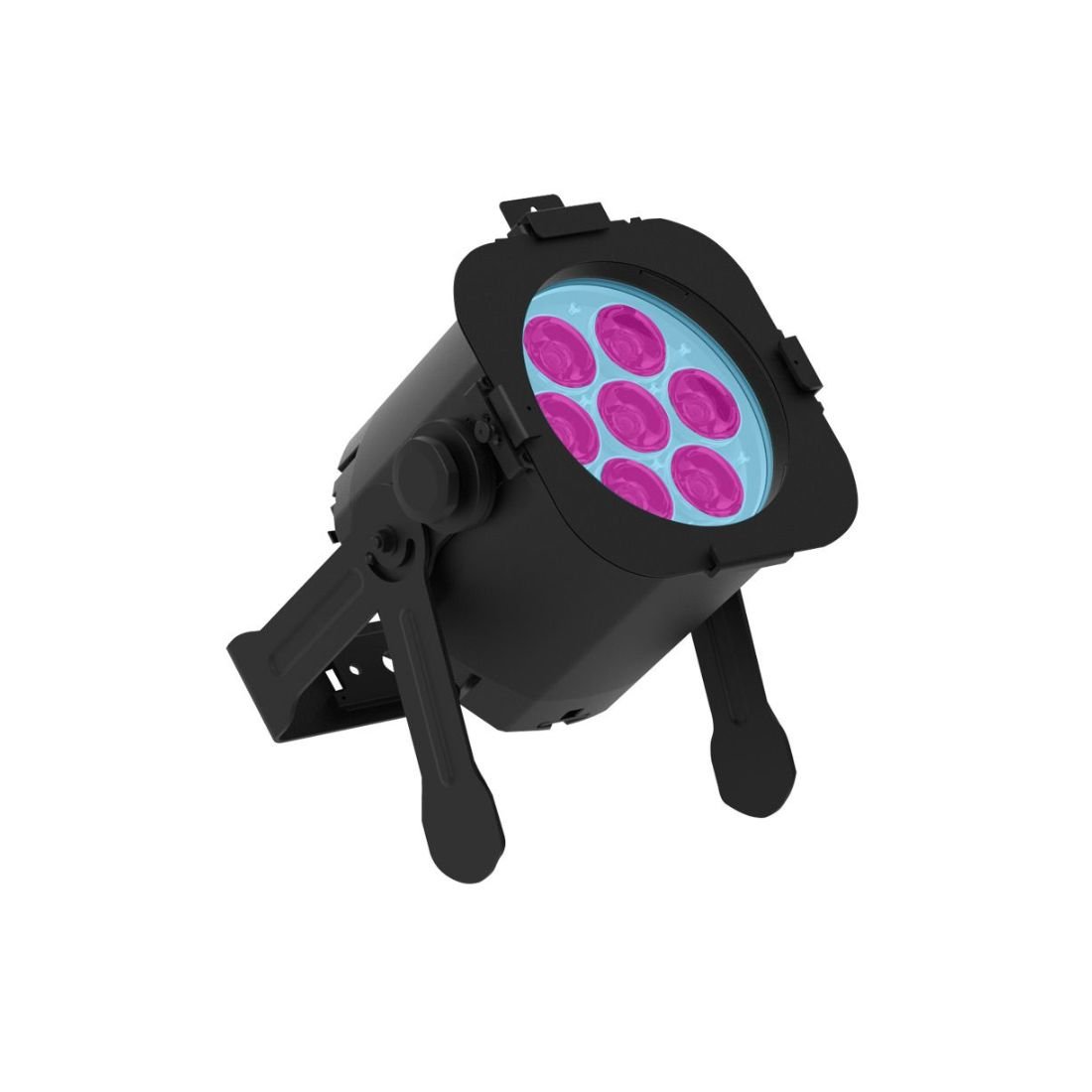

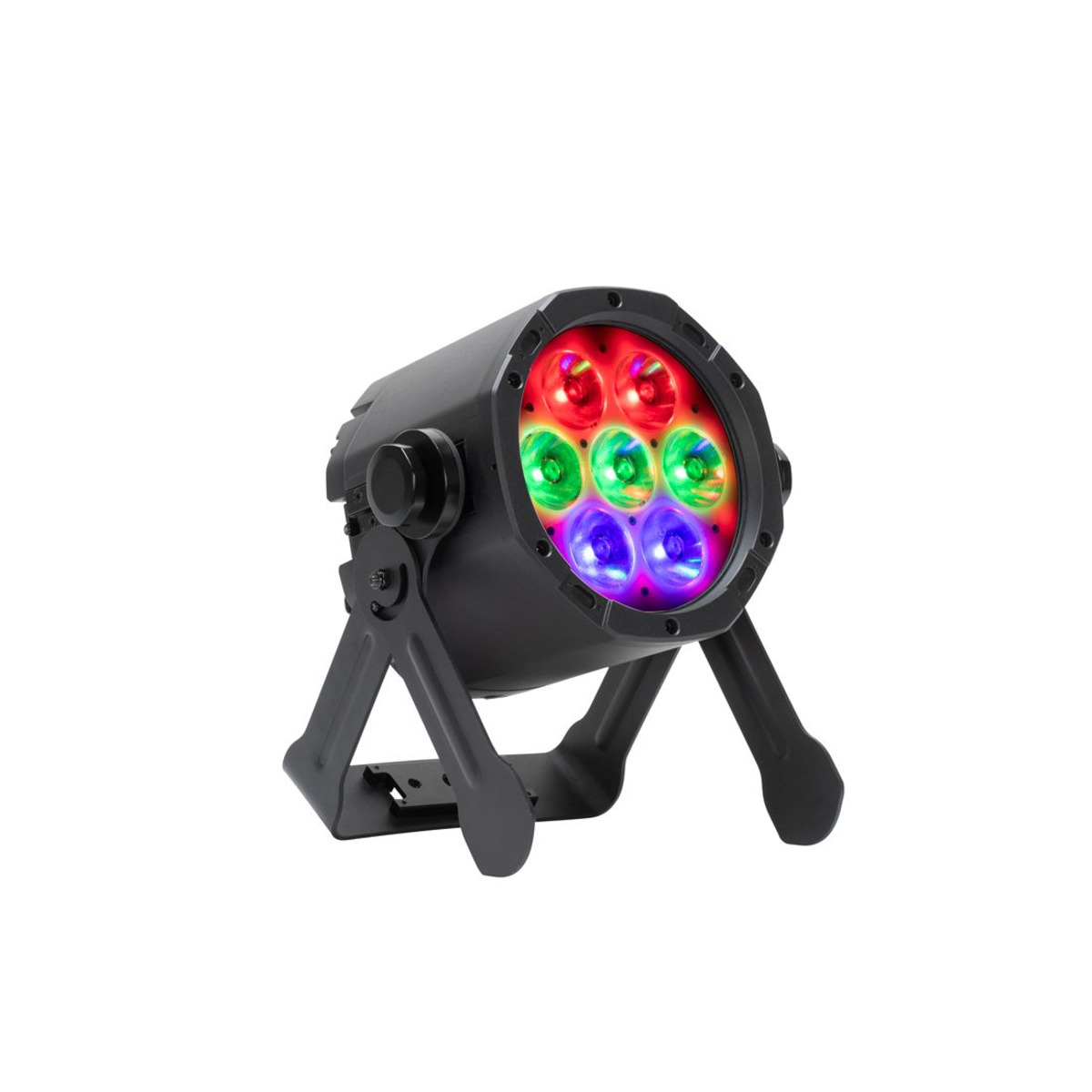

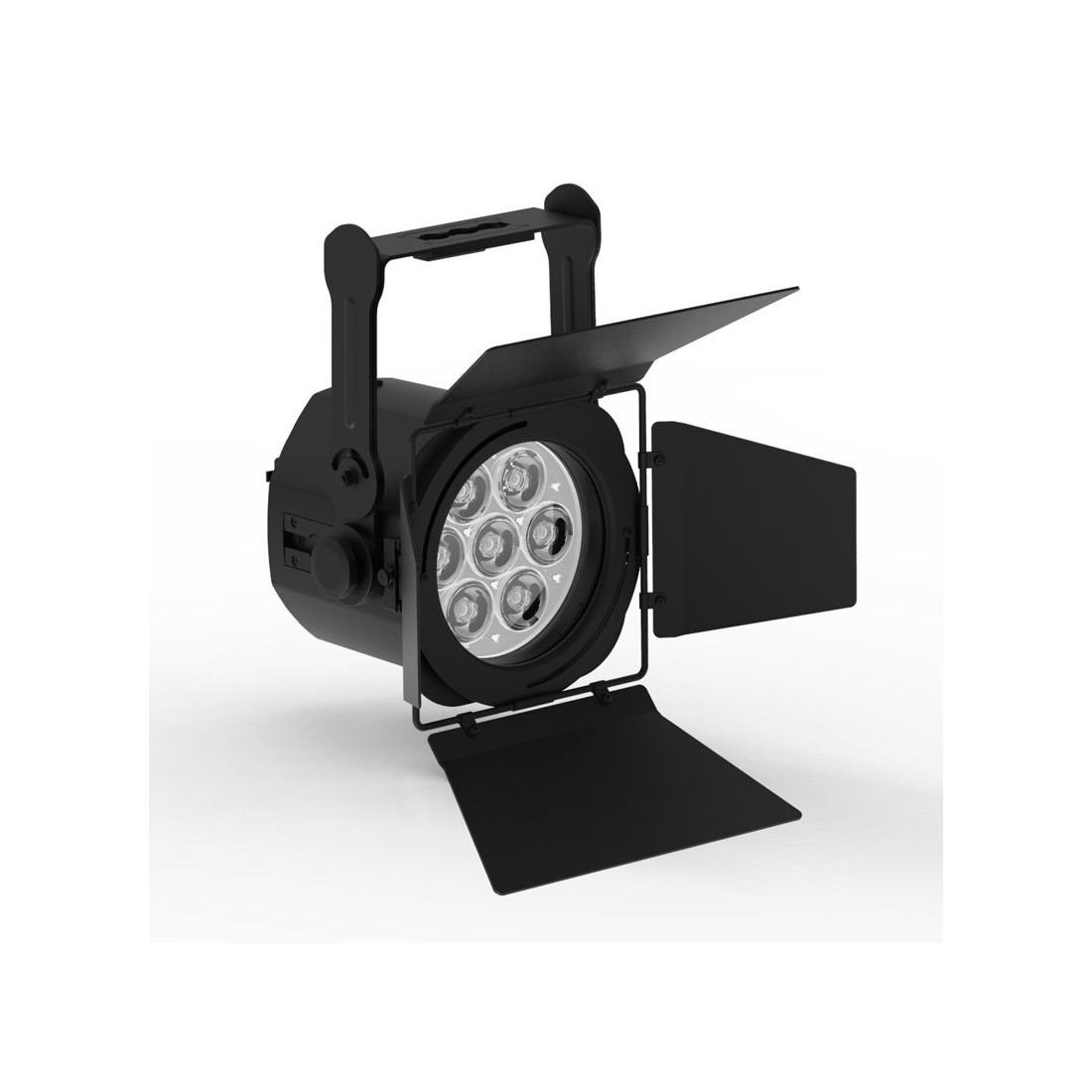

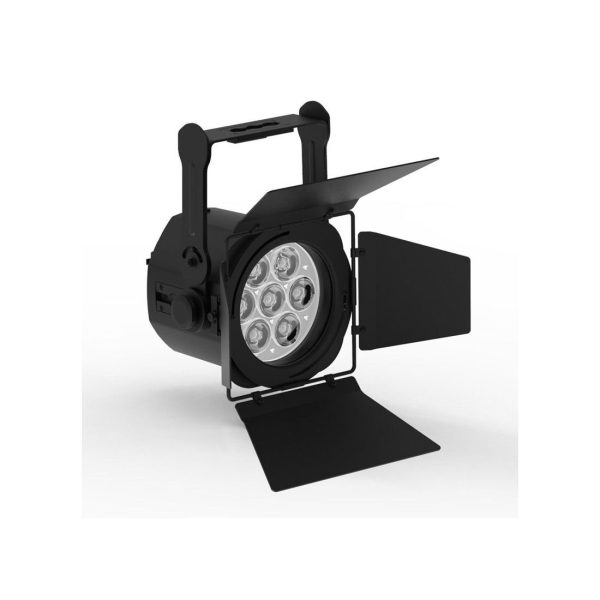

The ElectraPix Par 7 is a IP65-rated, battery powered, wireless DMX LED fixture. It features seven 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless management system and has a battery life up to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white colour temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its colour-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture’s control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.

Features

• 7 Pixel, Hex Coluor LED (RGBAL+UV) LED Par
• Battery or Wall Powered
• 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Colour Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Colour Calibrated LED’s
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Source

• (7) 20W Hex Colour RGBAL+UV Foreground LED’s
• (29) 0.2W RGB Background LED’s
• 50,000 Hour Average Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical

• 2,300K ~ 9,900K White Colour Temperature Range
• 17° Beam Angle
• 45mm Lens Diameter x8

Physical

• IP65 Housing

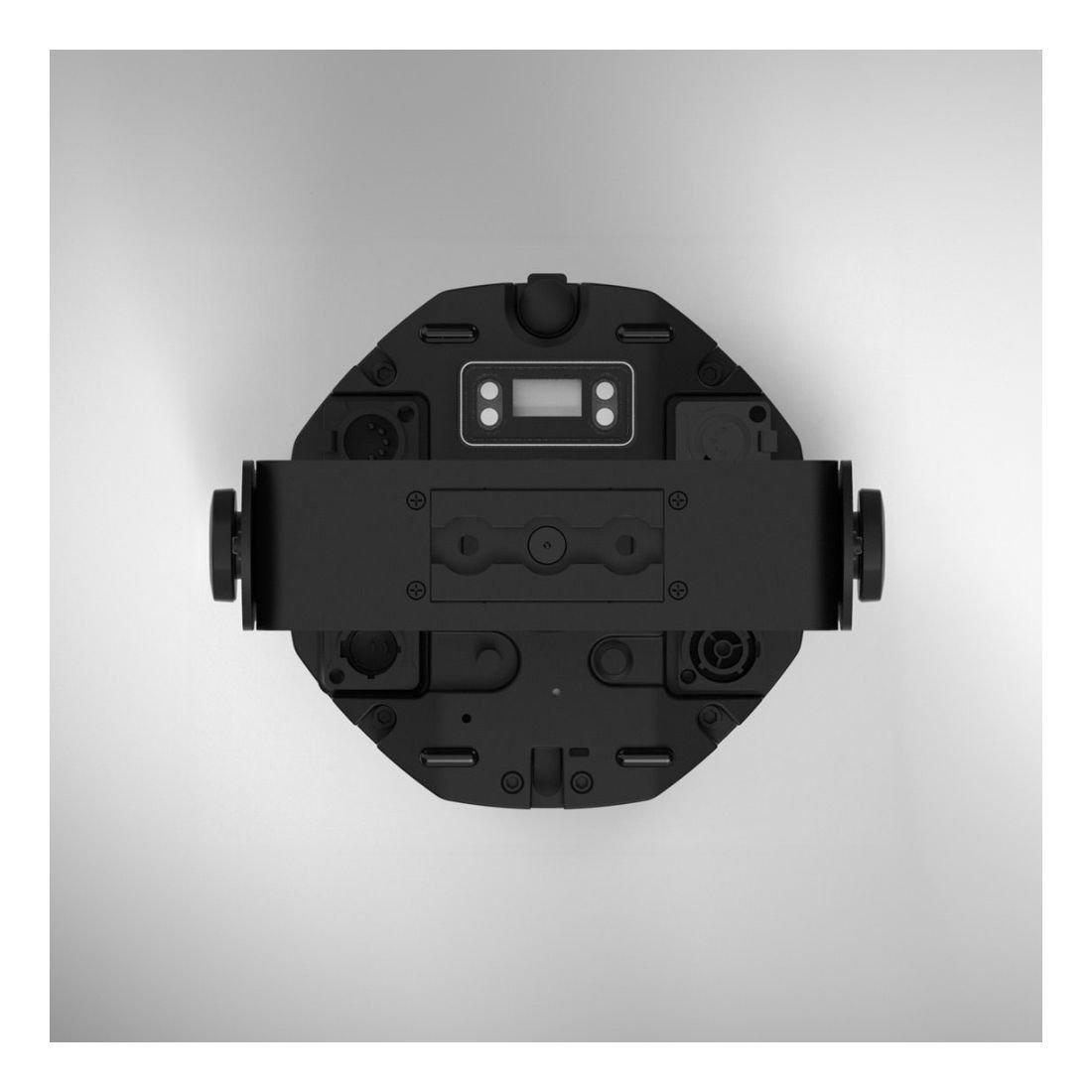

• OLED Digital display
• L Track system for locking accessories / rigging

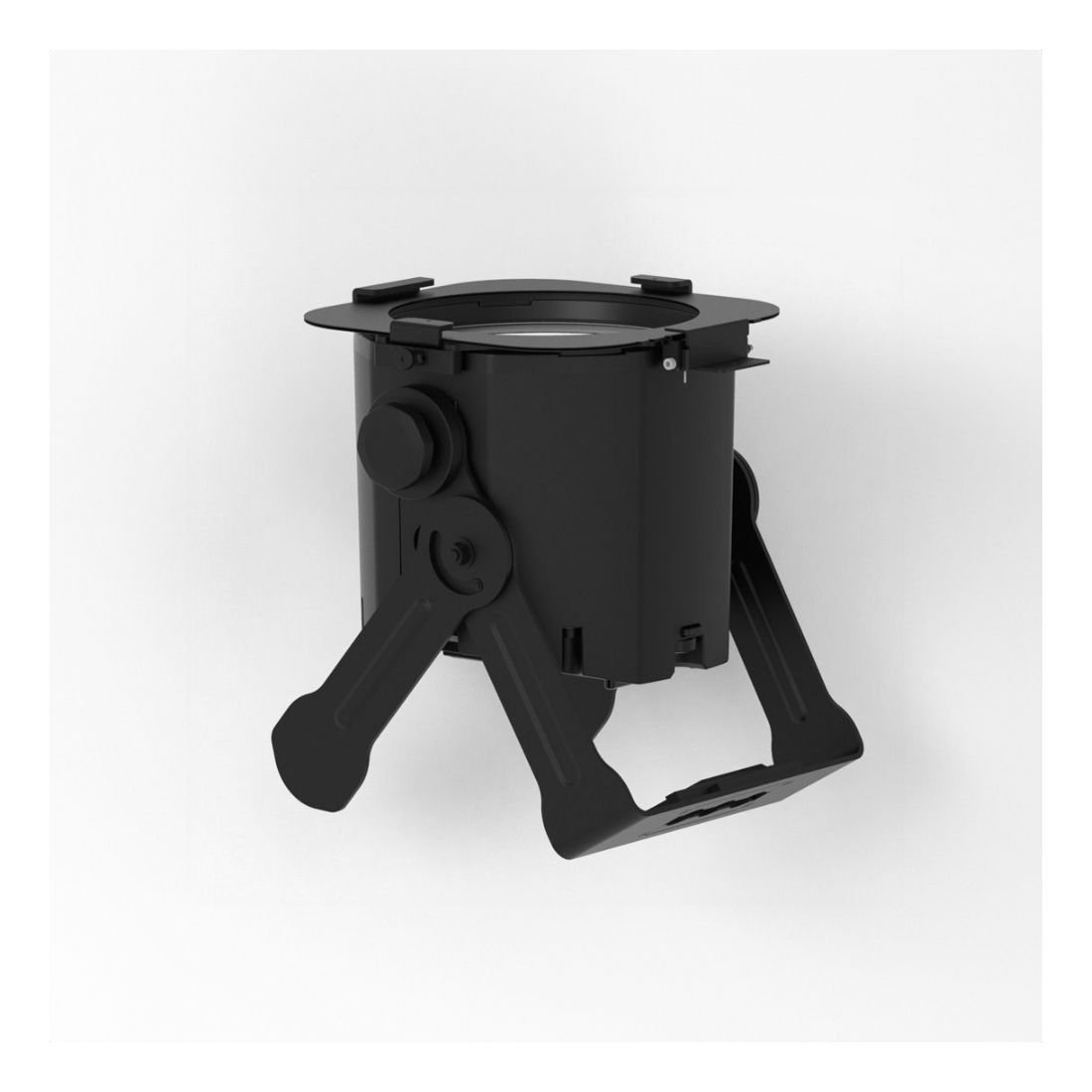

• Gel Frame Holder

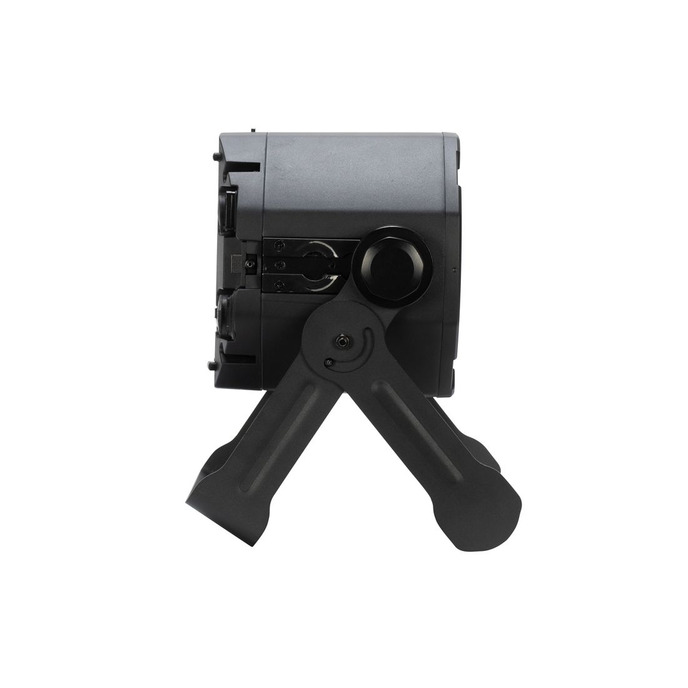

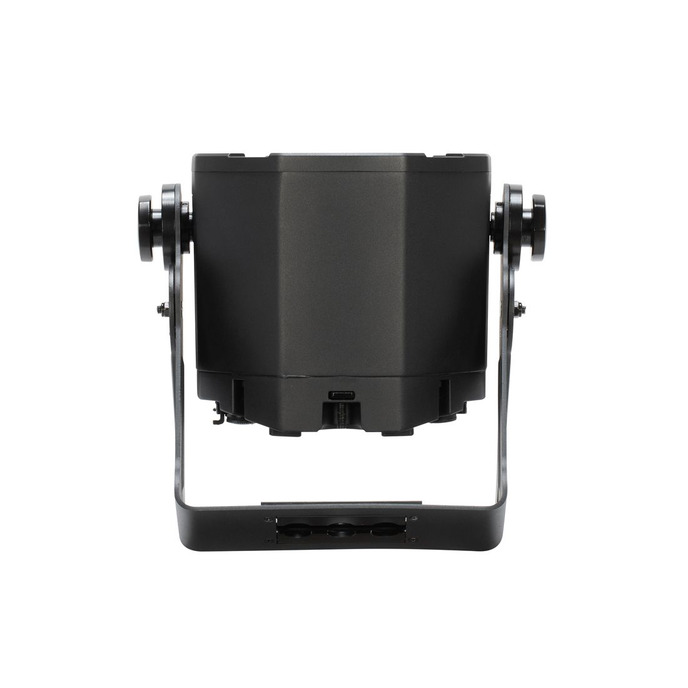

• Adjustable, hanging / kick stand bracket

Control

• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (4) DMX Channel Modes (5, 6, 9, 13, 21, 24, 42, 45 & 54 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

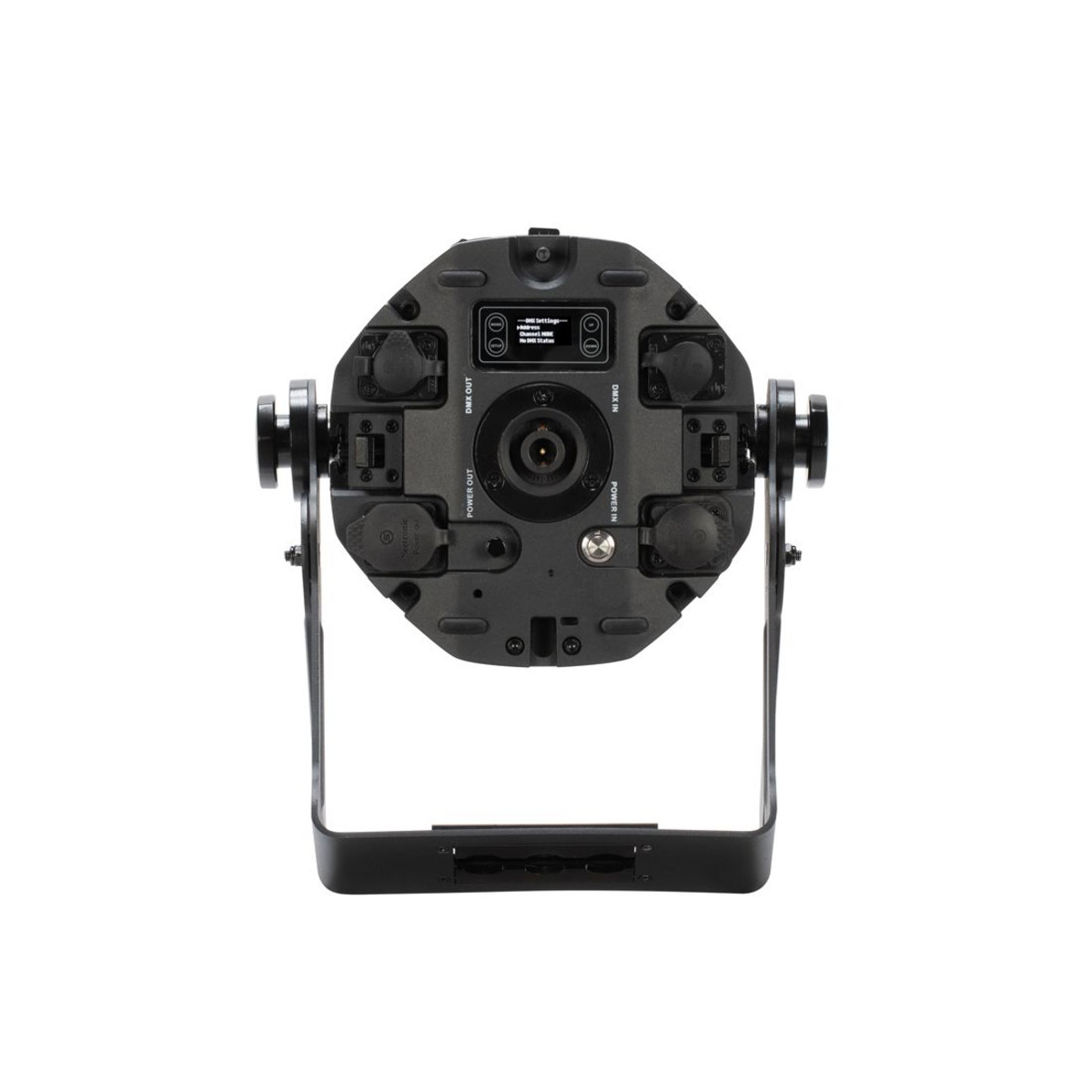

Connections

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Dimensions & Weight

• Length: 282.1mm, Width: 590.3mm, Height: 189.5mm
• Weight: 8,2 kg

Power

• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 28 pieces @ 230VAC

Battery

• Rechargeable Lithium ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
• Battery Cycles: 500

Thermal

• Ambient Operational Temperature: -20°C to 45°C
• Storage Temperature: -30°C to 45°C)

Certifications & IP Rating

• CE
• cETLus (Pending)
• FCC
• IP65

Included Accessories

• (1) Outdoor Locking Power Cable
• (1) UCIR24 Remote
• (1) Gel Frame
• (1) 20° Diffusion Filter

Optional Accessories

• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)
• ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
