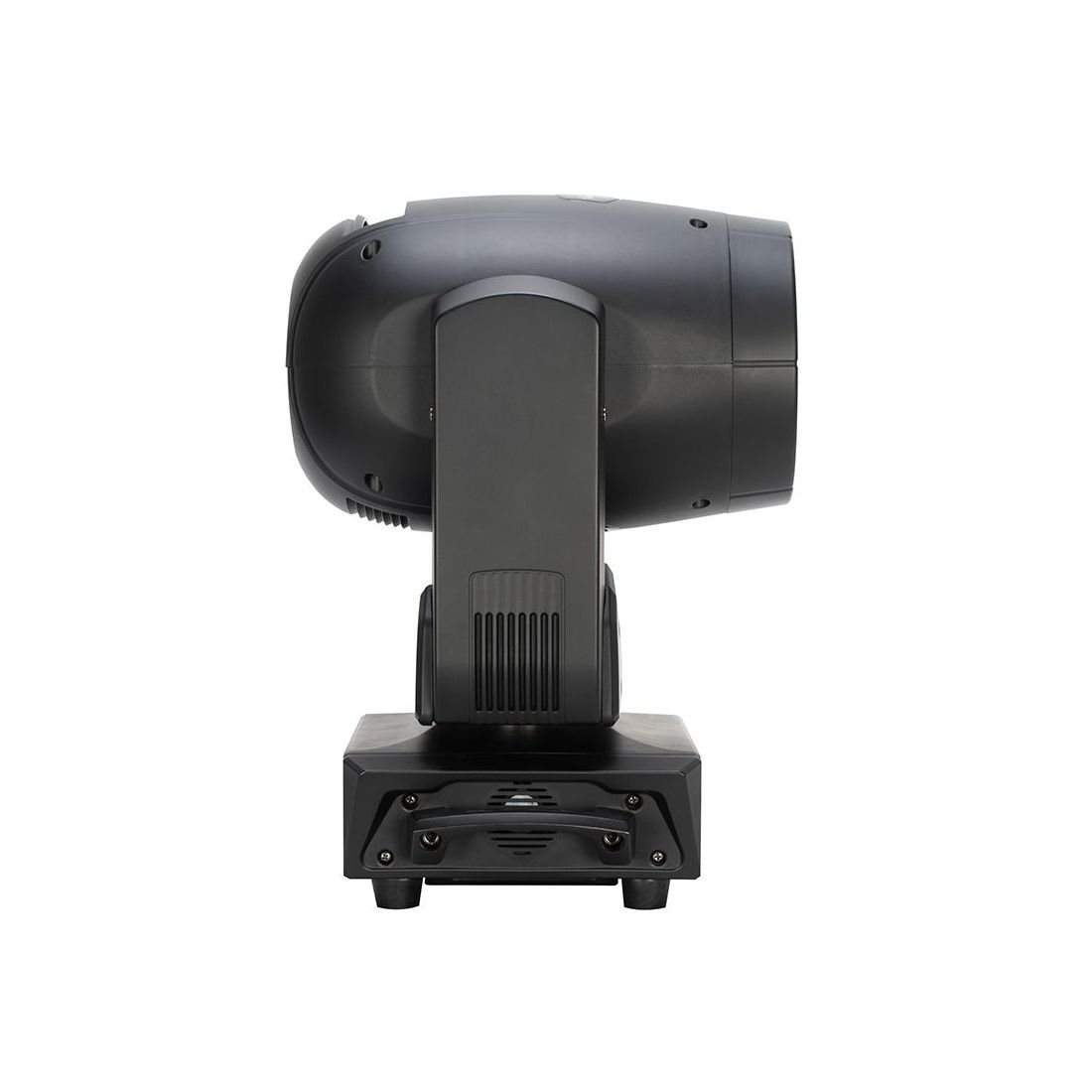

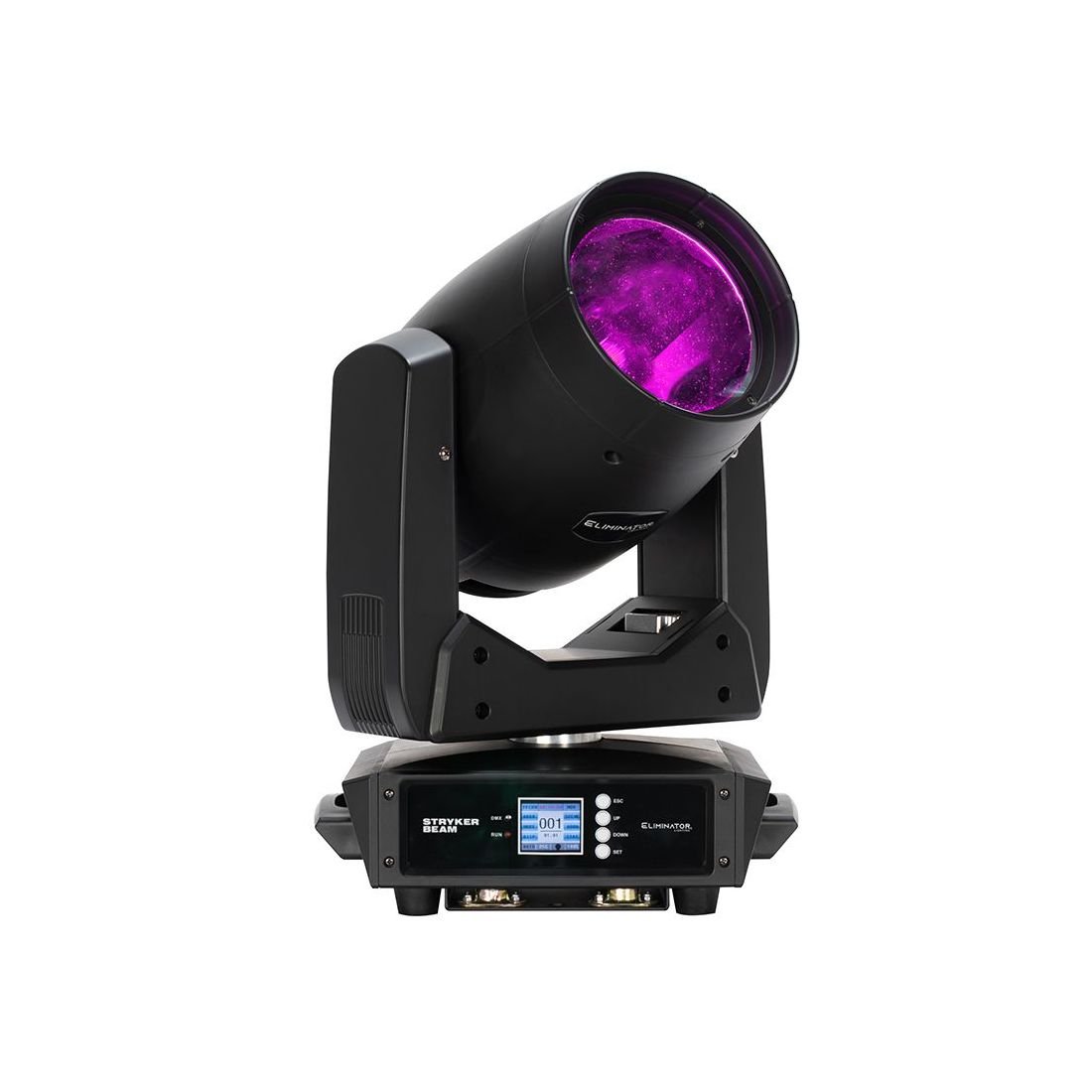

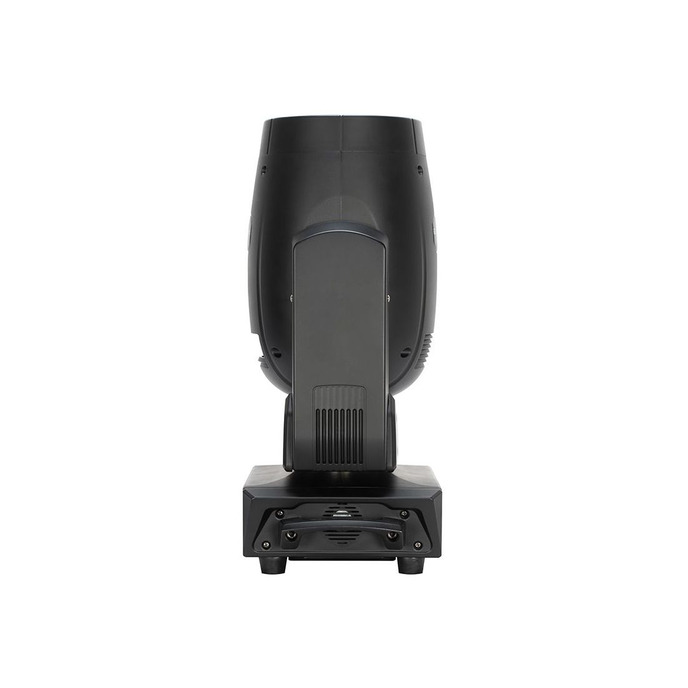

ADJ Eliminator Stryker Beam

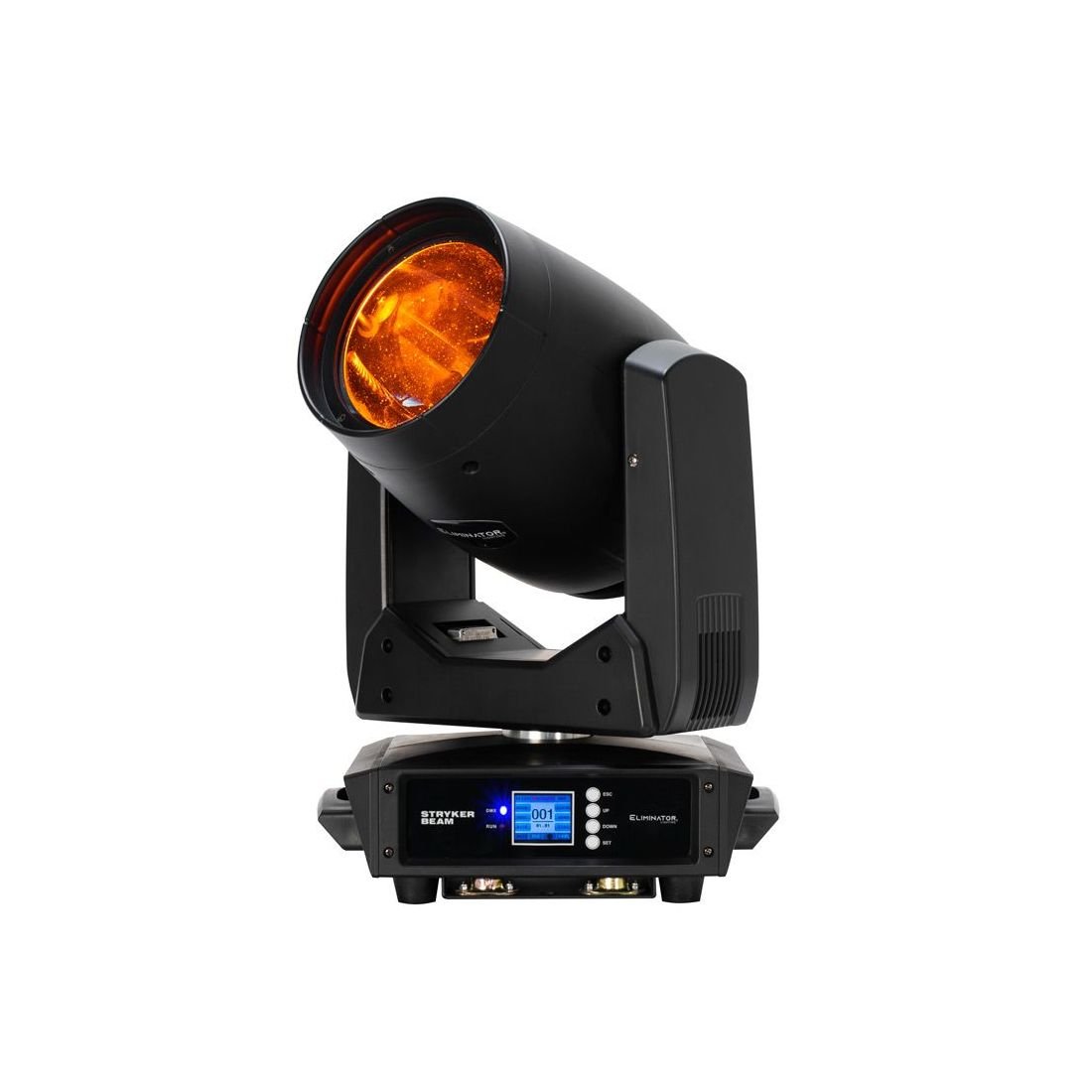

Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture.

It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.

The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential.



£619.00

Description

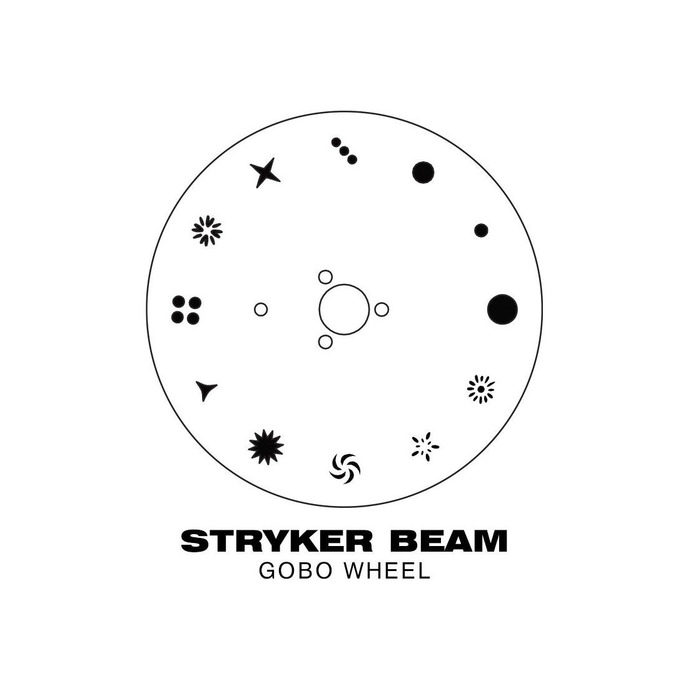

A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects.

A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light.

Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect. For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable.

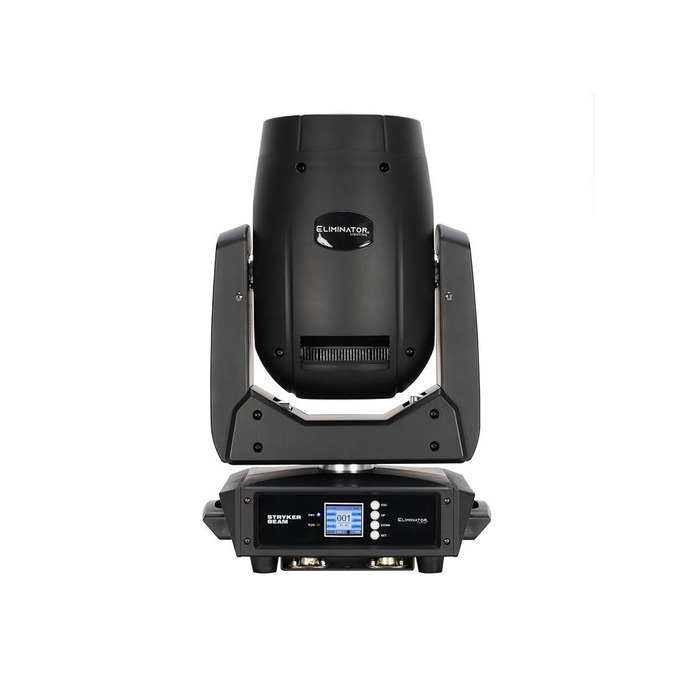

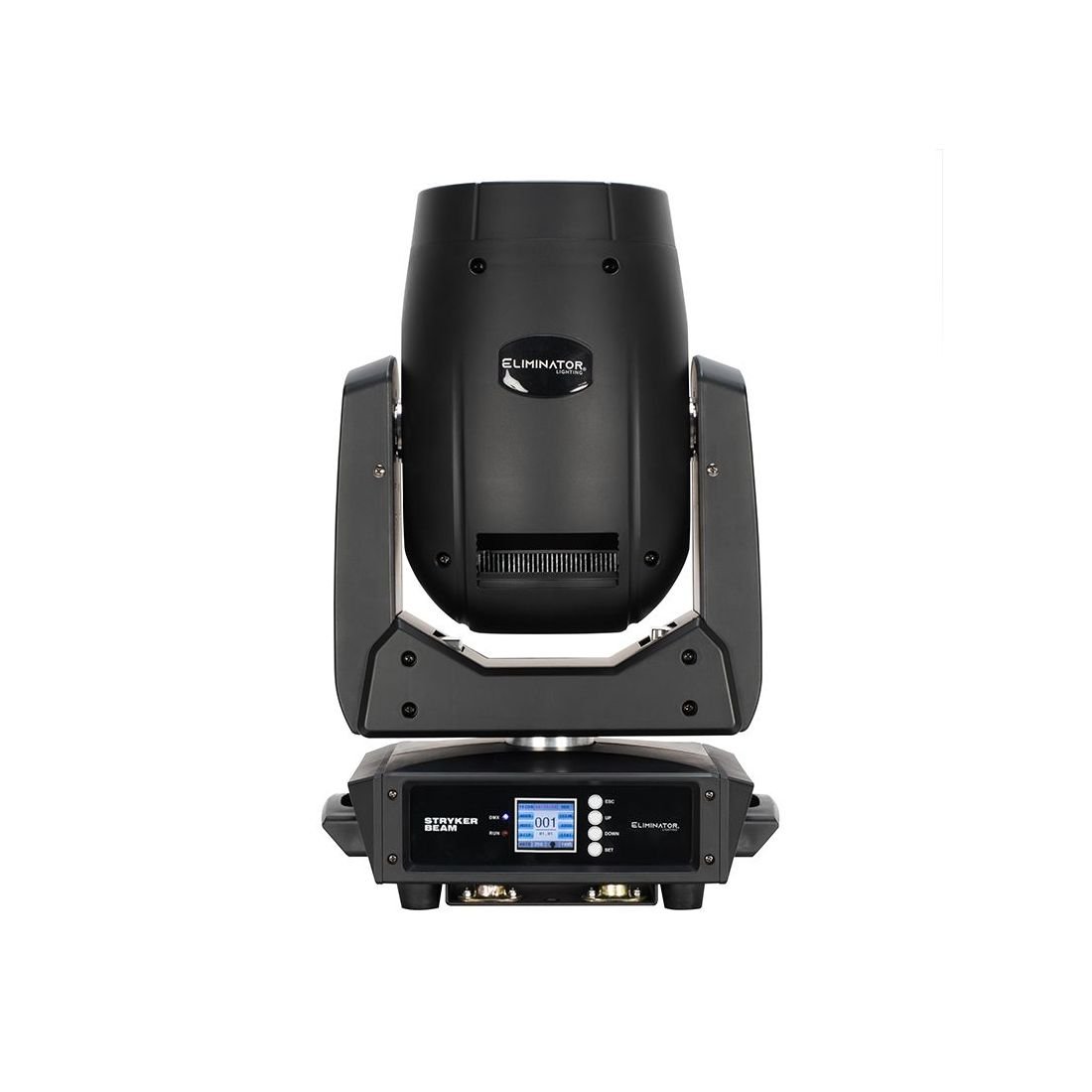

It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters.

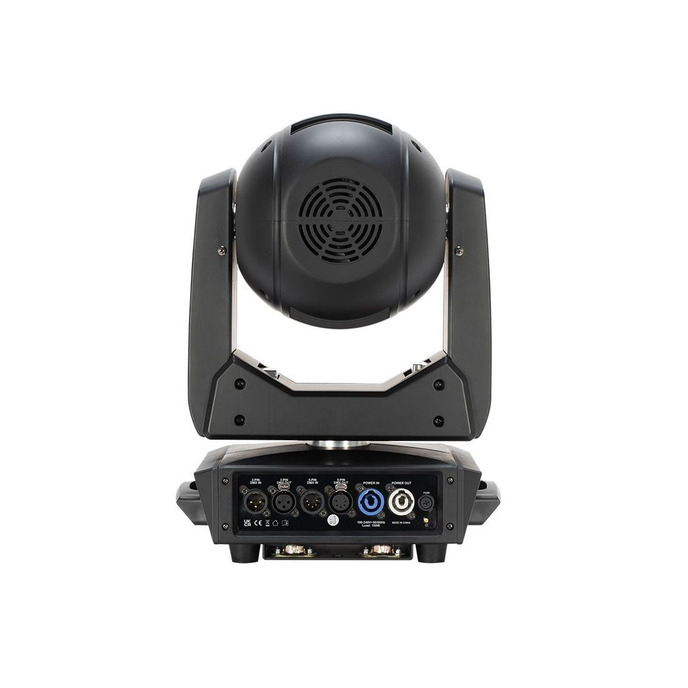

It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.

Specifications

Source

  • 100W LED Engine
  • 6° Beam Angle

Features

  • Full color function display with 4 buttons
  • Fast, precise, pan & tilt movements
  • Primary / Secondary stand-alone mode
  • Motorized Focus
  • Frost Filter (50° Wash Effect)

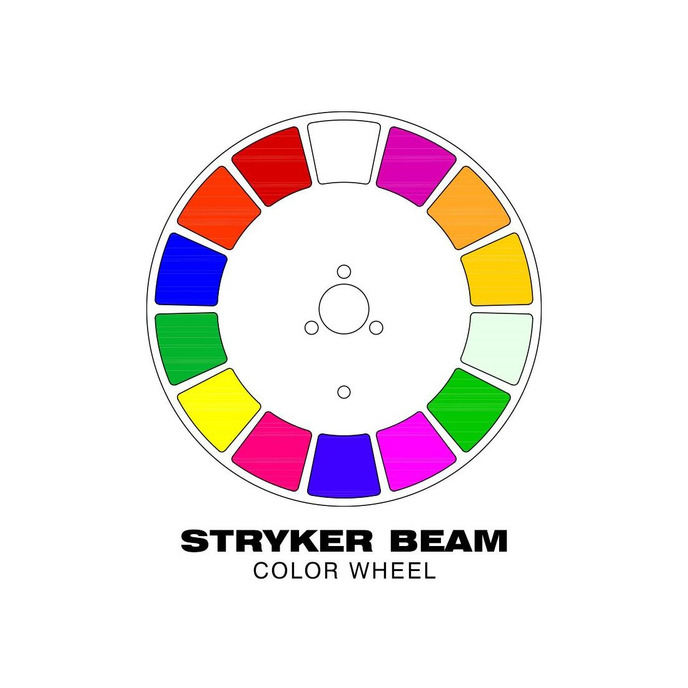

Color Wheel

  • 13 colors + open

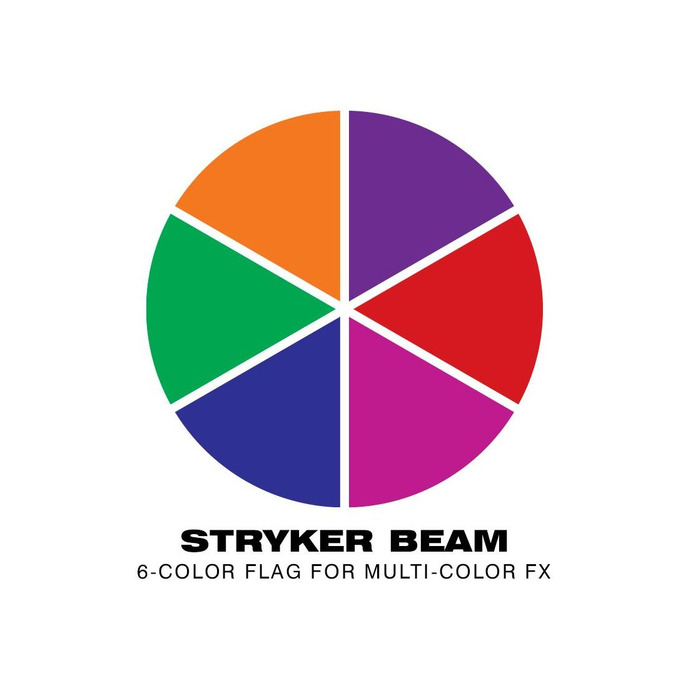

  • Separate 6-Color flag for multi-color effects

Gobo Wheel

  • Metal wheel with 11 GOBOS + open (2 are beam reducers)
  • GOBO Shake Effect

Prism Wheel

  • 8-facet rotating circular prism
  • 16-facet rotating circular prism
  • Prism layering

Control

  • 2 DMX channel modes: 6 & 19 channels
  • Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
  • Electronic Dimmer: 0- 100 %
  • Variable Strobe: 0-20HZ
  • With Wired Digital Communication Network

Connections:

  • DMX Data In/Out: 3-pin & 5-pin connections
  • Power In: Blue Locking indoor power connection
  • Power Out: White Locking indoor power connection

pan/tilt

  • Pan/Tilt: 540° / 270°
  • 16-bit Fine Pan
  • 16-bit Fine Tilt

Electrical

  • Multi-voltage operation: AC 100-24V, 50/60Hz
  • Maximum Power Consumption: 150W
  • Power daisy chain: 3 units @230V

Dimensions & Weight

  • Dimensions (LxWxH): 200x302x465mm
  • Weight: 12.8 kg.

What´s Included

  • Locking power cord

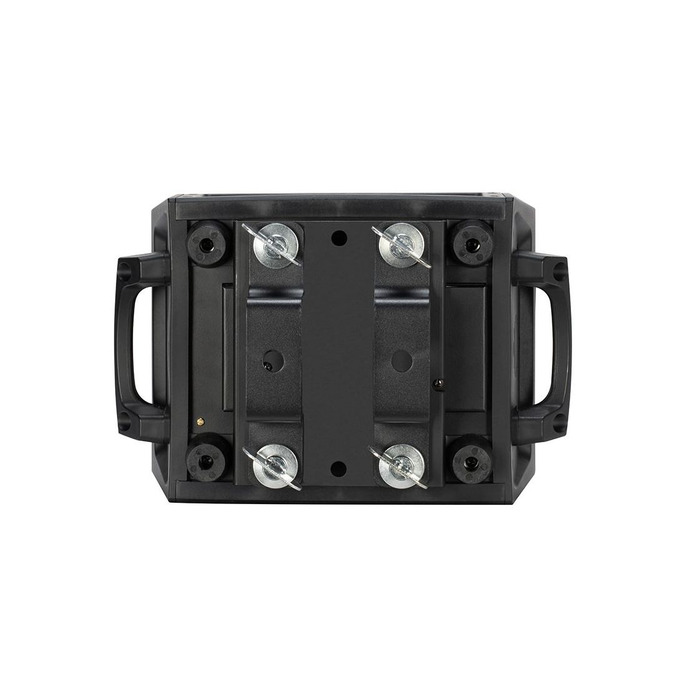

  • Omega bracket
