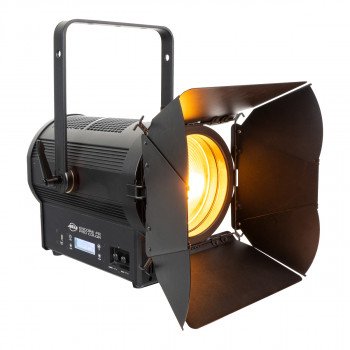

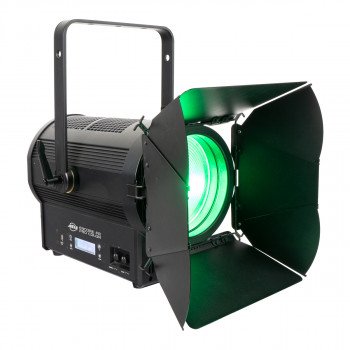

ADJ Encore FR Pro Color

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light.

It offers a full spectrum of colors with (virtual) CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K.

It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.

£1,129.00

Description

The Encore FR Pro Color has a motorized zoom range of 9~37°, a high CRI rating with an output of more than 9,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

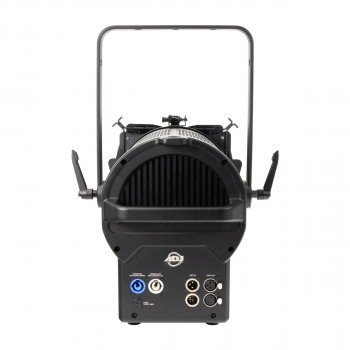

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.

Specifications

Source

1X400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)
50,000 Hour Average LED Life

Photometric data

9.237 Total Lumen Output (Full ON, Zoomed Out to Full)
23.179 LUX/2.153 FC @2m (Zoomed In / Full ON)
2.860 LUX/266 FC @2m (Zoom Out / Full ON)
Beam Angle 9° – 37°
Max Field Angle 50°

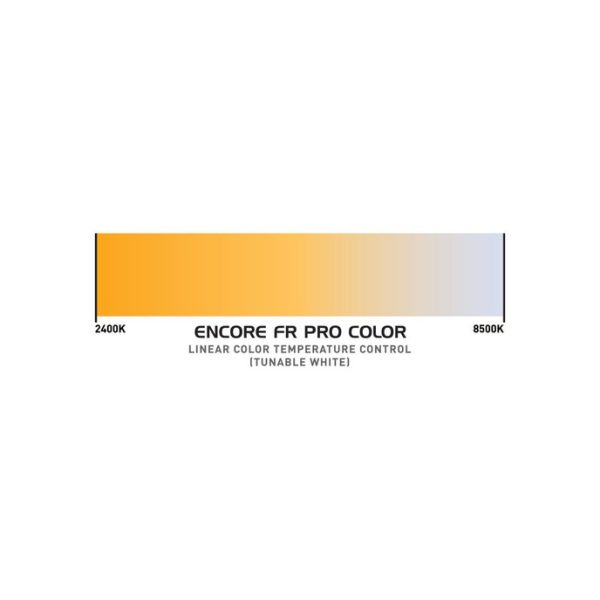

Color Temperature: Tunable, 2400K to 8500K
CRI: 94+

Effects

Motorized zoom
Electronic Dimmer and Strobe (1-20Hz)
Variable 16-bit Dimming Modes and Curves
Virtual CMY Color Mixing DMX Control Modes
Tunable White Color Temperature from 2400K to 8500K
62 Preset White Color Temp Macros (2400K to 8500K)
Virtual Color Swatch Book with 60 preset colors
64 Preset RGBA Color macro’s

Control/Connections

Dimmer and Zoom Rotary Dials
5 DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)

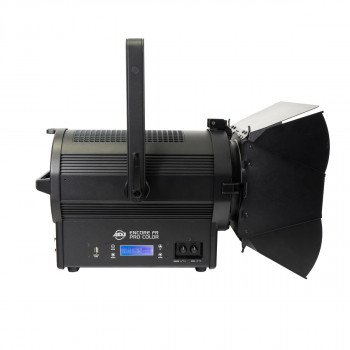

4 Button Control Panel LCD Menu Display
Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
Dim Speed Options (0.1s to 10s)
4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out
Locking Power Input and Output
USB Service Port

Dimensions & weight

Length: 414.5mm
Width: 360.1mm
Vertical Height: 490mm
Weight: 9.45kg

Electrical/Thermal

AC 100-240V – 47/63Hz
450W Max Power Consumption
-15°C to 45°C
Power Linking: 5Pcs @ 240V

Included items

Gel Frame
Power Cable
8-blade Barndoor
