ADJ Encore FR Pro WW

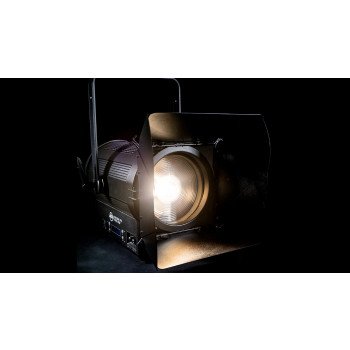

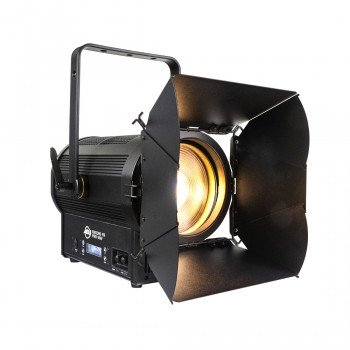

The ADJ Lighting Encore FR Pro WW is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a potent 200W warm white LED.



£897.00

Description

The Encore FR Pro Color has a motorized zoom (beam angle of 10~46°), a CRI rating of 97.2 with an output of more than 12,000 Lumens. There are an abundant of on-board features such as 4 DMX control modes, 4 Dim Curves, 6 Dim Modes and adjustable refresh rates.

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 2 rotary controls for Zoom en Dimmer 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

A rotating 8-leaf barn door, gel frame and power cord are included with the fixture.

Specifications

Source

  • 1X200W WW LED
  • 50,000 Hour Average LED Life*

Photometric Data

  • 12,312 Total Lumen Output (Full ON, Zoomed OUT)
  • 60,451 LUX/5,616 FC @ 2m (Zoomed IN)
  • 5,936 LUX/552 FC @ 2m (Zoomed OUT)
  • 97,2 CRI, 86 R9 @ 2m (Zoomed IN)
  • Beam Angle 10° – 46°
  • Max Field Angle 59°
  • Color Temperature: 3000K

Effects

  • Motorized Zoom
  • Electronic Dimmer and Strobe (1-20Hz)
  • Variable 16-bit Dimming Modes and Curves

Control and Connections

  • Dimmer and Zoom Rotary Dials
  • (4) DMX Channel Modes (2 / 4 / 6 / 8)

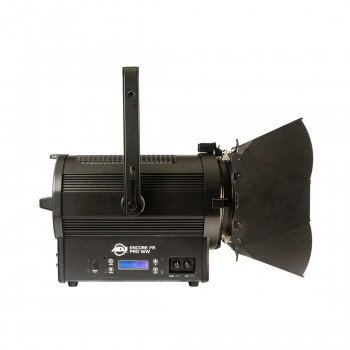

  • 4 Button Control Panel LCD Menu Display
  • RDM (Remote Device Management)

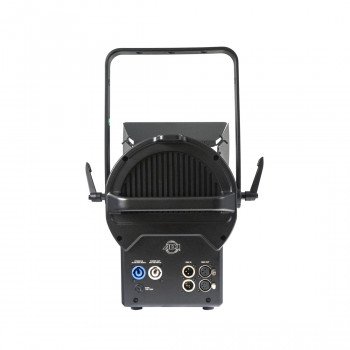

  • 3/5pin DMX and Locking Power Cable In/Out
  • USB Service Port

Dimensions and Weight

  • Length: 414.5mm
  • Width: 360.1mm
  • Vertical Height: 490mm
  • Weight: 9.45kg

Electrical and Thermal

  • AC 100-240V – 50/60Hz
  • 258 W Max Power Consumption
  • Working temperature: 15°C to 45°C
  • Power Linking: 10Pcs @ 240V

Included accessories

  • Gel Frame
  • Locking Power Cable
  • Barn Doors

approvals and ratings

  • CE | cETLus | IP20
