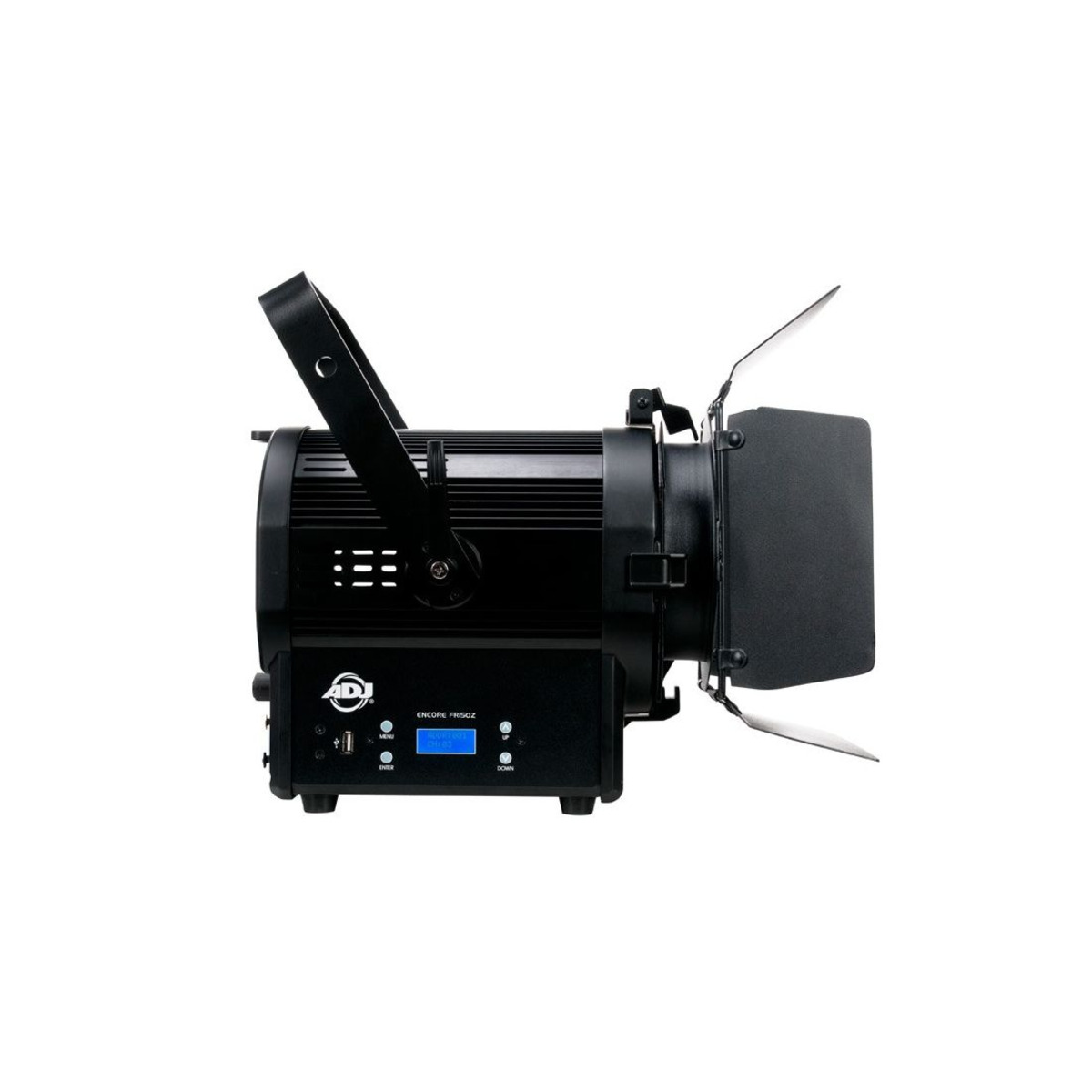

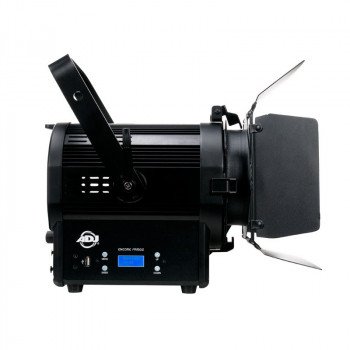

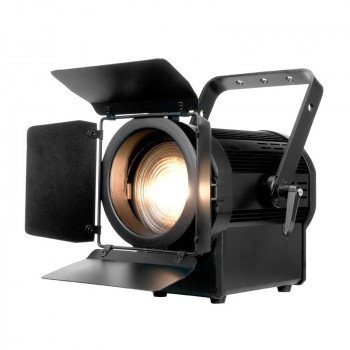

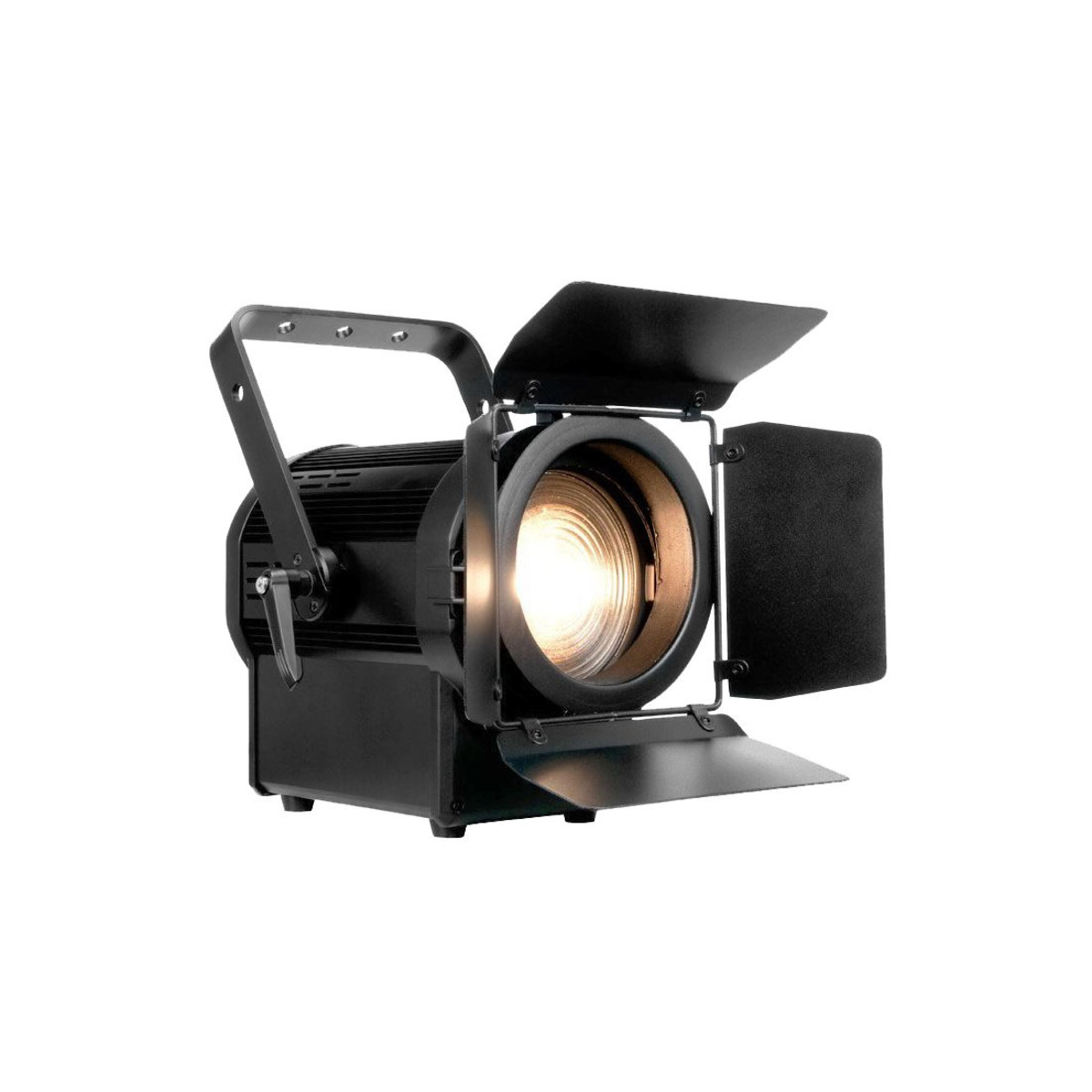

ADJ Encore FR150z 3000K LED WW Fresnel 130W
ADJ Encore FR150z 3000K LED WW Fresnel 130W - Image 2
ADJ Encore FR150z 3000K LED WW Fresnel 130W - Image 3
ADJ Encore FR150z 3000K LED WW Fresnel 130W - Image 4
ADJ Encore FR150z 3000K LED WW Fresnel 130W - Image 5

ADJ Encore FR150z 3000K LED WW Fresnel 130W



SKU: 1237000174 Categories: , Tags: , ,

ENCORE FR150Z 3000K LED Warm White Fresnel 130W with 8 Lens

ADJ Encore FR150z is part of the Encore stage lighting series. The Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine.

It produces a white, wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.

The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.



£553.20

View your Basket

Description

Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the beam angle from 8 to 50 degrees.

The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and powerCON In/Out to daisy chain the power from one fixture to another.



Specifications

Source

  • Light Source: 1 WW COB-LED
  • Individual LED wattage: 130W
  • Average LED lifetime: approximately 50,000 hrs.
  • Colour Temperature: 3000K

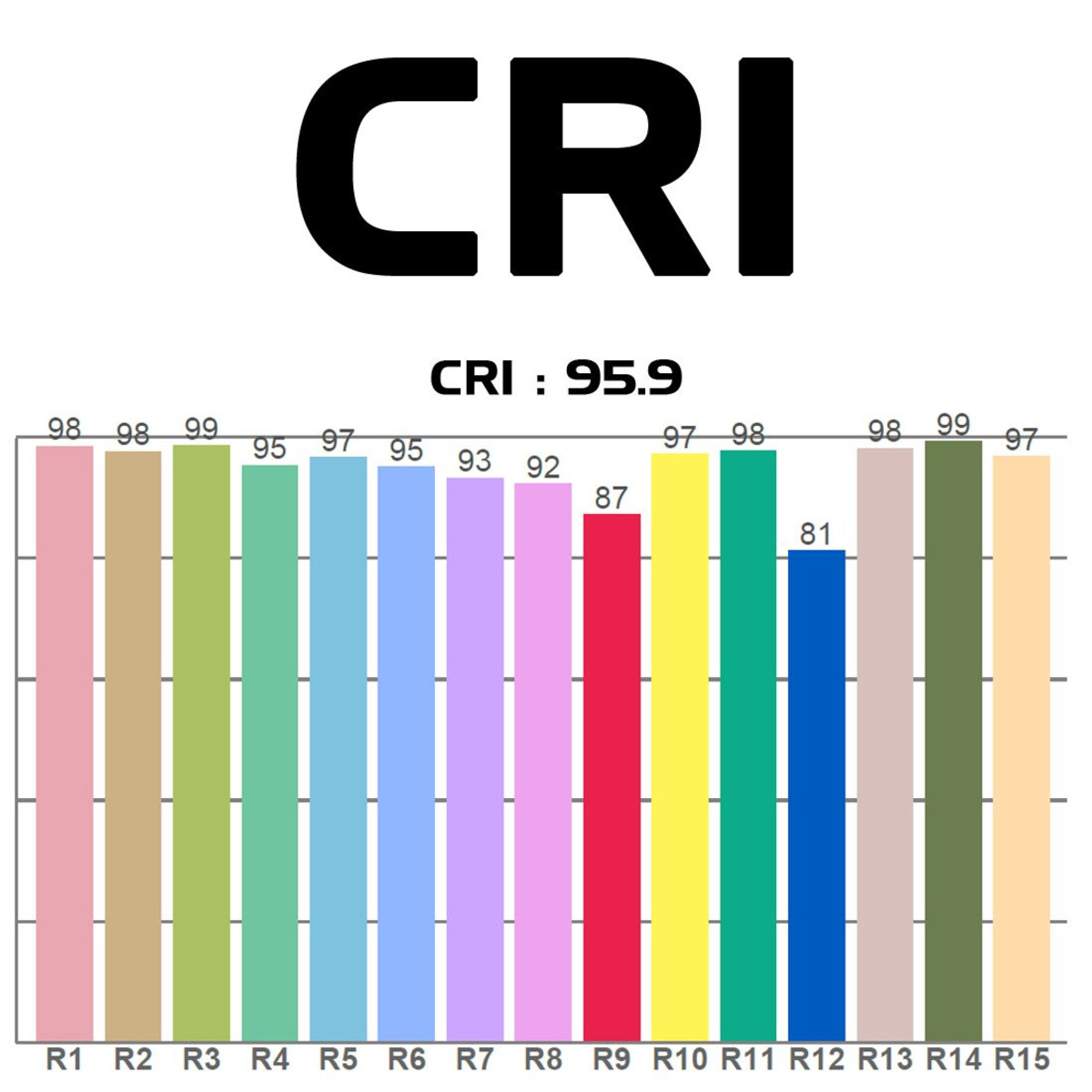

  • CRI: 95.9

Optics

  • Adjustable Beam Angle: 15-38 degrees
  • 8-inch/200mm Fresnel Lens

Control

  • 2 operational Modes: Manual WW Dimmer Mode and DMX Control
  • 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
  • RDM compatible
  • 16bit Electronic Dimming: 0 – 100%
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
  • Adjustable Fanmodes (Auto, Low, High)
  • LED pulse and strobe effect
  • 4-button, DMX digital display on rear panel

Colours

  • Warm White 3000K

Construction

  • Robust extruded aluminium housing
  • Manual Zoom Knob
  • Barndoors included

Electrical

  • Multivoltage 100-240V 50/60Hz
  • Power Consumption: 150W

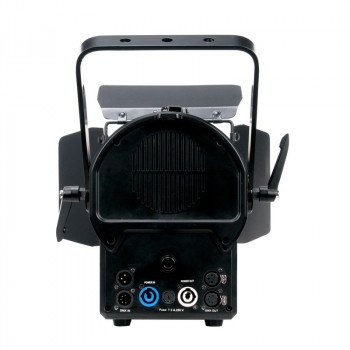

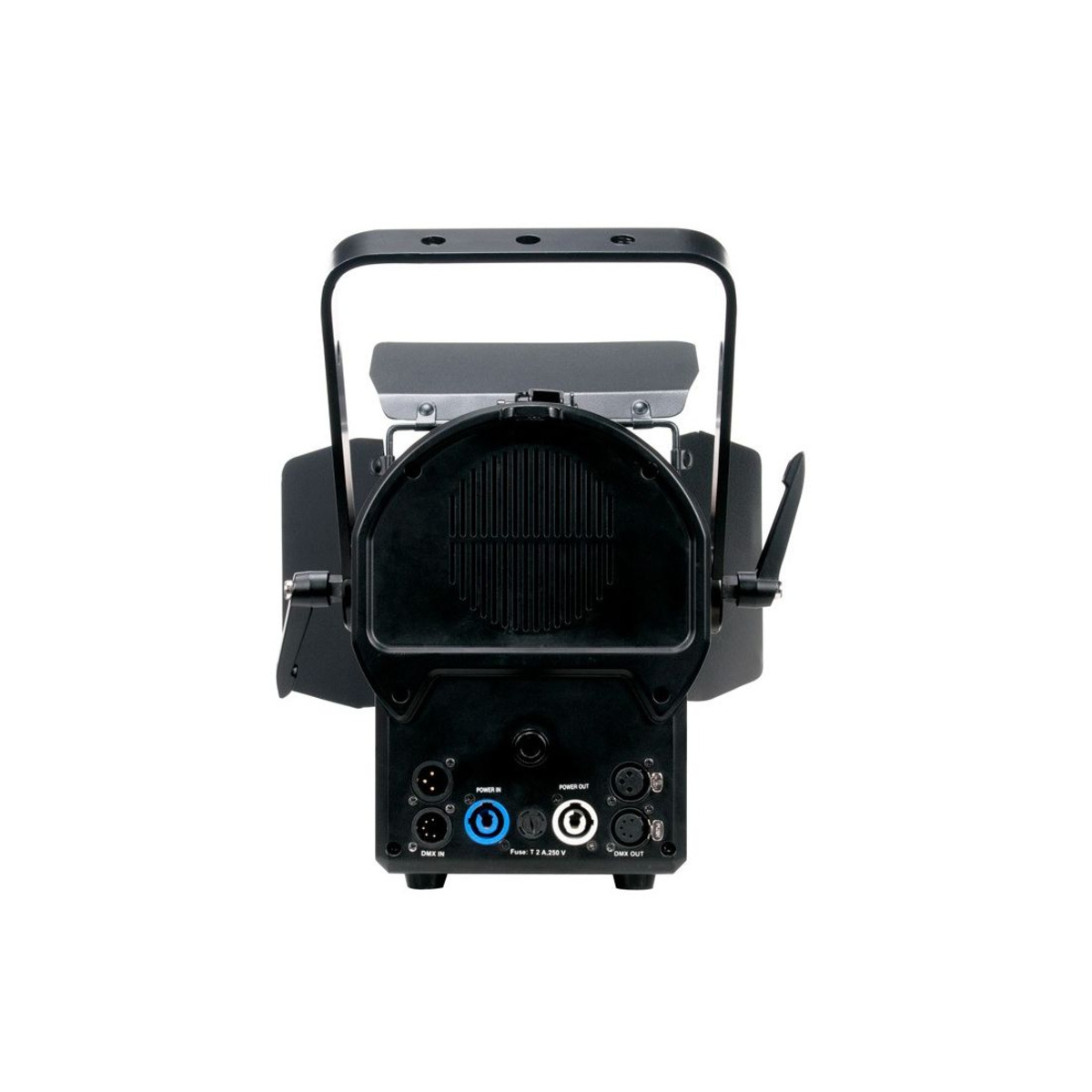

Connections

  • 3 & 5-pin Locking DMX In/Out connections
  • Locking Power In/Out connections
  • USB port for Firmware Update

Physical & Dimensions

  • Height: 294mm
  • Width: 298mm
  • Depth: 376mm
  • Weight without Barndoors: 6.9kg
  • Weight with Barndoors: 7.4kg

Dimensions (LxWxH)

  • Without Barndoors: 276 x 298.62 x 416mm
  • With Barndoors: 422.23 x 298.62 x 416mm

Additional information

Weight 6.9 kg
Dimensions 37.6 × 29.8 × 29.4 cm
