ADJ Encore FR20 DTW



SKU: 1237000189 Categories: , Tags: , ,

Encore FR20 DTW 3000K LED Warm White Fresnel 17W LED with 2″ Lens

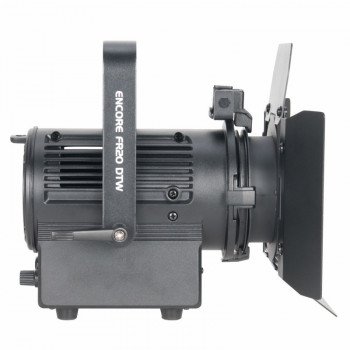

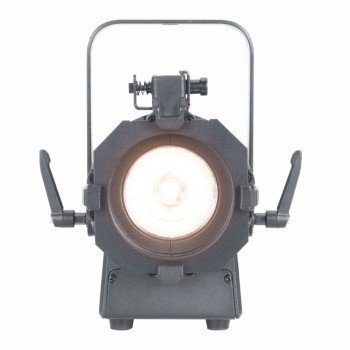

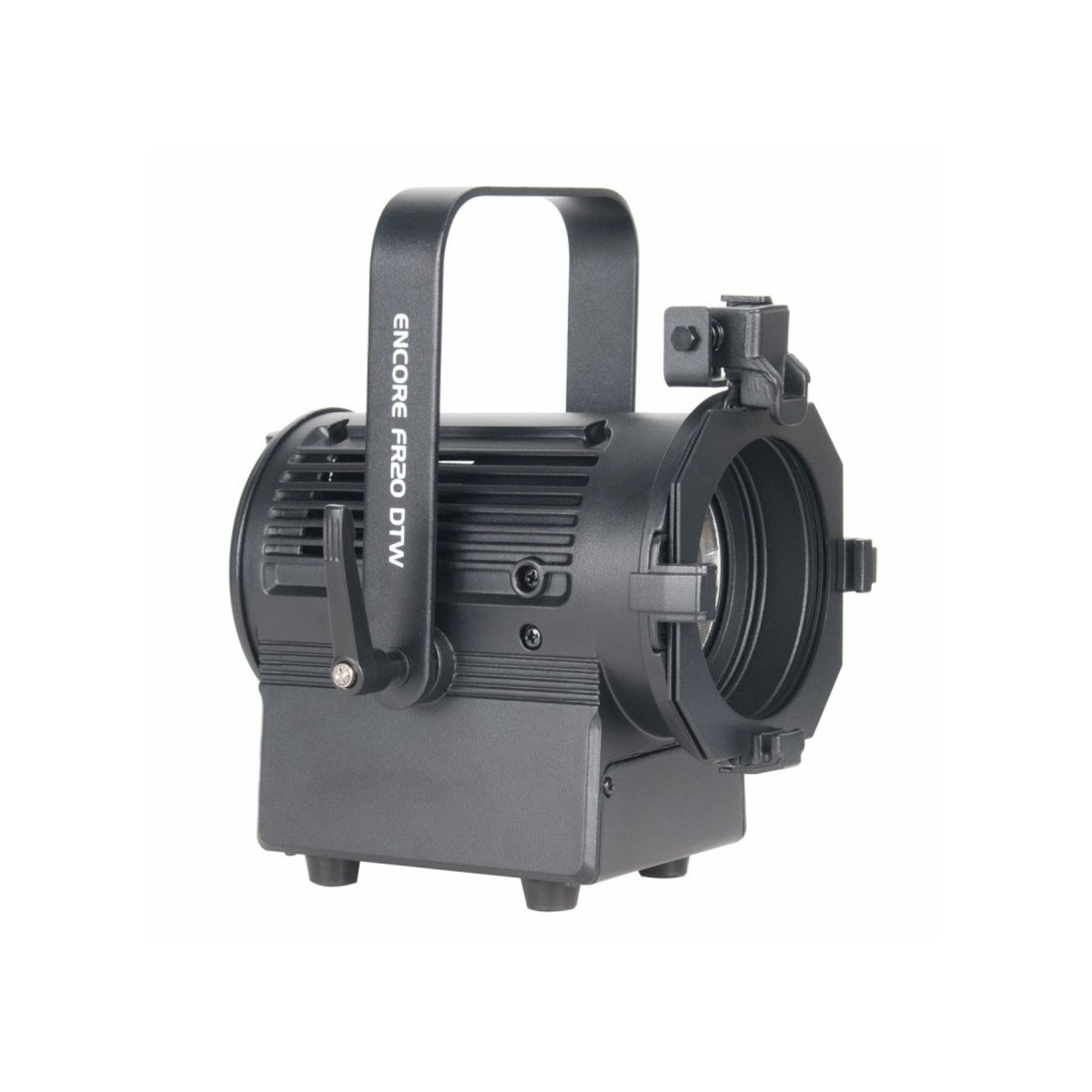

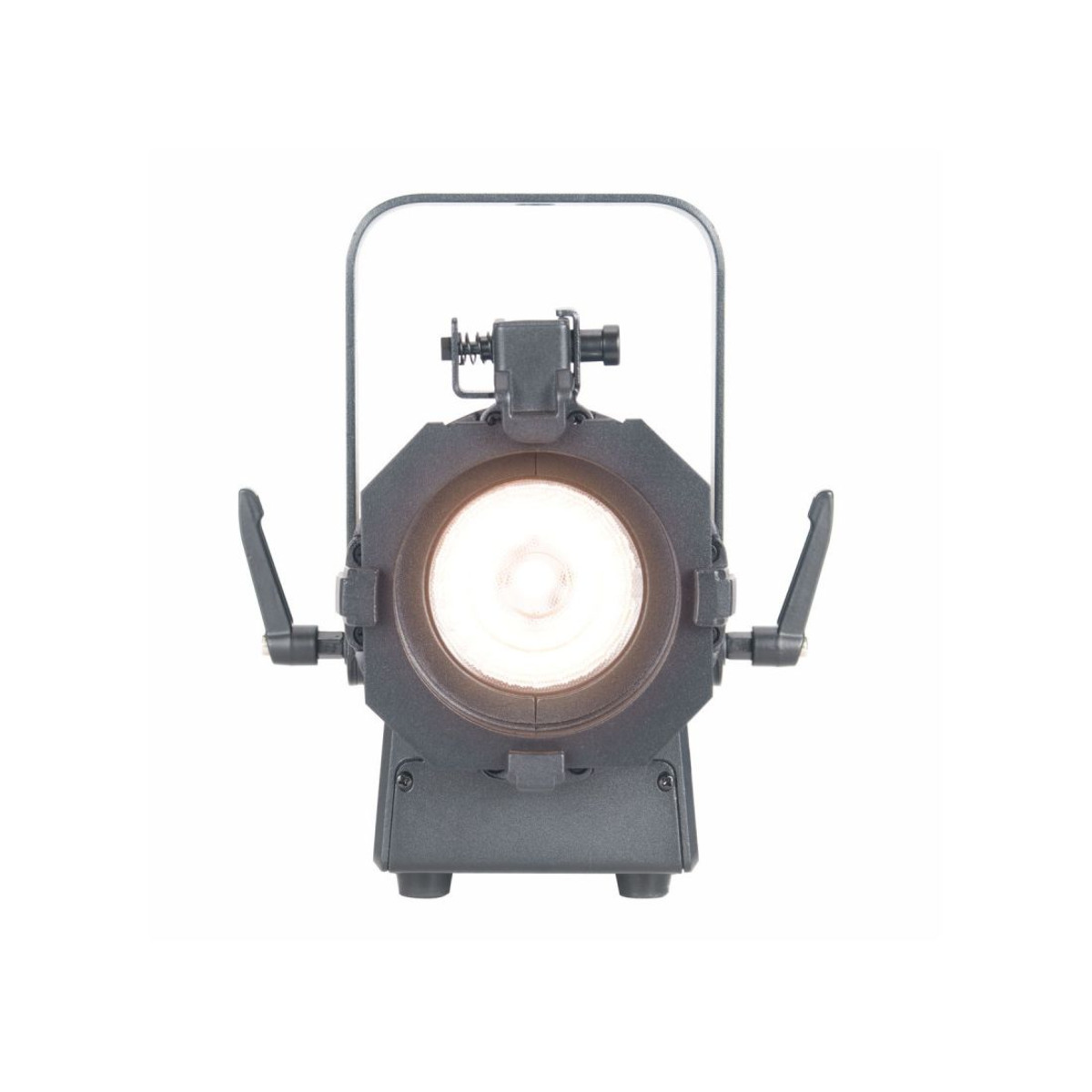

ADJ Encore FR20 DTW is part of the Encore stage lighting series. The Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine.

It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable – compatible with ADJ dimmer packs or standard wall dimmers.

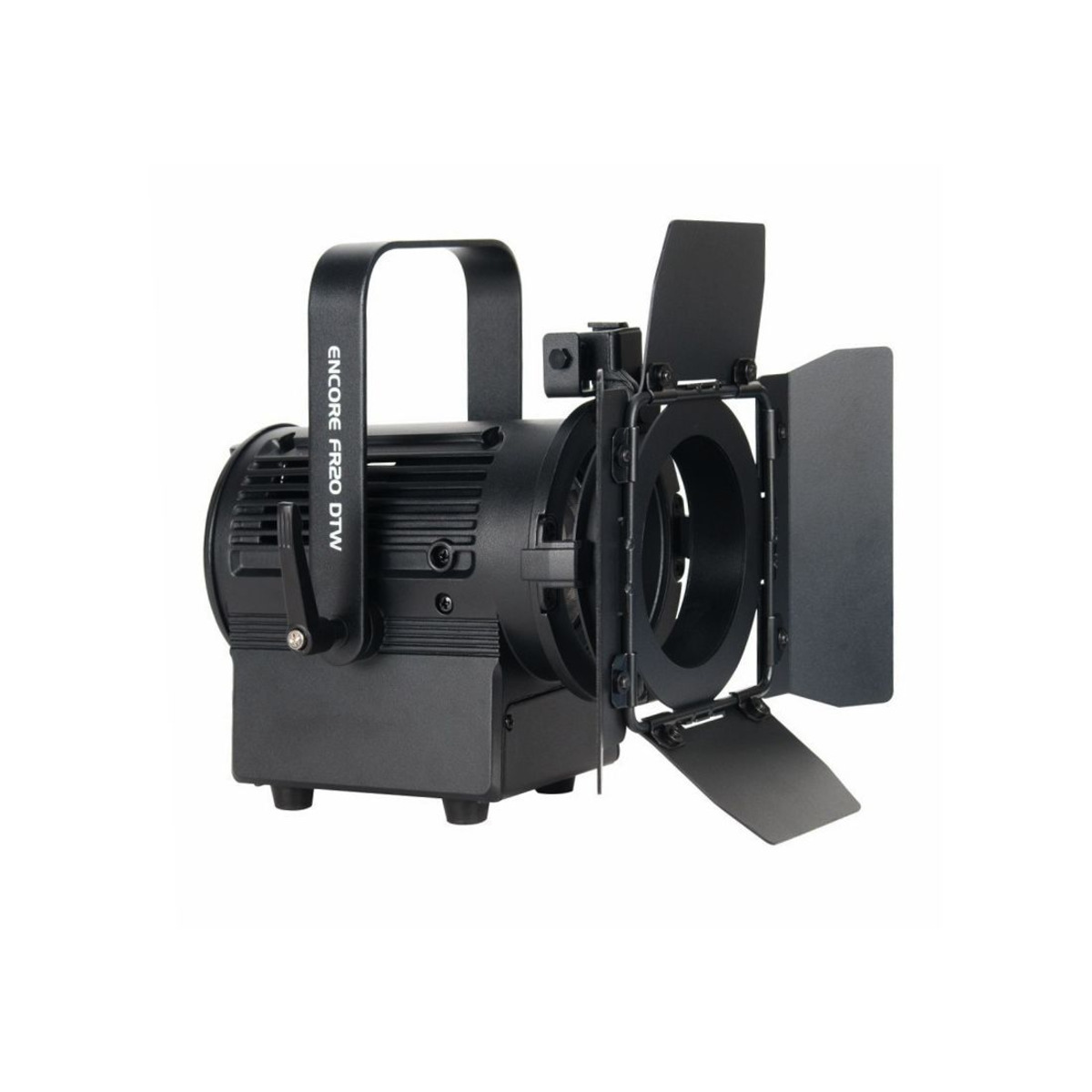

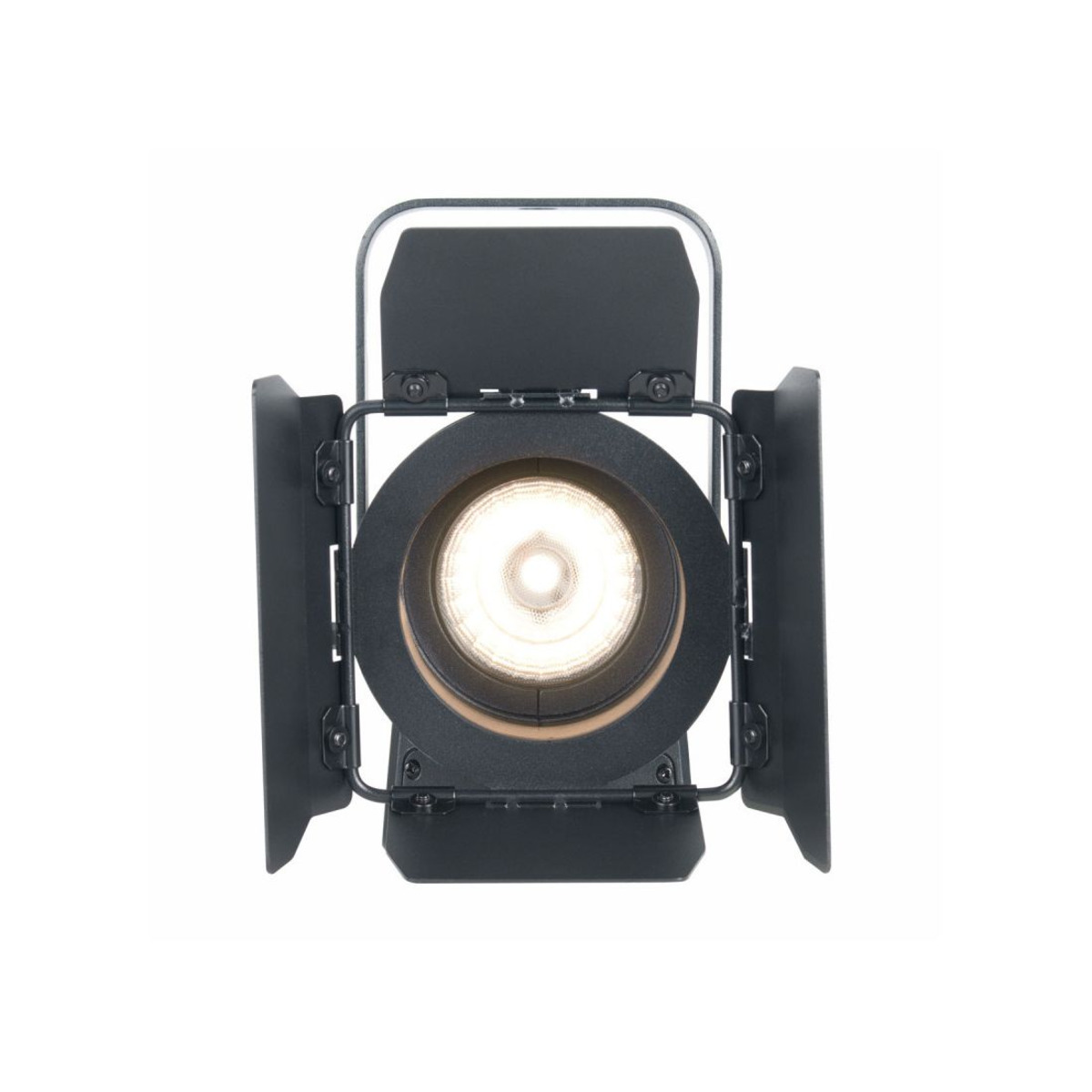

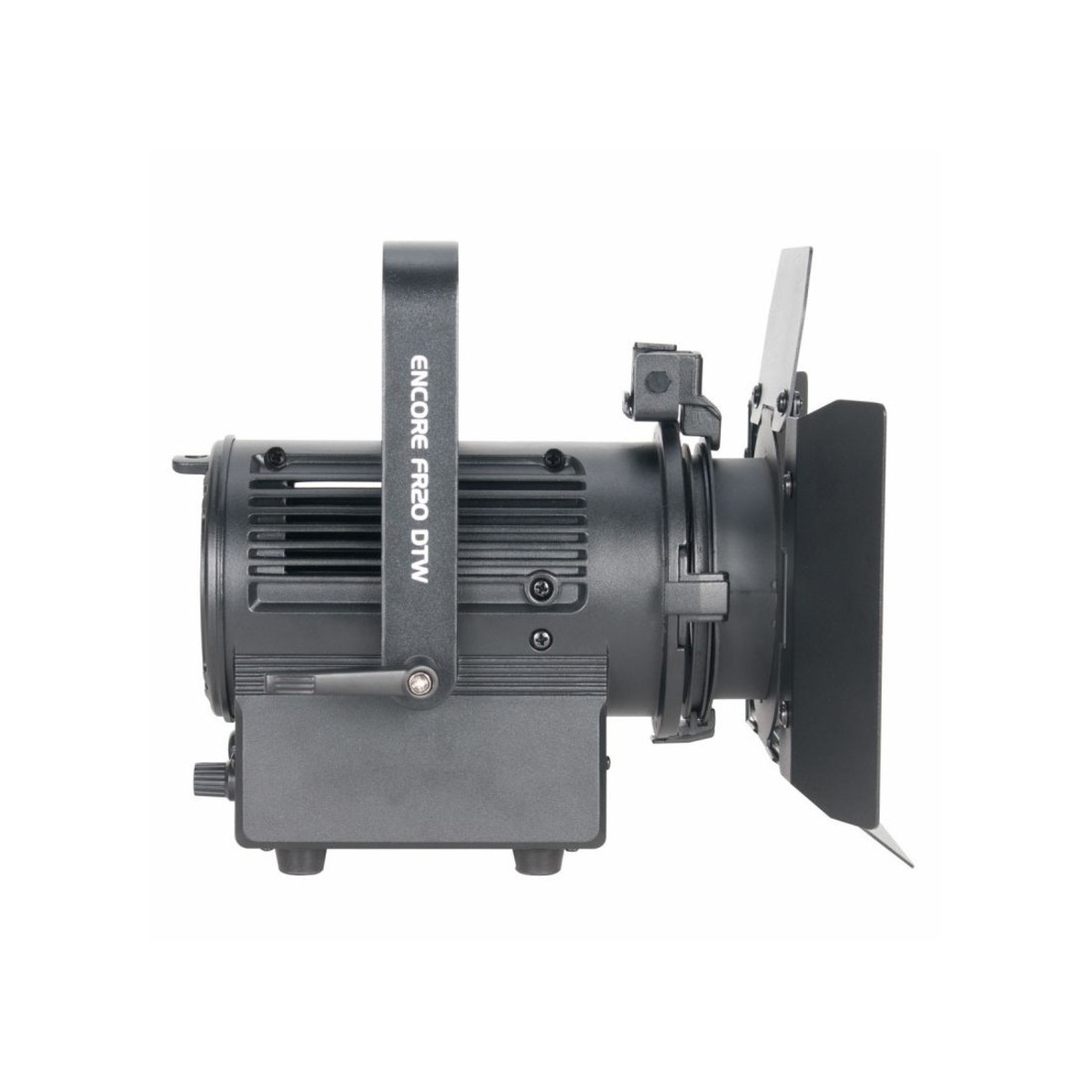

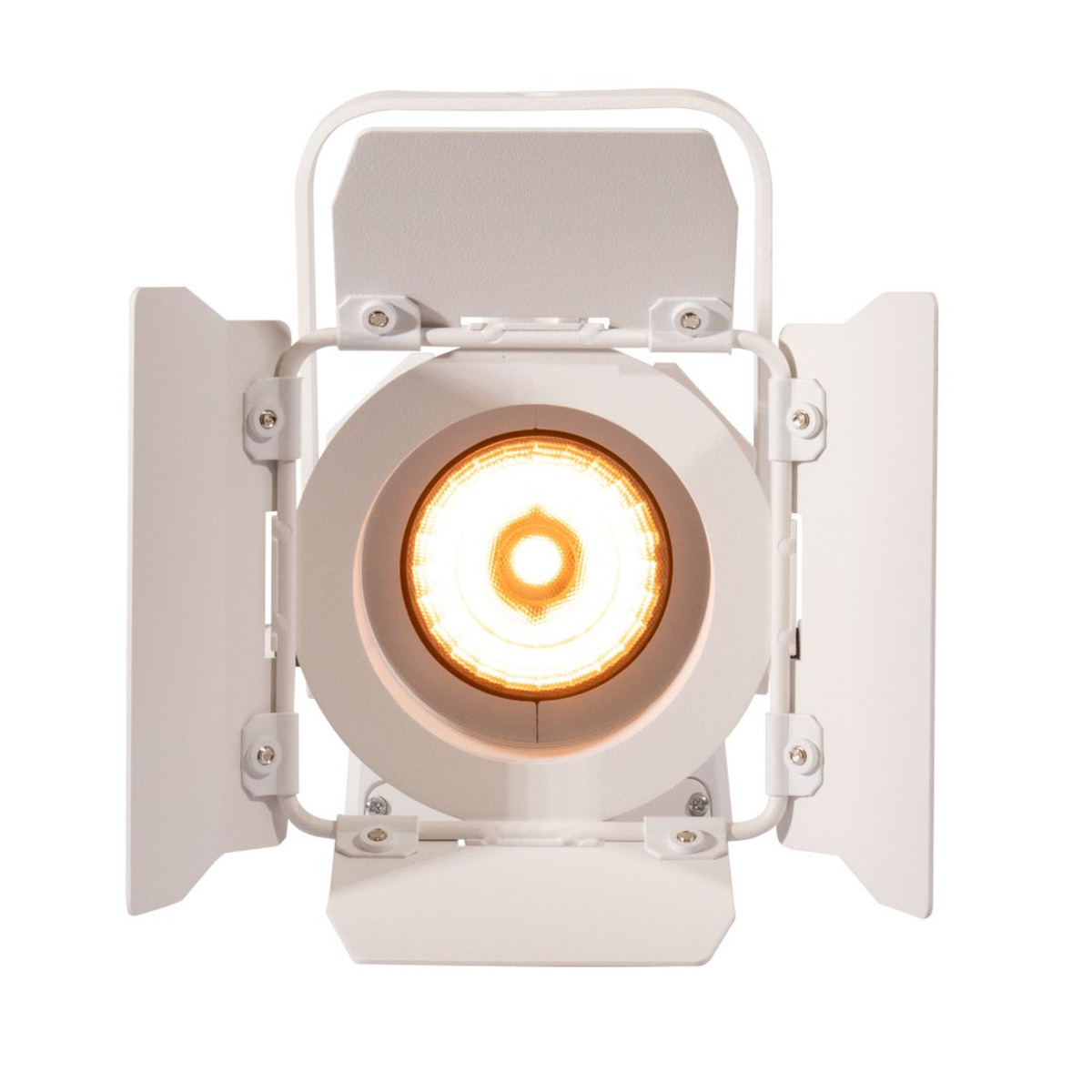

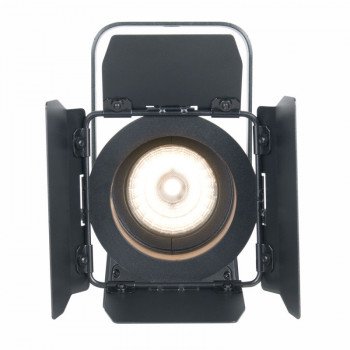

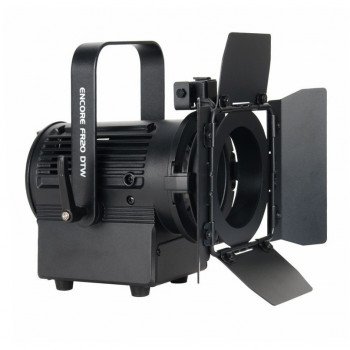

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and an additional lens filter to change the beam angle from 19 degrees to 45 degrees.



£136.00

Description

ADJ Encore FR20 DTW is part of the Encore stage lighting series. The Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine.

It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable – compatible with ADJ dimmer packs or standard wall dimmers.

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light and an additional lens filter to change the beam angle from 19 degrees to 45 degrees.



Specifications

Source

  • Light Source: 1 WW COB-LED
  • Individual LED wattage: 17W
  • Average LED lifetime: approximately 50,000 hrs.
  • Colour Temperature: 3000K
  • CRI: 92

Optics

  • Beam Angle: 19 degrees
  • Additional 45-degree Lens-Kit included

Control

  • 2 operational Modes: Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer
  • Electronic Dimming: 0 – 100%via potentiometer

Colours

  • Warm White 3000K

Construction

  • Robust extruded aluminium housing

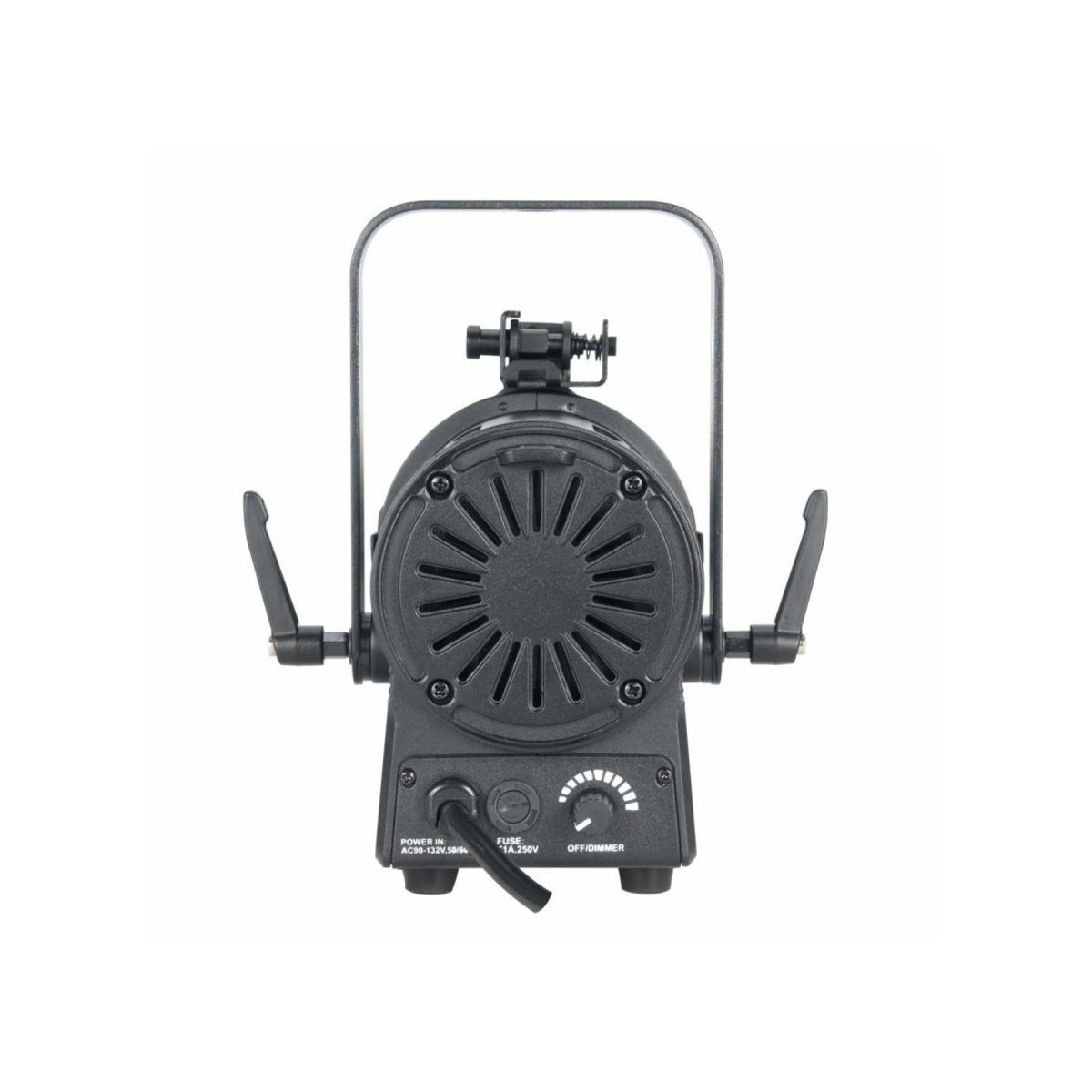

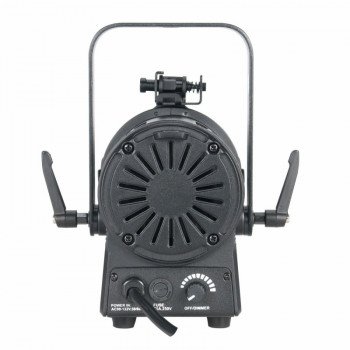

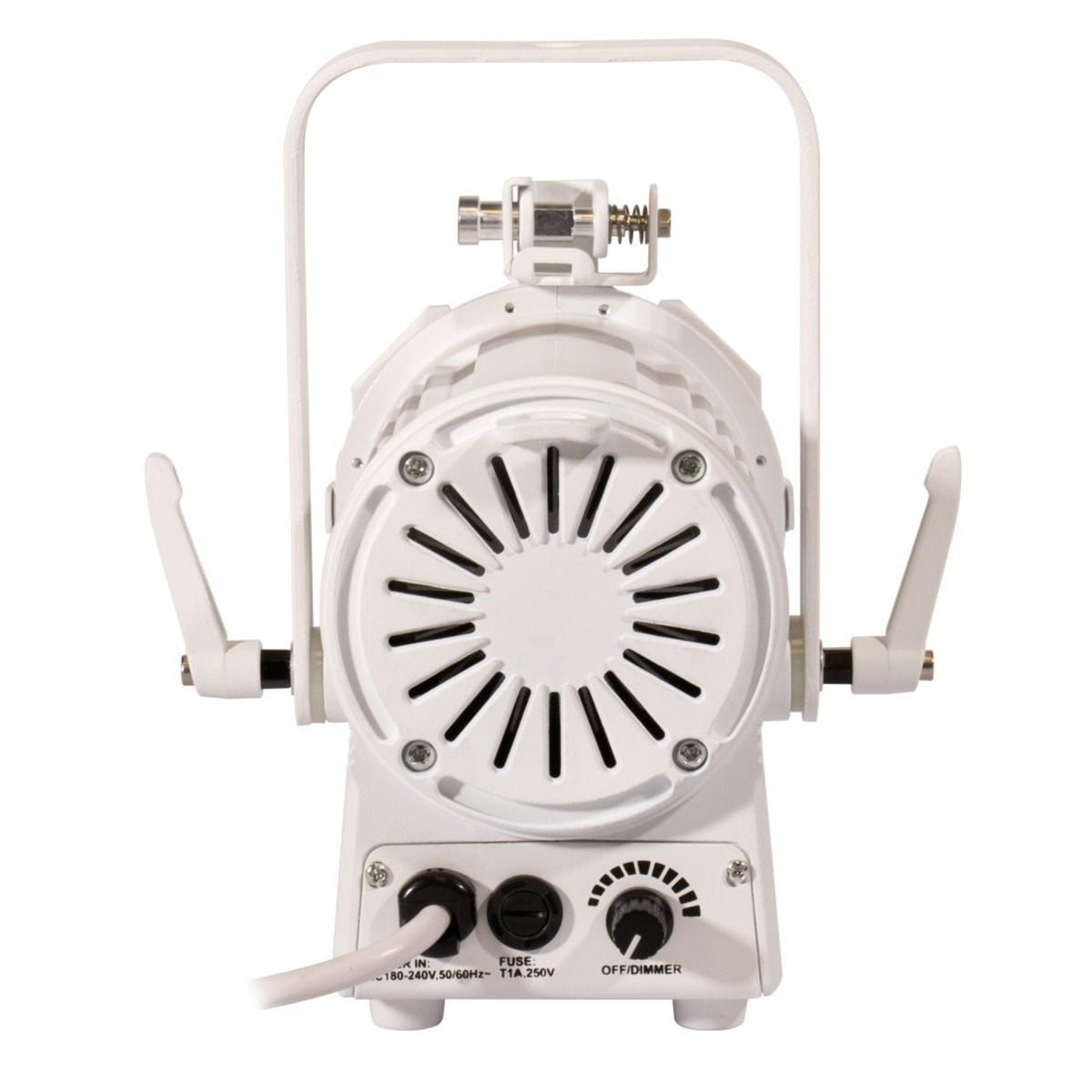

  • Manual Dimming knob on rear

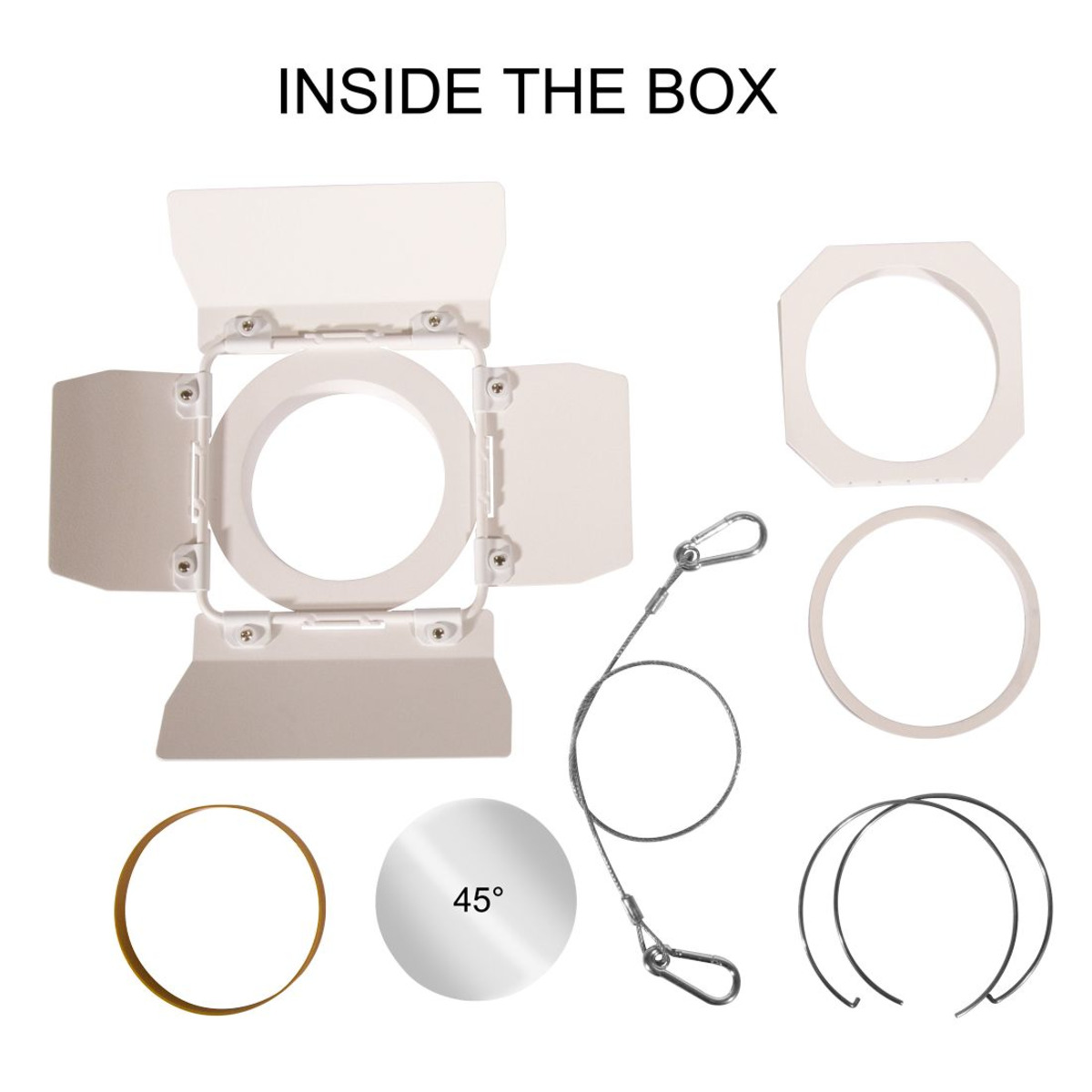

  • Barndoors & Gel Filter Frame included

Electrical

  • Multivoltage 100-240V 50/60Hz
  • Power Consumption: 17W

Connections

  • Fixed Power Cable

Dimensions & Weight

Dimensions (LxWxH)

  • Without Barndoors: 185 x 160.89 x 209.85mm
  • With Barndoors: 269.21 x 160.89 x 209.85mm

Weight

  • Without Barndoors: 1,95 kg.
  • With Barndoors: 2,25 kg

Additional information

Colour

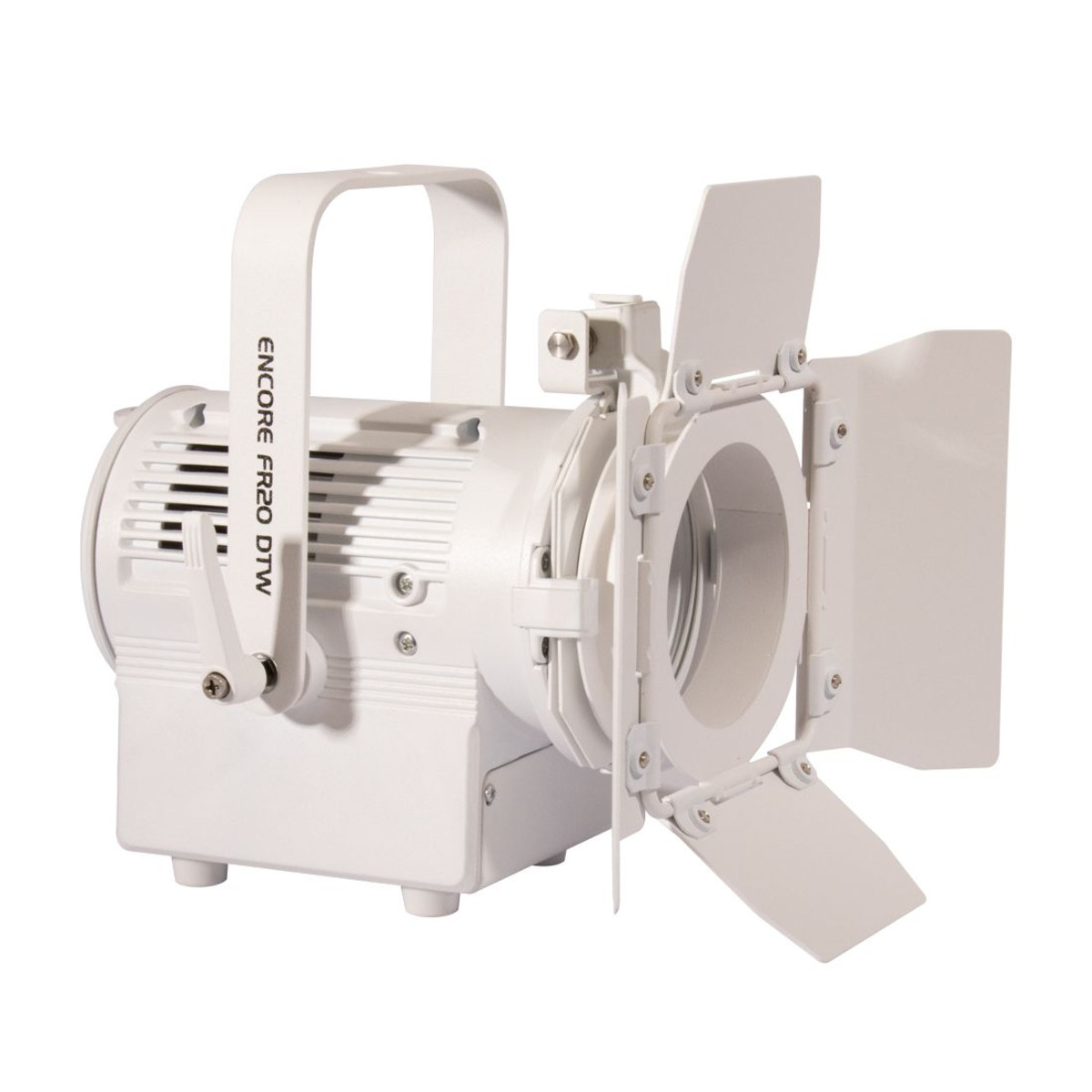

Black, White

Product Brands

ADJ

Product Product Variations

Wash
