ADJ Encore FR50z

ADJ Encore FR50z

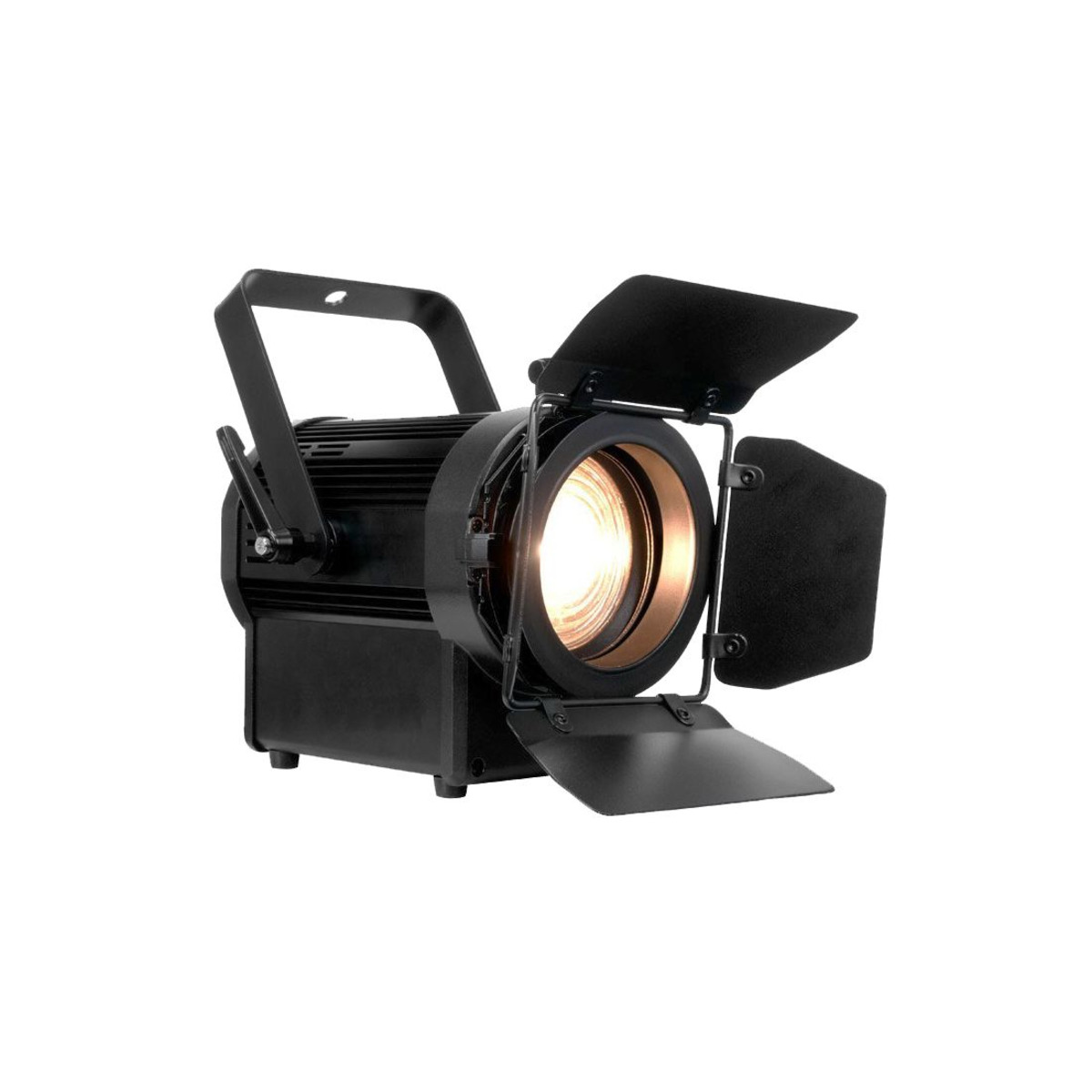

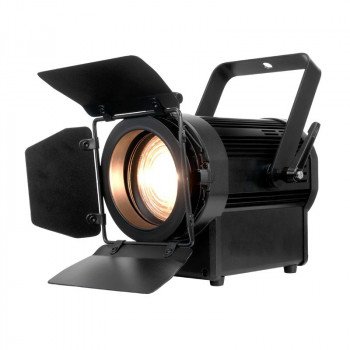

Part of the Encore stage lighting series, the Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine.

It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 14 to 30 degrees.

The Encore FR50Z has a 4-button LCD operational menu, 3-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.

£290.00

Description

Specifications

Source

Light Source: 1 WW COB-LED
Individual LED wattage : 50W
Average LED lifetime : approximately 50,000 hrs.
Color Temperature: 3000K

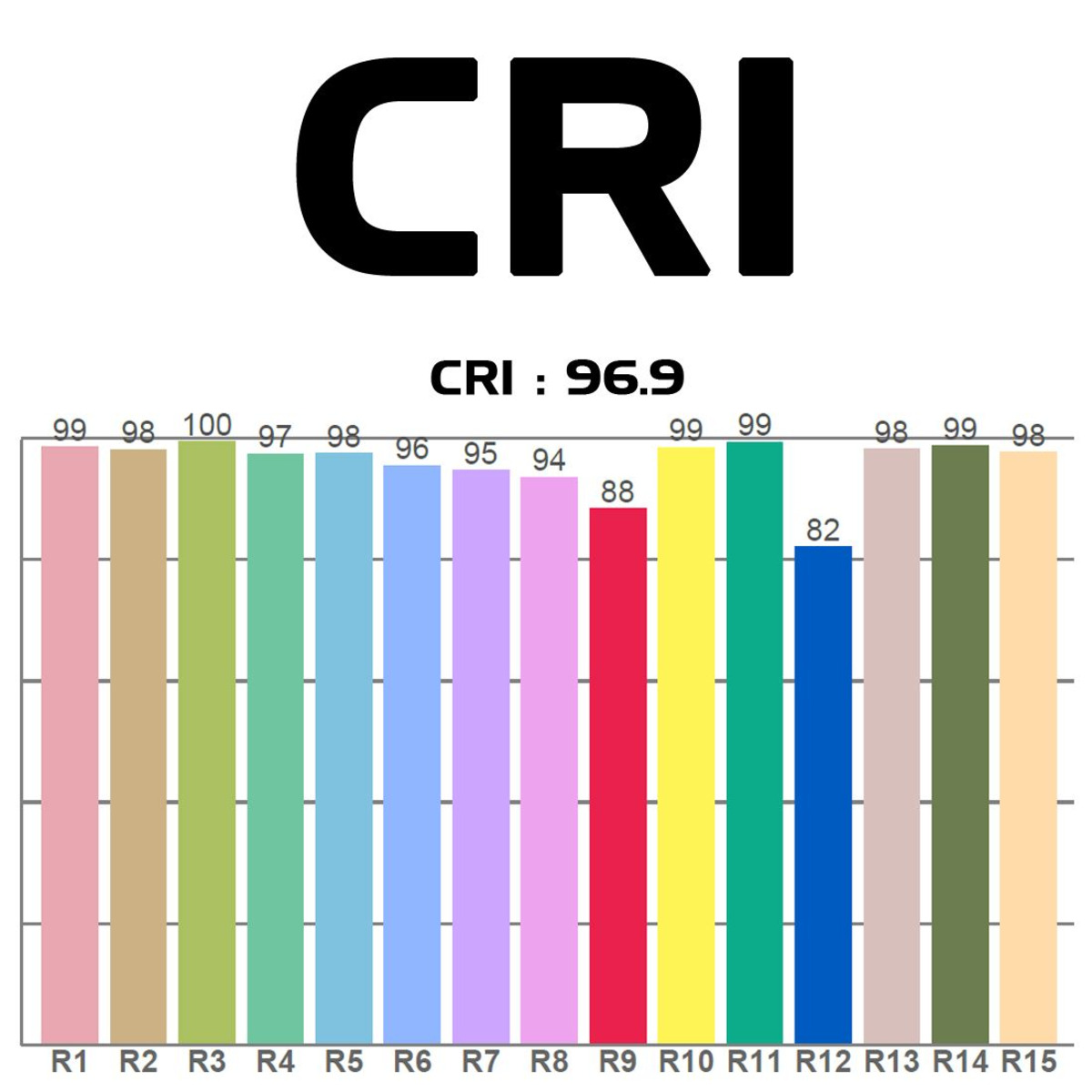

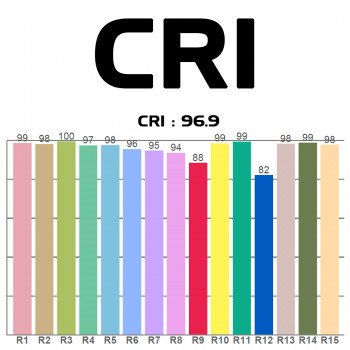

CRI: 96.9

Optics

Adjustable Beam Angle: 14-30 degrees
6-inch/150mm Fresnel Lens

Control

2 operational Modes : Manual WW Dimmer Mode and DMX Control
6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
RDM compatible
16bit Electronic Dimming: 0 – 100%
6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
Adjustable Fanmodes (Auto, Low, High)
LED pulse and strobe effect

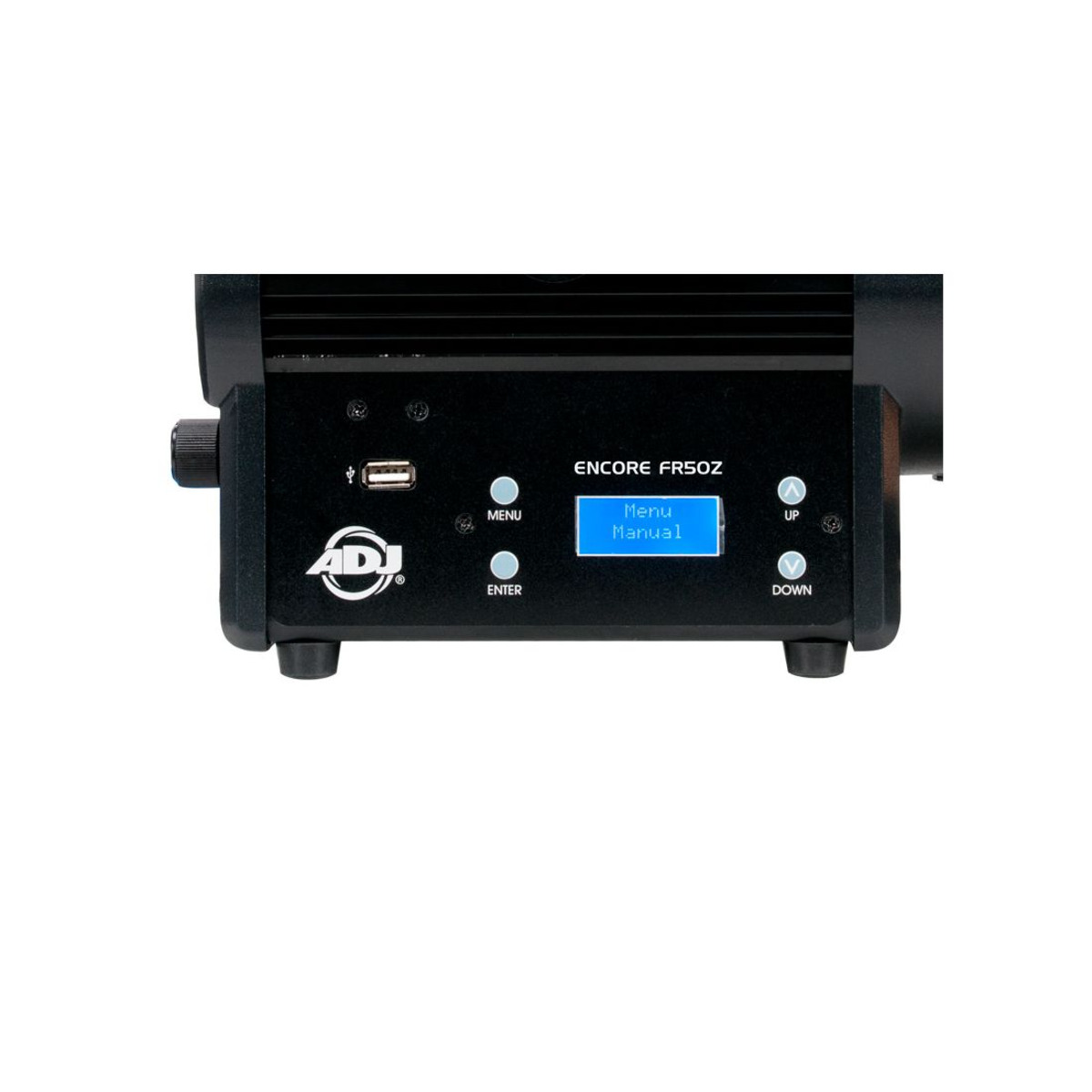

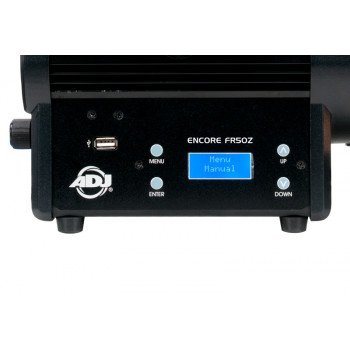

4-button, DMX digital display on rear panel

Colors

Warm White 3000K

Construction

Robust extruded aluminium housing
Manual Zoom Knob
Barndoors included

Electrical

Multivoltage 100-240V 50/60Hz
Power Consumption: 50W

Connections

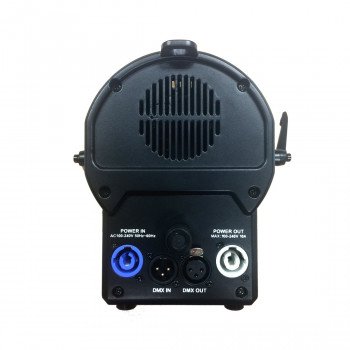

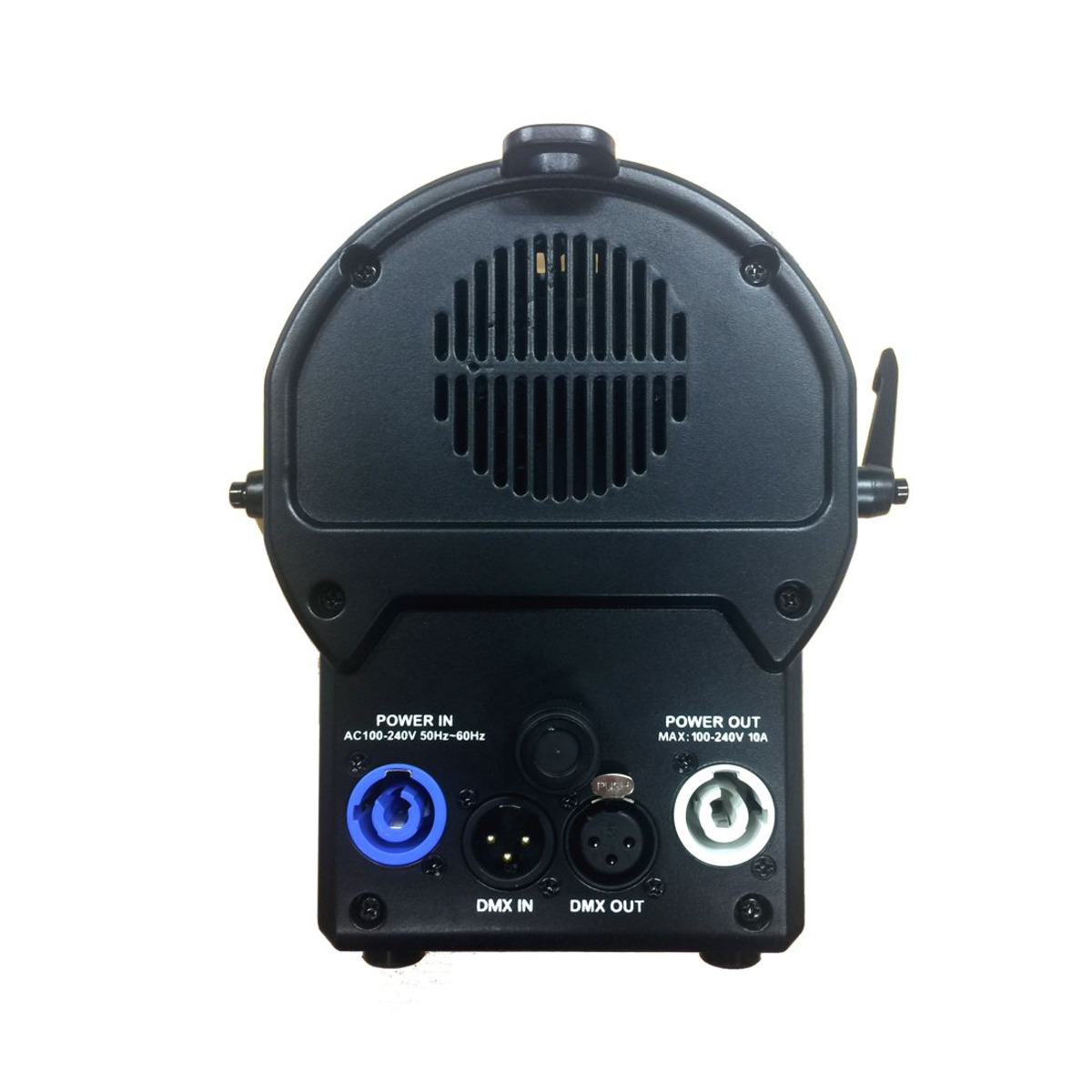

3-pin Locking DMX In/Out connections
Locking Power In/Out connections
USB port for Firmware Update

Dimensions & Weight

Dimensions (LxWxH)

Without Barndoors: 232.8 x 238.05 x 298.25mm
With Barndoors: 339.8 x 238.05 x 298.25mm

Weight

Without Barndoors: 3,8 kg.
With Barndoors: 4,3 kg
