Description

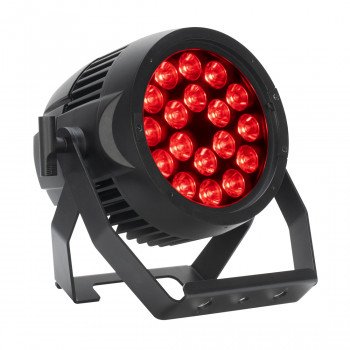

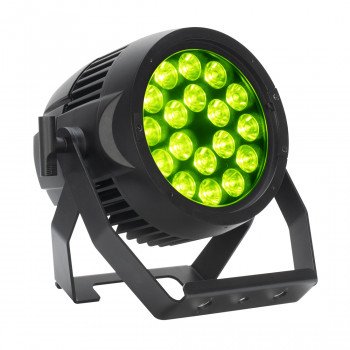

The ADJ Encore LP18IP is a versatile, heavy-duty Par with eighteen (18) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against rain, snow and dust for temporary outdoor events. It offers flicker-free operation for TV and film and linear white colour temperature control from 2700K – 6500K.

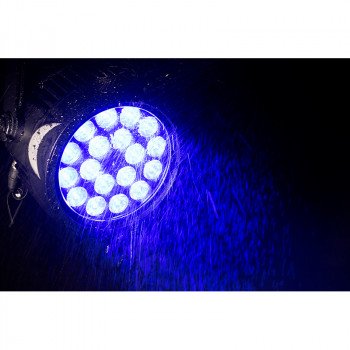

The ADJ Encore LP18IP is a versatile IP65 outdoor-rated Par with 18 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10-degree beam angle, users may produce wide washes with smooth colour mixing from 64 built-in colour macros utilising red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture’s Quad LED engine offers flicker-free operation for TV and film and linear white colour temperature control from 2700K – 6500K.

The Encore LP18IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP-rated 3-pin DMX rubber covers and connectors. IP-rated power linking and DMX cables are available, but standard 3-pin DMX cables may also be used for indoor applications.

There are several additional frost filter options that customise the beam angle. One 25° double frost filter is included in the package, and optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately.

Features

• 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

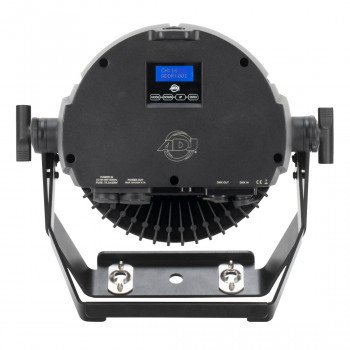

• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• Includes 25° double frost filter, optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately
• Scissor Yoke with Quick Locks & safety eye

Specifications

Source

• Light Source: 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometric Data

• Beam angle: 10-degrees
• CRI: 86.2
• CRI R9: 82.8
• Lumens: 7300

Effects

• Linear Colour Temperature Control (2700K to 6500K)
• Preset Colour Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Colour Control (Red, Green, Blue & Lime)
• 64 built-in Colour Macros

Connections / Control

• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Square, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 – 100%
• 6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
• Quiet fan mode

Construction

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 3-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 3-pin DMX connections
• Includes 25° double frost filter, optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately
• Scissor Yoke with Quick Locks & safety eye
• Optional Omega bracket available

Electrical / Thermal

• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 6 @ 220V
• Max power: 240W

Dimensions & Weight

• Dimensions (LxWxH): 300 x 234 x 289mm
• Weight: 7.15 kg.
