Description

The ADJ Encore LP5IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth colour mixing from 64 built-in colour macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white colour temperature control from 2700K to 7000K.

The Encore LP5IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

The Encore LP5IP includes a removable 25° frost filter. There are several additional frost filter options (sold separately) that customize the beam angle.

Features

• Can produce wide washes with smooth colour mixing from 64 built-in colour macros utilizing red, green, blue and lime LEDs
• Great for lighting indoor stages and venues
• Perfect for temporary outdoor lighting of stages or events
• IP65 rating helps protect the fixture from rain, snow and dust
• Equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connector
• Includes a removable 25° frost filter

Source

• Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometric Data (High CRI Data)

• Beam Angle: 9.7°
• Field Angle: 18.8°
• CRI: 83
• CRI R9: 54
• Colour Temperature: 6942K
• Lux: 2179 @ 3M, 785 @ 5M
• Lumens: 771

Full ON Data

• Beam angle: 9.6°
• Field Angle: 18.8°
• CRI: 67
• CRI R9: -98
• Colour Temperature: 21188K
• Lux: 1766 @ 3M, 636 @ 5M
• Lumens: 607

Effects

• Linear Colour Temperature Control (2700K to 7000K)
• Preset Colour Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Colour Control (Red, Green, Blue & Lime)
• 64 built-in Colour Macros

Control / Connections

• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 – 100%
• 6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel
• Quiet fan mode

Construction

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction

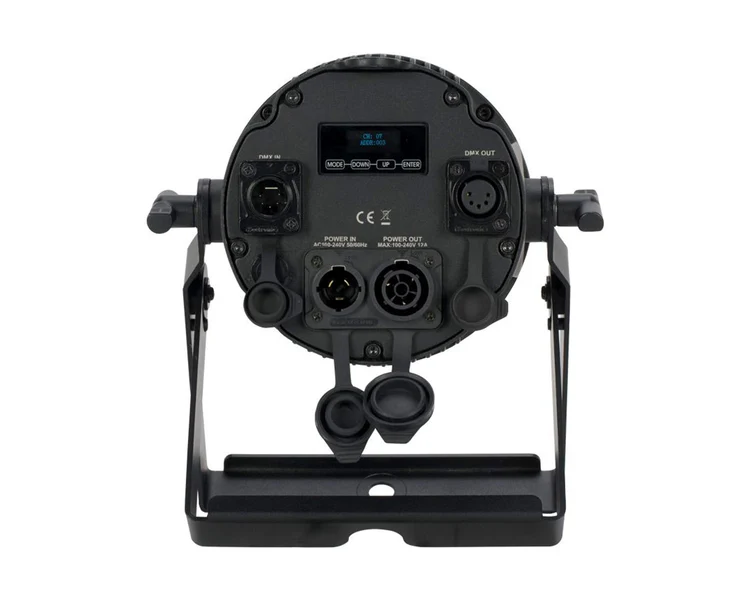

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke & safety eye

Electrical / Thermal

• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 21 units max (110V) / 44 units max (240v)
• Max power: 32W

Dimensions

• Dimensions (LxWxH): Dimensions (LxWxH): 5.92” x 8.23”x 10.06” / 150.48mm x 209.00mm x 255.40mm
• Weight: 5.3 lbs / 2.4 kgs
