Description

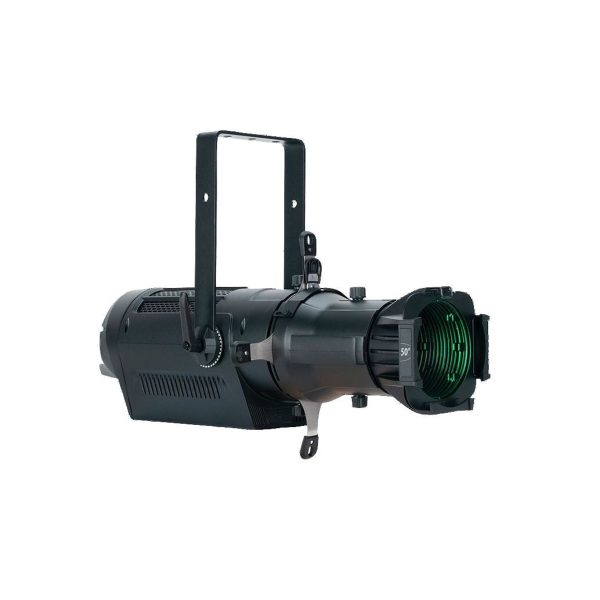

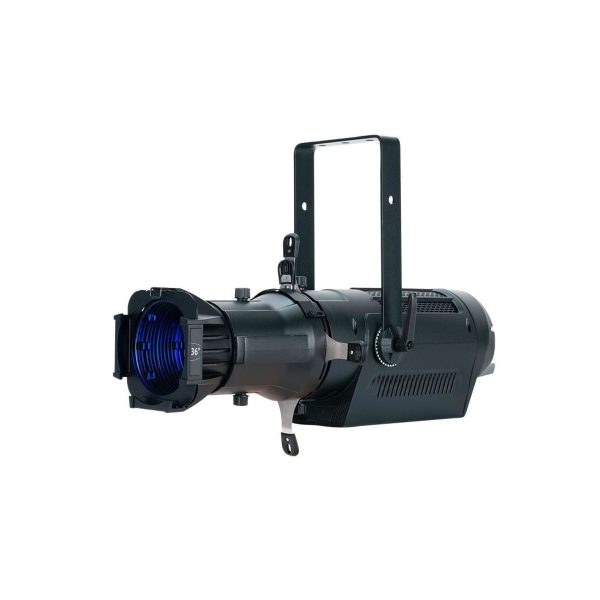

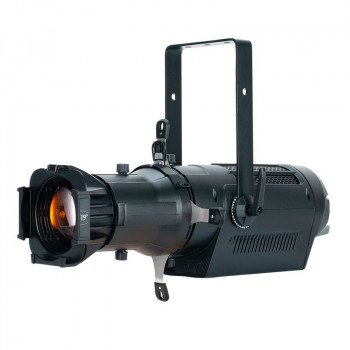

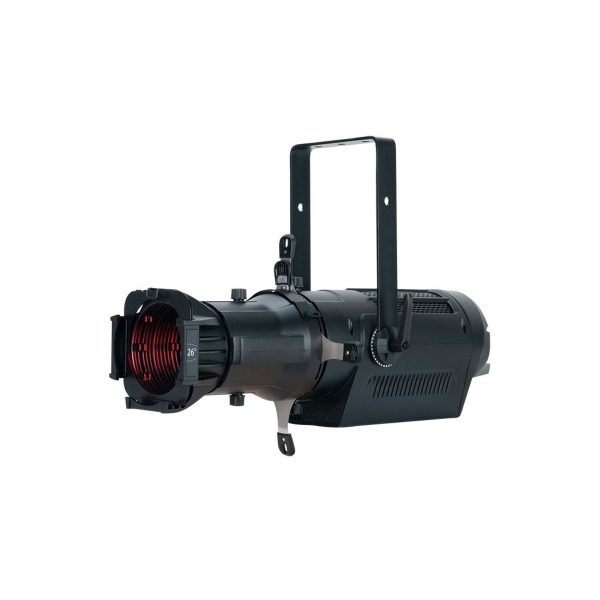

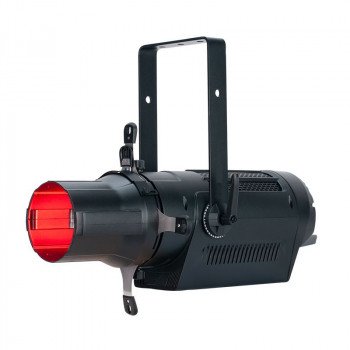

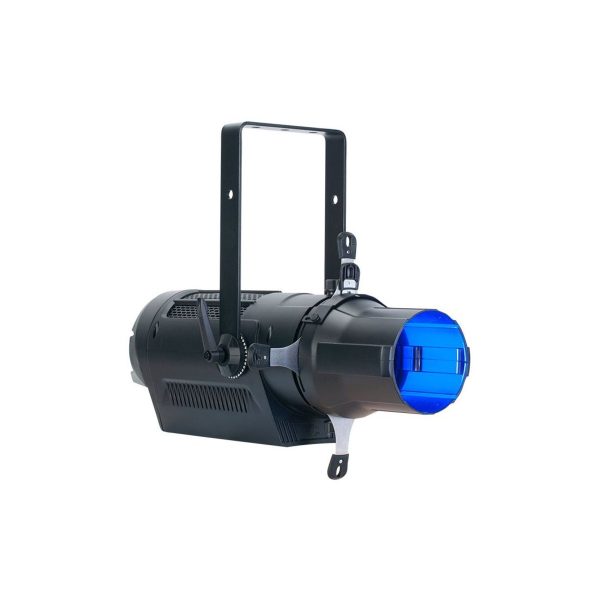

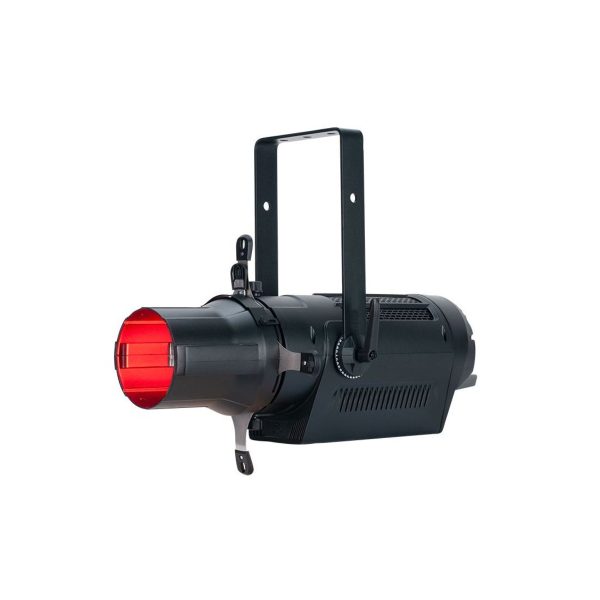

The ADJ Encore Profile Pro Colour™ Ellipsoidal features a 250W RGBAWL (Red, Green, Blue, Amber, White, Lime) LED engine, >90CRI with 14°, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, dimming curves and dimming modes, flicker free operation for TV and FILM, adjustable refresh rate frequency, Locking 5pin XLR In/Out connectors and IP65 Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).
Features
- Manual Focus
- Electronic dimming 0-100%, strobe effects
- USB Port for firmware updates
- Gobo Holder for B-Size gobos
- Adjustable LED refresh Rate from 900Hz to 25000Hz
- Control Modes: DMX512, 3 DMX modes (6, 9 or 12 DMX channels)
- 6 dimmer curves
- LCD Display
- 5pin DMX In/Outs
- IP65 Locking Power In/Out
Source
- 250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine
- 50,000 Hour Average LED Life*
- *LED Life may vary depending on several factors, including but not limited to: Environmental Conditions, Power/Voltage,
- Usage Patterns (On-Off Cycling), Control, and Dimming.
Optics
- Manual Focus
- Manual Framing Shutters
- Optional Lenses 14°, 19°, 26°, 36° and 50°) available. (5°, 10° only on special order)
Colours
Photometric Data
- >90CRI 6,000 Total Lumens*
- (*with 26° lens)
Effects
- Electronic Strobe and Dimming
- Variable Dimming Curves and Dimming Modes
- Independent dynamic white fader feature that creates tunable white colour temperatures from 2400K to 9000K
Gobos
- Supports “B” Size Metal, HT Transparency Gobos
- GOBO Holder is included (See compatible Gobo Dimensions in Downloads section)
- GOBOs are sold separately
Control
- 2 operational Modes : Manual RGBWAL Dimmer Mode and DMX Control
- 3 DMX Modes: 6, 9 & 12-channel
- RDM compatible
- Electronic Dimming: 0 – 100%
- 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre and Stage 2)
- Adjustable Dim speed from 0.1 seconds – 10 seconds
- Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
- Adjustable LED Refresh Rate : 900Hz – 25kHz
- LED pulse and strobe effect
- Quiet Fan Cooling

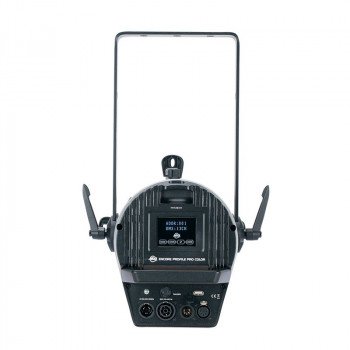

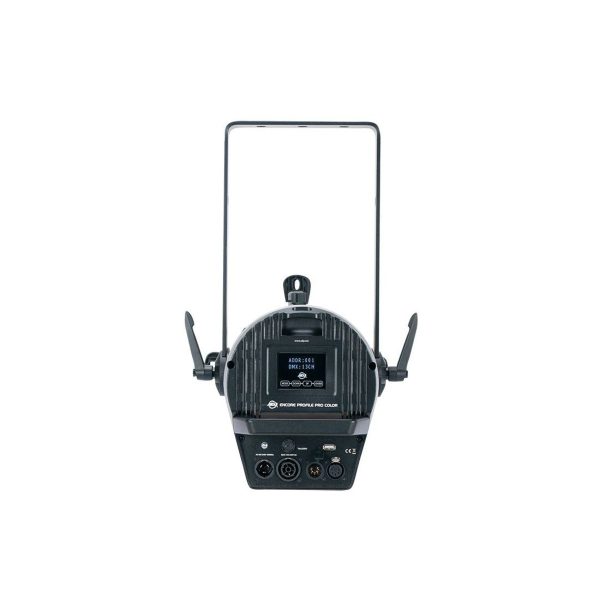

- 4-button, digital touch display on rear panel
Connections
- 5-pin Locking DMX In/Out connections
- IP65 Locking Power In/Out connections
Dimensions
- Dimensions with Lens In (LxWxH): 688 x 289 x 450mm
- Weight: 9.1 kg
Electrical & Thermal
- Quiet Fan Cooling
- AC 100-240V – 47/63Hz
- 250W Max Power Consumption
- Power Linking: 8pcs Max @240V
- -10° to 45°C
Ratings
Included items
- (1) Locking Power Cable
- (1) Gobo Holder
Optional Accessories
- EPP IRIS
- EP Lens 10 (10° High Definition Lens)
- EP Lens 14 (14° High Definition Lens)
- EP Lens 19 (19° High Definition Lens)
- EP Lens 26 (26° High Definition Lens)
- EP Lens 36 (36° High Definition Lens)
- EP Lens 50 (50° High Definition Lens)
- EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)
- EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
