Description

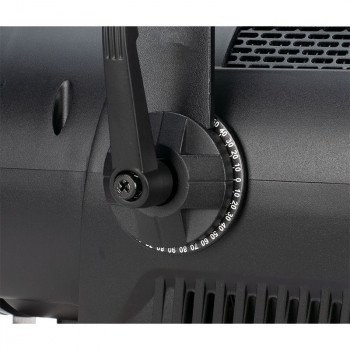

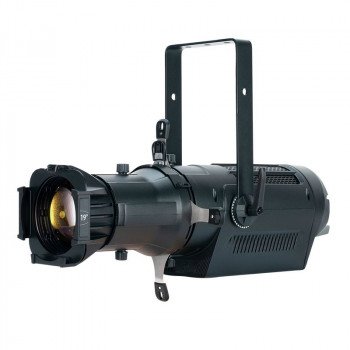

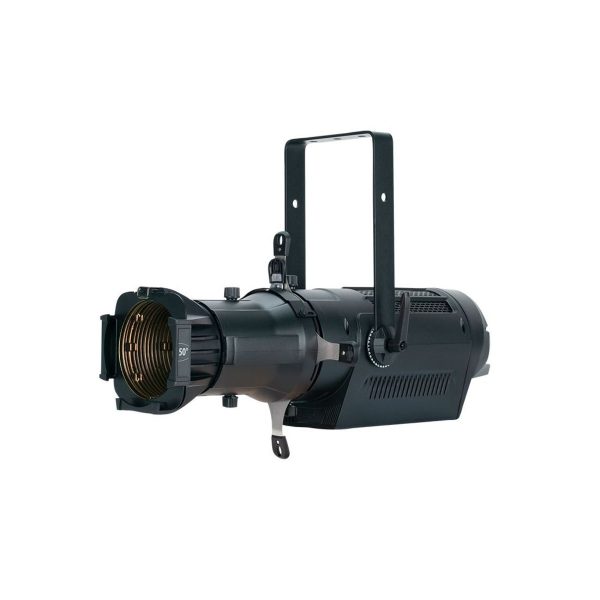

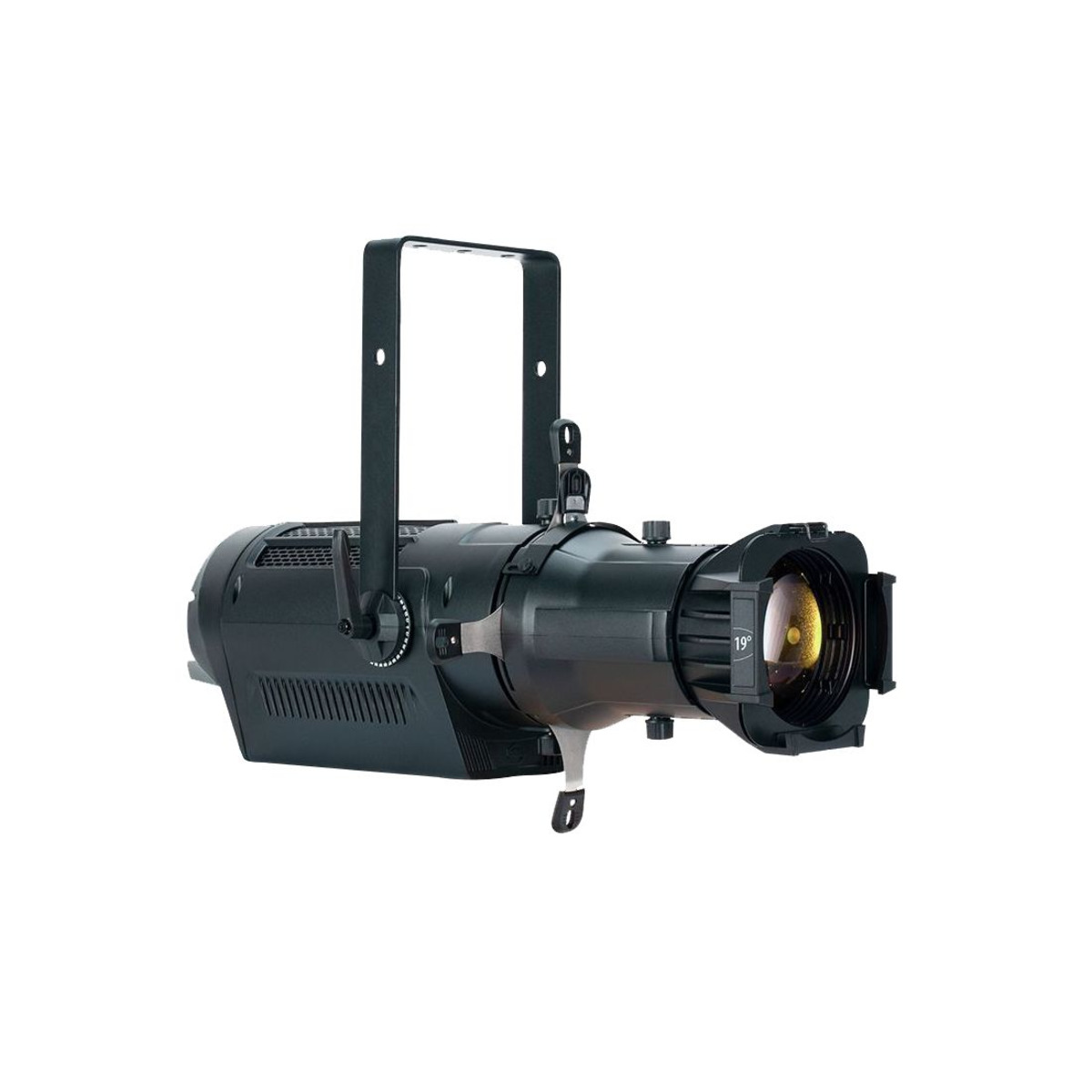

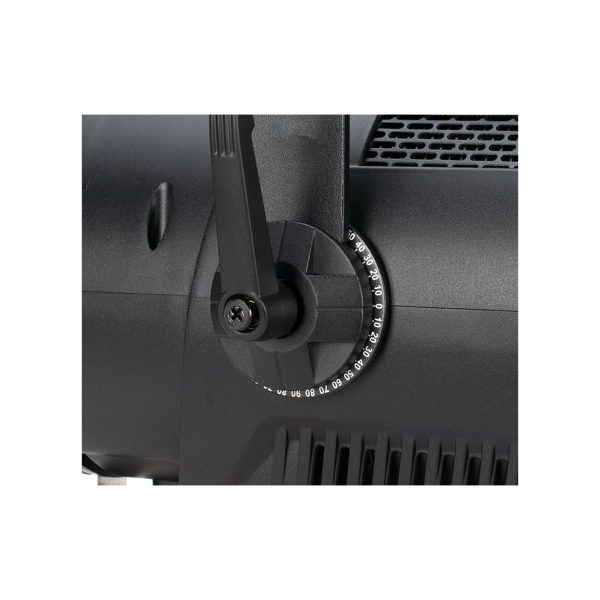

The Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White CRI>95, 3,200K LED engine producing 10,000+ total lumens, 14°, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curves and dimming modes, adjustable refresh frequency for flicker free operation for TV and FILM, Locking 5pin XLR In/Out and IP65 Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).
Features
- Manual Focus
- Electronic dimming 0-100%, strobe effects
- USB Port for firmware updates
- Gobo Holder for B-Size gobos
- Adjustable LED refresh Rate from 900Hz to 25000Hz
- Control Modes: DMX512, 3 DMX modes (1, 3 or 4 DMX channels)
- 6 dimmer curves
- LCD Display
- 5pin DMX In/Outs
- IP65 Locking Power In/Out
Specifications
Source
- 260W Warm White LED Engine
- 50,000 Hour Average LED Life**LED Life may vary depending on several factors, including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
- >97CRI 10,000 Total Lumens
- 3200K Colour Temperature
Effects
- Electronic Strobe and Dimming
- Variable Dimming Curves and Dimming Modes
Gobos
- Supports “B” Size Metal, HT Transparency Gobos
- GOBO Holder is included (see compatible gobo dimensions in Downloads Section)
- GOBOs are sold separately
Control
- 2 operational Modes : Manual RGBWAL Dimmer Mode and DMX Control
- 3 DMX Modes: 6, 9 & 12-channel
- RDM compatible
- Electronic Dimming: 0 – 100%
- 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre and Stage 2)
- Adjustable Dim speed from 0.1 seconds – 10 seconds
- Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
- Adjustable LED Refresh Rate : 900Hz – 25kHz
- LED pulse and strobe effect
- Quiet Fan Cooling

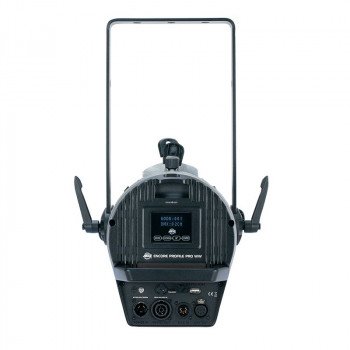

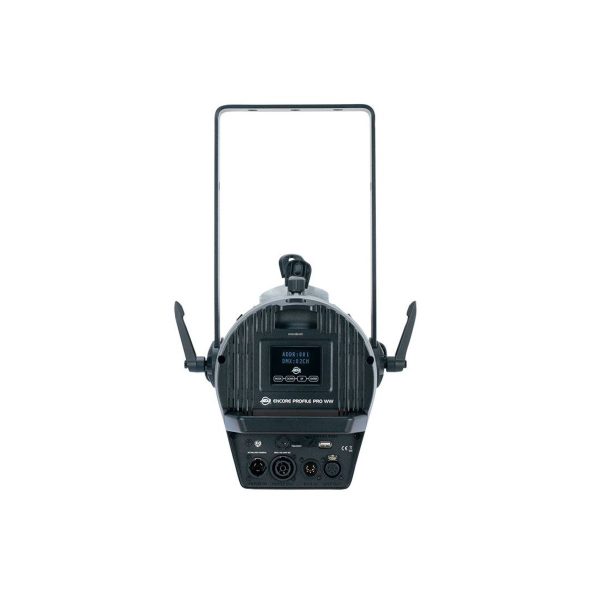

- 4-button, digital touch display on rear panel
Connections
- 5pin XLR In/Out
- IP65 Locking Power In/Out
Dimensions & Weight
- Length: 688mm (Lens Included)
- Width: 287mm
- Vertical Height: 450mm
- Weight: 9.1 kg
Electrical & Thermal
- Quiet Fan Cooling
- AC 100-240V – 47/63Hz
- 260W Max Power Consumption @ 230V
- Power Linking: 8pcs Max @240V
- Minimum and Maximum Ambient Temperatures: -10° to 45°C
Approvals & Ratings
Included items
- (1) IP65 Locking Power Cable
- (1) Gobo Holder
Optional Accessories
- EPP IRIS
- EP Lens 10 (10° High Definition Lens)
- EP Lens 14 (14° High Definition Lens)
- EP Lens 19 (19° High Definition Lens)
- EP Lens 26 (26° High Definition Lens)
- EP Lens 36 (36° High Definition Lens)
- EP Lens 50 (50° High Definition Lens)
- EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)
- EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
