Description

Features

• Professional low-lying fog machine with road case and heavy-duty casters
• Massive fog output of 550 Sq M / 5920 Sq ft.
• Dual element heating system
• 4-section electronic temperature control system
• Average run time: 5 minutes
• Requires dry ice and water
• Water Level Sensor: pump automatically turns off when water is too low
• Dry ice consumption: 12 kg/ 3,5 min
• Water drain valve: recessed for protection located lower-front of case
• 10-hour holding time of cooler box

Thermal

• Max Ambient Temperature: 104°F  | 40°C
• Max Surface Temperature: 140°F | 60°C
• Max Water Temperature: 80., 75., 70., 65.
• Initial heat time: 90 min @ 120V/ 45 min @ 230V

Control

• 3 Operating Modes: built-in timer, manual, or DMX control
• 3 DMX Channel Modes: 1, 2 or 6 Channels

Connections

• 3- pin & 5-pin locking DMX In/Out connections
• 2x Locking Power IN (1 Main, 1 Auxiliairy)

Electrical

•  Power Voltage: 120V~230VAC / 50/60Hz (non-switchable)
•  Dual Element Heating System: 2x 1450 Watts @ 120V/ 2x 3000 Watts @230V
•  Power Consumption: (full) 3000 Watts @120V/ 6100 Watts @ 230V

Dimensions & Weight

• Dimensions without case + wheels: 543 x 460 x 617 mm
• Dimensions with case + wheels: 546 x 463 x 632 mm
• Weight: (with wheels no case cover): 33 kg.
• Weight: (with case cover + wheels): 42,5 kg
• Water Tank Capacity: 32 Liters
• Dry Ice Basket Capacity: 12 kg.

Included Items

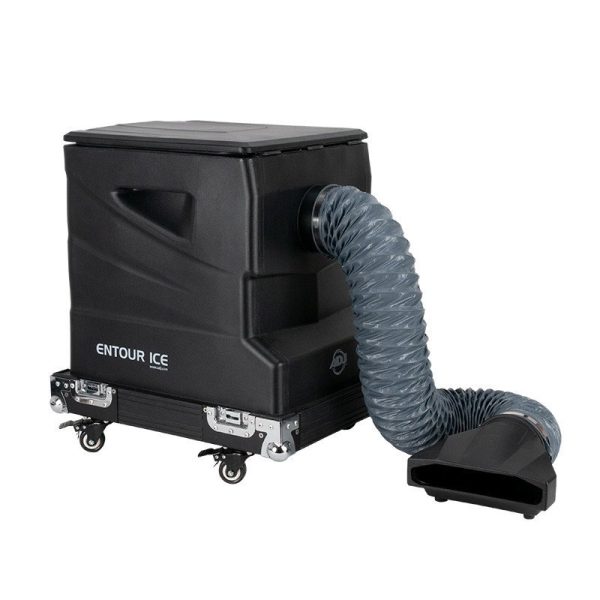

• Entour Ice Machine with heavy-duty casters
• Entour Ice Hose : Fog conduction hose with hose clamps (1.5 m) and wide-mouth fog dispersion hose adaptor

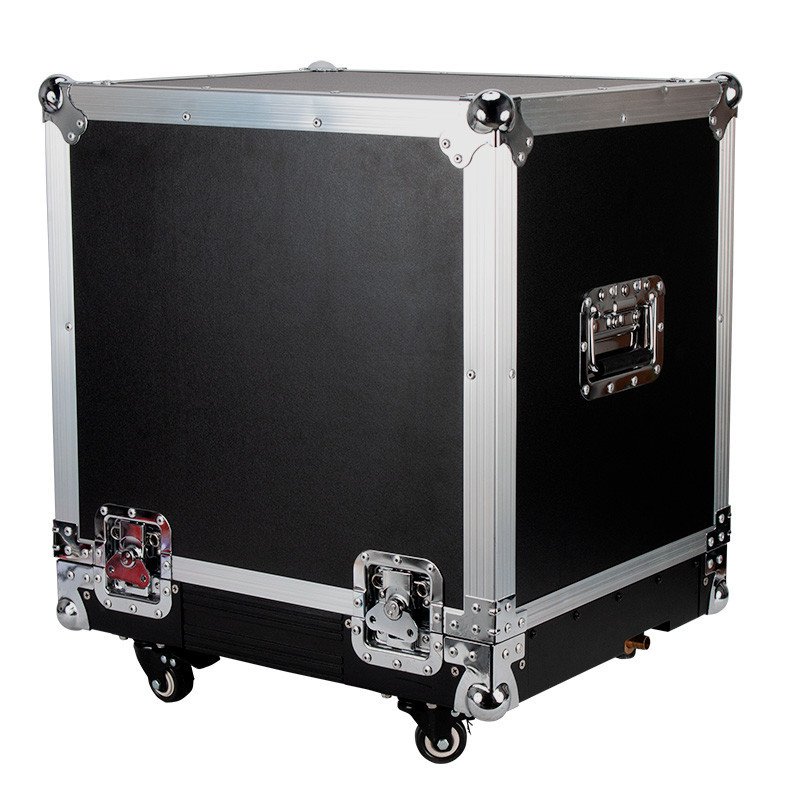

• Tour-grade flight case
• 2x Locking Power power cables
• Product manual
