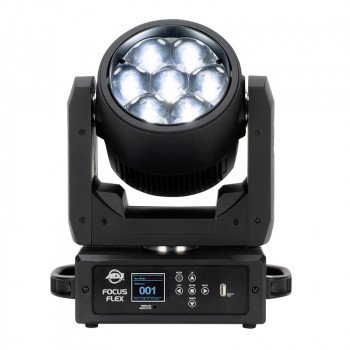

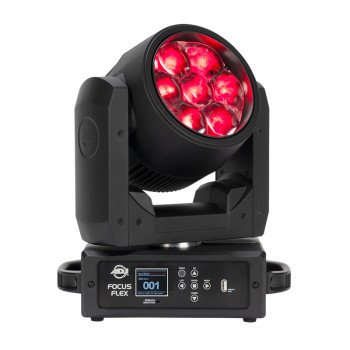

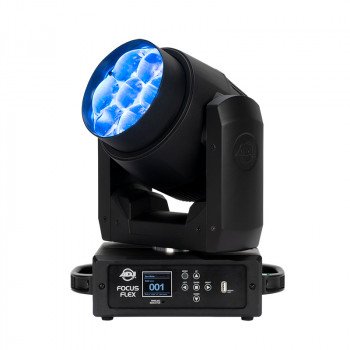

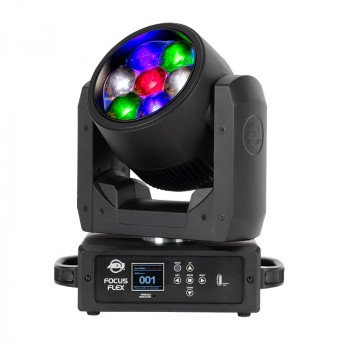

ADJ Focus Flex



ADJ Focus Flex, compact, quick and punchy, lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects.

Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW colour mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colours, a huge gamut of output colours can be created to suit any mood or desired look.

The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallet tools.



£1,219.00

Description

It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, by controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex are colour calibrated to ensure uniform output of fixtures from different batches.

Motorised zoom allows the beam angle of the Focus Flex to be altered remotely between a wide 55° and narrow 5°, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.

A flexible fixture, the Focus Flex offers a range of DMX mode options [7 DMX Modes – 16/25/34/42/50/25 (CMY)/28 (CMY) Channels], appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes.

These are accessed through a colour LCD display panel with a 6-button menu interface located on the side panel of the fixture alongside a USB port, which can be utilised for easy updates of future firmware releases.

Specifications

Source

  • 7 x 40-Watt RGBW LEDs (50,000 hr.)
  • CRI: 79
  • 15.140 lux / 4° beam @ 5m 378 lux / 35° beam @ 5m Lumens: 3240 (Zoom Out, full on)
  • 15.140 lux / 4° beam @ 5m
  • 378 lux / 35° beam @ 5m
  • Lumens: 3240 (Zoom Out, full on)

Features

  • Moving Head Pixel Wash with Pixel Effects
  • Electronic Strobe / Dimmer
  • Pan/Tilt: 540/630 x 265
  • Beam Angle: 4 ~ 31°
  • Field Angle: 5 ~ 55°
  • Colour Calibrated Pixels so units match from batch to batch
  • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • Selectable Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
  • 4 Dim Curves: Square, Linear, Inv. Square and S-Curve
  • 0-100% smooth dimming
  • Various strobe speeds
  • USB firmware update port
  • Fan Cooled

Colours

  • Virtual CMY DMX Control Modes
  • Virtual Foreground and Background Colour Wheel Control
  • Built-In Colour Macros
  • 2700k ~ 10,000 Linear White Colour Control
  • Colour Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K

Control

  • 7 DMX Modes – 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
  • Colour LCD display with 6-button function menu
  • Control Mode: DMX512 or internal programs
  • Built-In Effect Pixel Programs with Speed and Fade Control
  • Various strobe speeds
  • USB firmware update port
  • RDM (Remote Device Management)

Pan/Tilt

  • Pan: 540/630 degrees
  • Tilt: 265 degrees

Connections

  • DMX Connections: 5-pin XLR In/Out
  • Power Connections: Locking Power In/Out

Electrical

  • Multi-voltage operation: 90-240V, 47/63Hz
  • Max power consumption: 340W

Dimensions & Weight

  • Dimensions (LxWxH): 233x177x349mm
  • Weight: 7kg

What’s Included

  • Omega Bracket
  • Locking power cable
