Focus Spot 7Z

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture.

Its light source is an efficient 420W white (7.000K) LED engine, which has an average operational life of 20.000 hours.

Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 19.000 Lumens.



£3,479.00

Description

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2.700K to 7.200K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

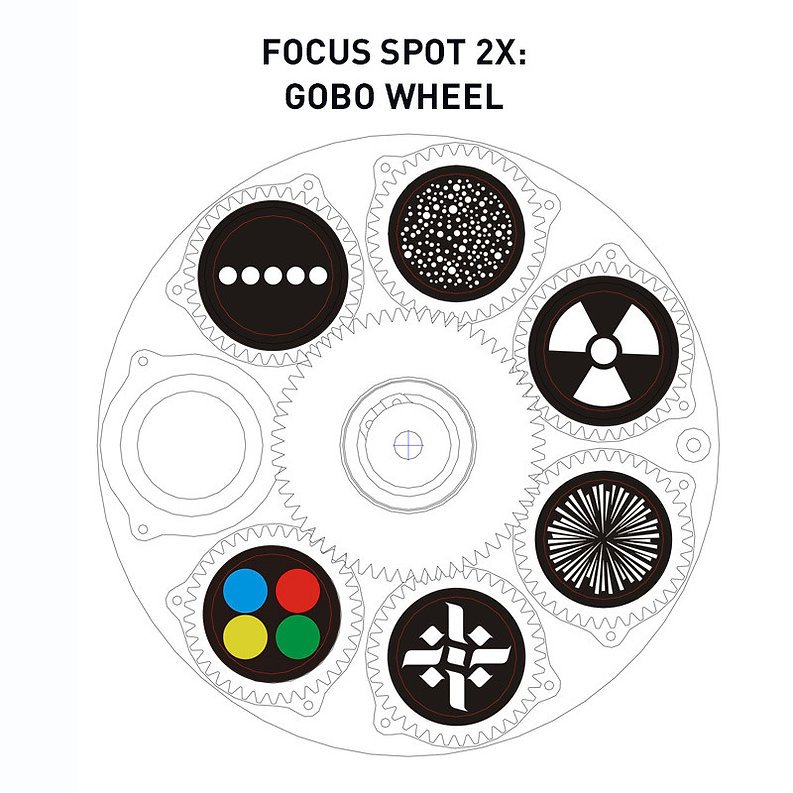

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 23.45kg, the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

Specifications

Source

  • 420W White LED Engine
  • 20,000 Hour Average LED Life

Photometric Data

  • 19.000 Total Lumens
  • 7.0000K, >73CRI (without CRI Filter)
  • 6.700K >85CRI (with CRI Filter)
  • 50.528 LUX @5m (6° Beam)
  • 1.799 LUX @5m (48° Beam)

Effects

  • 4-Facet Circular & 6-Facet Linear Rotating Prisms
  • 2 Frost Filters (Light & Heavy)
  • Animation Wheel (Rotatable and Indexable)
  • Motorized Zoom (6° ~ 48°)
  • Motorized Focus
  • Motorized Iris
  • Electronic Dimming & Strobe (1-20Hz)

Color

  • Full CMY color mixing
  • Variable CTO (2.700K to 7.000K)

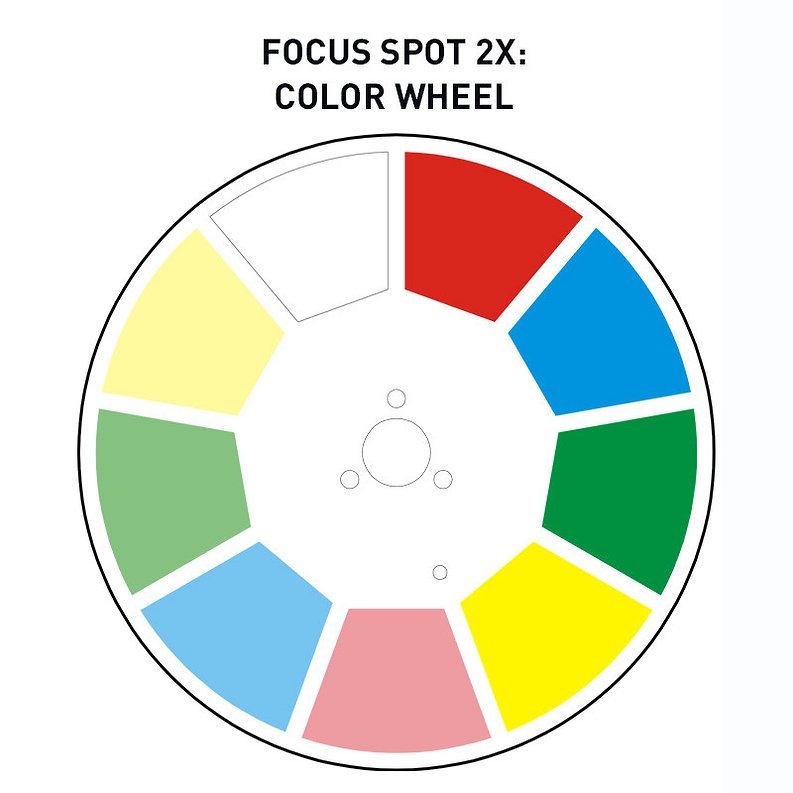

  • Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
  • CMY and Color Wheel preset macros

Gobos

  • (2) Gobo Wheels
  • #1 – (7) Interchangeable Rotating-Indexing Glass Gobos
  • #2 – (7) Interchangeable Rotating-Indexing Glass Gobos

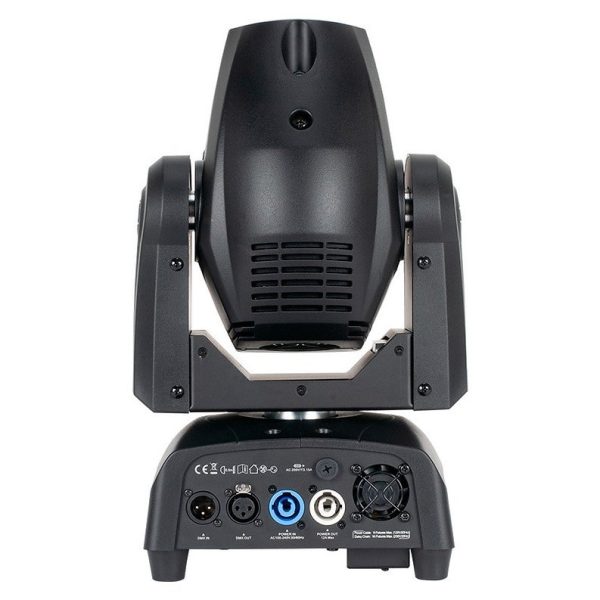

Control & Connections

  • (3) DMX Channel Modes (30 / 34 / 45)
  • DMX512, ArtNet and sACN protocols
  • WiFLY Wireless DMX Built-in
  • RDM (Remote Device Management) compliant
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement
  • 5-pin XLR DMX In/Out
  • RJ45 connectors In/Out
  • IP65 Locking Power In/Out connections

Pan / Tilt

  • Pan: 540-degrees
  • Tilt: 270-degrees
  • Pan & Tilt Locks

Dimensions & Weight

  • Length: 374mm
  • Width: 234mm
  • Vertical Height: 630mm
  • Weight: 23.45kg

Electrical & Thermal

  • AC 100-240V – 50/60Hz
  • Max Power Consumption: 524W
  • Max ambient temperature: -10°C to 45°C
  • Max housing temperature: 58°C

Technical Data

  • DB Rating @ 1m.: 49dB
  • BTU: 0.53
  • BTU/H: 1,909.60

What’s Included

  • Locking Power cable
  • 180mm Omega brackets (x2)
