Description

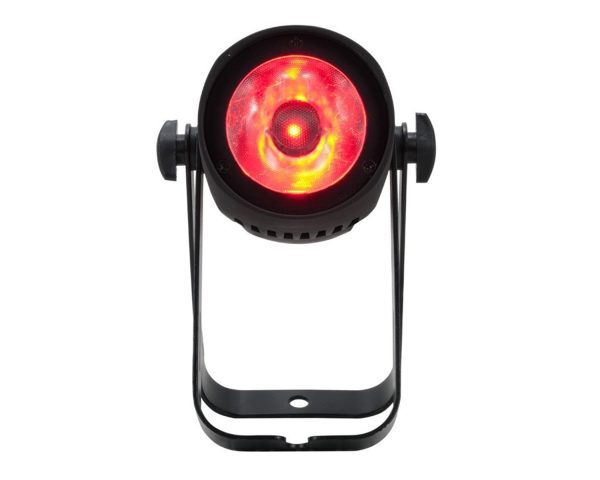

The ADJ Saber Spot RGBW Compact Pinspot with 15W RGBW LED is a compact Pinspot with smooth RGBW colour mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in colour macros, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor-sharp 4-degree beam angle.

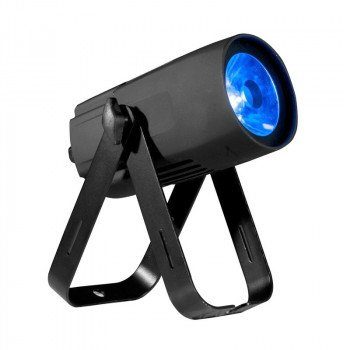

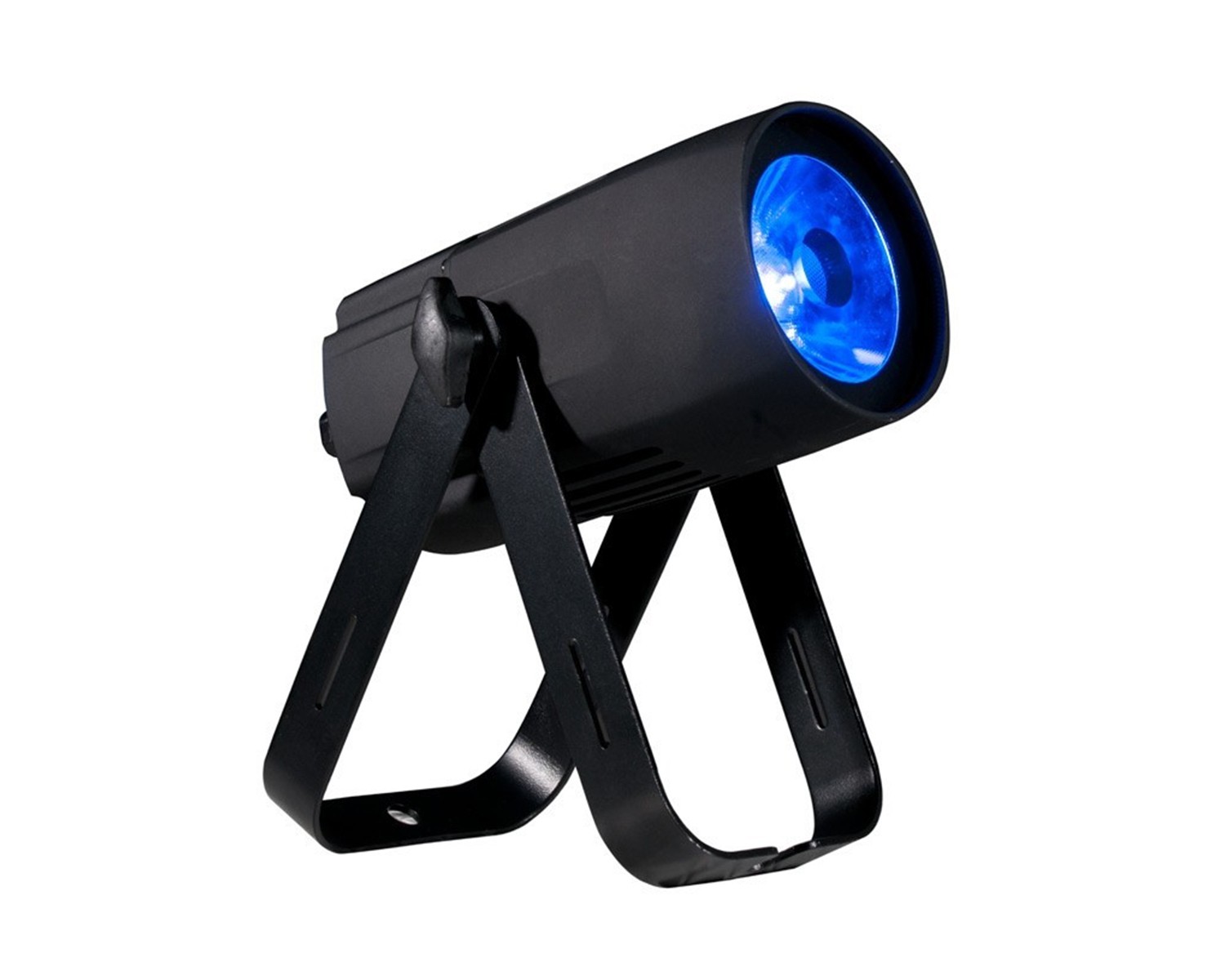

The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, and lighting retail stores.

Features

• 9 Built-in Colour Macros
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• 11 DMX Channel Modes
• 6 Operational Modes: Static Colour mode; Colour Change Mode
• Flicker Free

Specifications

General

• Optical
  • Light Source: 15-Watt Quad (RGBW) LED
  • LED Life Expectancy: 10,000 Hrs
  • Beam Angle: 4 degrees
  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • Refresh Rate: 3.6KHz
• Technical Features
  • 9 Built-in Colour Macros
  • 6 Operational Modes: Static Colour mode; Colour Change Mode
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
  • Flicker Free
  • Includes a scissor yoke to be hung, or set on the ground
• Connections

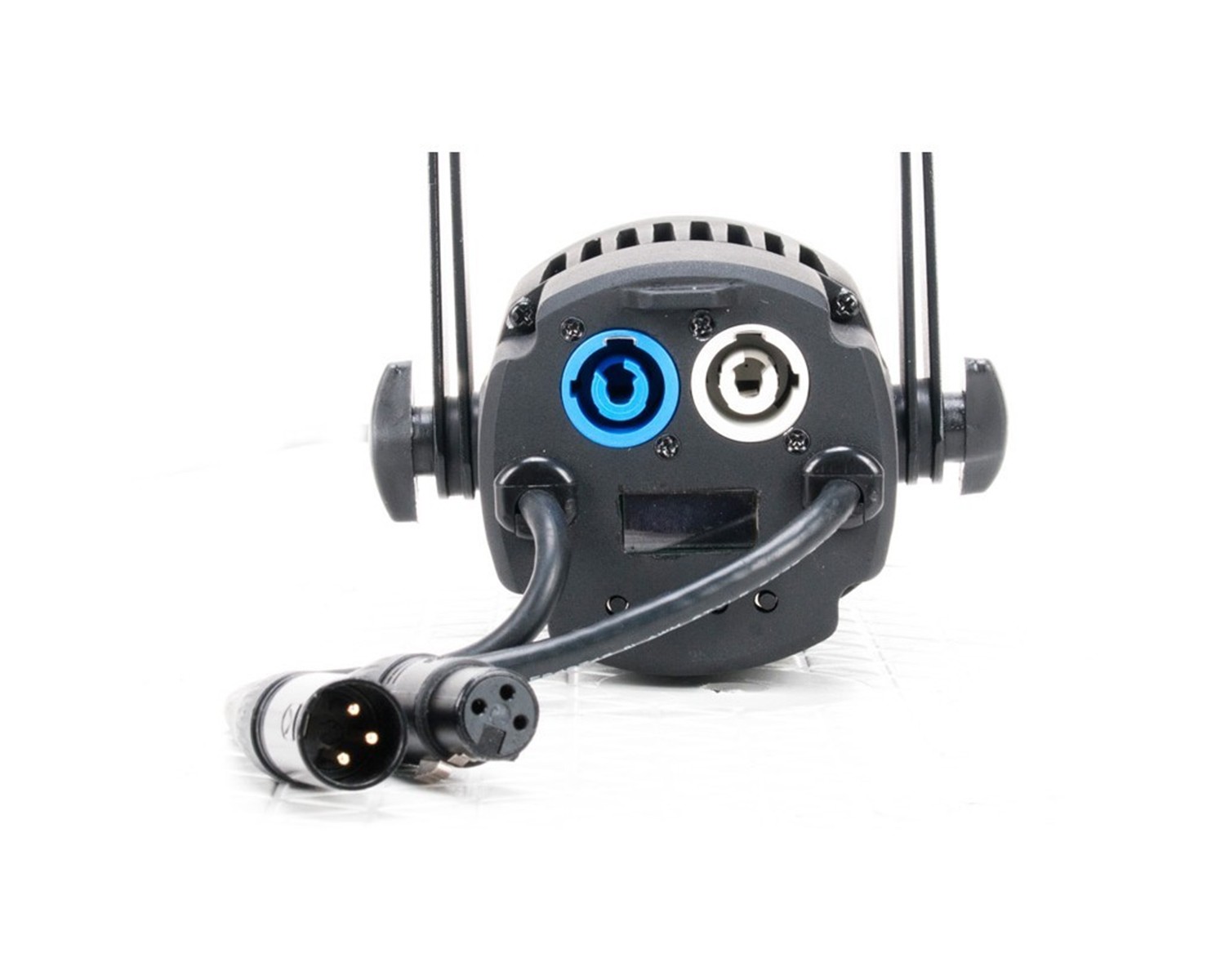

  • Power Input: powerCON
  • Power Pass through:  powerCON
  • Control: 3-pin DMX In/Out pigtails
• Control
  • 11 DMX Channel Modes: 3/4/4/5/6/6/7/8/8/9/11/12
• Electrical
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 14W, 0.12 Amps
  • Power draw 220V 50Hz: 14W, 0.06 Amps
• Certifications
  • ETL Approved, UL, CE
  • IP 20: Dry area, No liquids
• Other
  • Black Housing

Physical & Dimensions

• Length: 88mm
• Width: 170mm
• Height: 87mm
• Weight: 1.2kg
