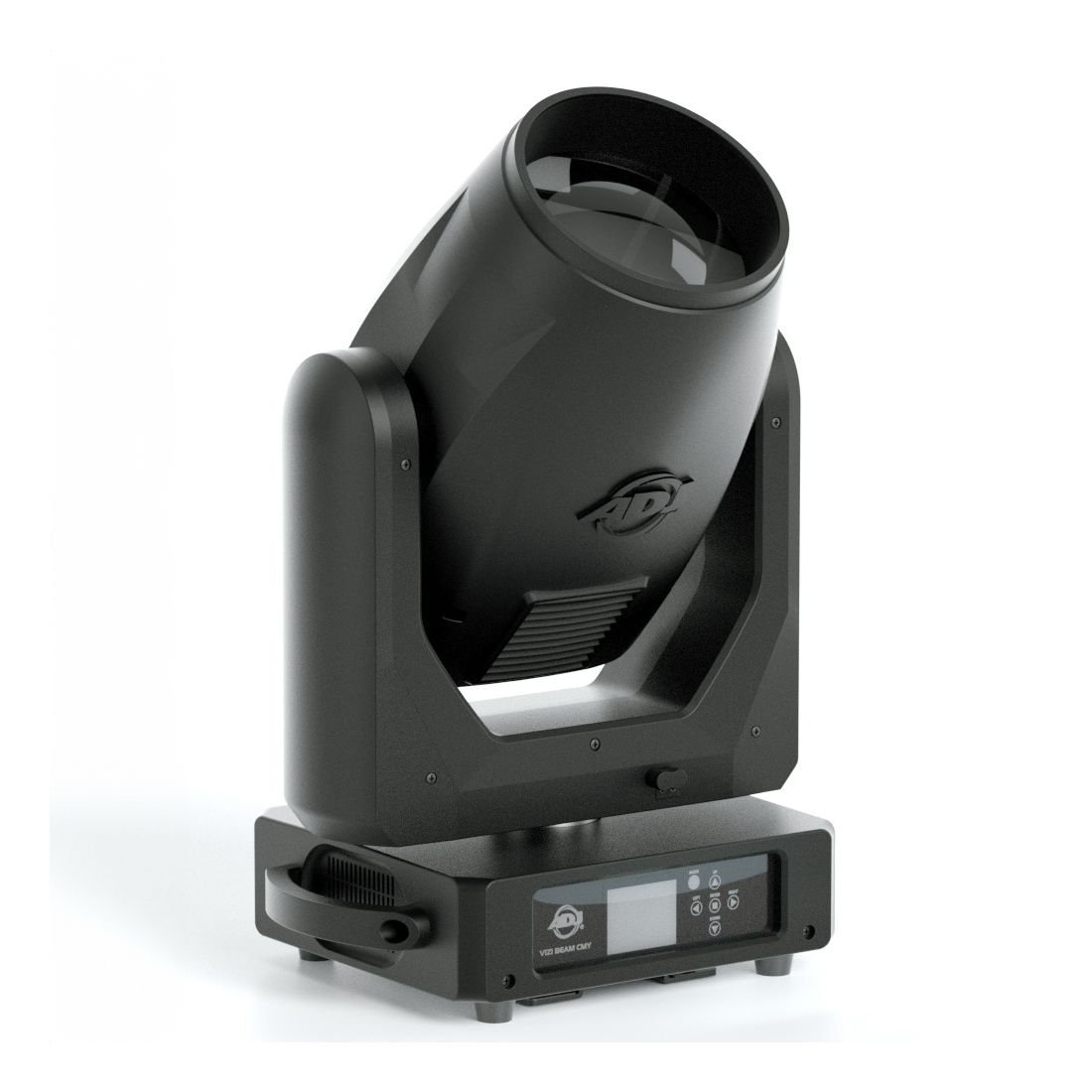

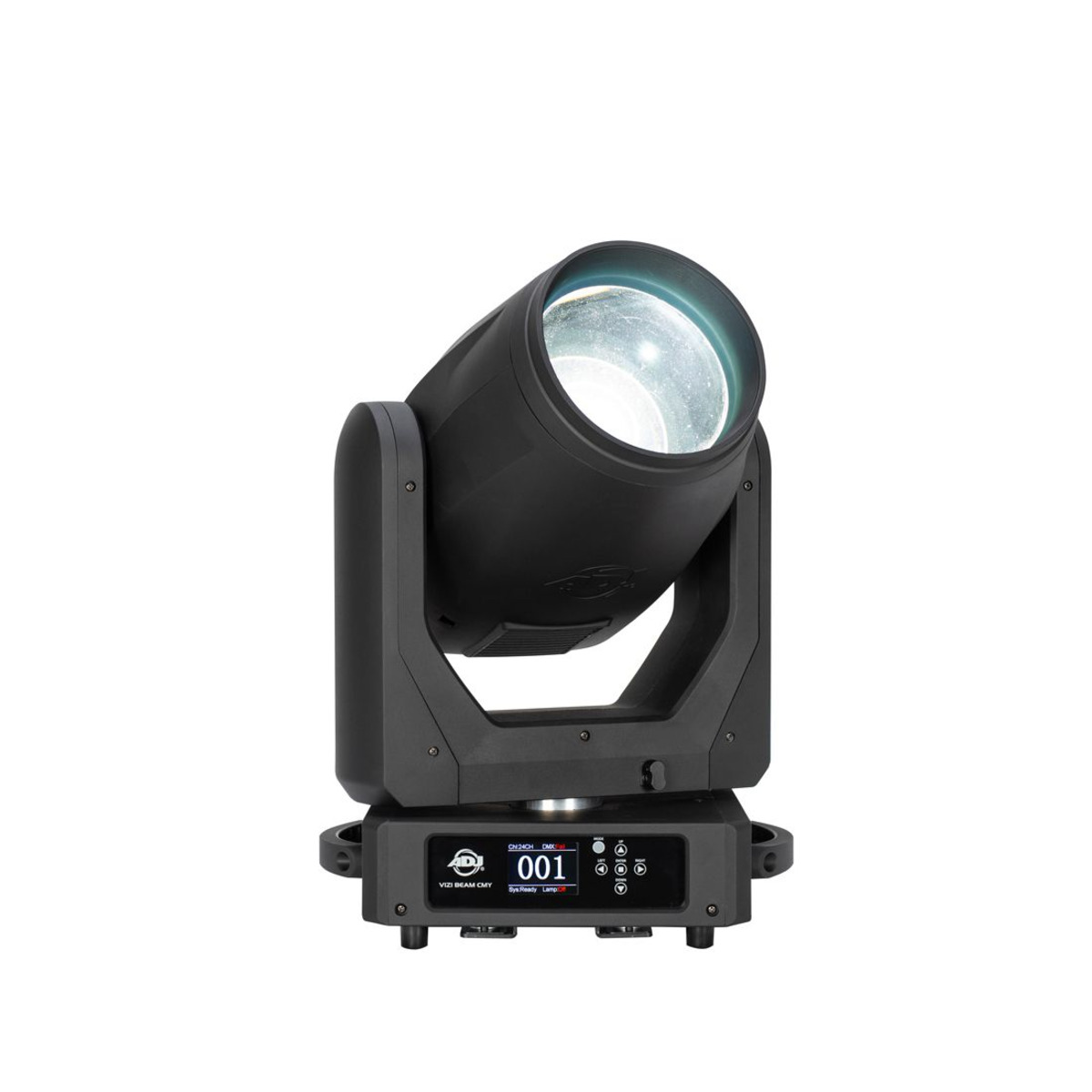

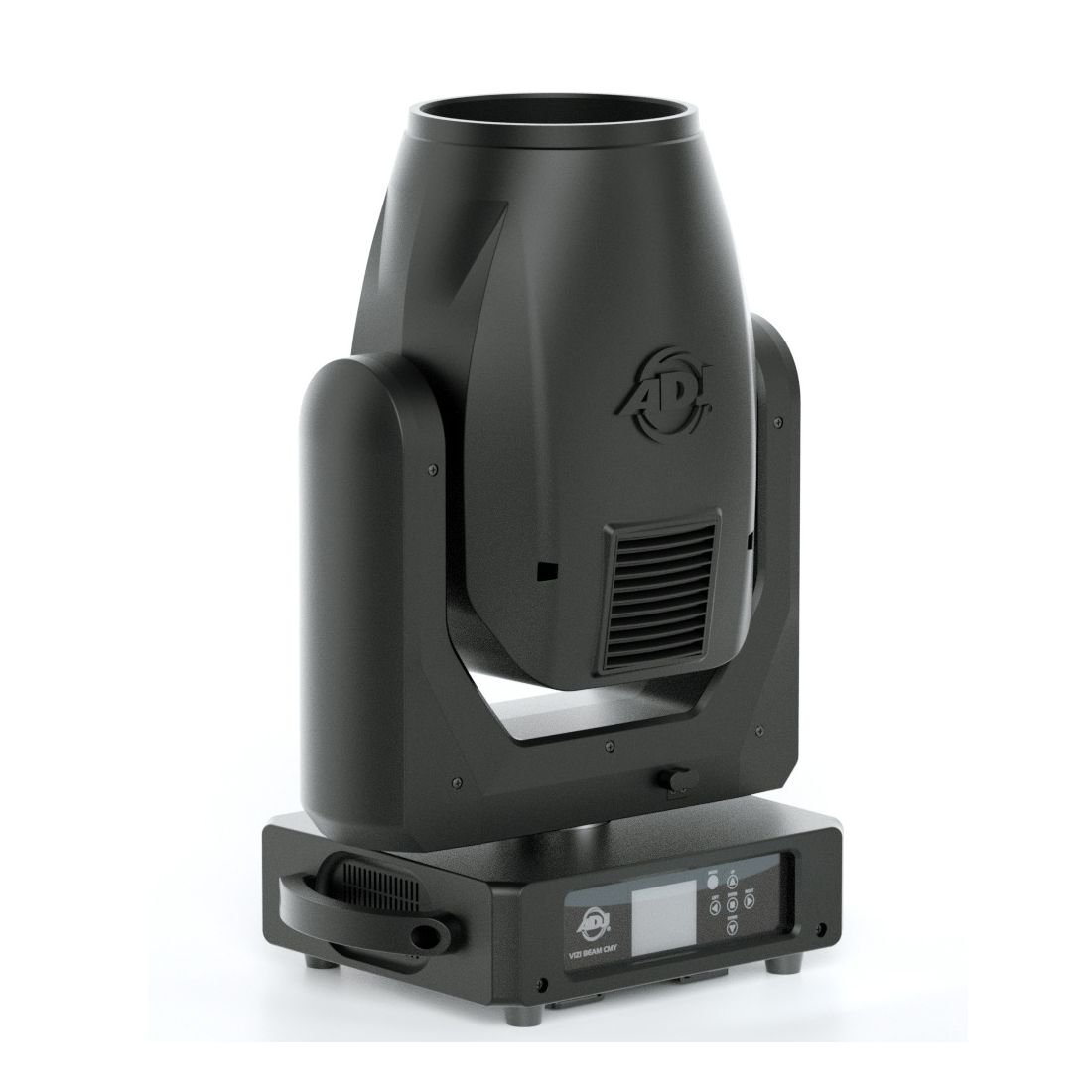

ADJ Vizi Beam CMY

Elevate your lighting design with the ADJ Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting professional.

Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle, as well as, 3-Phase motors for high speed pan/tilt for maximum performance.



£1,169.00

Description

Unlock a spectrum of possibilities with CMY colour mixing, a 14-colour dichroic wheel that includes CTO (3200K), CTB (9000k K) & UV, and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX, motorised focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a colour LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor locking connections for power daisy-chaining and 5-pin DMX connections. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance

Specifications

Source

  • OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
  • Colour Temperature: 7850K (+/- 500K)
  • CRI: 86 (+/- 5)

Features

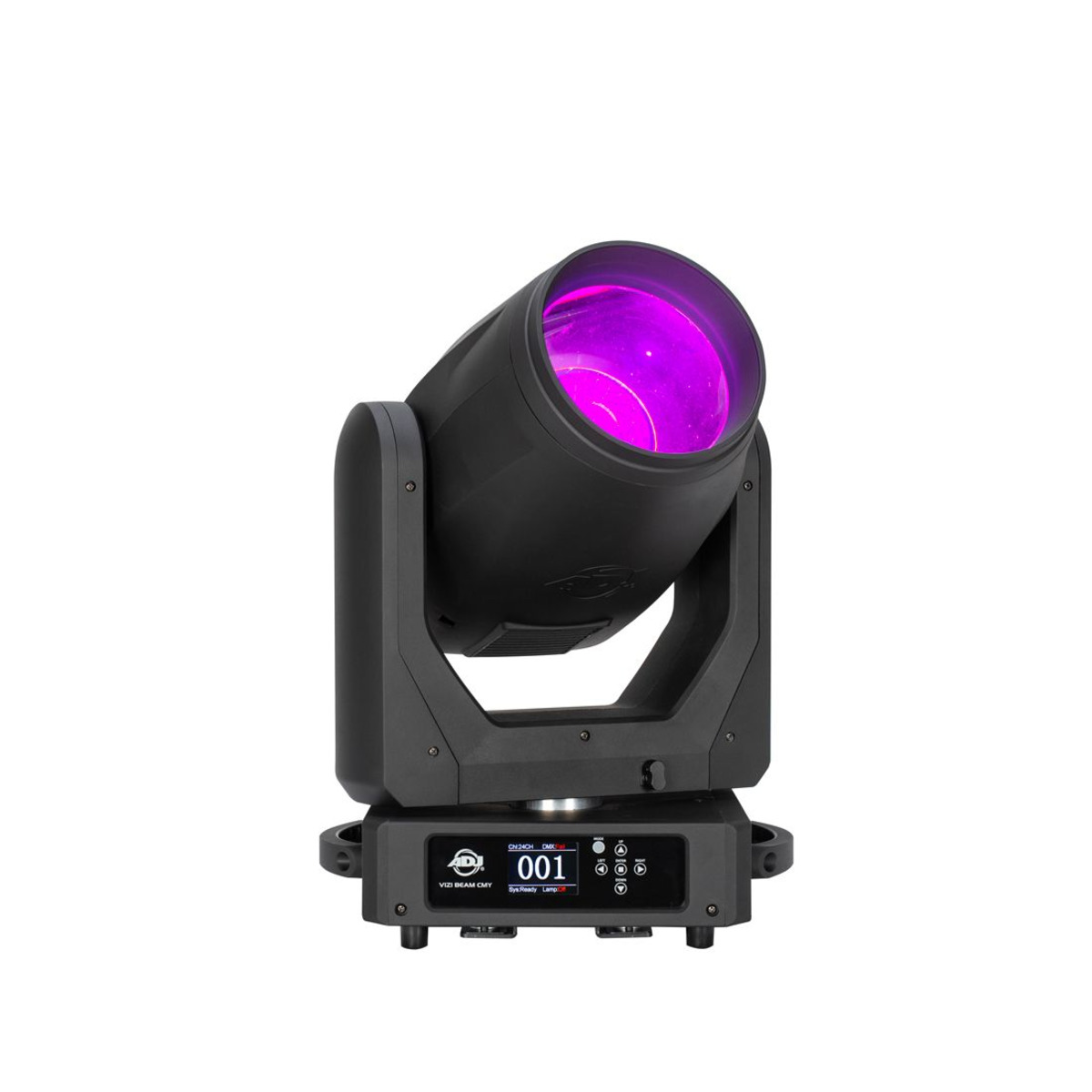

  • CMY Colour Mixing
  • On-Board Wireless DMX
  • Motorised Focus + 16-bit Fine Focus
  • 2-degree Beam Angle
  • Frost Filter (to create wash effect)
  • High Quality Glass Lens
  • 2 Rotating Prisms
  • 0-100% Smooth Dimming
  • Pan/Tilt Locks
  • Various Strobe Speeds
  • OTA, Wireless, Firmware Updates
  • Fan Cooled

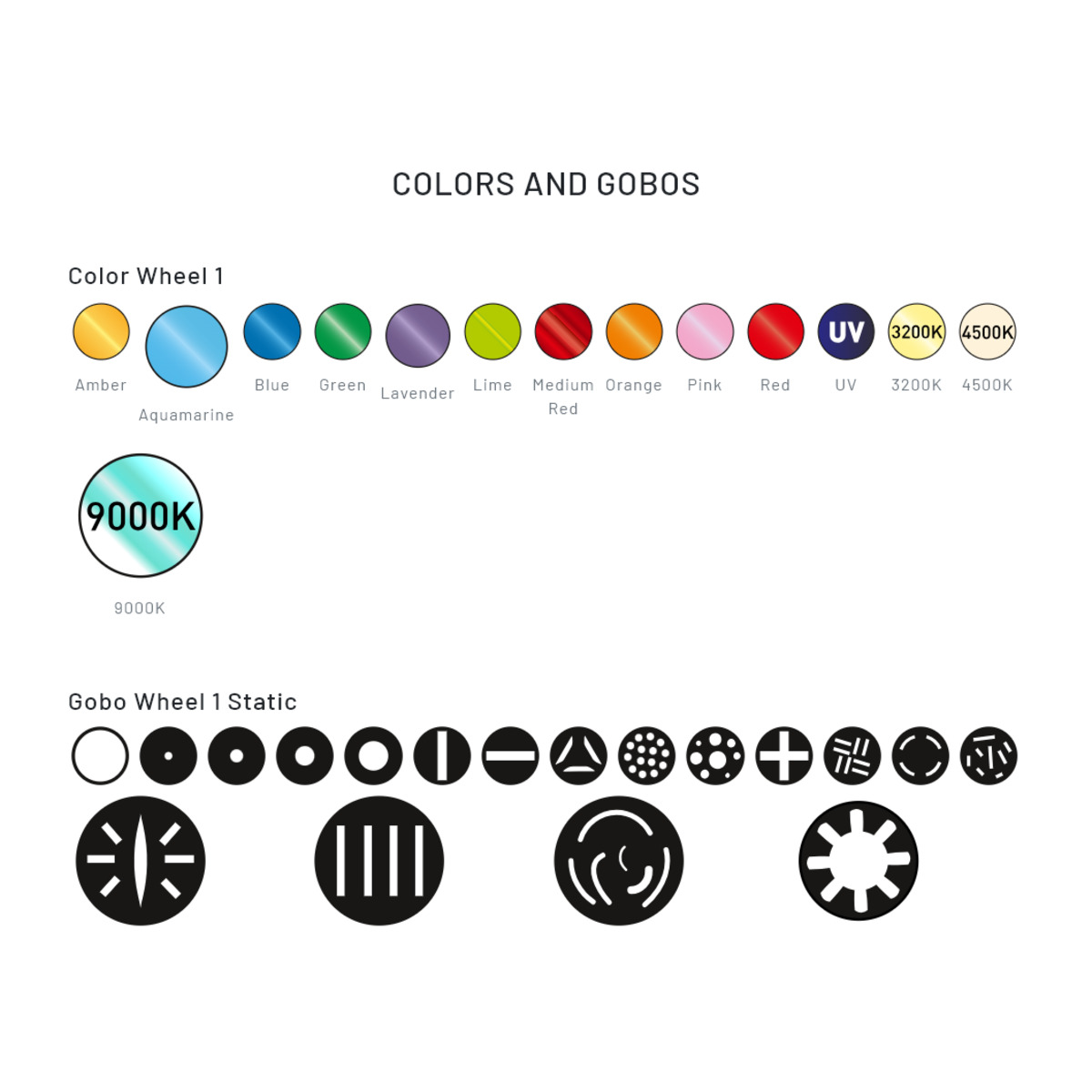

Colour

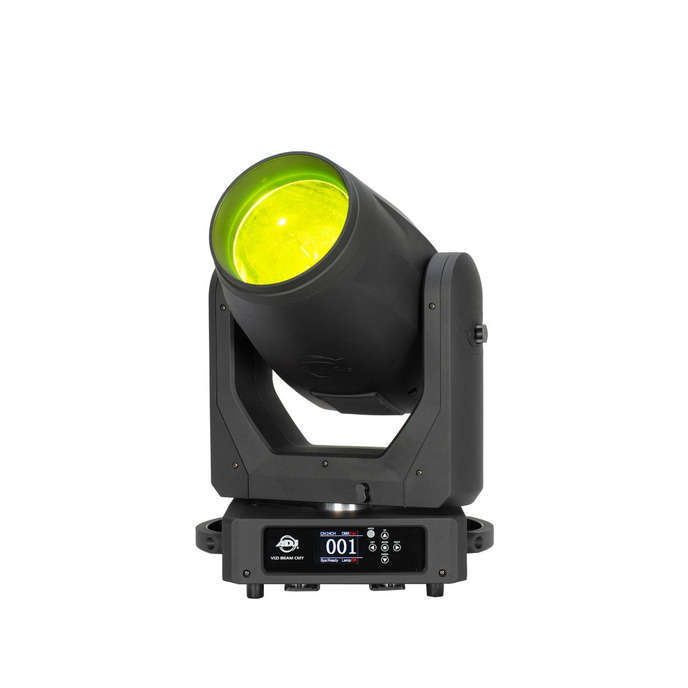

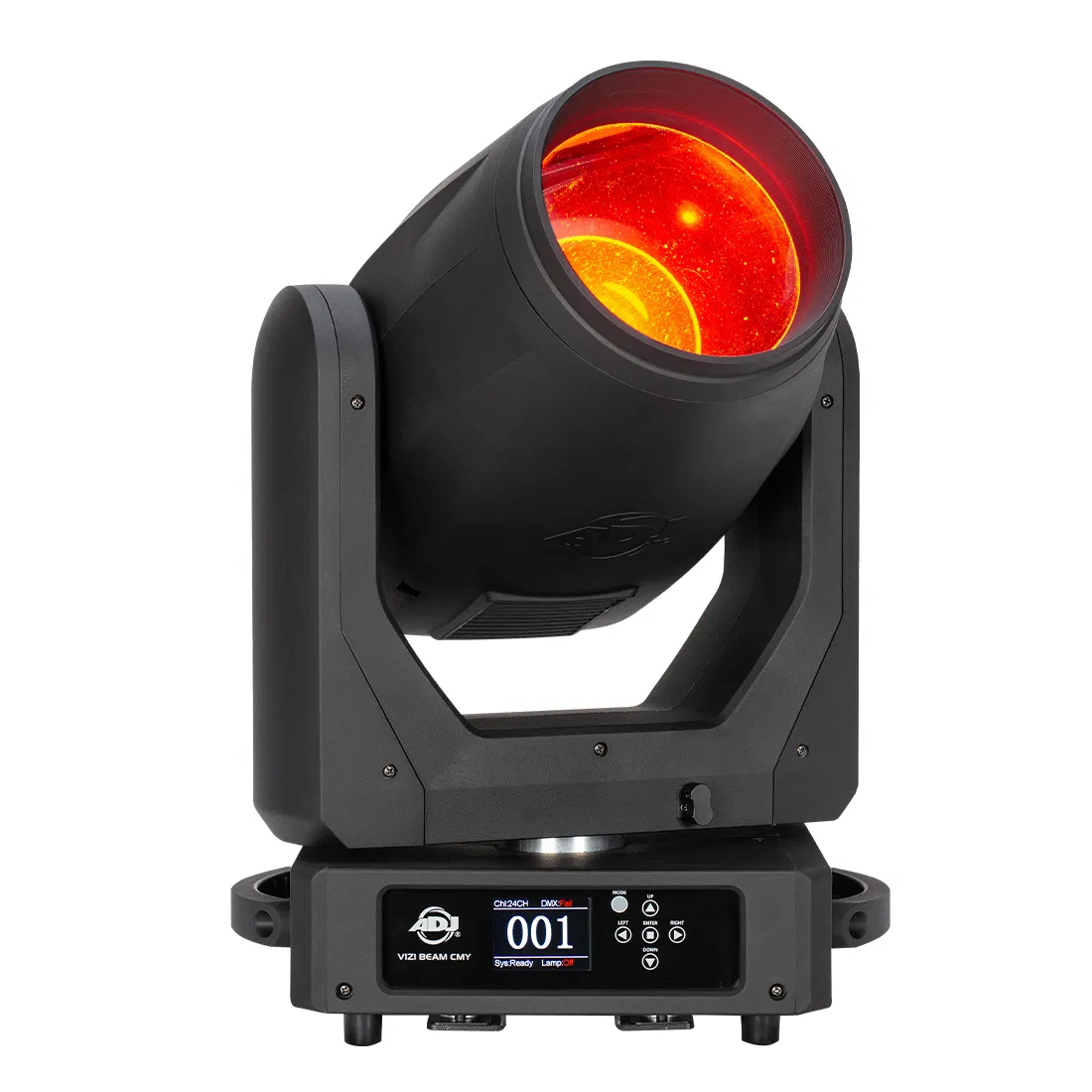

  • 14 Dichroic Colours + White (includes CTO (3200K), CTB (9000K) & UV)
  • Indexable Colour Wheel (for split colours)
  • Separate Multi-Colour Effect

Gobo

  • 17 Static GOBOs + Open (4 GOBOs are beam reducers)
  • GOBO Shake Effect

Prism

  • 2 Rotating prisms
  • 16-Facet circular and 6 facet linear prisms
  • Prisms Overlay

Control

  • Protocols: DMX512 & RDM
  • Aria X2 Wireless Management / DMX System
  • Control Mode: DMX512 & Manual (On-board Controls)
  • 2 DMX Channel Modes: 20/24 Channels

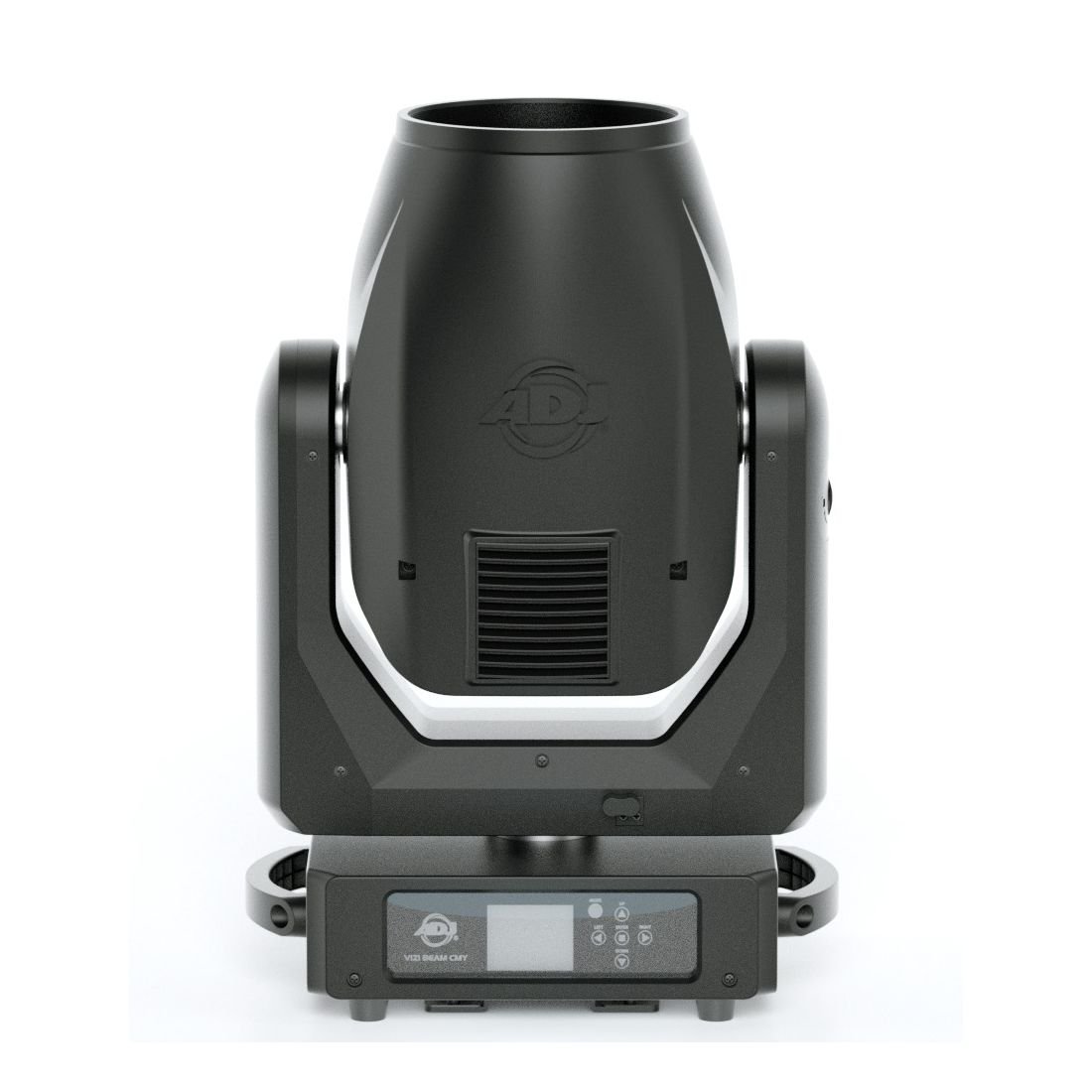

  • Colour LCD Display (with 4-button function menu)
  • 0-100% Smooth Dimming
  • Various Strobe Speeds

Pan/Tilt

  • Pan: 540 Degrees (plus 16-bit fine pan)
  • Tilt: 270 degrees (plus 16-bit fine tilt)
  • 3-Phase, High Speed, Pan/Tilt Motors

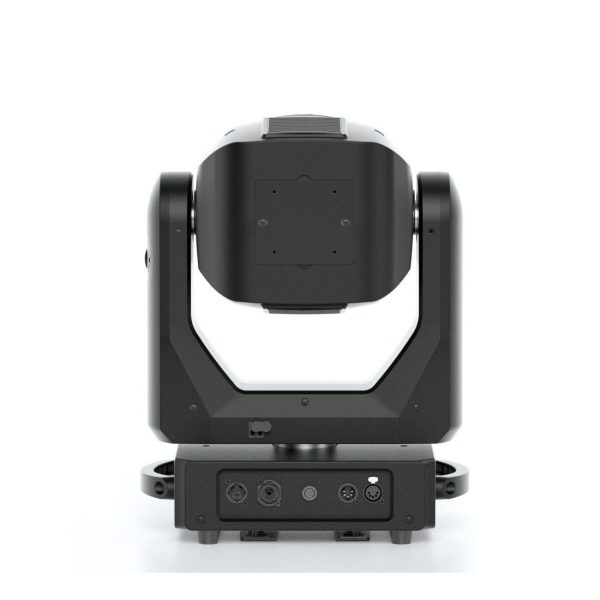

Connections

  • DMX Connections: 5-pin DMX In/Out
  • Power Connections: Outdoor Locking In/Out Connections

Electrical

  • Multi-voltage Operation: 100-240V, 50/60Hz
  • Max Power Consumption: 390W (@230V

Dimensions & Weight

  • Dimension: 248 x 364 x 454.8mm
  • Weight: 17.5 kg.

What’s Included

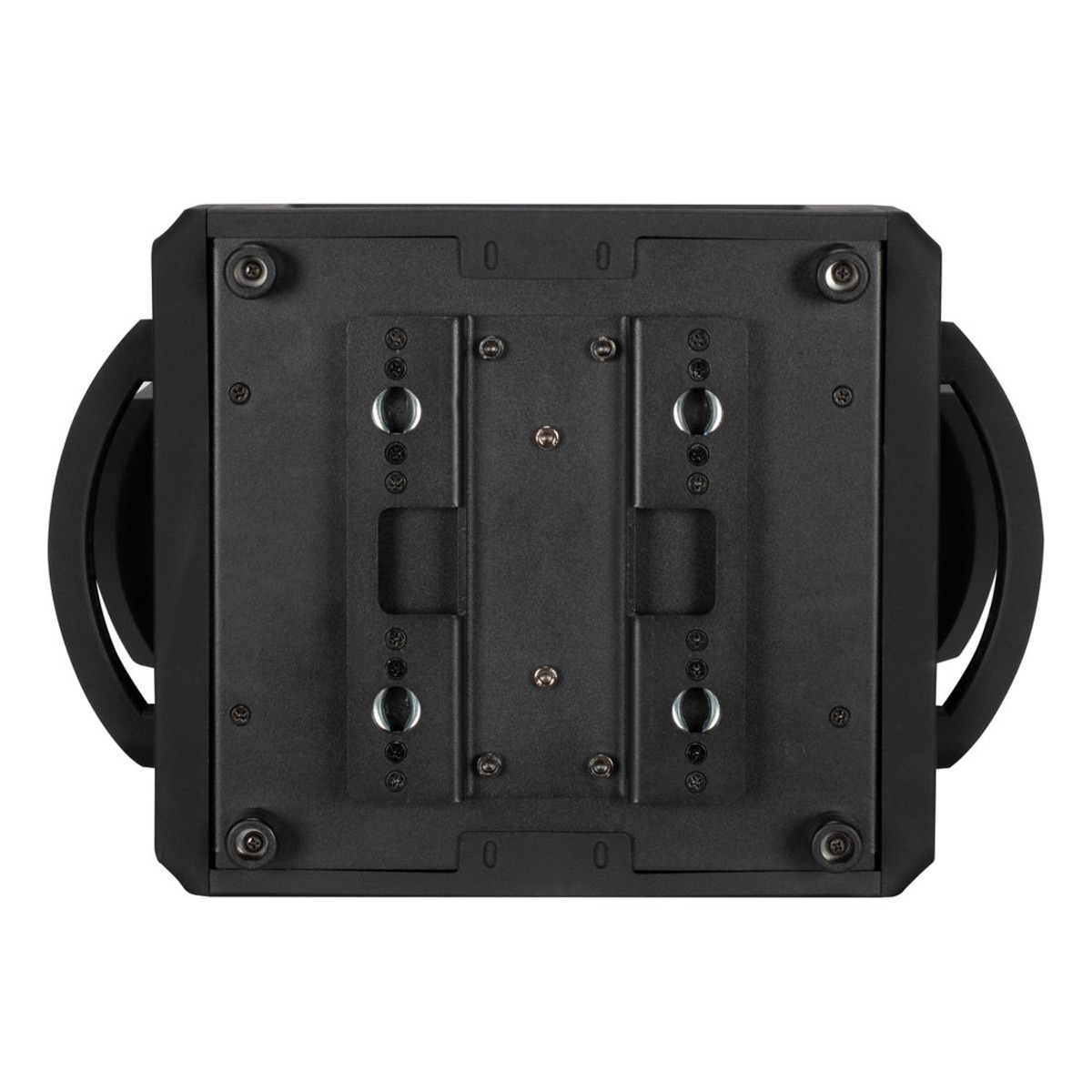

  • 2x Omega Brackets (107 Type)
  • 1x 2M, Outdoor Locking 14AWG Power Cord
