ADJ Vizi Wash Z19

ADJ Vizi Wash Z19

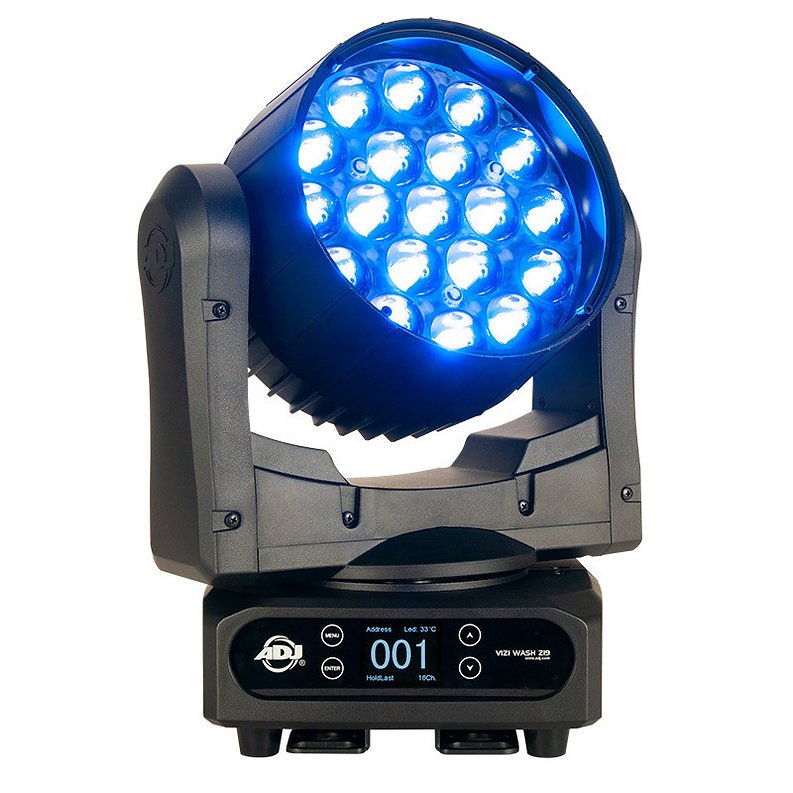

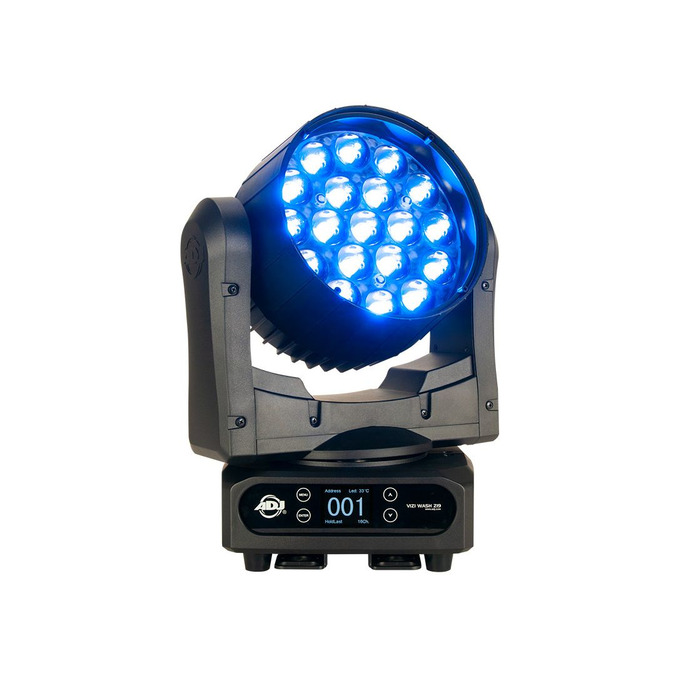

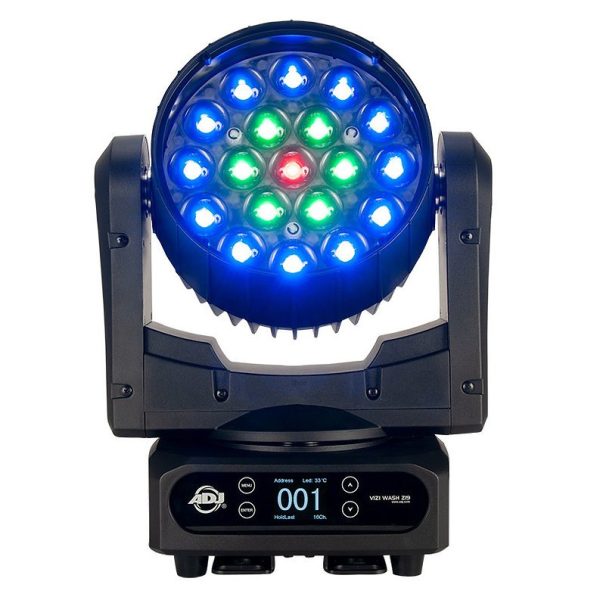

The Vizi Wash Z19 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs.

It features 3 or 7 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

There are 64 built-in color macros, 44 Color Temperature DMX Presets from 2700K-7000K, 16bit fine zoom control and 8 DMX control modes.

This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.

£1,659.00

Description

Specifications

Source

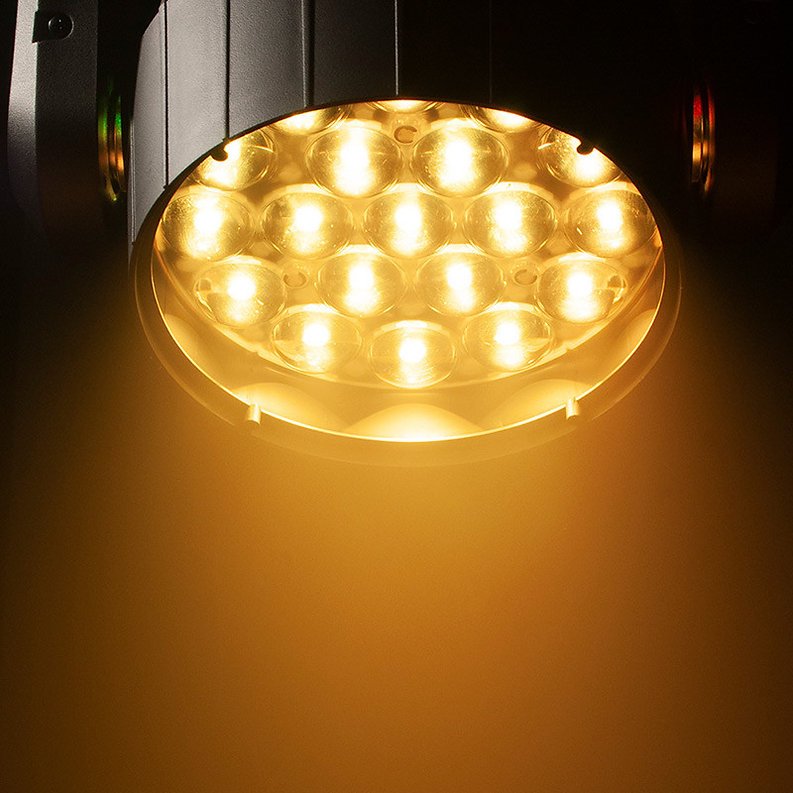

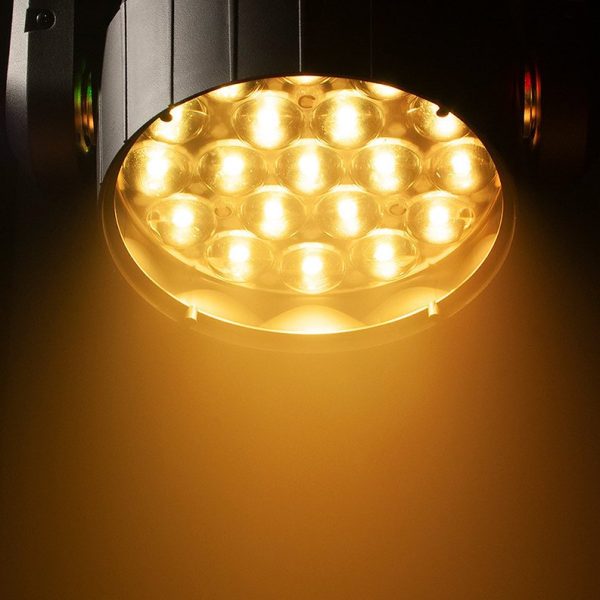

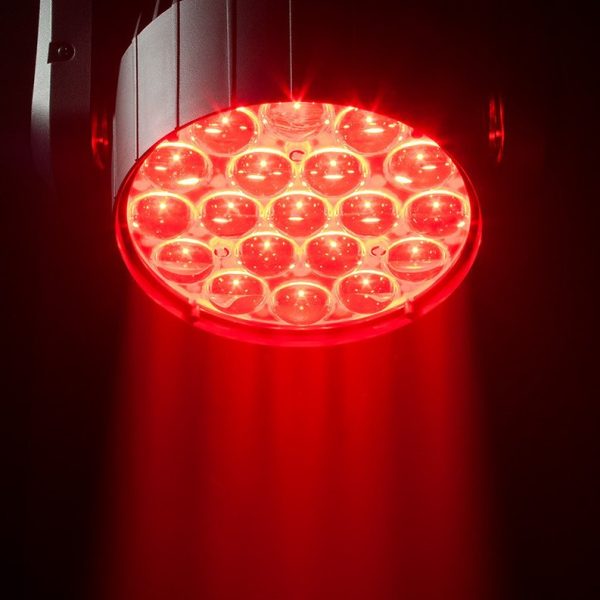

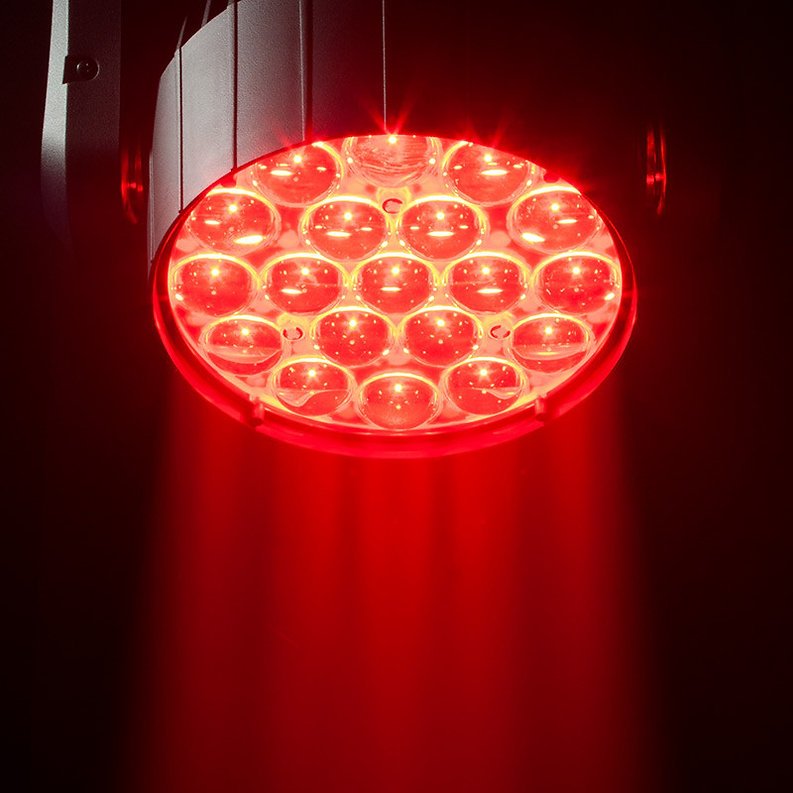

19 OSRAM RGBW QUAD-LEDs
5436 Lumens (Zoom out, full on)
9960 Lux @5m at 10°
694 Lux @5m at 60°

Optics

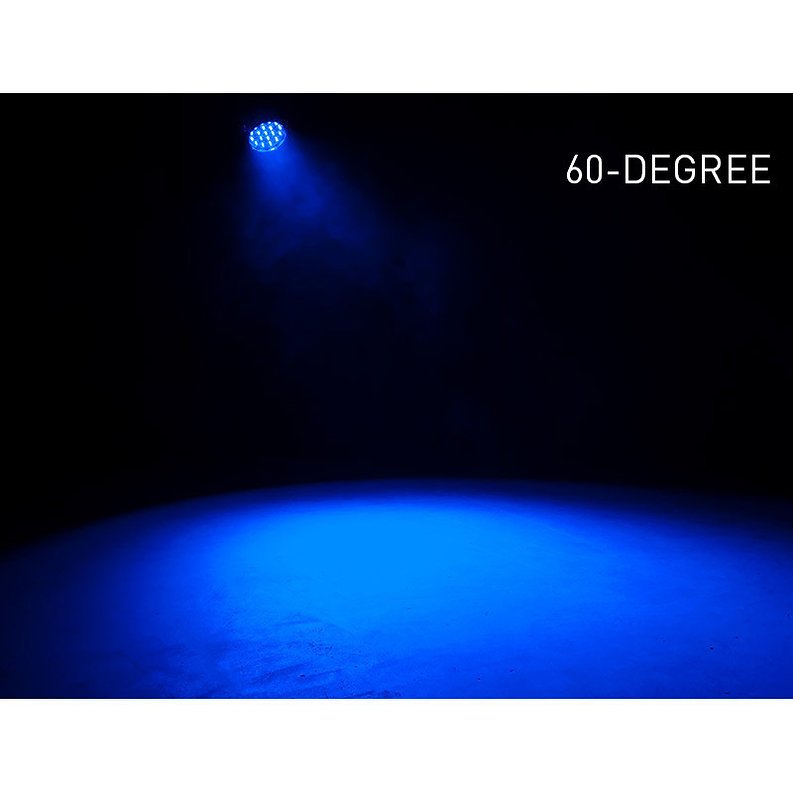

Motorized Zoom: 10°-60° (field angle)

Control

2 Operational Modes: Program Mode & DMX Control
8 DMX Channel Mode: 13, 14, 17, 18, 29, 30, 45 or 46 Channels
RDM compatible (Remote Device management)
16bit Electronic Dimming 0-100%
6 Dim Modes (Standard, Stage, TV, Architectural, Thetare, Stage 2)
Adjustable Dimmer Delay Time: 0.1secs – 10 secs
4 Dim Curves (Square, Linear, Inverted Square, S-Curve)
Display: Color display with 4-button function menu
7-Zone & 3 Ring-Control
16bit Pan 540°
16bit Tilt 270°
Pan/Tilt Target Mode
3 Fan Modes : Auto/High/Silent

Colors

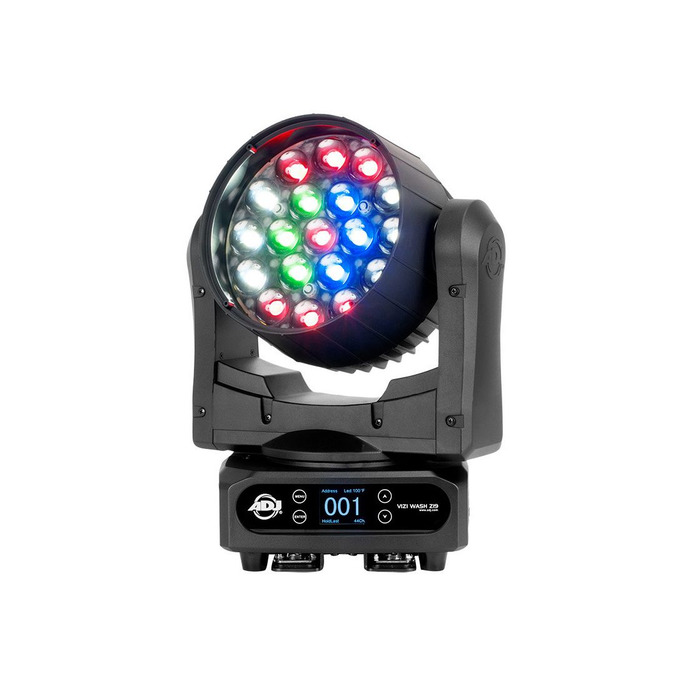

RGBW Color Mixing
64 Color Presets
Built-In Zone Chase Patterns
44 Color Temperature Presets 2700K – 7000K

Construction

PVC molding

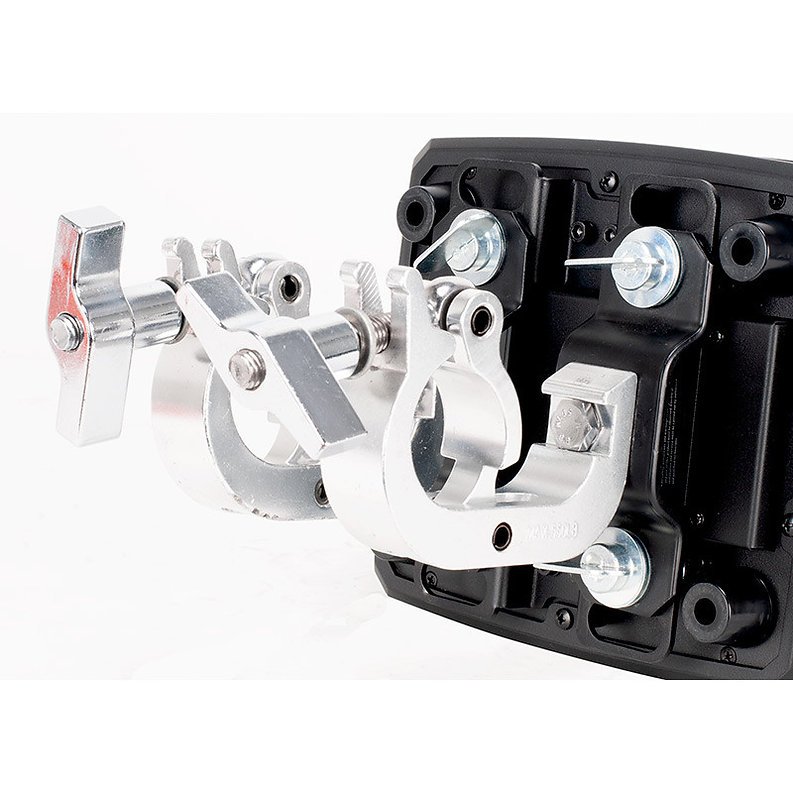

Includes Quicklock Omega Brackets

Electrical

Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 285W

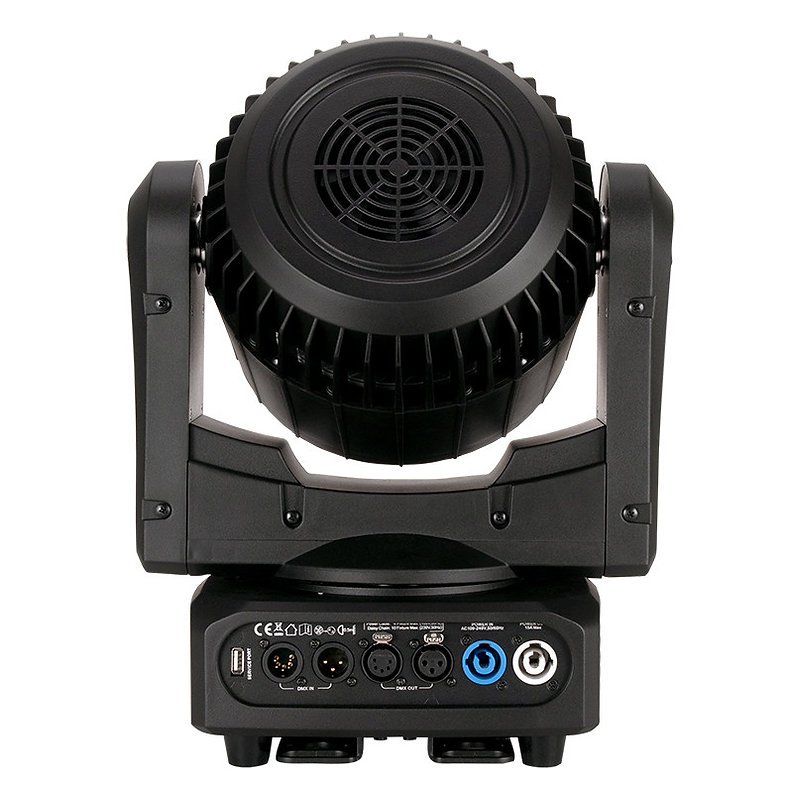

Connections

3-& 5pin Locking DMX In/Out connections
Locking Power In/Out connection
USB-Service Port for Firmware updates

Dimensions & Weight

Dimension: 306.6 × 195 × 393.3mm
Weight: 9,4 kg
