Description

The VPar is designed for uplighting and stage lighting, and will bring color and excitement to any party. This fixture features an unique “sit-flat” design so that it may sit directly on the ground or inside truss without the scissor yoke because the power & DMX ins and outs are mounted on the side of the fixture, not on the rear.

The VPars offer smooth RGBA Color Mixing, have 40-degree beam angles, 15 built-in color macros, 5 operational modes (including DMX, Sound Active and Master/Slave), and has 8 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC2 IR wireless remote to change colors and functions of the LED Pars.

Features

• Ultra bright slim flat black Par with 5x 4-Watt, 4-IN-1 QUAD LEDs (RGBA) – casts no RGB shadows
• Smooth RGBA Color Mixing (fast or slow color change operation)
• Unique “sit-flat” design: Power & DMX Ins/Outs intelligently designed so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Digital DMX Display with 4-button menu for easy navigation
• Stand Alone or Master/Slave Configuration

Specifications

• Ultra bright slim flat black Par with 5x 4-Watt, 4-IN-1 QUAD LEDs (RGBA) – casts no RGB shadows
• Smooth RGBA Color Mixing (fast or slow color change operation)
• Unique “sit-flat” design: Power & DMX Ins/Outs intelligently designed so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channels
• 5 Operational modes: RGBA Dimmer mode, sound active mode, static color mode, auto run mode (3 auto run modes), and DMX Control
• Digital DMX Display with 4-button menu for easy navigation
• Stand Alone or Master/Slave Configuration
• Beam Angle: 40 degrees
• 15 built-in Color Macros
• DMX-512 protocol
• Color strobe effect
• Linkable via 3-pin XLR cable
• Electronic Dimming: 0-100%
• Flicker Free
• Includes a scissor yoke to hang on truss, mount on a wall or set on the ground
• Long Life LEDs (50,000 hrs.)
• Power Draw: 21W Max
• IEC AC input and out put on the side of the fixture to daisy chain the power cords (link up to 30 fixtures)

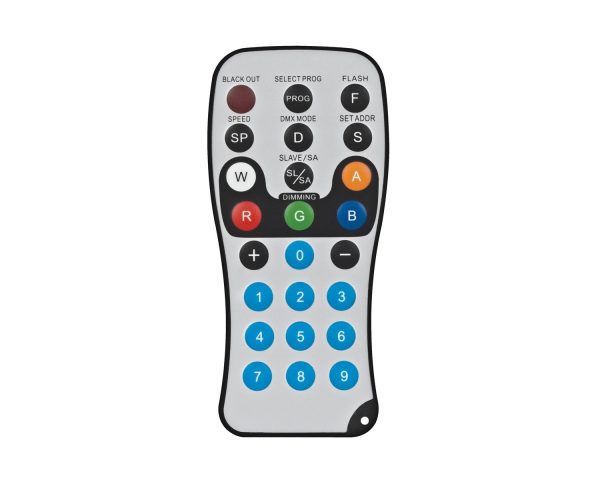

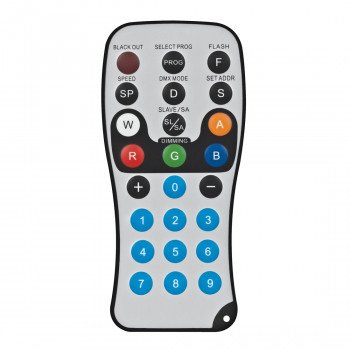

• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (included in the pak)
• Multi-voltage operation: AC 100V-240V 50/60Hz

Physical & Dimensions

• Unit Dimensions
  • Length: 225mm
  • Width: 220mm
  • Height: 85mm
• VPAR Gig Bag Dimensions
  • Length: 225mm
  • Width: 200mm
  • Height: 240mm
• Unit Weight: 1.2kg
• System Weight: 3kg
