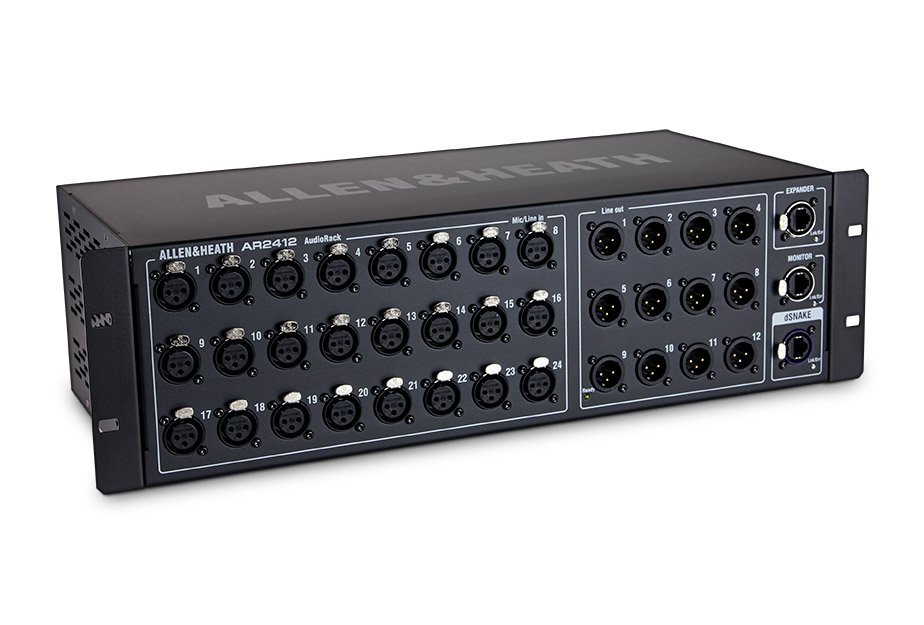

Allen & Heath AR2412 Digital Stagebox

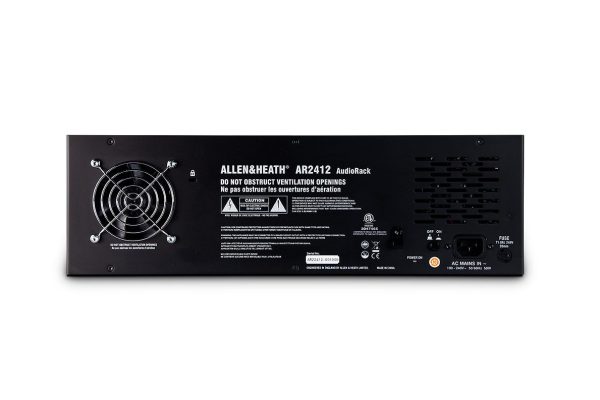

Allen & Heath AR2412 Digital Stagebox - Image 2
Allen & Heath AR2412 Digital Stagebox - Image 3
SKU: ALLAR2412 Categories: , Tags: ,

Allen & Heath AR2412 Digital Stagebox

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168



£1,310.00

View your Basket
View Your Wishlist

Description

Features

  • Main AudioRack compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor
  • Provides 24 XLR inputs and 12 XLR outputs – 48kHz
  • Includes an Aviom Pro16 compatible Monitor port
  • iPad compatible
  • Extendable XLR input & outputs with AR84 and AB168
  • Connection is over Cat5 cable running Allen & Heat

Specifications

  • Input sockets: 24 balanced XLR inputs
  • Output sockets: 12 balanced XLR outputs
  • Line level: +4dBu
  • Expander port: Cat5 cable link
  • Monitor port: Cat5 cable link
  • dSNAKE port: Cat5 cable link
  • Mains power input: IEC connector

Physical & Dimensions

  • Width: 482.6mm
  • Depth: 206.50mm
  • Height: 136.70mm
  • Weight: 5kg
