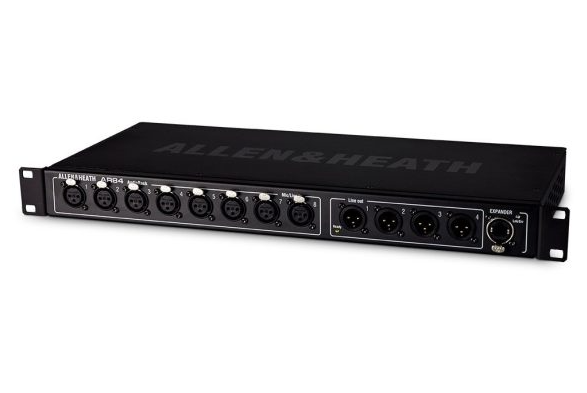

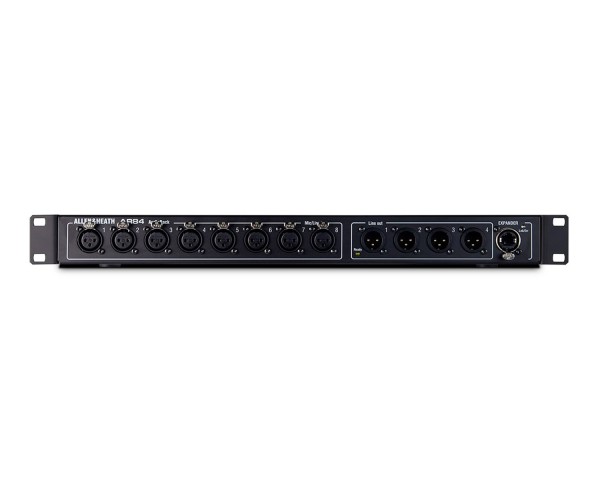

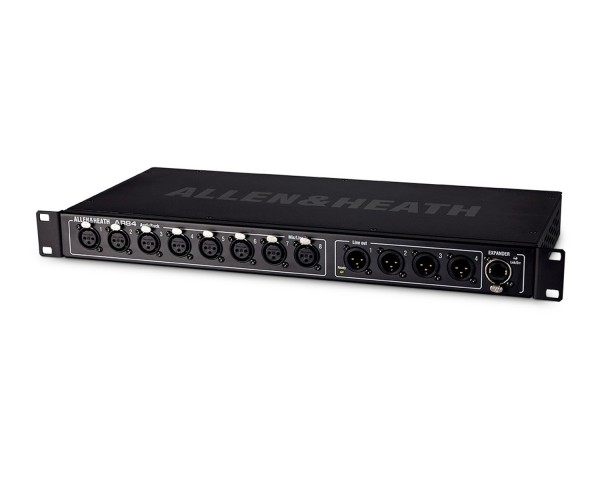

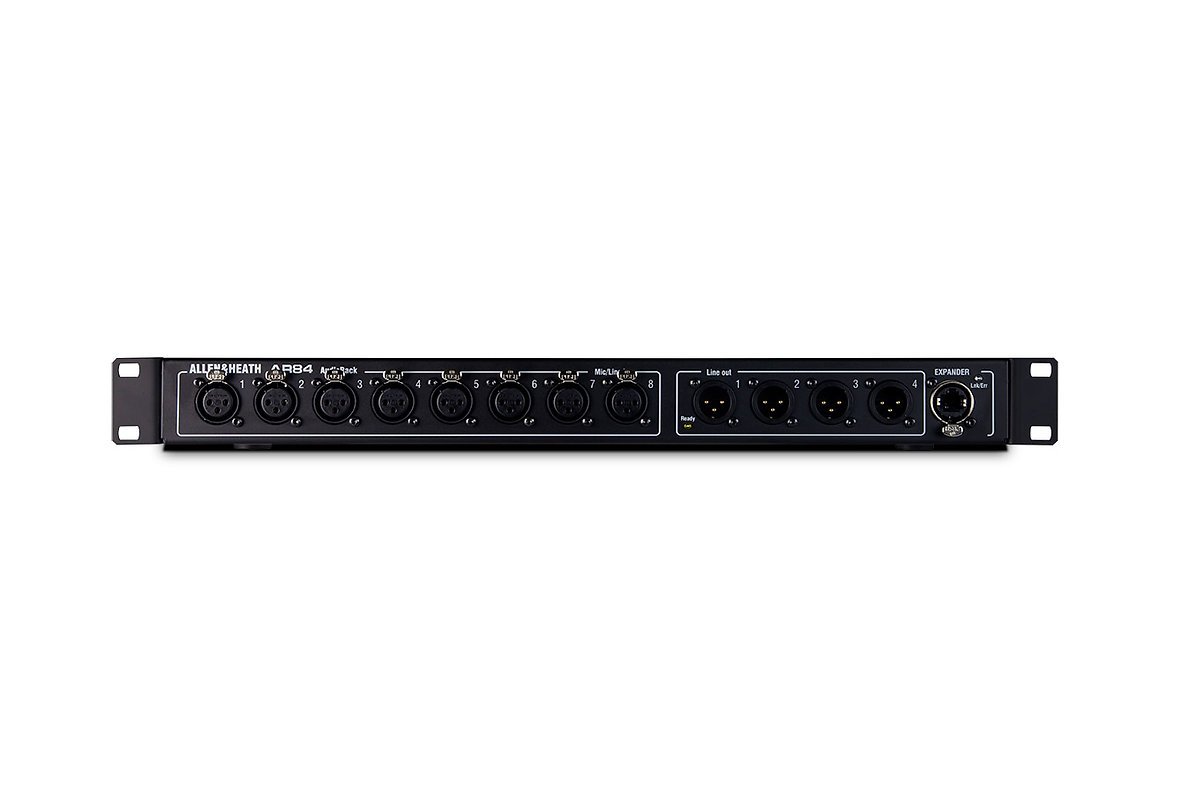

Allen & Heath AR84 Digital Stagebox

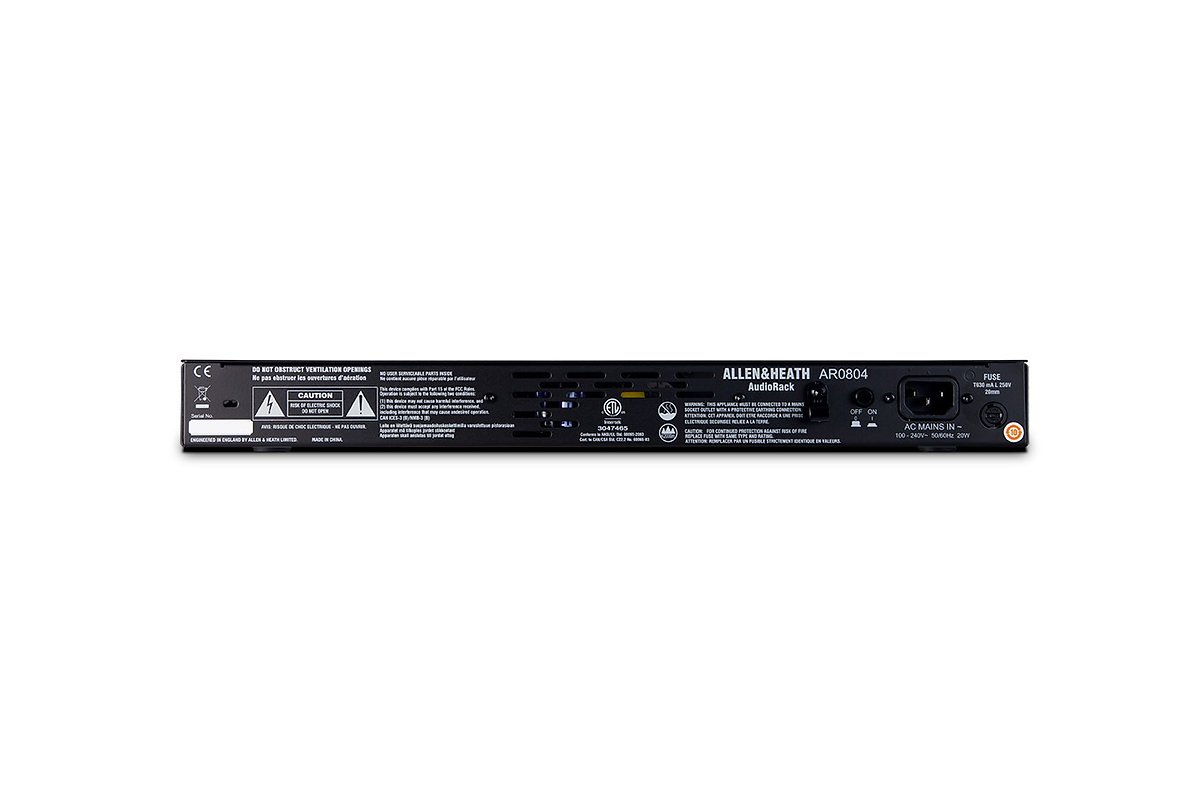

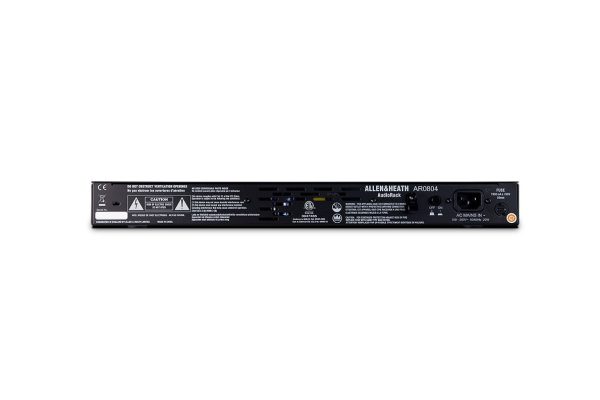

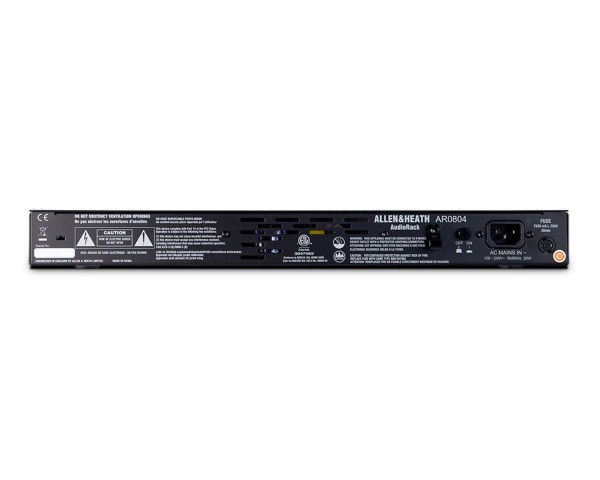

Allen & Heath AR84 Digital Stagebox - Image 2
Allen & Heath AR84 Digital Stagebox - Image 3
SKU: ALLAR84 Categories: , Tags: ,

Allen & Heath AR84 Digital Stagebox

8 XLR Input / 4 XLR Output – 48kHz

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.

Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.



£830.00

View your Basket
View Your Wishlist

Description

Features

  • Expander AudioRack compatible Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor
  • 8 Mic Preamps on XLR
  • 4 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
  • Rack mountable

Specifications

  • Input sockets: 8 XLR mic / line inputs
  • Output sockets: 4 XLR line outputs (L/R)
  • Expander port: Cat 5 cable link
  • Security: Kensington security slot
  • Mains power input: IEC connector

Physical & Dimensions

  • Width: 483mm
  • Depth: 220mm
  • Height: 48mm
  • Weight: 3kg
