Description

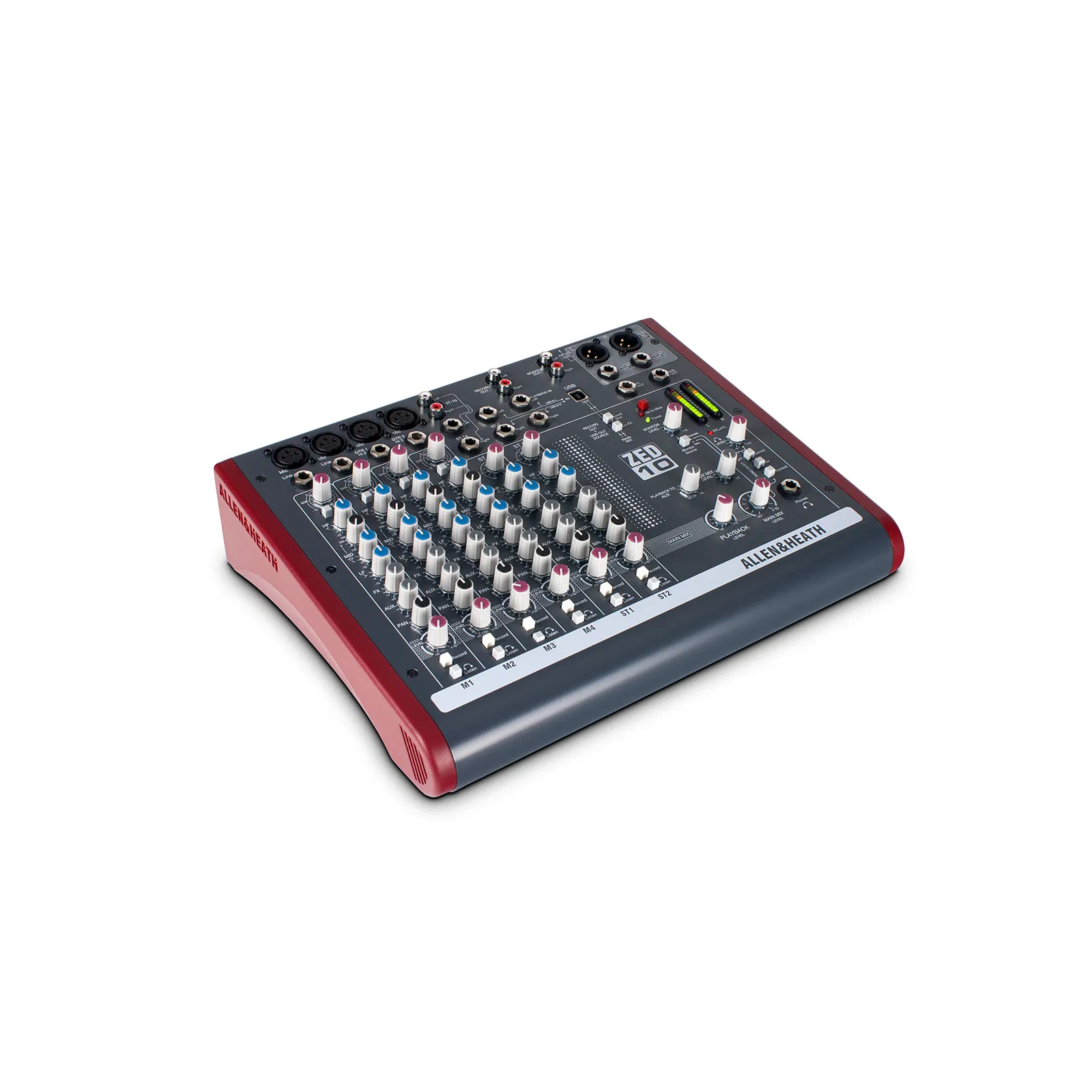

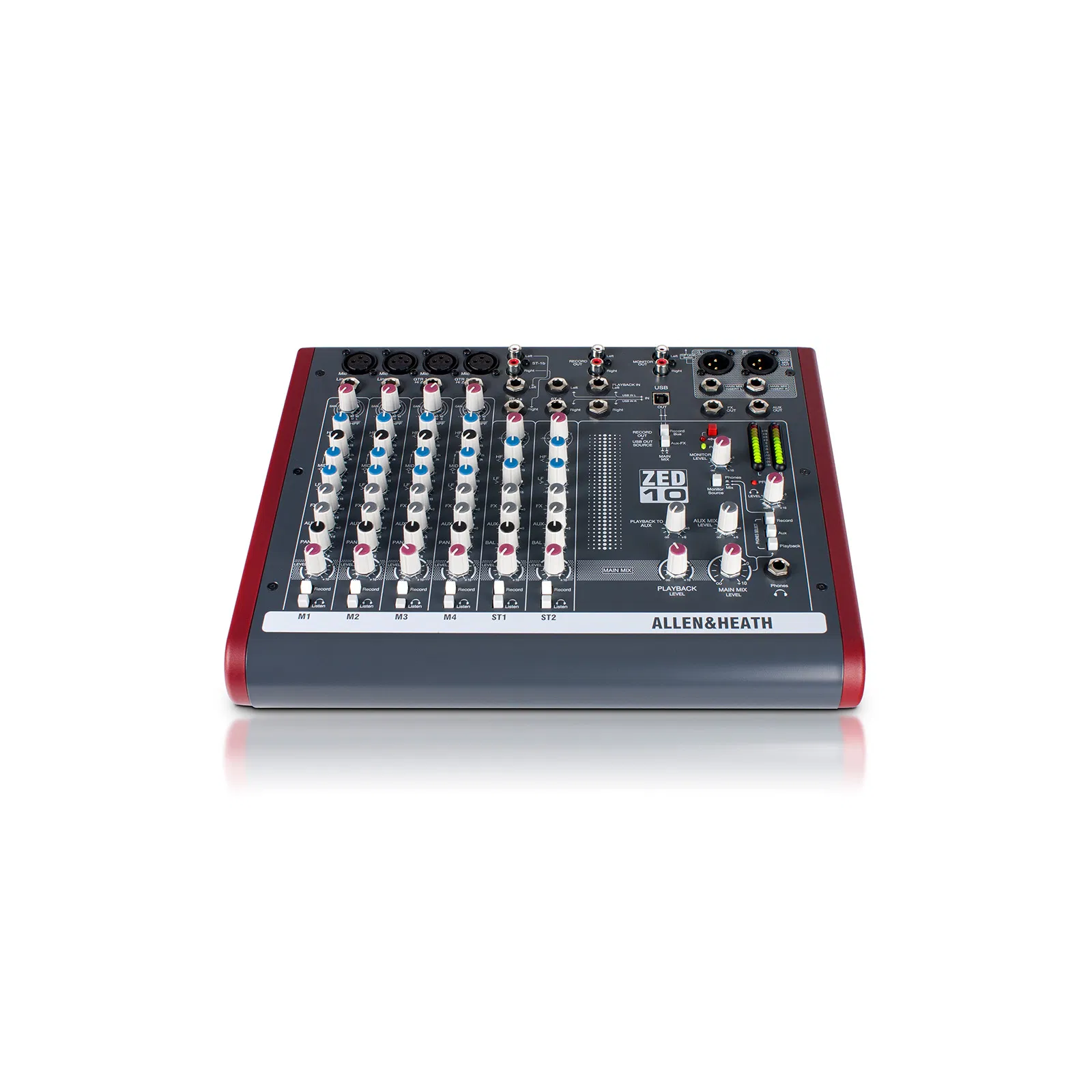

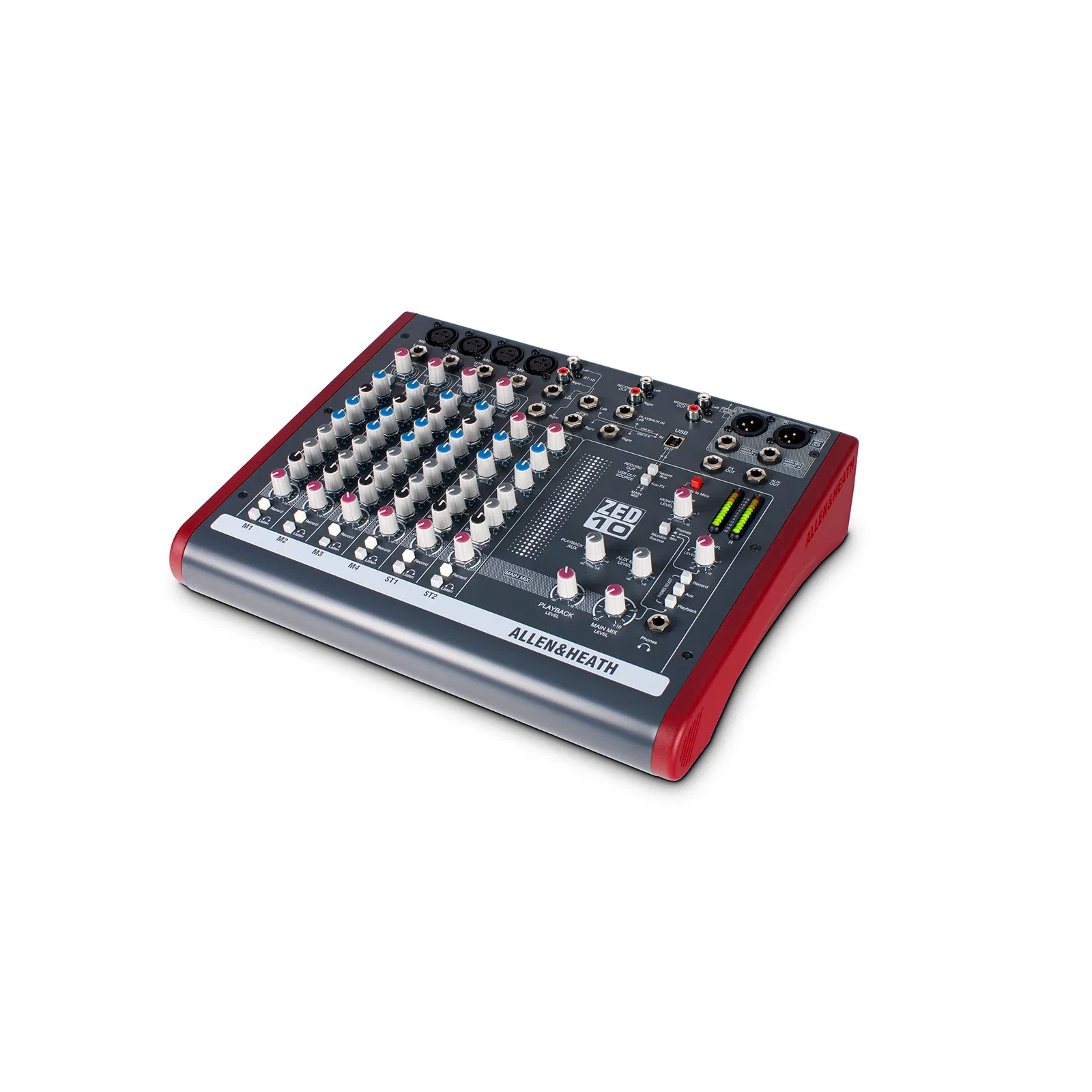

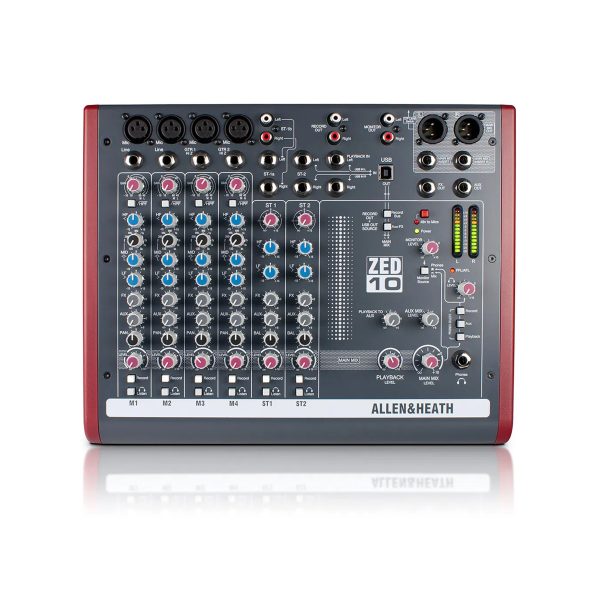

The Allen & Heath Compact Stereo Mixer ZED-10 is a versatile 10-channel analogue mixer, perfect for musicians, podcasters, and small venues seeking professional-grade sound in a compact format. Featuring four GSPre-equipped mic/line channels, two Hi-Z inputs for guitars, and two stereo line inputs, the ZED-10 handles a wide range of sources.

A built-in USB audio interface enables 2-in/2-out recording and playback, making it ideal for both live performance and home studio use. With robust build quality, intuitive layout, and flexible routing, the ZED-10 delivers outstanding control and clarity wherever it’s used.

Features

• 4 mic/line inputs with GSPre preamps for clear, dynamic sound
• 2 high-impedance (Hi-Z) inputs for direct guitar/bass connection
• 2 stereo line inputs for keyboards and media sources
• USB audio interface for easy PC/Mac recording and playback
• 3-band EQ on mono channels for versatile tonal shaping
• Auxiliary sends for monitoring or FX routing
• Rugged all-metal chassis for durability
• XLR and headphone outputs for professional connectivity

Specifications

• Total Channels: 10
• Mic/Line Inputs: 4 x XLR/TRS combo jacks
• Hi-Z Inputs: Channels 3 & 4 switchable for instruments
• Stereo Line Inputs: 2 x stereo pairs (TRS)
• EQ: 3-band EQ (mono channels), 2-band EQ (stereo channels)
• USB Audio: 2-in/2-out, 16-bit/48kHz
• Aux Sends: 1 pre-fade, 1 post-fade
• Outputs: Main mix (XLR), Monitor (TRS), Headphones (TRS)
• Phantom Power: 48V, switchable
• Dimensions (W x D x H): 336 x 275 x 95 mm
• Weight: 2.6 kg
