Description

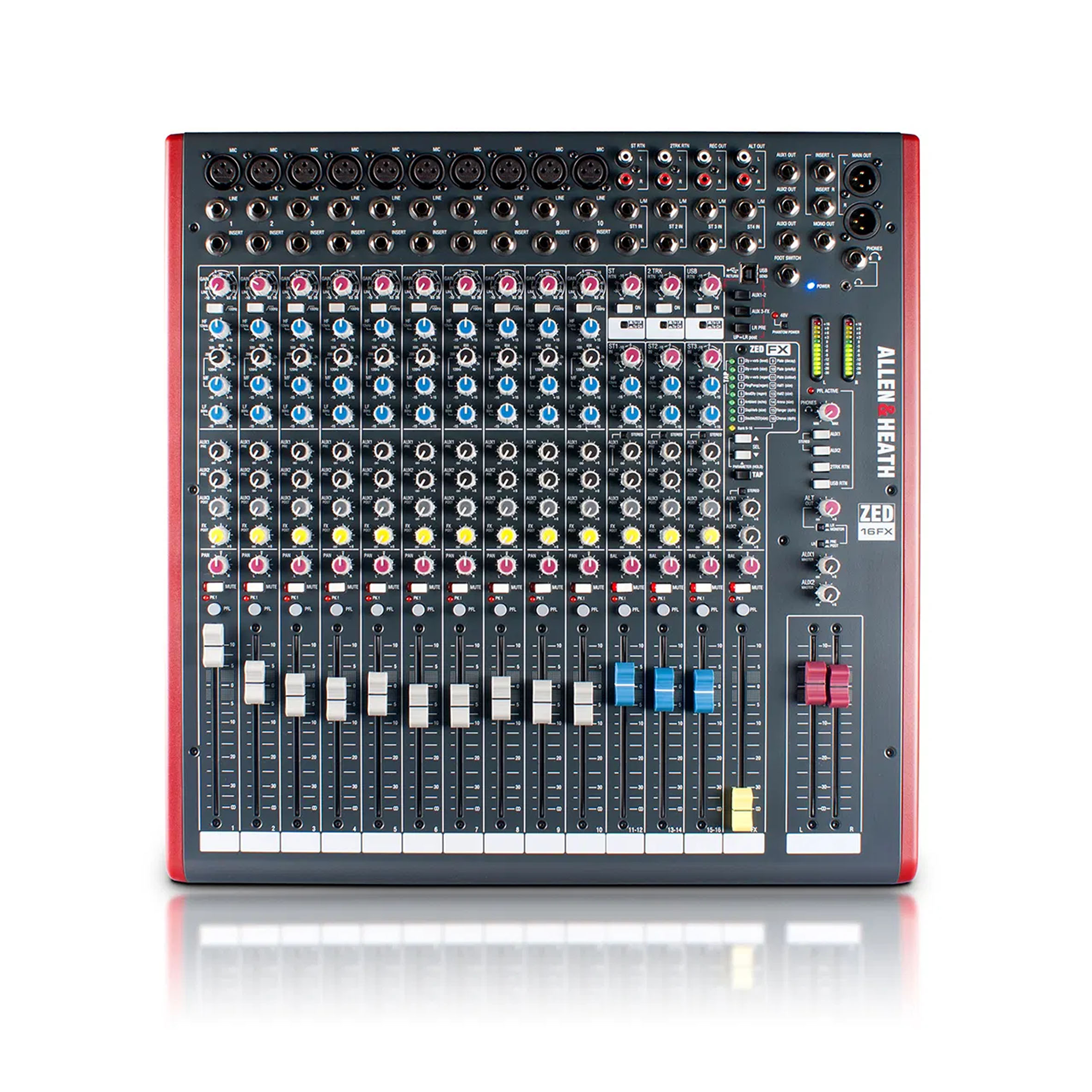

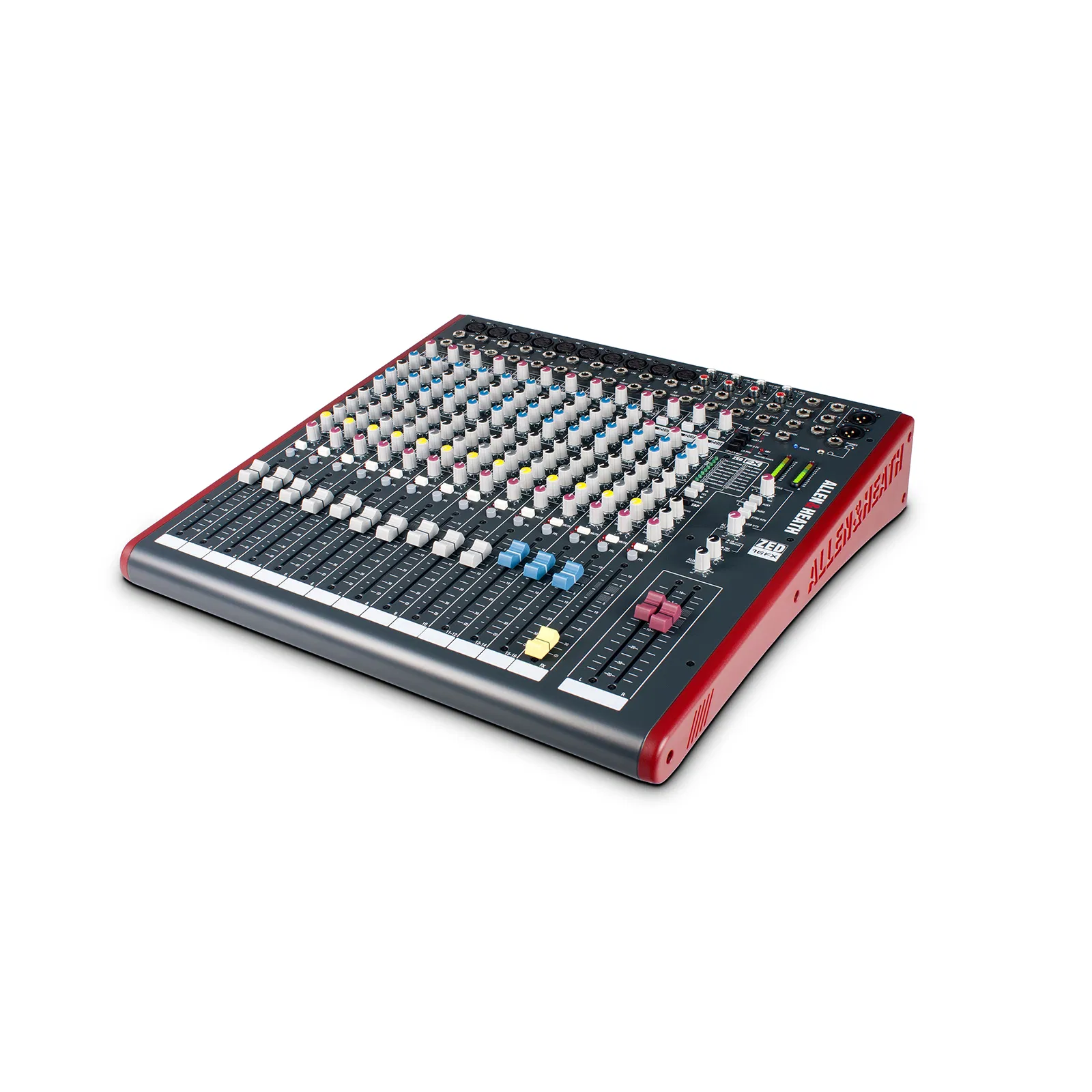

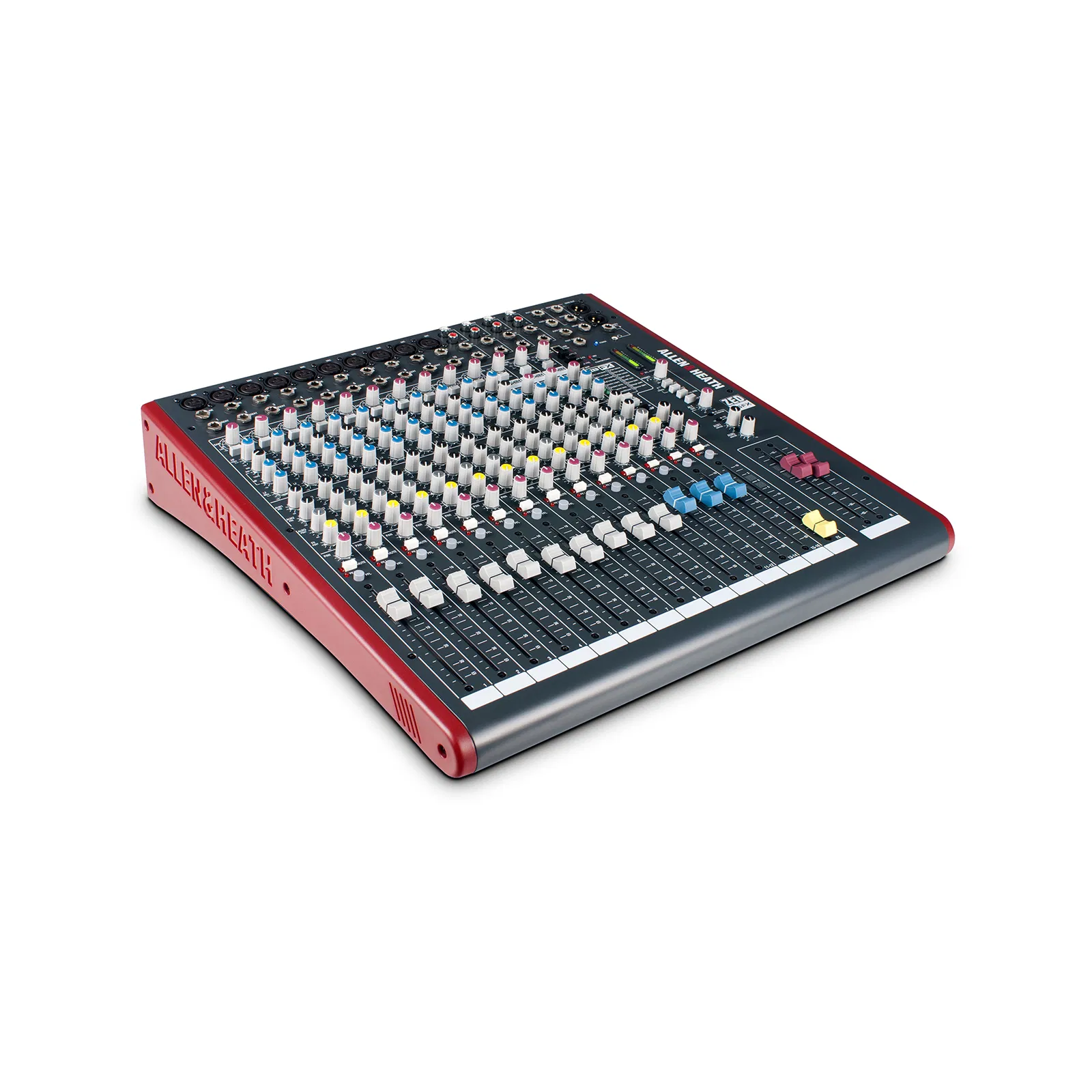

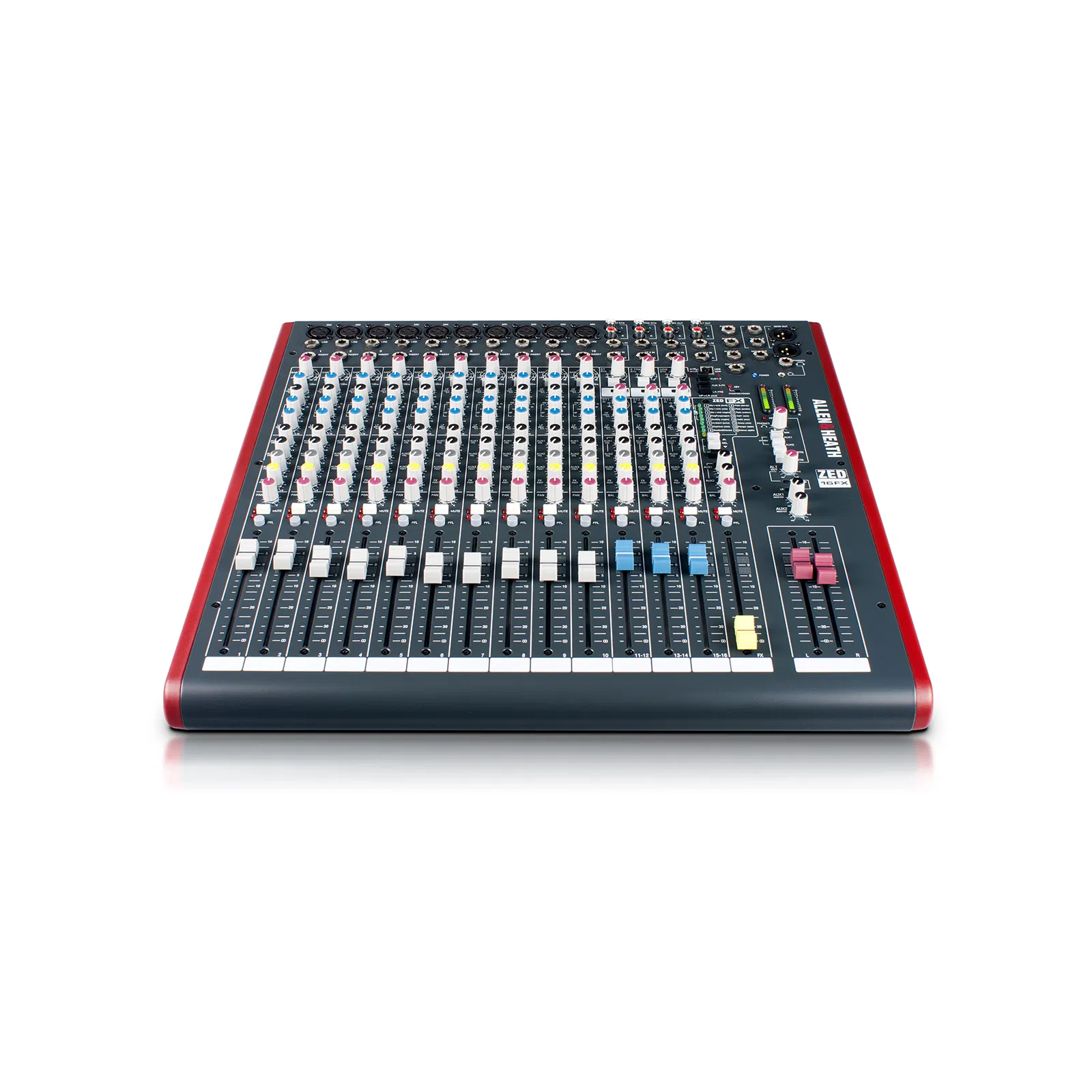

The Allen & Heath Compact Stereo Mixer ZED 16FX  is a professional-grade 16-channel analogue mixer designed for live sound, small venues, and studio use. It features 10 mono mic/line channels with premium GSPre preamps, 3 stereo channels, and a built-in 16-effect processor offering studio-quality delay, reverb, and modulation presets.

With a 2-in/2-out USB interface for easy recording/playback, 4 aux sends, and rugged construction, the ZED-16FX delivers reliable performance and flexible routing in a compact footprint.

Features

• 10 mono mic/line inputs with GSPre preamps for clean, high-quality audio
• 3 stereo channels for line-level instruments or playback sources
• 16 built-in FX presets including reverb, delay, and modulation
• 3-band EQ with swept mids on mono channels for detailed tonal control
• 2-in/2-out USB interface for recording and playback
• 4 aux sends (1 pre, 1 post, 1 internal FX, 1 switchable)
• Balanced XLR outputs for main mix
• LED metering and 60mm faders for precise mix control
• Durable all-metal construction for live and studio environments

Specifications

• Mono Channels: 10 x XLR/TRS combo with GSPre preamps
• Stereo Channels: 3 x TRS stereo pairs
• USB Audio: 2-in/2-out, 16-bit/48kHz
• FX Engine: 16 onboard digital effects with tap tempo
• EQ: 3-band with swept mid on mono; 2-band on stereo
• Aux Sends: 4 total (2 pre/post, 1 FX, 1 switchable)
• Main Outputs: XLR (L/R)
• Headphone Out: 1 x 1/4″ TRS
• Phantom Power: 48V, switchable
• Dimensions (W x D x H): 474 x 465 x 95mm
• Weight: 6.6kg
