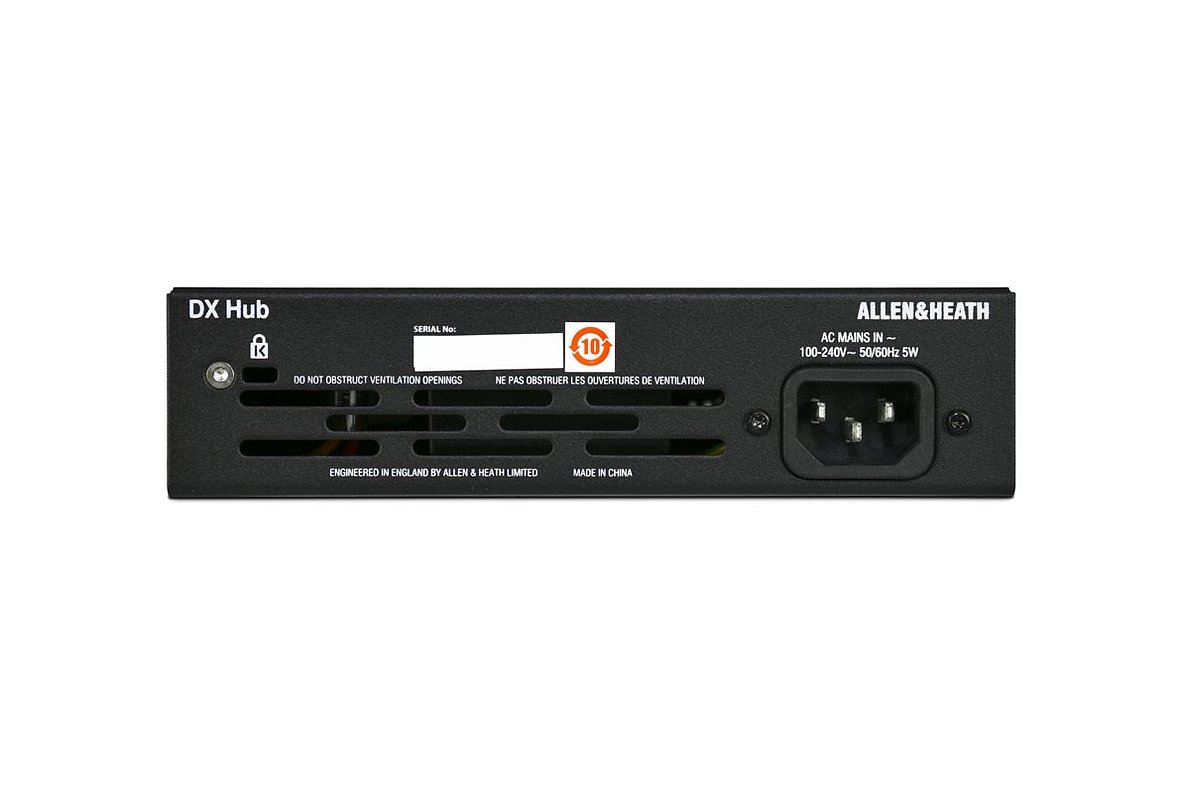

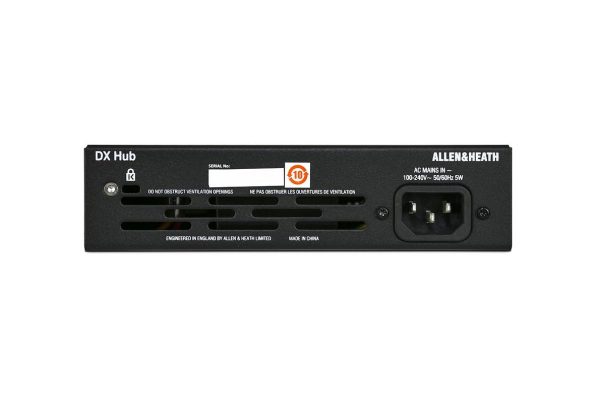

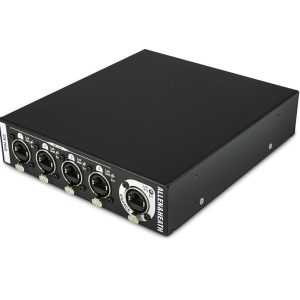

Allen & Heath DX-HUB Audio Networking Hub

Remote DX Expander Hub for DX168 / DX32 / dLive / SQ

The DX Hub is a remote audio networking hub that can be connected to any Allen & Heath AHM-64, SQ or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module. It provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units.

Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system.

Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)



£960.00

Description

Features

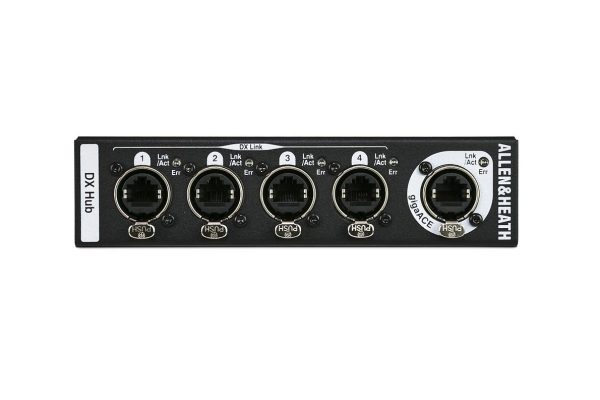

  • 4 DX Link ports for connection to DX Expanders
  • Locking etherCON connectors
  • Compatible with DX32, DX168 and DX164 expanders (dLive only)
  • 32×32 audio channels (96kHz) per DX Link port
  • Cat5e connection (<100m) to SLink port or gigaACE I/O option card
  • Freestanding or 19” rack-mounted operation
  • Optional rack mount kit
