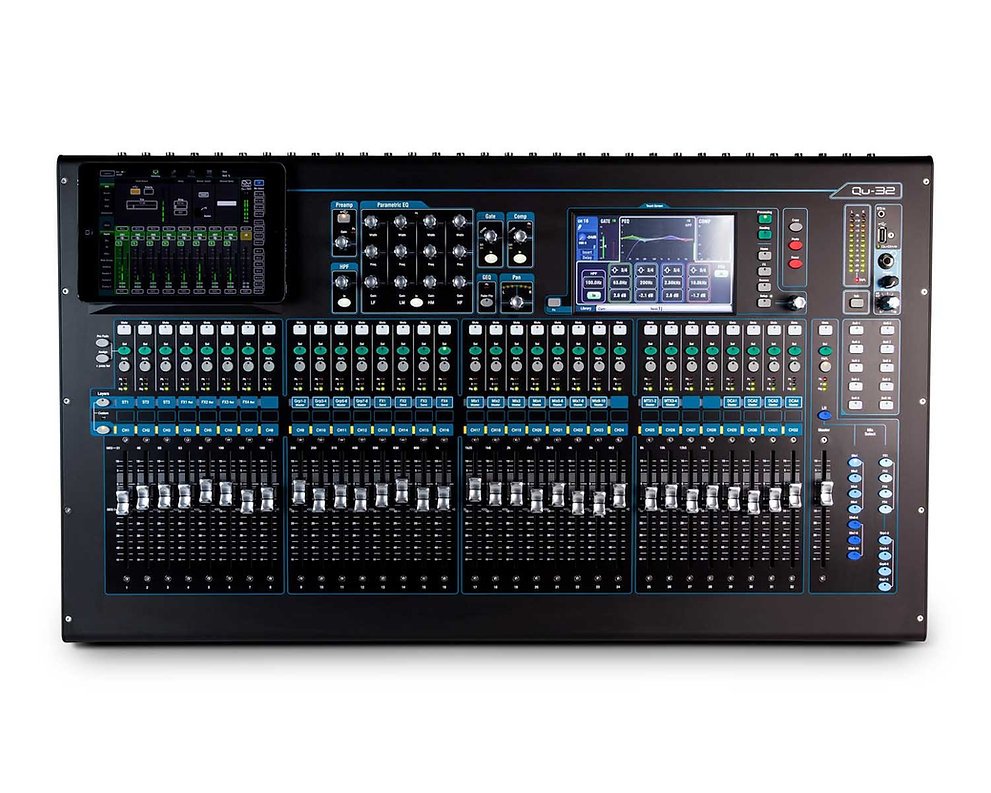

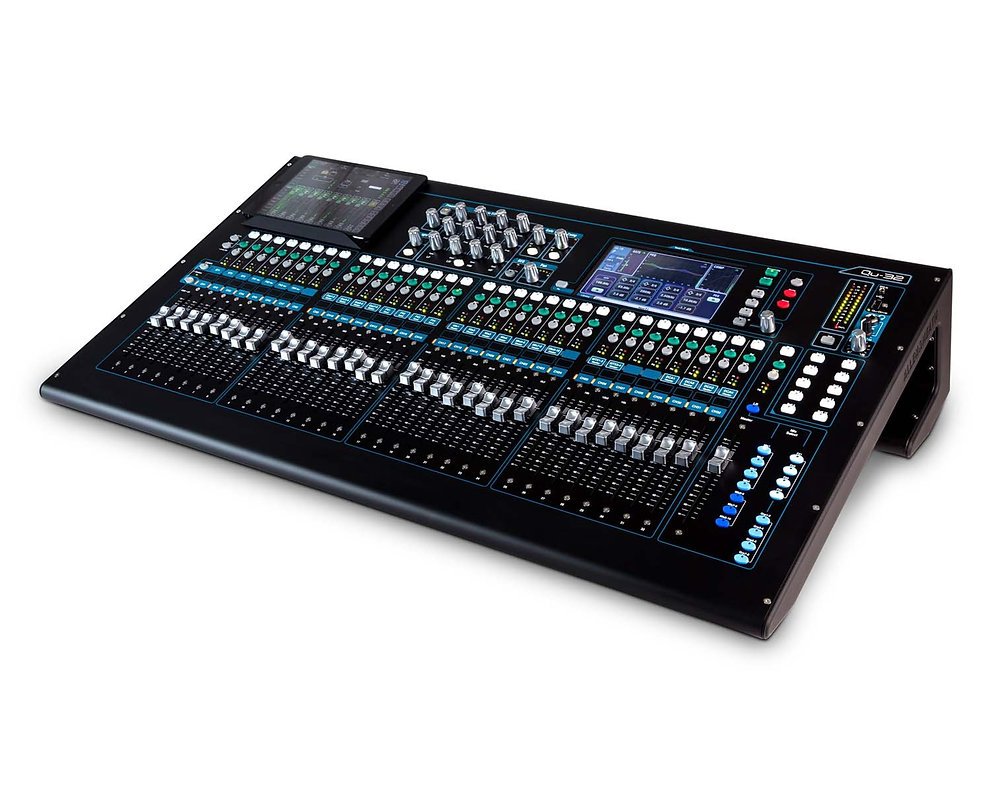

Allen & Heath QU32 38IN / 28OUT Digital Mixer with Wireless Remote Control

Allen & Heath QU32 38IN / 28OUT Digital Mixer with Wireless Remote Control - Image 2

Allen & Heath QU32 38IN / 28OUT Digital Mixer with Wireless Remote Control - Image 3

SKU: QU-32C/240X Category: Digital Mixers Tags: Allen And Heath, Crown, Digital Mixer, QU32

Allen & Heath QU32 38IN / 28OUT Digital Mixer with Wireless Remote Control

QU32 38-In and 28-Out Dig Mix with Motorised Faders CHROME

“38 In/28 Out Digital Mixer.”

Now in a feature-packed new Chrome Edition, Qu-32 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-32 has the power and pedigree to deliver class-leading audio performance.

Hot new features include Automatic Mic Mixing and Spectrogram for feedback-hunting, plus upgraded, high contrast metallic finish controls. Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-32.

£3,580.00

View your Basket

View Your Wishlist

Description

Features

32 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQTM Preamps
3 Stereo Inputs (TRS)
24 Mix Outputs (XLR)
4 Stereo Groups (switchable to Mix mode)
Up to 11 Monitor Mixes (4 mono + 7 stereo)
2 Stereo Matrix Outs
4 FX Engines
4 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
32×32 USB Audio Interface
dSNAKETM Remote Audio Port
33 Motor Faders
7” Touchscreen
10 Soft Keys
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Channel Ducker on all inputs
iLive FX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Automatic Mic Mixer
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Compatible with ME Personal Mixing System
High contrast metallic finish controls, matching premium GLD Chrome series

Specifications

Inputs
- Mic/Line Inputs: Balanced, XLR and 1/4″ TRS jack, fully recallable
- Input Sensitivity: (XLR / TRS) -60 to +5dBu / -50 to +15dBu
- Analogue Gain: -5 to +60dB, 1dB steps
- Maximum Input: Level (XLR / TRS) +19dBu / +29dBu
- Input Impedance: (XLR / TRS) >5kΩ / >10 kΩ
- THD+N, Unity gain 0dB: 0.0005% -89 dBu (20-20kHz, Direct Out @0dBu 1kHz)
- THD+N, Mid gain +30dB: 0.001% -83dBu (20-20kHz, Direct Out @0dBu 1kHz)
Stereo Line Inputs
- ST1, ST2 connector: Balanced, 1/4″ TRS jack, half-normalled
- ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
- Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu / 0dBu
- Trim: +/-24dB
- Maximum Input Level (ST1,ST2 /ST3): +22dBu / +18dBu
- Input Impedance: >7kΩ

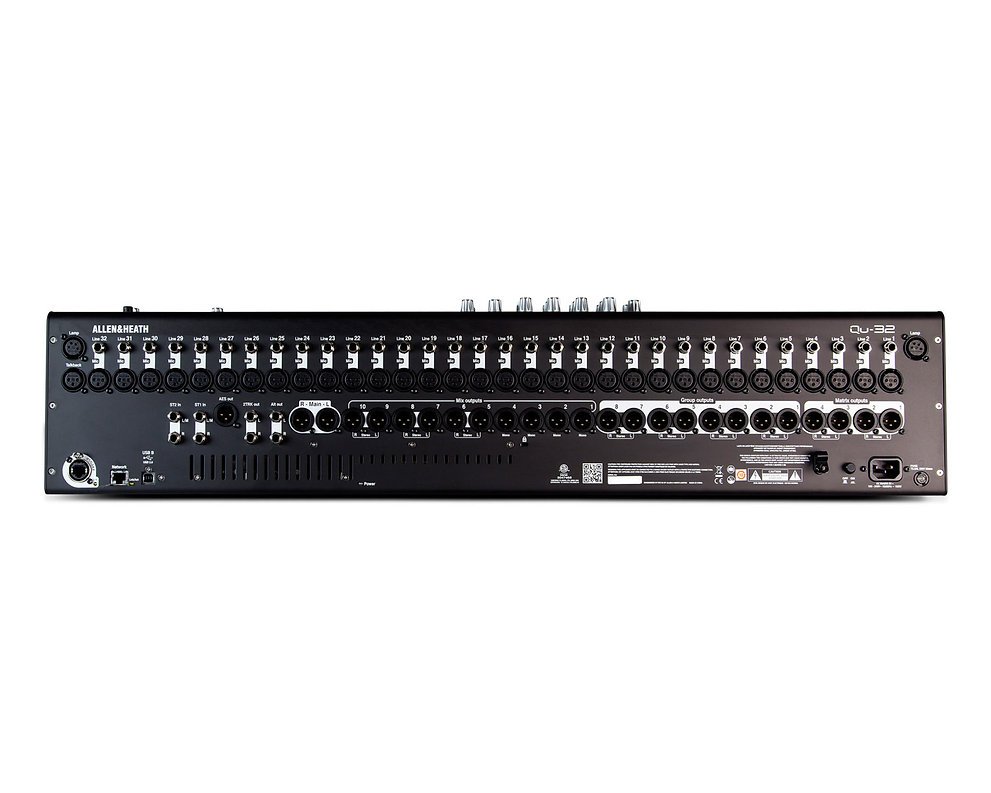

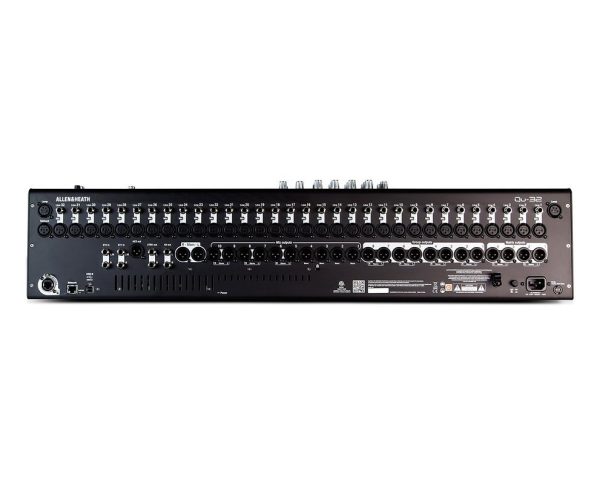

Outputs
- Mix1-10 and LR Out: Balanced, XLR
- Output Impedance: <75Ω
- Nominal Output: +4dBu 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -90 dBu (muted, 20-20kHz)
- Stereo Alt Out & 2Trk Out: Balanced, 1/4″ TRS jack
- Source (Alt Output /2Trk Output): Patchable / LR post-fade
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -90 dBu (muted, 20-20kHz)
- AES Digital Output: 2 channel, 48kHz sampling rate, XLR, 2.5Vpp balanced terminated 110Ω
dSNAKE
- Inputs: Remote source for CH1-32, ST1, ST2, ST3
- Outputs: Patchable from Mix1-10, LR, Grp1-8, MTX1-4; Compatible with AudioRacks AR2412, AR84, AB168; Compatible with ME personal mixing system
- System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 112 dB
- Frequency Response: +0/-0.5dB 20Hz to 20kHz
- Headroom: +18dB
- Internal operating Level: 0dBu
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Meter Peak indication: -3dBFS (+19dBu at XLR out), multi-point sensing
- Meter Signal indication: -48dBFS (-26dBu at XLR out)
- Meter Type: Fast (peak) response
- Sampling Rate: 48kHz +/-100PPM
- ADC, DAC: 24-bit Delta-Sigma
- Latency: 1.2 ms (local XLR in to XLR out), 0.7 ms (local XLR in to AES out)
- Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
- Mains Power 100-240V AC, 50/60Hz
- Maximum Power Consumption: 150W
USB Audio
- Qu-Drive: USB A
- Stereo Record: 2 channel, WAV, 48kHz, 24-bit, patchable
- Stereo Playback: 2 channel, WAV, 44.1 or 48kHz, 16 or 24-bit, to ST3
- Multitrack Record: 18 channel, WAV, 48kHz, 24-bit, patchable
- Multitrack Playback: 18 channel, WAV, 48kHz, 24-bit
- USB Audio Streaming: USB B, Core Audio compliant
- Send (upstream): 24 channel, WAV, 48kHz, 24-bit
- Return (downstream): 22 channel, WAV, 48kHz, 24-bit
Control
- Faders: 100mm motorised
- Touch Screen: 7″ TFT, 800×480 resolution
- SoftKeys: 10
- Mute Groups: 4
- DCA Groups: 4
- Network: TCP/IP Ethernet for MIDI and iPad app
Input Processing
- Source: CH1-32 Local, dSNAKE, or USB; ST1, ST2 Local, dSNAKE, or USB; ST3 Local, dSNAKE, or USB Stereo; USB Global Source Qu-Drive or USB B Streaming
- Stereo Linking: Odd/even input pairs
- Parameters linked: EQ, dynamics, insert, delay, assignments, sends
- Link options: Preamp, polarity, Sidechain, fader/mute, pan
- Polarity: Normal/Reverse
- High Pass Filter: 12dB/octave 20Hz – 2kHz
- Insert: Assign FX1-4 into Input channels
- Delay: Up to 85ms
- Gate: Self-key Sidechain
- Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
- Attack / Hold / Release: 50us to 300ms / 10ms to 5s / 10ms to 1s
- PEQ: 4-Band fully parametric, 20-20kHz, +/- 15dB
- Band 1: Selectable LF Shelving (Baxandall), Bell
- Band 2, Band 3: Bell
- Band 4: Selectable HF Shelving (Baxandall), Bell
- Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
- Compressor: Self-key Sidechain
- Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
- Attack / Release: 300us – 300ms / 100ms – 2s
- Knee: Soft/Hard
- Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
Mix Processing
- Channel Direct Out to USB: Follow Fader, follow Mute (global options)
- Source select (global): Post-Preamp, Pre-EQ, Post-EQ, PostDelay
- Insert: Assign FX into Mix channels
- Delay: Up to 170ms
- GEQ: Constant 1/3 oct, 28 bands 31Hz-16kHz, +/-12dB Gain
- PEQ: 4-Band fully parametric, 20-20kHz, +/- 15dB
- Band 1: Selectable LF Shelving (Baxandall), Bell
- Band 2, Band 3: Bell
- Band 4: Selectable HF Shelving (Baxandall), Bell
- Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
- Compressor: Self-key Sidechain
- Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
- Attack / Release: 300us – 300ms / 100ms – 2s
- Knee: Soft/Hard
- Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
FX
- Internal FX: 4x RackFX engine, Send>Return or Inserted
Audio Tools
- Types Reverbs, Delays, Gated Reverb, ADT; Chorus, Symphonic Chorus, Phaser,Flanger
- 4 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
- PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, 85ms Delay
- Talkback: Assignable to any mix, 12dB/oct HPF
- Signal Generator: Assignable to any mix, Sine/White/Pink/Band-pass Noise
- RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source

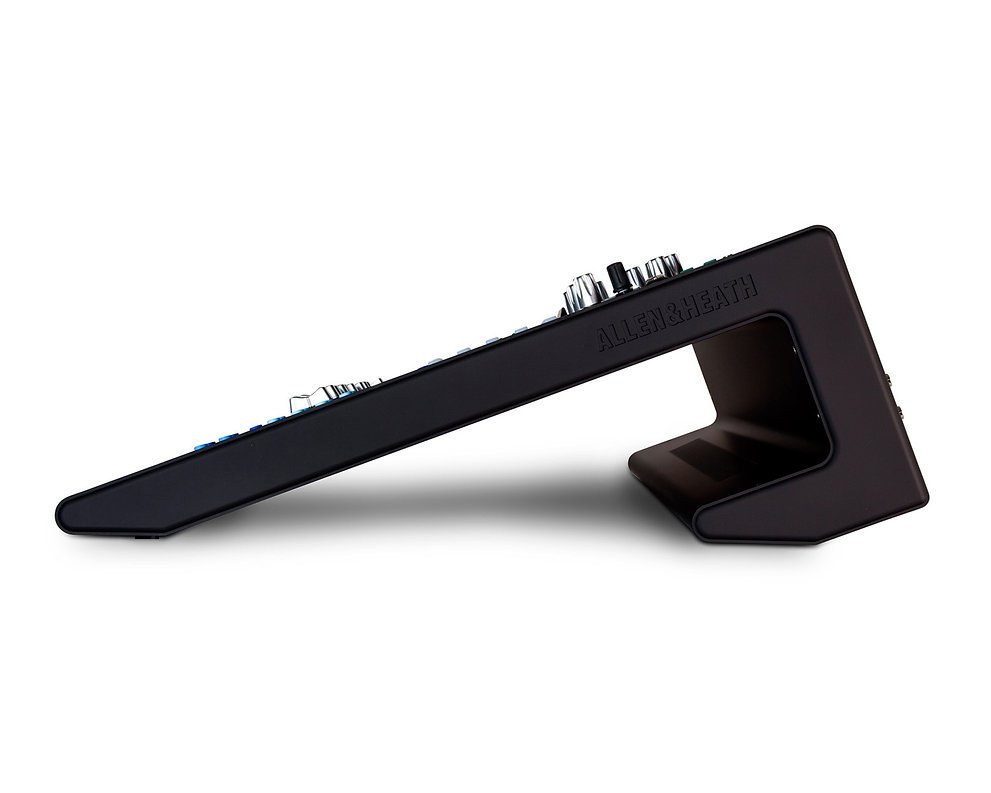

Physical & Dimensions

Width: 850mm
Depth: 500mm
Height: 186mm
Weight: 20kg

What’s in the Box?

1 QU-32
1 Mains Lead
1 Getting Started Guide
1 Safety Sheet

QU-32 Accessories

AR2412 – 24 inputs, 12 outputs AudioRack with dSNAKE connection and expansion port for personal monitoring.
AR84 – 8 inputs, 4 outputs AudioRack with dSNAKE connection.
AB168 – Portable, rugged 16 inputs, 8 outputs stagebox with dSNAKE connection and expansion port for personal monitoring.
AH9650 – 100m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors.
AH9981 – 50m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors
AH9651 – 20m of Neutrik EtherFlex Cat5 with locking Neutrik EtherCon connectors
LEDLamp – variable brightness 18” gooseneck lamp.
AP9639 – Dust cover for Qu-32.
