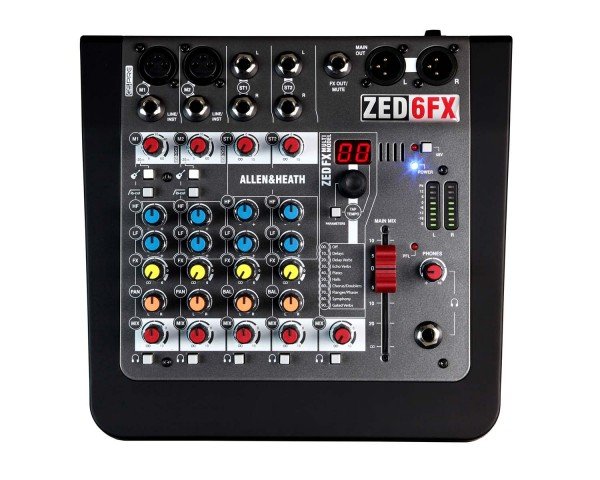

Allen & Heath ZED 6FX

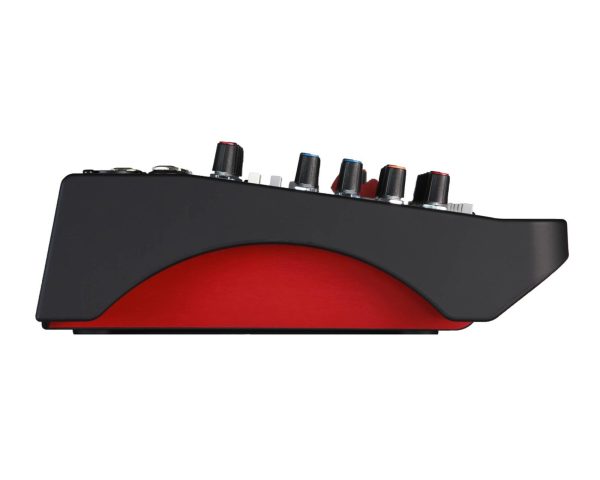

Allen & Heath ZED 6FX - Image 2

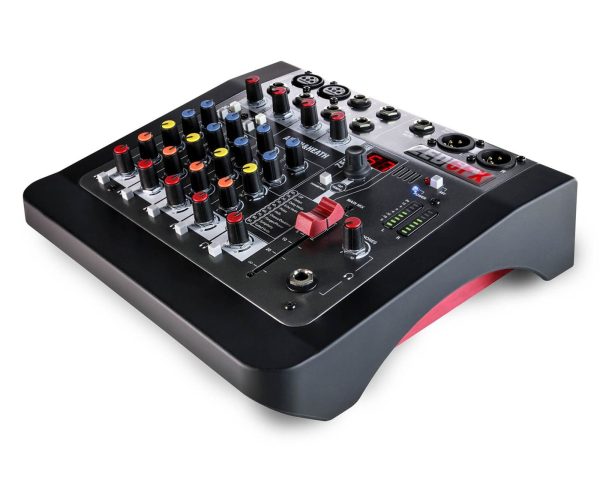

Allen & Heath ZED 6FX - Image 3

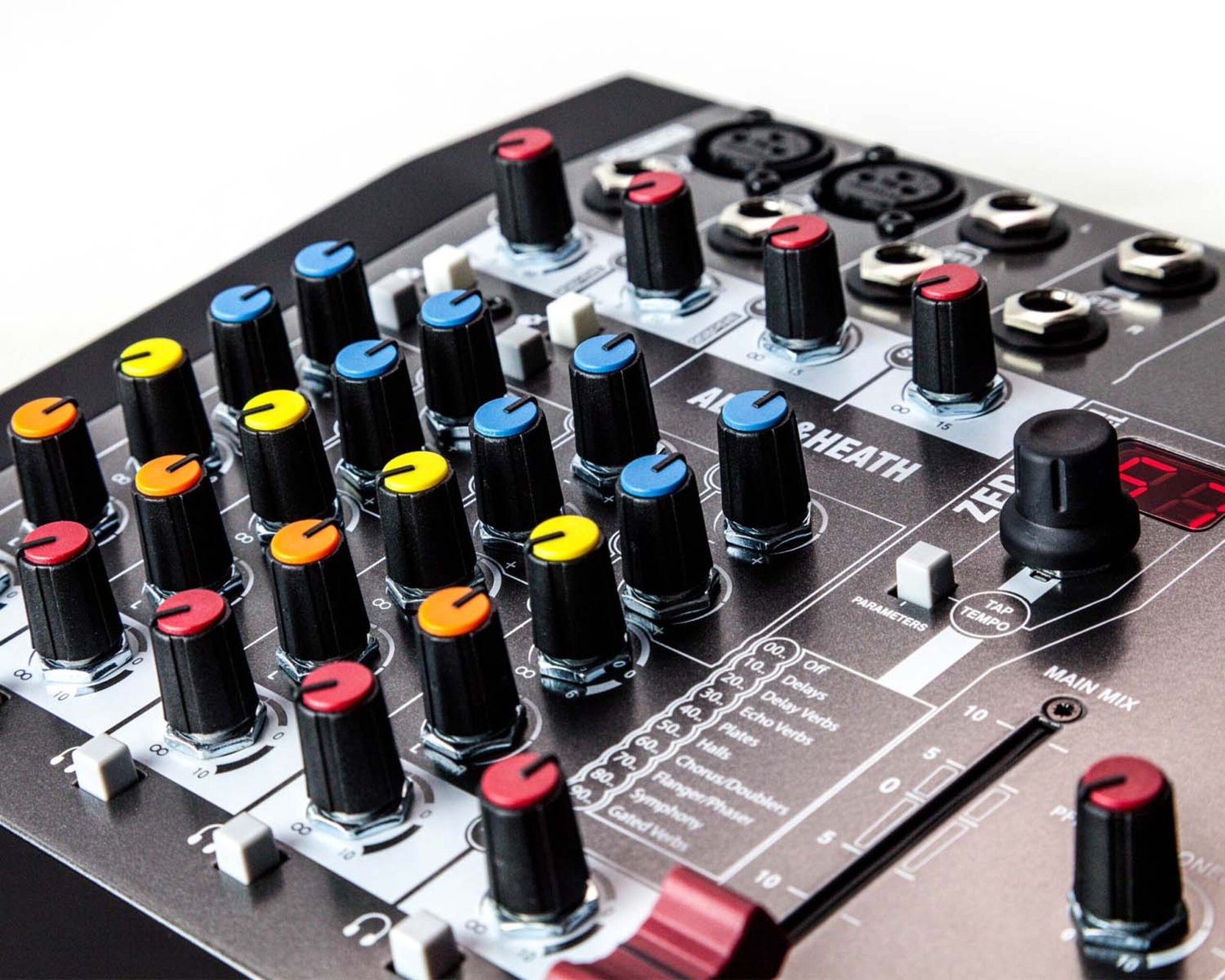

Allen & Heath ZED 6FX - Image 4
Allen & Heath ZED 6FX - Image 5
SKU: ALLZ6FX Categories: , Tags: ,

Allen & Heath ZED 6FX

ZED6FX 2-Mic/Line 2 Stereo i/p Console with 60mm Faders

“Compact 6 Input Analogue Mixer with FX.”

ZED-6FX delivers Allen & Heath’s renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey.

Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados.

Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.



£180.00

View your Basket
View Your Wishlist

Description

Features

  • 2 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Internal FX engine with tap tempo
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 2 band EQ for easy creative and corrective tonal shaping
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply

Specifications

  • Input
    • Mono channel (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
    • Mono channel Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
    • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
  • Output
    • L/R Outputs (XLR) 0dBu (+18dBu maximum)
    • FX Output (Jack socket) 0dBu (+18dBu maximum)
  • Frequency Response
    • Mic in to Mix L/R Out, 30dB gain 10Hz to 20kHz +0.5/-1dB
    • Instrument/Line in to Mix L/R out 0dB gain 10Hz to 20kHz +0.5/-1dB
    • Stereo in to Mix L/R out 10Hz to 20kHz +0.5/-1dB
  • THD+n
    • Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.0025%
    • Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.006%
    • Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
    • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
  • Headroom
    • Analogue Headroom from nominal (0Vu) 18dB
  • Noise
    • Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
    • Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -94dBu
    • Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -91dBu

Physical & Dimensions

  • Height: 88.9mm
  • Width: 249mm
  • Depth: 236.4mm
  • Weight: 1.4kg

What’s in the Box?

  • 1 ZED-6FX Mixer
  • 1 IEC C5 Mains Power Cable
  • 1 User Guide

Additional information

Weight 1.4 kg
