Description

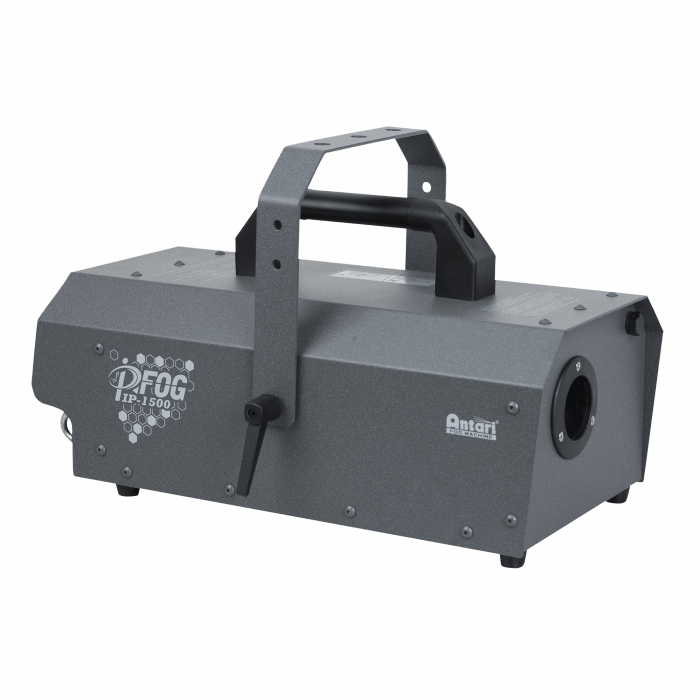

The IP-1500 is Antari’s waterproof fog machine, incorporating an innovative new design that earns it an IP-63 rating. Whether indoor or outside, the new IP-1500 delivers massive fog output with its state-of-the-art design and 1500 watts of power.
Included in that design is an extremely precise temperature control system, highly efficient heat conservation system and an actually sensitive liquid detection system that senses when the fog output or liquid supply is running low.
Specifications
Electrical Specifications and Connections
- Power Supply: 110 V AC 60Hz
- Power Consumption: 1500 W
- Power Connector In: CEE3P 16 A
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- Heater: 1500 W
- Warm-up Time: 9 min
Mechanical Specifications
- Output Capacity: 560 m³/min (19776.2 ft³/min)
- Output Direction: Forward
- Housing: Aluminium, Metal
- ColourL: Gray
- Fluid Consumption: 100 ml/min (3.381 oz/min)
- Length (mm): 465 mm (18.307″)
- Height (mm): 250 mm (9.843″)
- Width (mm): 222 mm (8.74″)
- Weight: 13.5 kg (29.762 lb)
- IP Rating: IP63

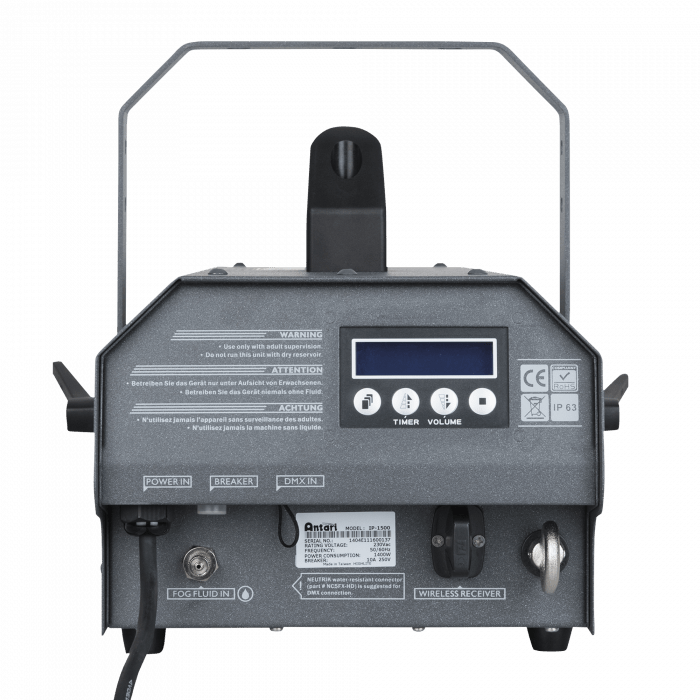

Control and Programming
- Control Mode: DMX, Manual, Remote, Stand Alone, Timer
- DMX Channels: 1
- Display: LCD
Rigging
- Mounting Options: Bracket
- Safety Attachment: Yes
Thermal Specifications
- Maximum Ambient Temperature: 40 °C (104 °F)

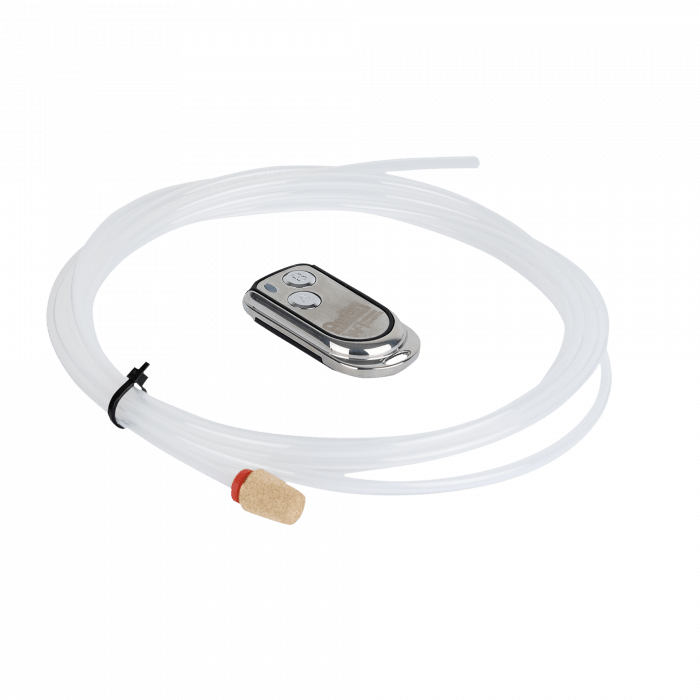

Included Items
- Included Cables: Fixed Cable
- Included Remotes: W-1
