Description

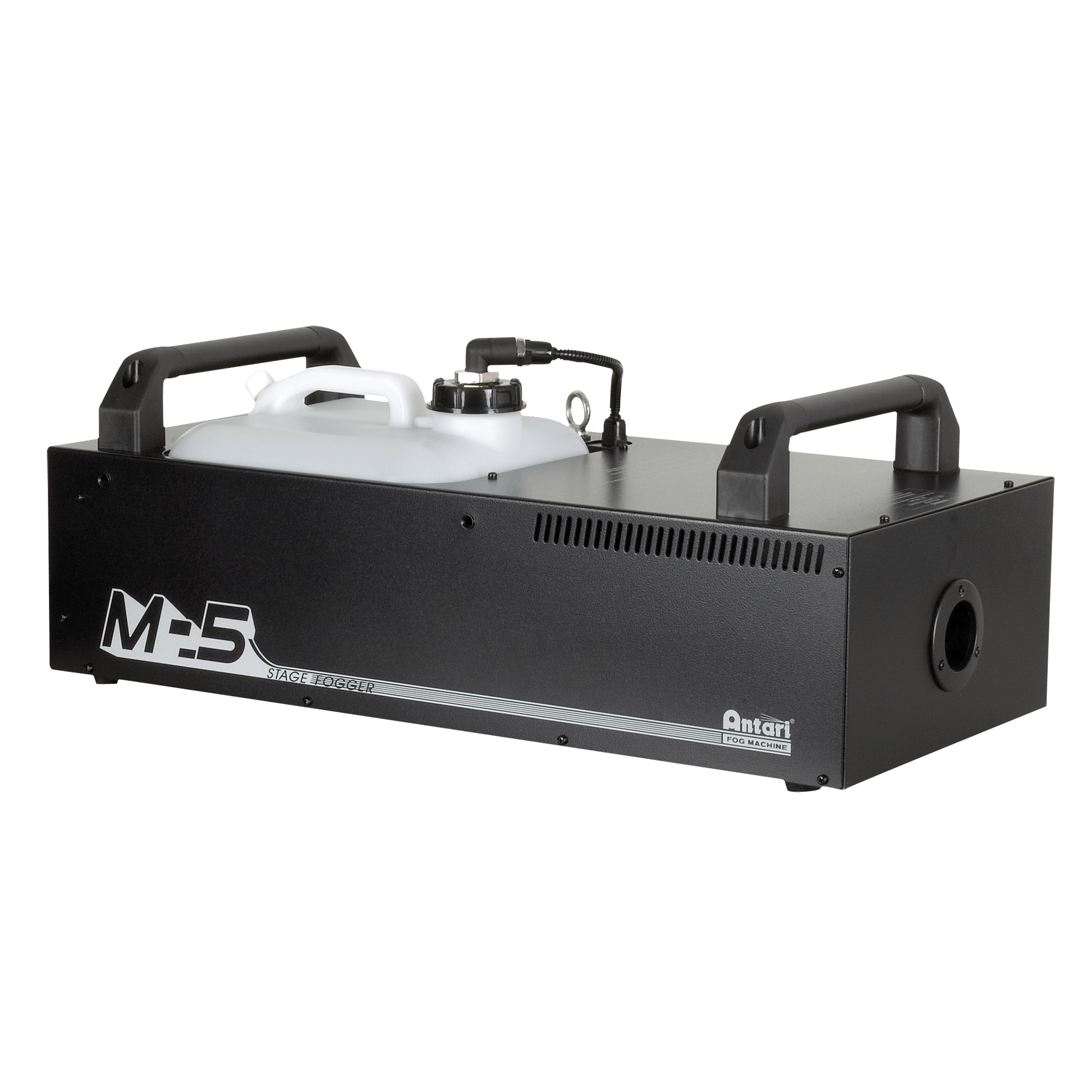

The high performance M-5 & M-10 Stage Foggers from Antari are uniquely designed to meet the rigorous demands of stage and touring use: a high-capacity 10-liter tank that enables use between refills; a square, durable housing design that gives this stage fogger Series a refined look and eases transport.
The design offers protection against stray water or spilLED drinks. There are two professional versions: M-5 (1500 W) and M-10 (3000 W). They have DMX onboard and can be controlled remotely with a digital display control module, enabling convenient remote operation. DMX connection can be worked by either a 3 or 5-pin connector. Ideal for concerts, movie production and touring applications.
Specifications

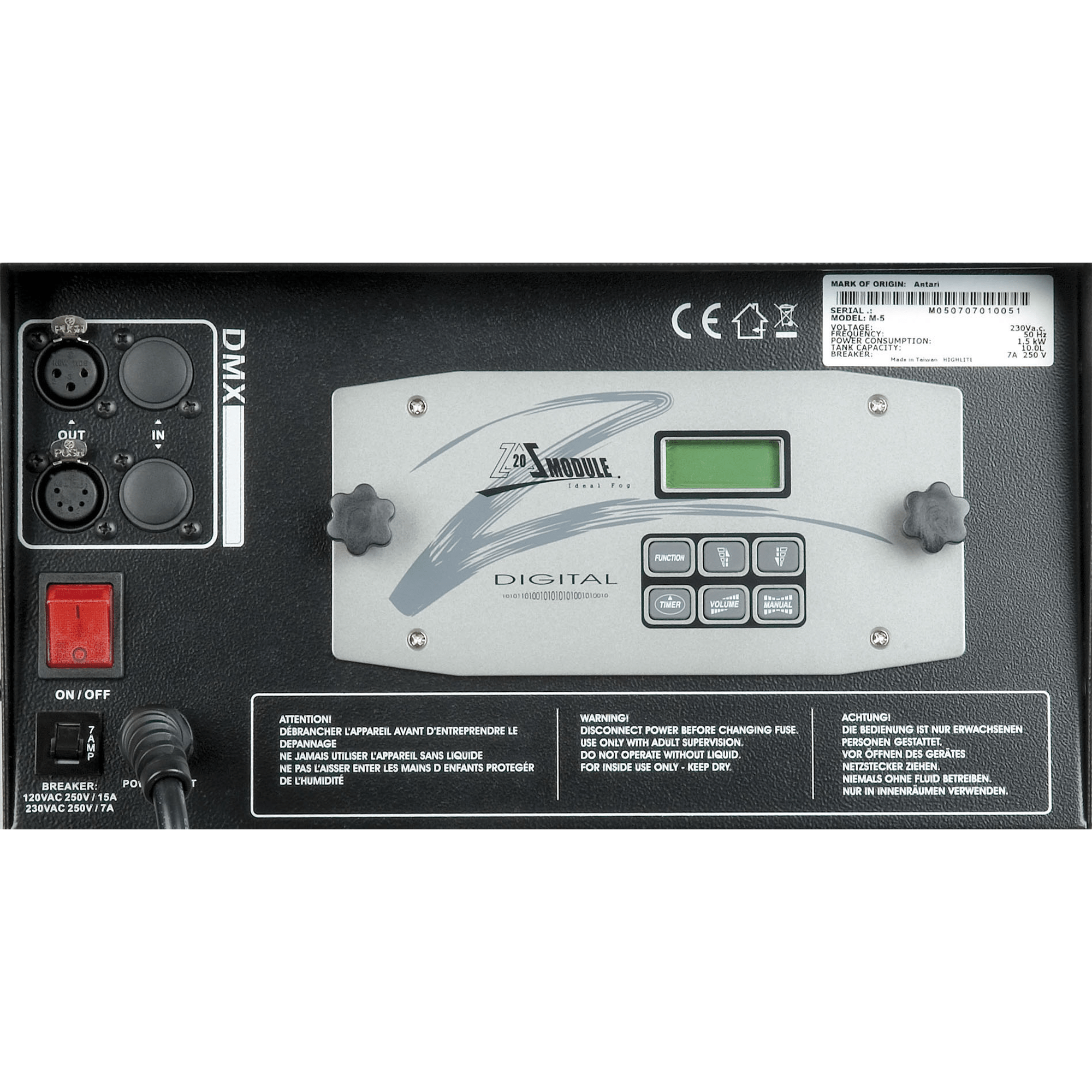

Electrical Specifications and Connections
- Power Supply: 240 V AC 50/60 Hz
- Power Consumption: 1500 W
- Power Connector In: powerCON Blue
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P
- Remote Connector: 5-pin DIN
- Cable Length: 2 m
- Heater: 1500 W
- Warm-up Time: 8 min
Mechanical Specifications
- Output Capacity: 700 m³/min (24720.3 ft³/min)
- Output Direction: Forward
- Housing: Aluminium, Metal
- Colour: Black
- Fluid Consumption: 160 ml/min (5.41 oz/min)
- Fluid Tank Capacity:L 10 L
- Length (mm): 668 mm (26.299″)
- Height (mm): 170 mm (6.693″)
- Width (mm): 319 mm (12.559″)
- Weight: 15.5 kg (34.172 lb)
- IP Rating: IP20 (indoor use only)
Control and Programming
- Control Mode: DMX, Manual, Remote, Stand Alone, Timer
- DMX Channels: 1
- Wireless: Optional
- Display: LCD
Battery
- Battery Type: Lead-Acid
- Battery Voltage: 12 V
- Capacity: 2.1 Ah
- Battery Power: 25.2 Wh
- Runtime @Full: 0.2 h
- Runtime Average: 0.2 h
- Charging Time: 3 h
Rigging
Included Items
- Included Cables: powerCON cable

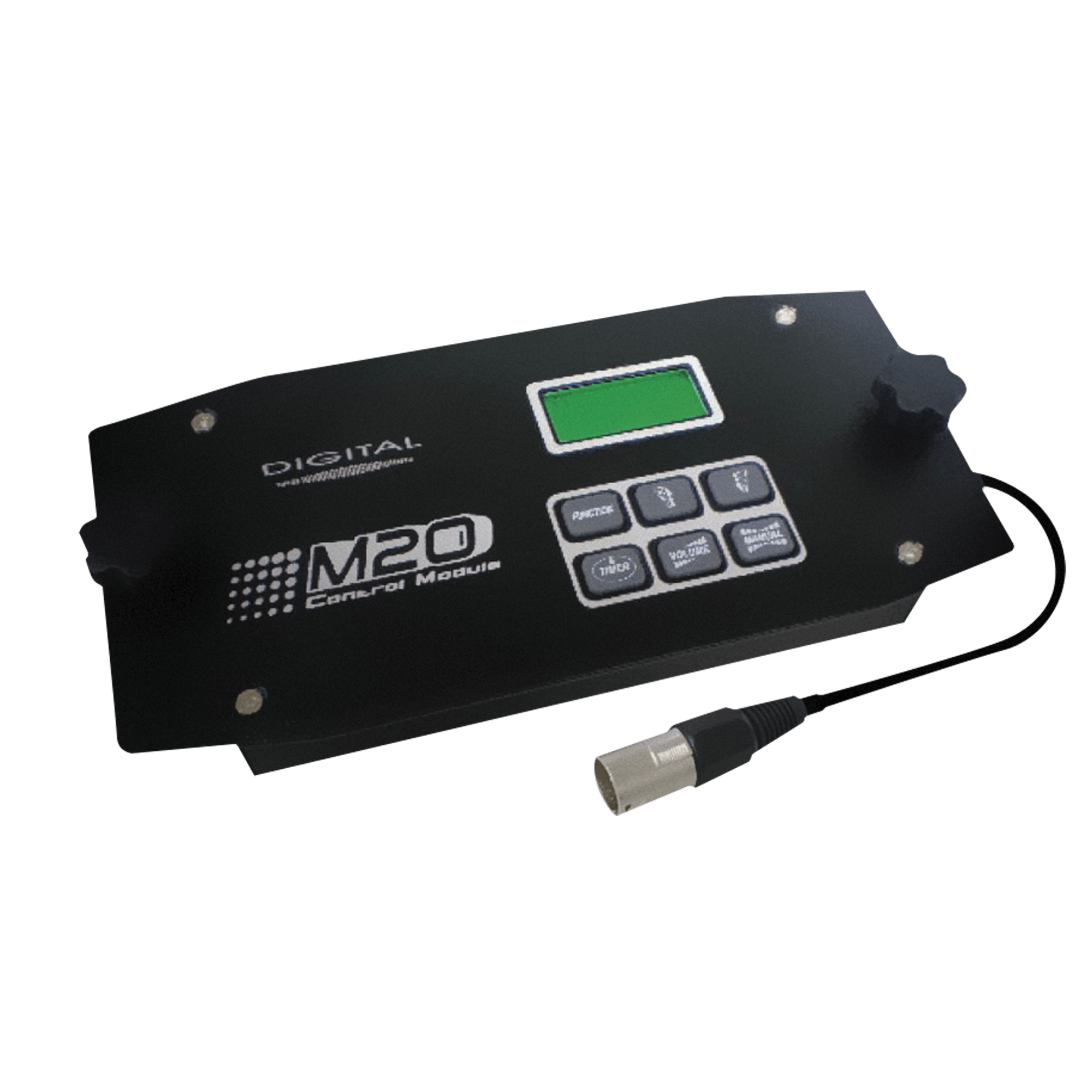

- Included Remotes: M-20
Downloads
60648_USER MANUAL_EN.pdf
