Description

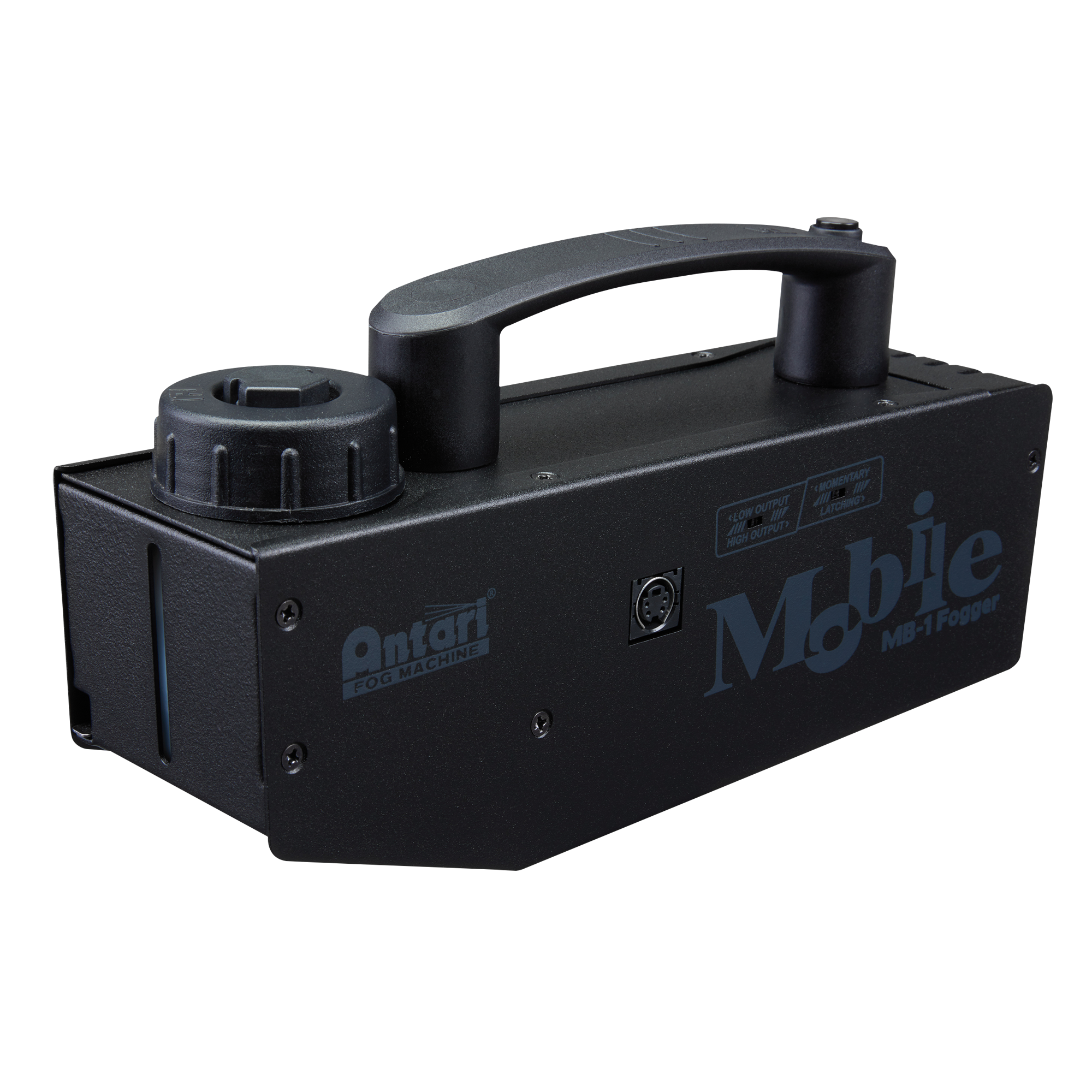

The Antari MB-1 is a compact and light-weight battery powered 75 watt fog machine with included battery, battery charger, 0.5 l fog fluid and flight case, suitable for mobile applications. Its compact and portable design is perfect for various hand-held operations and for placing in and on small objects.
At full output, the accu can last up to 10-12 minutes and its 110 ml tank runs out after 100 minutes of continuous use. A wireless and timer remote solution is optional, as well as a power adapter with dummy battery for continuous use.
Specifications
Electrical Specifications and Connections
- Power Supply: 12 V DC
- Power Consumption: 75 W
- Power Connector In: Low Voltage DC plug
- Remote Connector: 4-pin DIN
- Heater: 75 W
- Warm-up Time: 0.1 min
Mechanical Specifications
- Output Direction: Forward
- Housing: Metal
- Colour: Black
- Fluid Consumption: 1.1 ml/min (0.037 oz/min)
- Fluid Tank Capacity: 0.11 L
- Length (mm): 228 mm (8.976″)
- Height (mm): 112 mm (4.409″)
- Width (mm): 66 mm (2.598″)
- Weight: 1.8 kg (3.968 lb)
- IP Rating: IP20 (indoor use only)
Control and Programming
- Control Mode: Manual
- Wireless: Optional

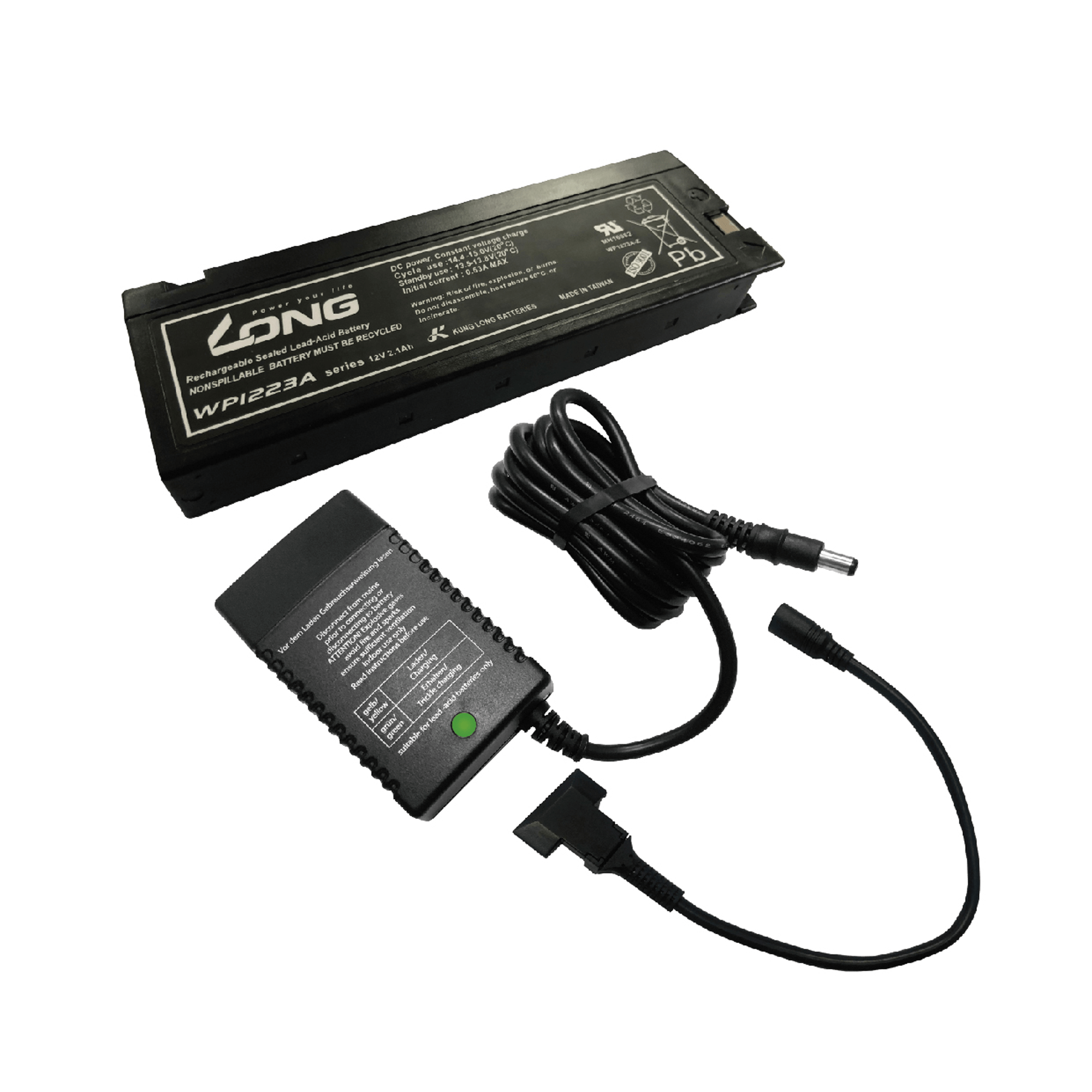

Battery
- Battery Type: Lead-Acid
- Battery Voltage: 12 V
- Capacity: 2.1 Ah
- Battery Power: 25.2 Wh
- Runtime @Full: 0.2 h
- Runtime Average: 0.2 h
- Charging Time: 3 h
Rigging
Thermal Specifications
- Maximum Ambient Temperature: 40 °C (104 °F)
Included Items

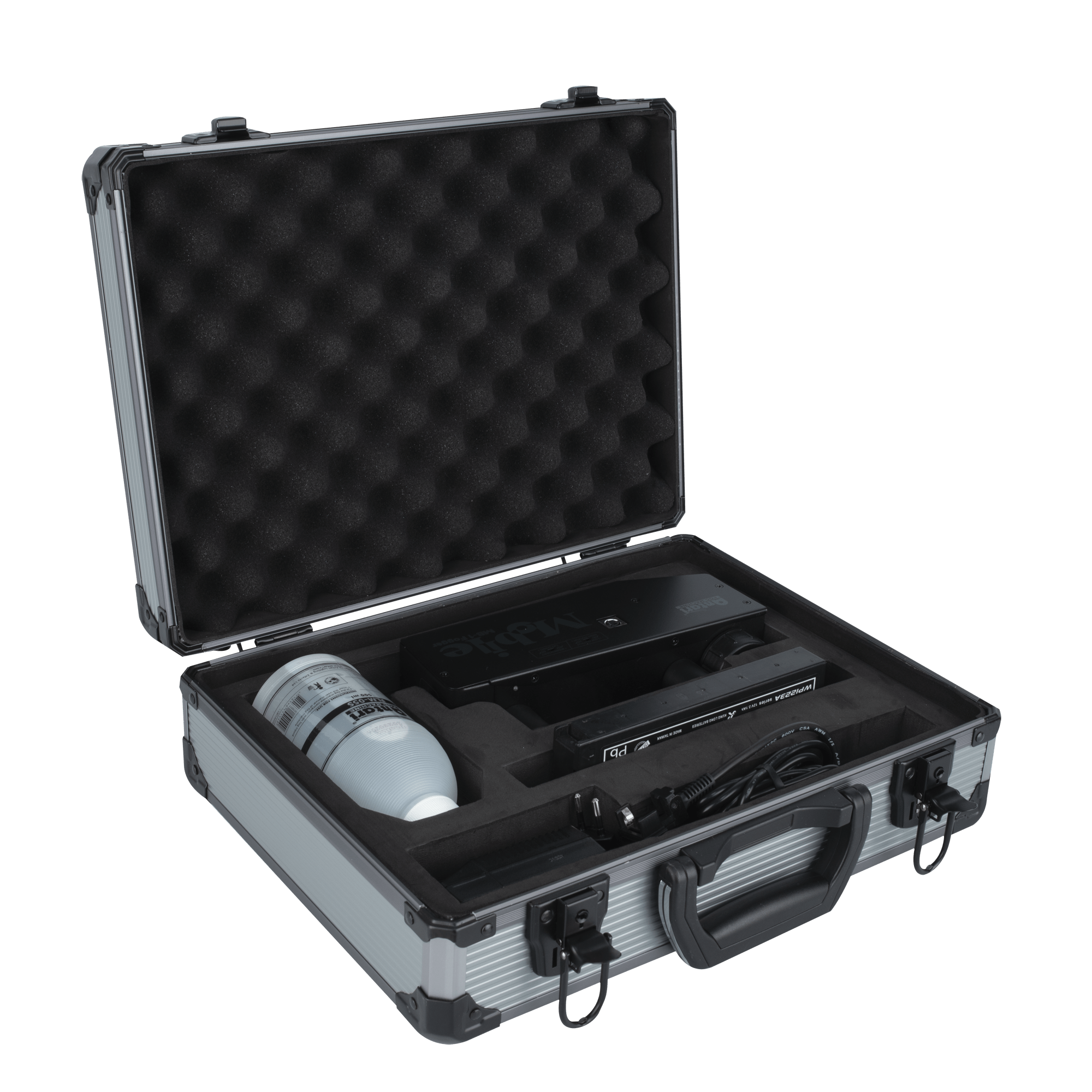

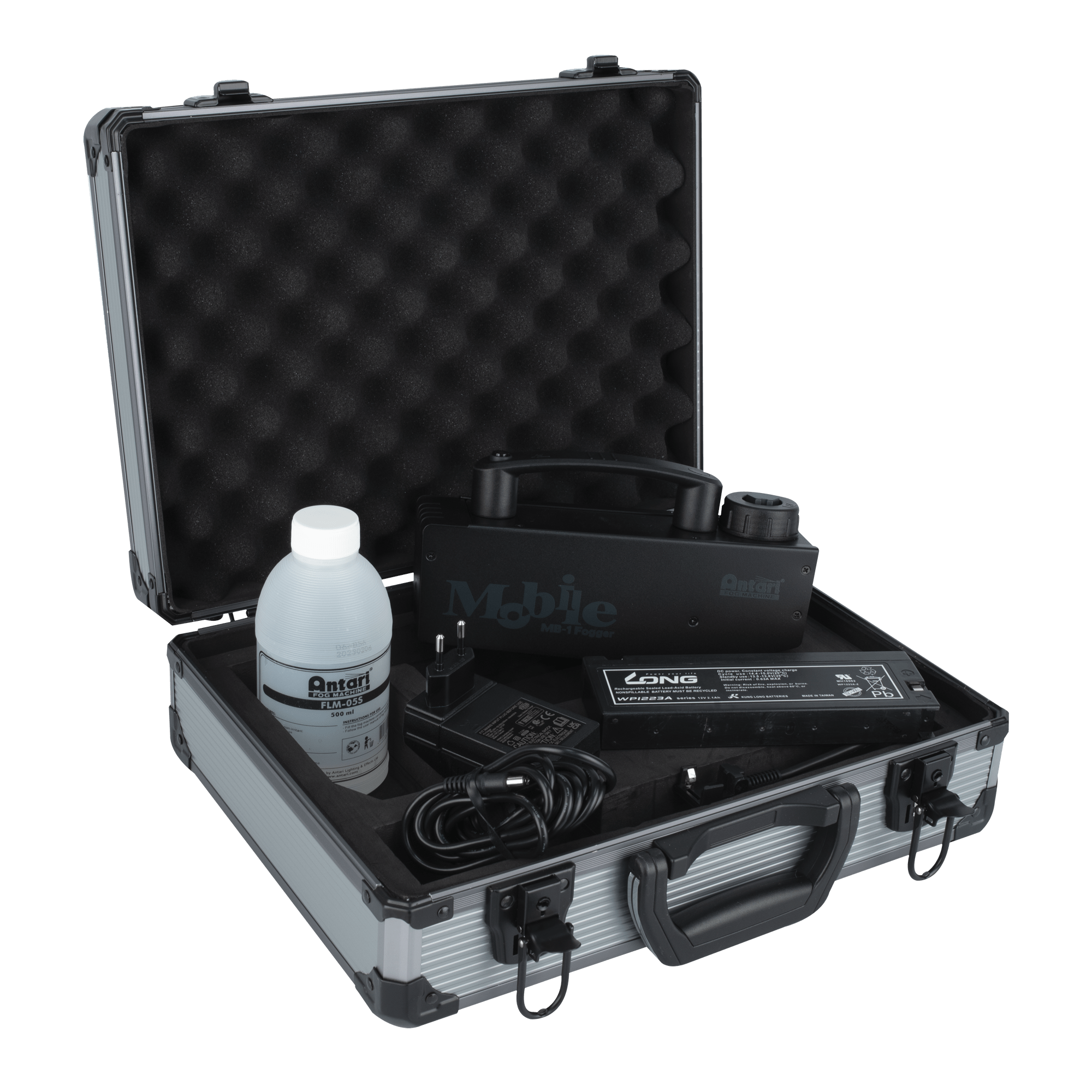

- Included Accessories: Battery charger, Flightcase, Fog Fluid
Downloads
61700_MANUAL_GB.pdf
