Description

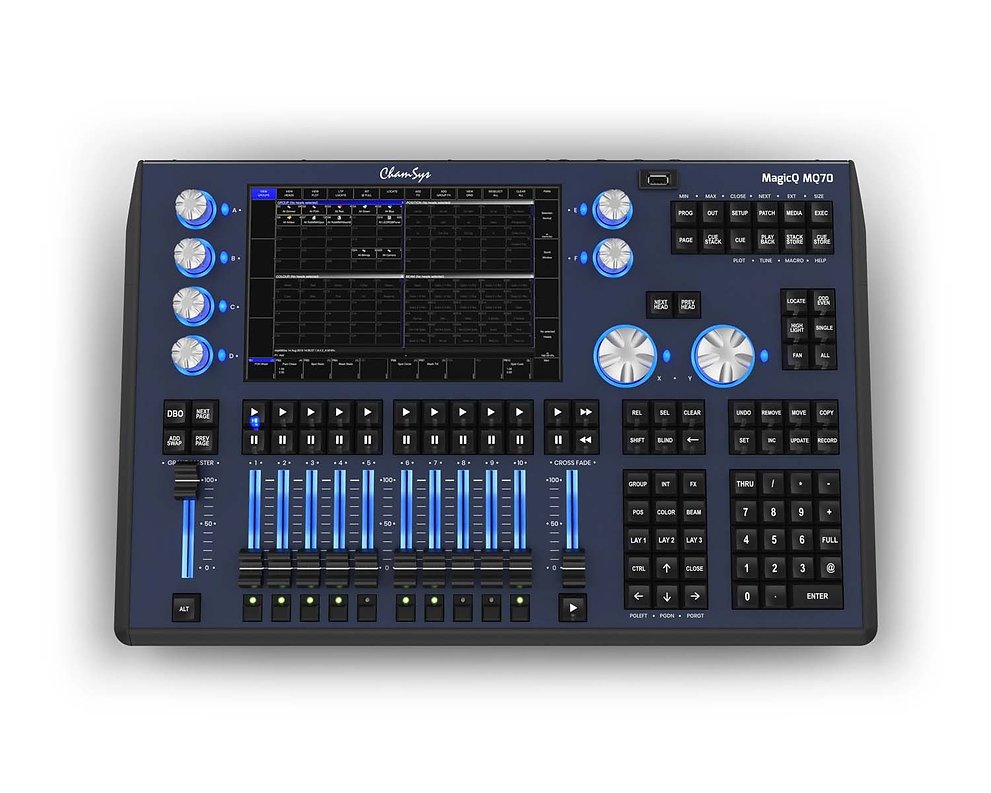

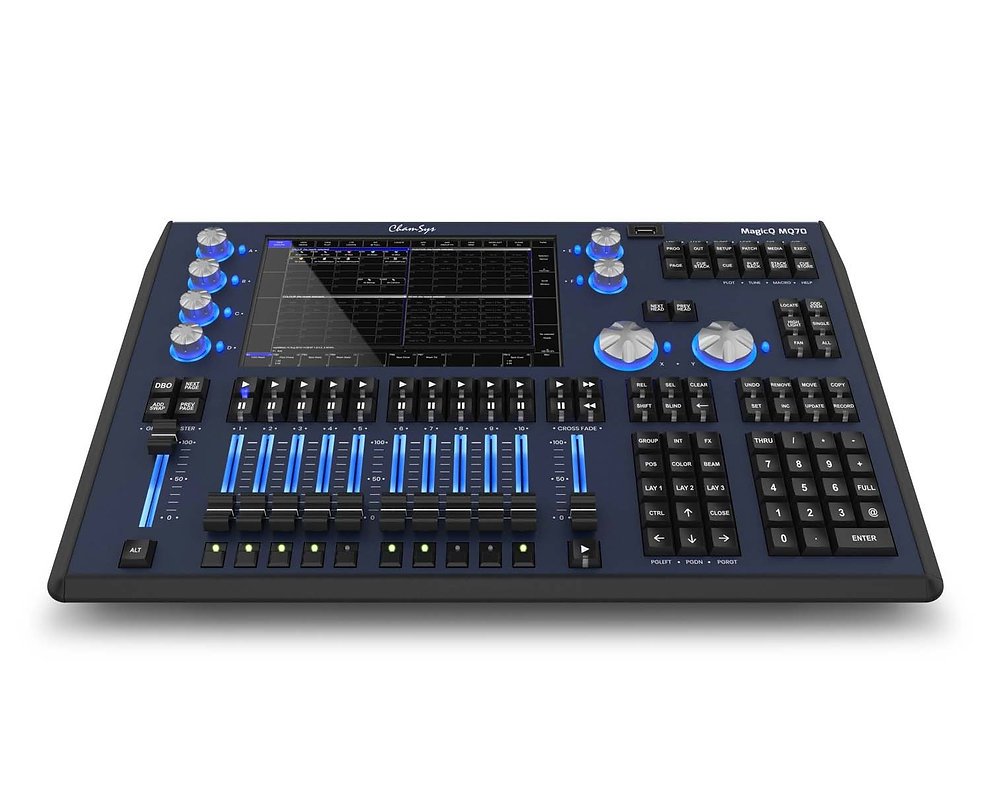

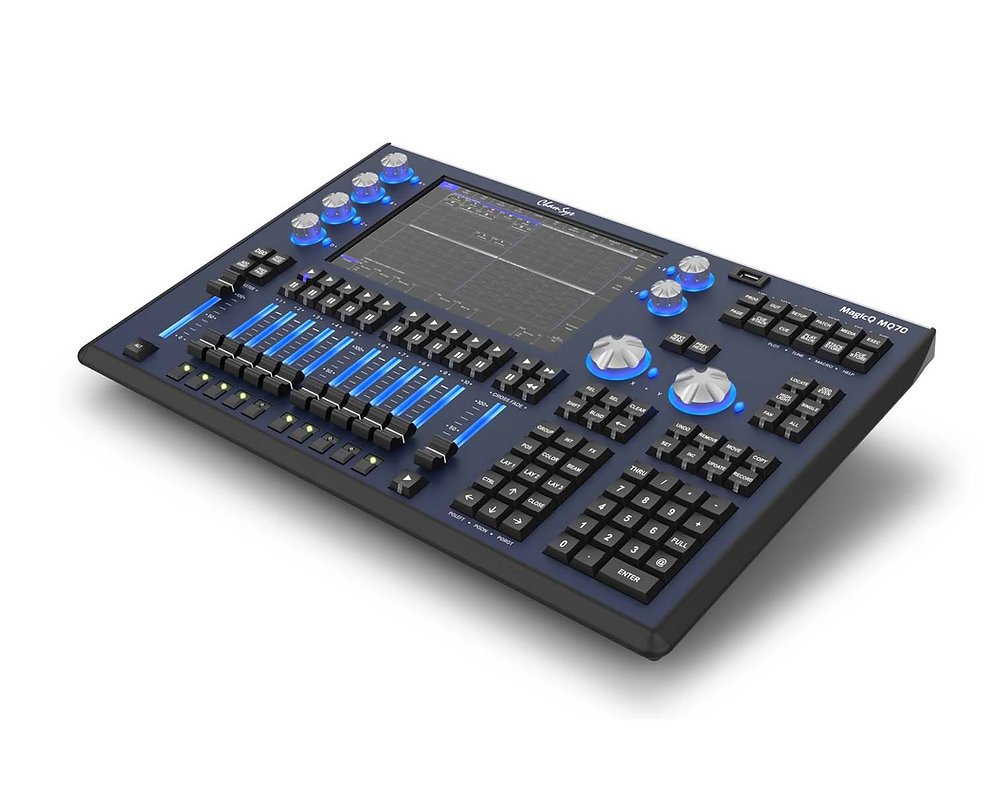

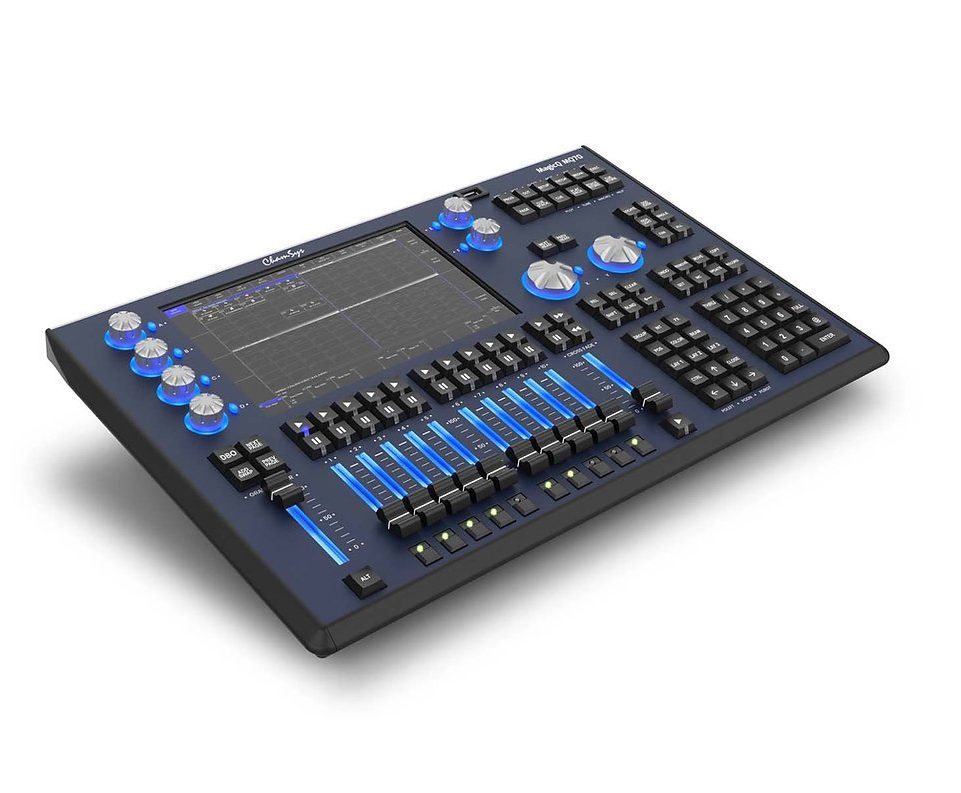

MagicQ MQ70 Compact Console
The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan – enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.
With built in MIDI input and output, LTC and audio input for synchronisation, the MagicQ MQ70 provides many options for integration with show control and audio systems.
The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).
Features
- 10.1” Multi touch display
- Illuminated encoder
- Fader tracks
- Supports 24 universes (Option to expand to 48)
- 3 network ports enabling ArtNet and sACN direct from the console
- 4 assignable physical DMX ports
- Built in WIFI
- No need for external networking hardware
- Built in UPS
- Low power consumption and does not require a cooling fan
- Silent operation
- Built in MIDI input and output
- Built in LTC and audio input
- Runs the same MagicQ software as other MagicQ consoles

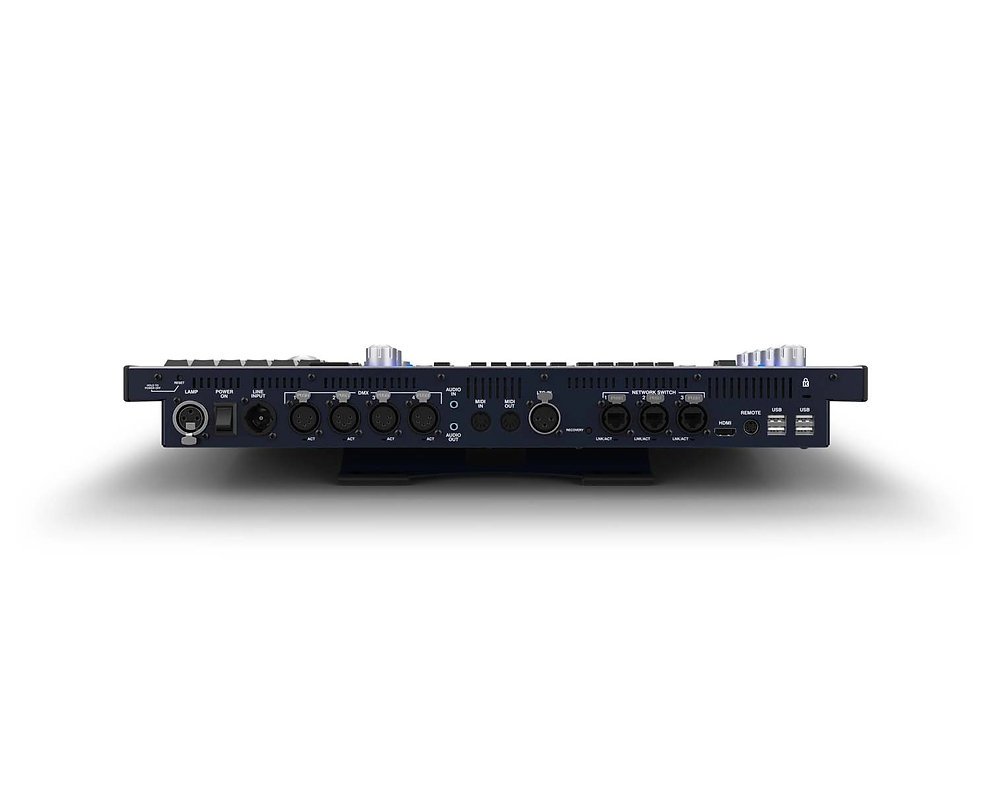

Hardware Specifications
- Universes direct from the console (via Artnet/sACN/Pathport): 24 *Expandable to 48
- Direct DMX Outputs: 4
- RDM Support: Yes
- In-built WiFi: Yes
- Playbacks: 10
- Grand Master Fader: 1
- Crossfade Master Fader: 1
- Attribute Encoders: 8
- Dual Colour Illuminated Playbacks: Yes
- Illuminated Encoders: Yes
- Network Ports: 3
- Inbuilt 10.1″ HD Multi-Touch Display: 1
- External Monitor up to 1920×1200 Resolution – HDMI: 1
- USB Ports: 5
- Audio Input (1 channel, 7 band): Yes
- Audio Output: Yes
- MIDI Ports: 1 in, 1 out
- LTC Timecode In Port: 1
- Remote Input Port: 1
- Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications
- Max Number of DMX Channels: 12288 *expandable to 24576
- Max Number of Fixtures Supported: 12288 *expandable to 24576
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Numbers of Shows: Virtually unlimited
Console Weights and Dimensions
- Width: 525mm (20.6 inches)
- Depth: 350mm (13.7 inches)
- Height: 60mm (2.3 inches)
- Weight: 7kg (15.4 lb)
Boxed Weights and Dimensions
- Width: 680mm (26.7 inches)
- Depth: 290mm (11.4 inches)
- Height: 500mm (19.6 inches)
- Weight: 10kg (22 lb)
Flight Cased Weights and Dimensions
- Width: 680mm (26.7 inches)
- Depth: 290mm (11.4 inches)
- Height: 500mm (19.6 inches)
- Weight (console in flightcase): 17kg (37.4 lb)
What’s in the Box?
- 1x MagicQ MQ70
- 1x Dual Colour Desk light
- 1x Dust cover
- 1x Neutrik powerCON TRUE1 Power Cable
