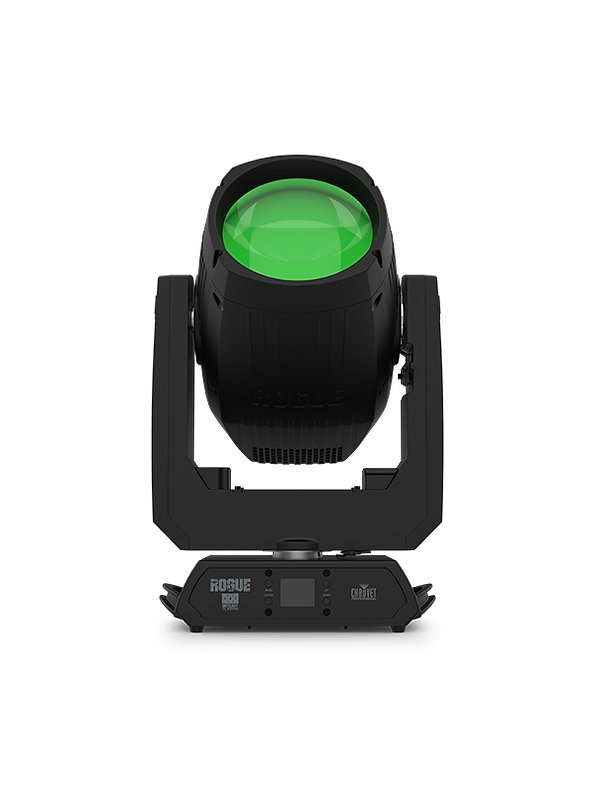

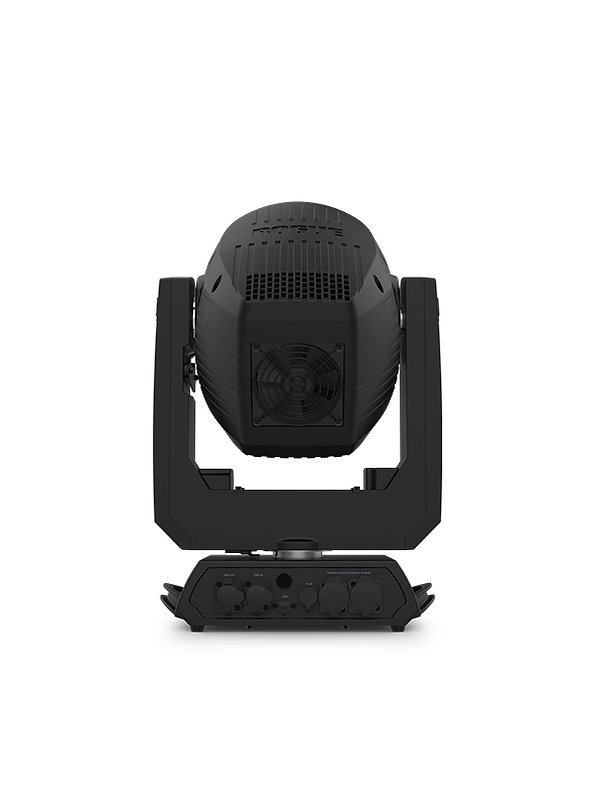

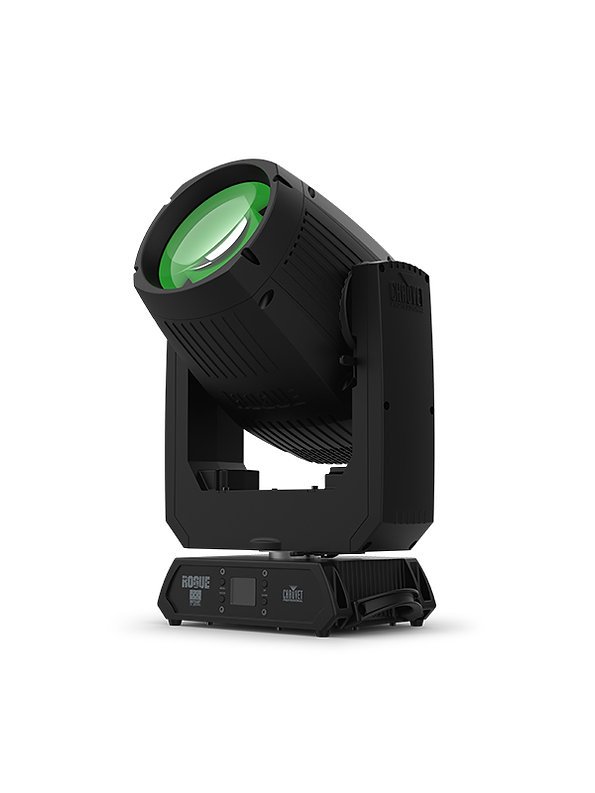

Rogue Outcast 1L Beam Moving Head 140W LED +14 Colour Wheel IP65

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. It’s a tight 1.4° beam that projects extremely focused aerial effects.

Create dynamic mid-air looks with this fully-featured fixture that includes a colour wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost.

Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Features

• Fully featured, high-powered IP65-rated LED beam fixture with a single colour wheel, single gobo wheel with rotating and static gobos, layerable prisms in a lightweight and durable aluminium/magnesium casing
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 5 and 8 facet prisms
• Frost for even light distribution
• 5-pin DMX input/output connections
• Tight 1.4° beam for extremely focused areal effects
• RDM is enabled for remote addressing and troubleshooting
• 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

Specifications

Optical

• Light Source:  1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
• Colour Temperature (at full):  6928 K
• Front lens diameter:  160 mm
• CRI:  69.3
• Beam Angle:  1.4°
• Field Angle:  1.7°
• Cut off Angle:  1.8°
• Lumens – Source:  5500
• Lumens – Output:  3218
• Illuminance (total) :  224,670 lux @ 5 m

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  14 + white, split colours, continuous scroll at variable speeds
• Gobos:  14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel (rotating):  Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size:  9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
• Dimmer:  Electronic
• Shutter/Strobe:  Motorized
• Focus:  Motorized
• Frost:  Motorized
• Prism:  5 Facets, motorized, rotating
• Prism:  8 Facets, motorized, rotating

Connections

• Power Connection:  Edison plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Data Connectors:  5-pin IP rated
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  17 or 19
• Modes/Personalities:  2 personalities (17, 19)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  233 W, 2.08 A @ 120 V, 60 Hz
• Power and Current:  226 W, 1.15 A @ 208 V, 60 Hz
• Power and Current:  223 W, 1.04 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, UKCA
• IP Rating:  IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient):  -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc):  80° C / 176° F
• Maximum Ambient Temperature (ta):  45° C / 113° F

What’s Included

• Rogue Outcast 1L Beam
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware

Construction / Physical

• Dimensions:  12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
• Weight:  35.4 lb (16.1 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium/Magnesium diecast

What’s in the Box?

• Rogue Outcast 1L Beam
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware
