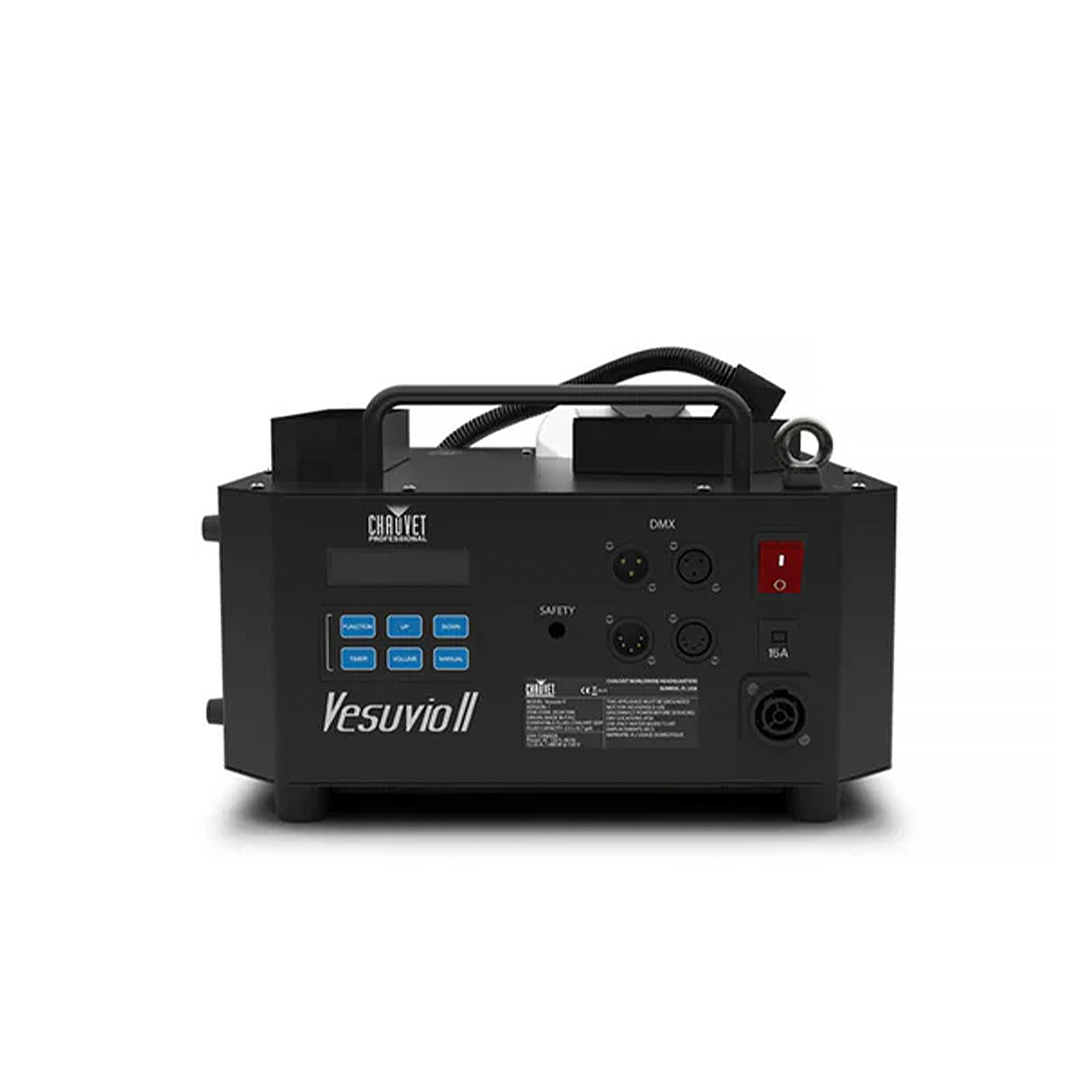

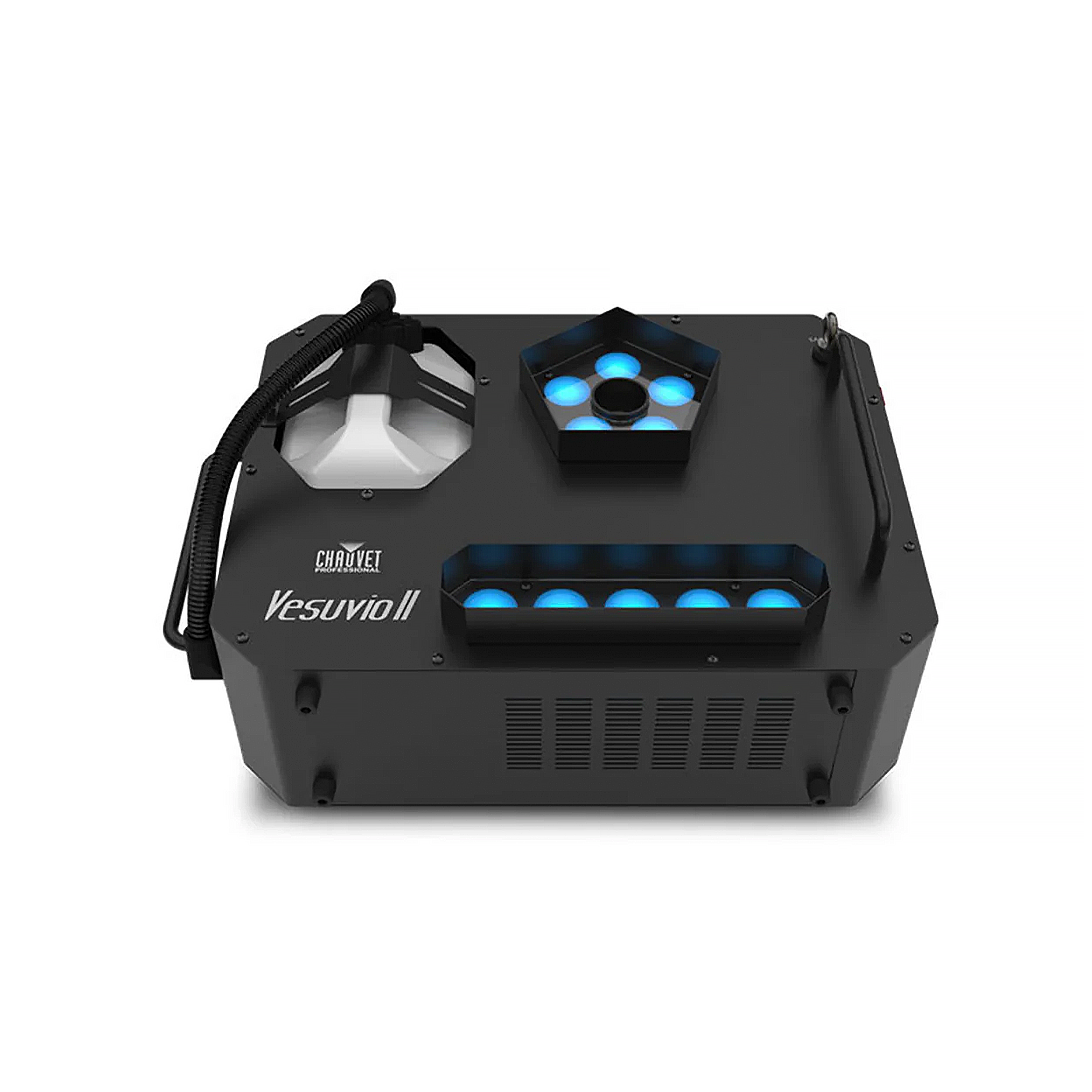

Chauvet Vesuvio II Vertical Fogger

Name: Vesuvio II | Crystal Sound and Light
SKU: VESUVIOII
Price: 834.00 GBP
Availability: InStock

SKU: VESUVIOII Categories: Smoke / Haze Machines, Special FX Tags: Chauvet, Smoke Machine, Special FX

VESUVIO II RGBA/UV/LED Vertical Fogger DMX

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED colour mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light.

The Vesuvio II is built for efficiency, consuming only 80 ml/min of QDF fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with CHAUVET QDF quick dissipating fluid.

£834.00

View your Basket

Description

Features

Advanced red, green, blue, amber, and UV (RGBA/UV) LED colour mixing
40 second continuous bursts of fog, for intense effects and performance
40,000 CFM fog output for intense, large effects
2.5 l fluid tank for reliability in production
Strong, sturdy construction for numerous production types
DMX control for ease of use in production situations
3- and 5-pin DMX input/output connections

Optical

Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
Illuminance (Centre): 199.5 lux @ 5 m
Illuminance (Linear): 154 lux @ 5 m
Illuminance (Both): 334 lux @ 5 m
PWM Frequency: 126 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Output: 40,000 cfm
Low Fluid Shutdown: No

Construction / Physical

Exterior Colour: BLACK
Housing Material: Steel
Tank Capacity: 0.7 gal (2.5 l)
Fluid Consumption: 80 ml/min
Maximum Run time: 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
Maximum Run time: 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
Maximum Run time: 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX
DMX Channels: 15
Modes/Personalities: 1 personalities
On-Board Control: Yes
Included Remote: No

Electrical

Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz
Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min
Breaker Size (120V): 15A
Breaker Size (220V): 15A

Certifications / Qualifications

CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Thermal Dissipation @ 120V: 5,050 BTU per hour (max)
Thermal Dissipation @ 230V: 9,825 BTU per hour (max)

What’s Included

Vesuvio II
Seetronic Powerkon IP65power cord

Optional Accessories

Quick Dissipating Fluid (QDF)
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables

Dimensions

Dimensions (HxWxD): 19.49 x 13.18 x 9.39 in / 495 x 335 x 239 mm
Weight: 28.4 lb (12.9 kg)

Additional information

Weight	13.6 kg
Dimensions	23.9 × 33.5 × 49.5 cm
Product Brands	Chauvet
