SKU: 123003 Categories: , Tags: , , Brand:

NewHank Checkmate

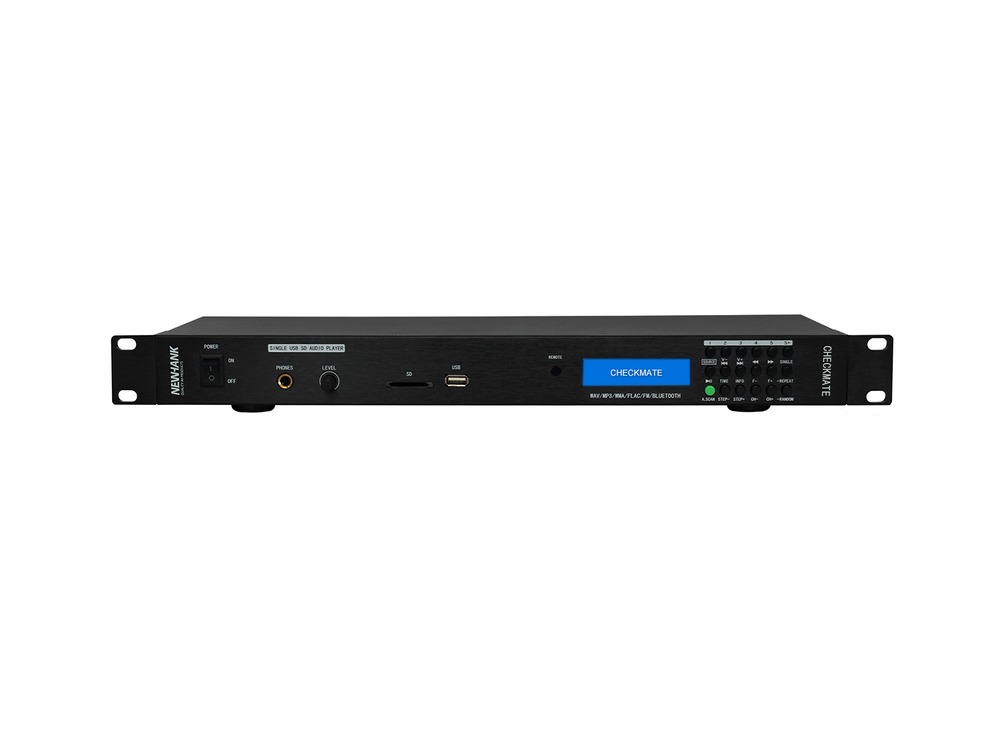

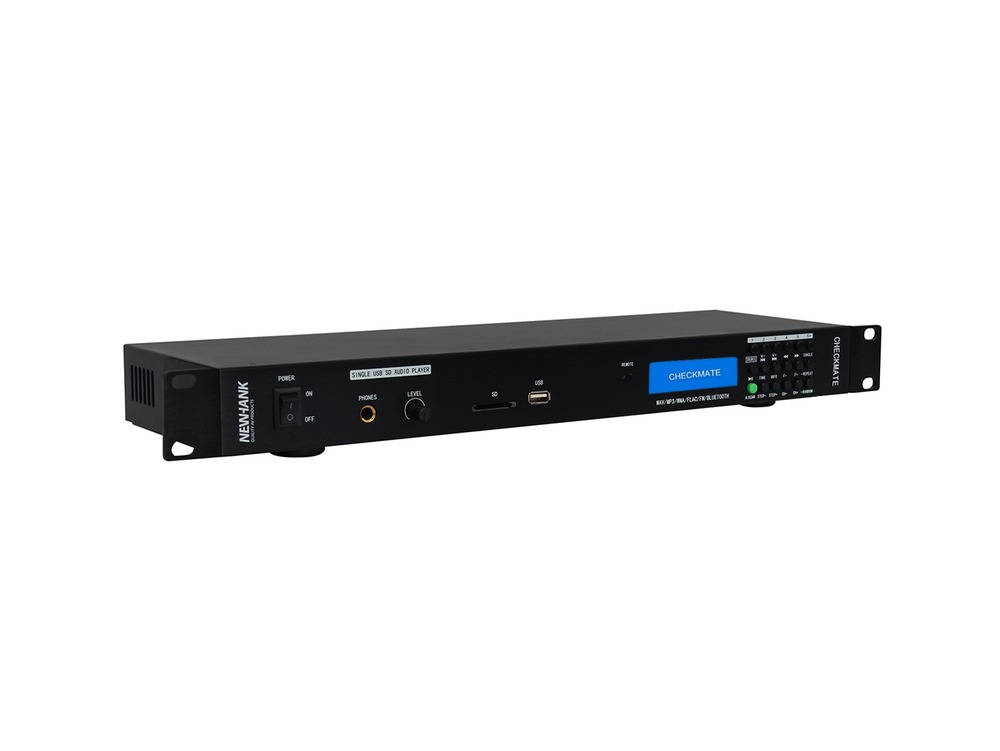

CHECKMATE is a combination of an FM tuner, USB slot, SD slot and Bluetooth connection audio source.

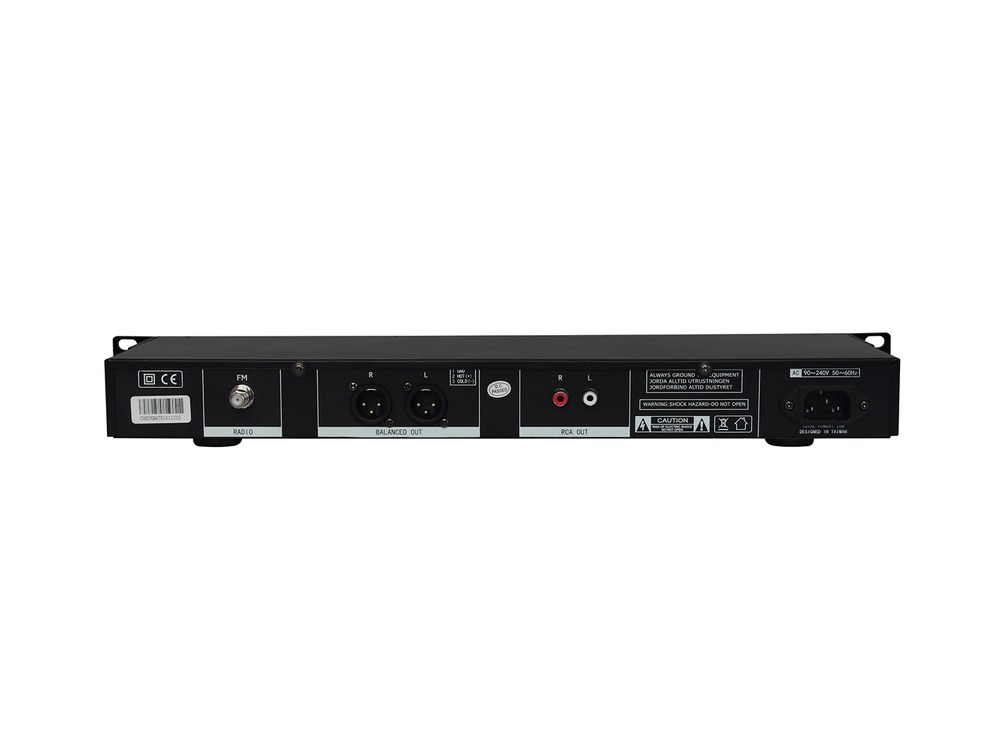

It features unbalanced and balanced stereo audio outputs and a headphone output (TRS jack) with volume control on the front panel. Supplied with IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included.

£209.00

Description

CHECKMATE is a combination of an FM tuner, USB slot, SD slot and Bluetooth connection audio source.

It features unbalanced and balanced stereo audio outputs and a headphone output (TRS jack) with volume control on the front panel. Supplied with IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included.

Features

  • Audio player with Bluetooth
  • USB, SD, FM tuner and Bluetooth connection
  • 2x RCA unbalanced output (stereo)
  • 2x XLR balanced output (stereo)
  • Local Media: USB, SD, FM tuner, Bluetooth connection
  • Others: IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included
  • Applications: Audio sound source in A/V corporate, Hospitality, Retail and Education applications

Specifications

  • Frequency response: 20Hz-20kHz
  • Frequency: 44.1khz
  • Dynamic range: > 92db
  • Weight: 2kg
  • Distortion: >0.01%
  • Dimensions: 483 x 44 x 130mm
  • Package Dimensions: 550 x 550 x 450mm
  • Package Weight: 18kg
  • Supply: 90v- 260v (50hz/ 60hz)
  • The power consumption: 10w-15w
  • SNR: 95db
  • Audio output: RCA, XLR
  • Sound specifications: FM/Bluetooth/USB supports WAV MP3 WMA audio files
  • The total harmonic distortion: >0.01%

Download

User Manual
