Description

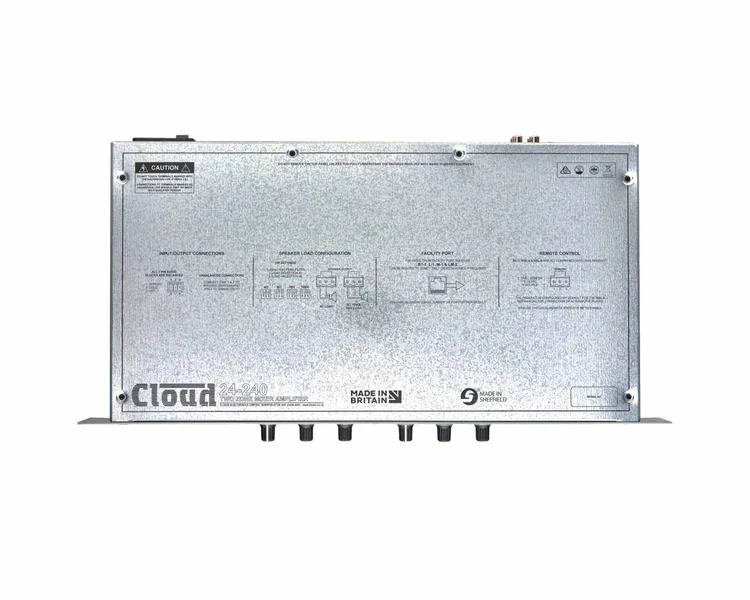

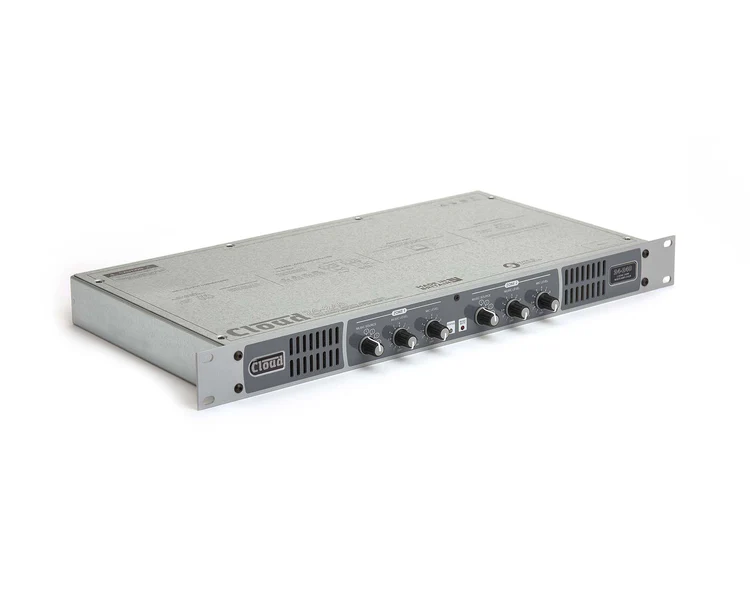

The 24-240 is a brand new approach to 2 Zone Mixer Amplification. Utilising the highest quality amplifier and power supply digital technology. The Cloud 24 Series is a two zone mixer-amplifier intended to provide a complete audio solution for Houses of Worship, retail outlets, hotels, licensed premises and other spaces where music,
announcements and/or flexible paging are required. Catering for up to four music sources, it provides independent source and level control of music in each zone with microphone mixing as required, with full paging facilities. Each zone includes a mono power amplifier and the unit occupies only 1U of rack height.
Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.
Features
- Two zone mixer/amplifier
- 2 x transformer-less Class-D 240W amplifiers with limiters on each zone plus Thermal/Short Protection
- 4 Line inputs, 2x unbalanced/ 2x balanced
- 1 Mic input with analogue paging options
- Integrated chime triggered by access control
- 100Hz dedicated high-pass filter on Microphone input
- Phantom power selectable by internal jumper
- Music level and source selection via RSL-4 & RSL-6
- Facility input (Zone 1 or Both) for active modules LM-2/BT-1
- RS232 control interface
- Line 4 priority
- Mic over Music input priority
- Separate EQ for music and mic signals
- 2 x Auxiliary balanced line outputs
- 1 x Utility / Loop output with independent line & mic controls with music content selection
- Remote Music Mute configurable for NO or NC operation
- Selectable speaker output impedance (4Ω/8Ω/70v/100v)
- Efficient, Universal Power Supply
- Variable Speed Fan Cooling
Specifications Line Inputs
- Frequency Response: 20 Hz to 20 kHz, ±1 dB
- Sensitivity: 195 mV (-12 dBu) to 2.0 V (+8 dBu)
- Input impedance: >10 kohm (balanced/unbalanced)
- Headroom: 12 dB
- Noise: <-90 dB (22 kHz bandwidth)
- Equalisation: HF: ±10 dB @ 10 kHz; LF: ±10 dB @ 50 Hz
Microphone Input
- Frequency Response: -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
- Sensitivity: 2.45 mV (-50 dBu) to 245 mV (-10 dBu)
- Input Impedance: 3.3 kohms (balanced)
- Phantom Power: 12 V, selectable by jumper
- Headroom: 16 dB
- Noise (EIN): <-126 dBu
- Equalisation: HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz
Facility Input
- Frequency Response: 20 Hz to 20 kHz, ±1 dB
- Sensitivity: 0.775 V (0 dBu)
- Input impedance: 10 kohms (balanced)
- Headroom: 18 dB
- Noise Gate: -60 dB
Main Outputs
- Output Power (1 kHz continuous sine wave)
- Minimum load
- Low-Z output: 4 or 8 ohms
- High-Z output
- 70 V-line
- 24-120: 41 ohms
- 24-240: 20.5 ohms
- 100 V-line
- 24-120: 66 ohms
- 24-240: 33 ohms
- Frequency response
- Low-Z output: 20 Hz to 20 kHz, ±1 dB
- High-Z output: 20 Hz to 20 kHz, ±1 dB (65 Hz filter off)
- THD + N: < 0.05% @ 1 kHz
- Protection: Fixed level signal limiter: DC, over-current and over-temperature protection
Utility and Auxiliary Outputs
- Nominal output level: 0 dBu (0.775 Vrms), balanced
- Noise: <-90 dB, 22 kHz bandwidth
General
- Power Input: Universal type, 85 to 265 VAC, 45 to 65 Hz
- Fuse details
- 24-120: 5 x 20 mm, time delay, T4A
- 24-240: 5 x 20 mm, time delay, T5A
- Normal operating temperature: 0 °C to 35 °C (Note: performance and specifications cannot be guaranteed outside of this range)
- Cooling: Forced air cooling (front to side)
