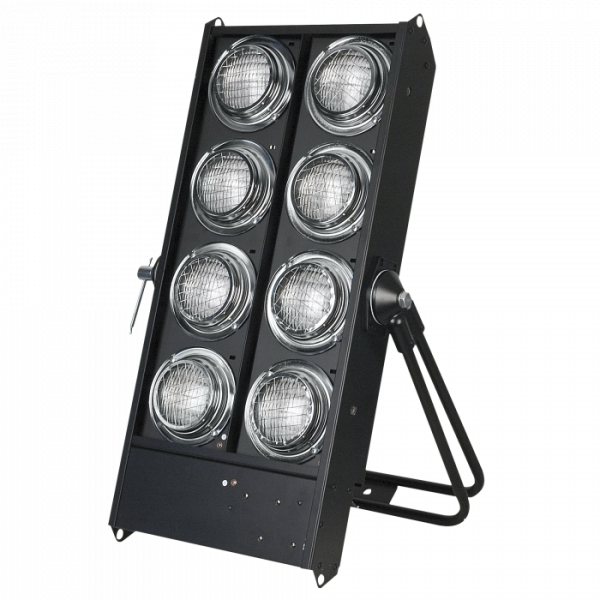

Showtec Stage Blinder 8 DMX

The Stage Blinder 8 DMX is an active version of the already popular Stage Blinder 8.

It has a built-in 4-channel dimmer so that the Stage Blinder can be controlled and dimmed by DMX with groups of 2 bulbs.

Please note that because of the high power consumption of 8 x PAR 36 DWE this unit has 2 power inputs to split the power.

  • Dimmer built-in
  • DMX control
  • Delivery including bulbs
  • Ready to use



£402.34

Description

Specifications

Source

  • Light Source Type: Halogen
  • Light Source Quantity: 8
  • Light Source Power: 650 W
  • Number of Sockets: 8
  • Luminous Flux (Total): 192000 lm

Control and Programming

  • Control Mode: Auto, DMX, Manual
  • DMX Channels: 2
  • Protocols: DMX

Dynamic Effects

  • Dimmer: 0-100 %

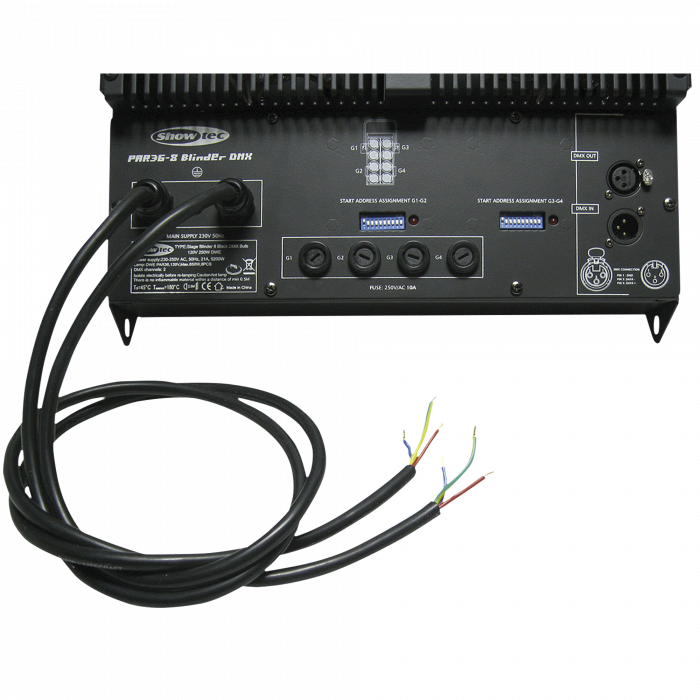

Electrical Specifications and Connections

  • Power Supply: 240 V AC 50/60 Hz
  • Power Consumption: 5400 W
  • Power Connector In: Schuko Plug
  • DMX Connector: XLR 3P In/Out
  • DMX Connector In: XLR 3P
  • DMX Connector Out: XLR 3P

Mechanical Specifications

  • Length (mm): 485 mm (19.095″)
  • Width (mm): 84 mm (3.307″)
  • Height (mm): 810 mm (31.89″)
  • Weight: 10.9 kg (24.03 lb)
  • IP Rating: IP20 (indoor use only)
  • Material: Metal
  • Housing: Metal
  • Colour: Black

Product Properties

  • Cooling: Convection

Rigging

  • Mounting Options: Clamp, Surface
  • Safety Attachment: Yes

Thermal Specifications

  • Maximum Ambient Temperature: 40 °C (104 °F)
  • Maximum Surface Temperature: 80 °C (176 °F)

Included Items

  • Included Cables: Fixed Cable
  • Included Accessories: Bulb(s)
  • Included Rigging: Bracket

Additional information

Weight 10 kg
