Description

The Laserworld CS-24.000RGB ShowNET is an analogue modulated, full-colour RGB diode laser system with a guaranteed output power of 24\’000 mW. The red laser source has an output power of 5\’500 mW / 638 nm, the green of 6\’500 mW / 520 nm and the royal-blue laser source has an output power of 12\’000 mW / 450 nm.

The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately ca. 6 mm and a beam divergence of 1.3 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°.

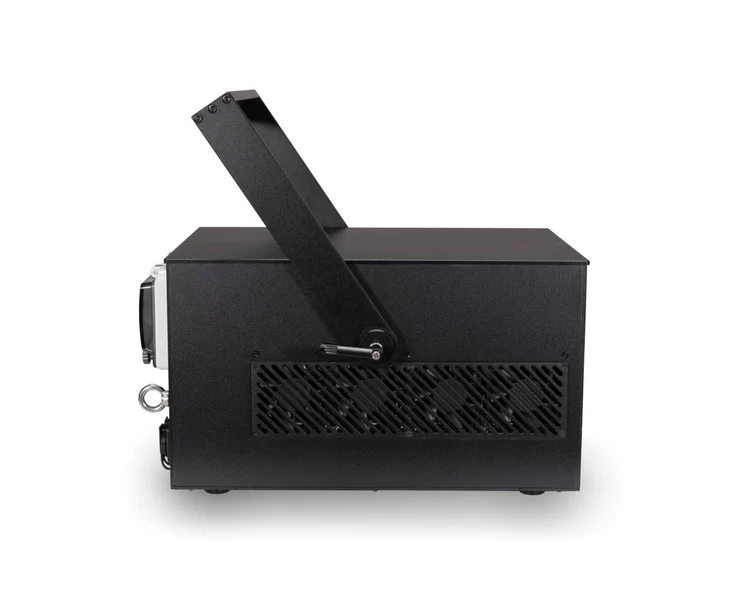

There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum. The pre-stored effects and animations (from Showeditor – Showcontroller) can be called up via DMX / ArtNet and adjusted live in colour, position or with additional effects.

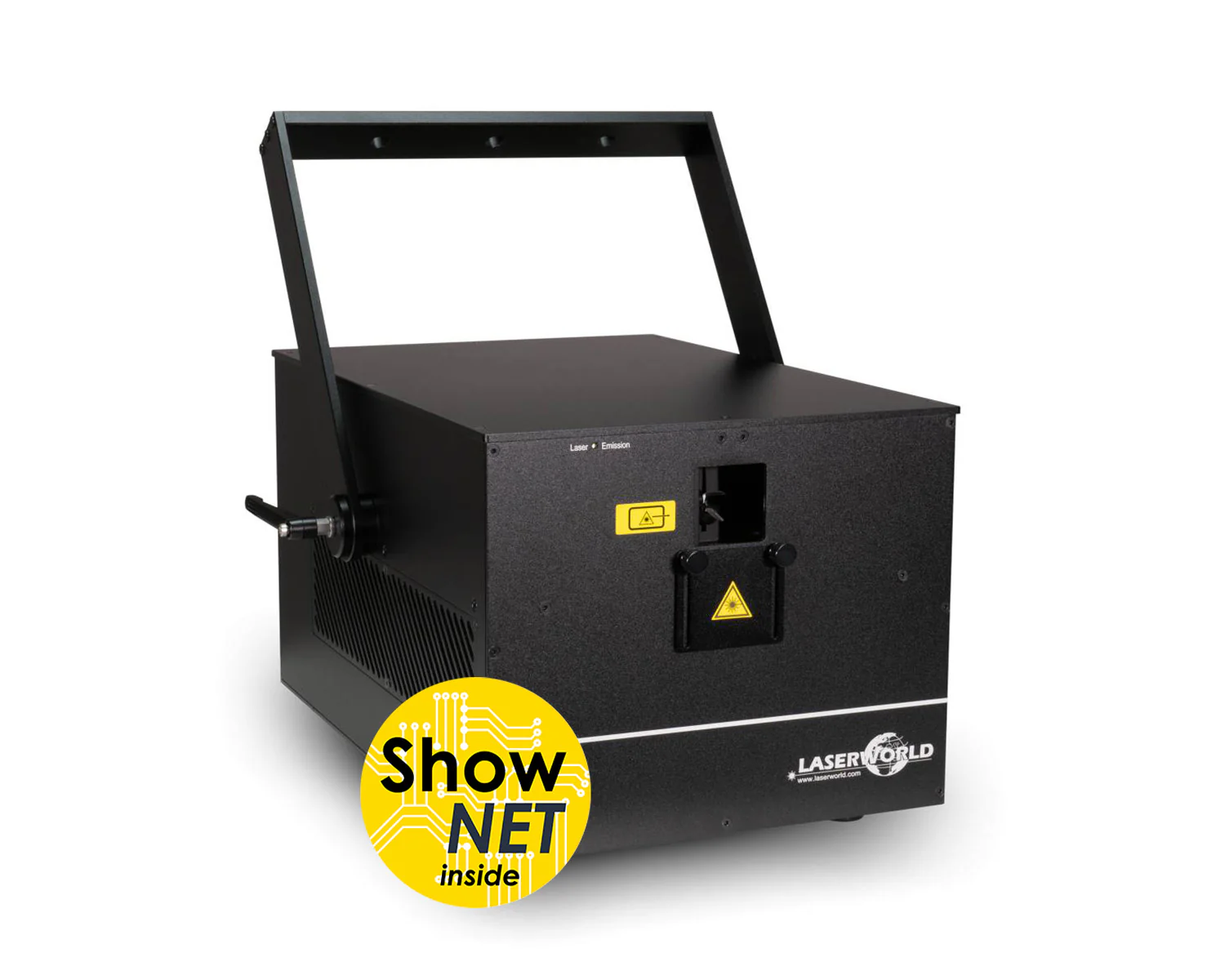

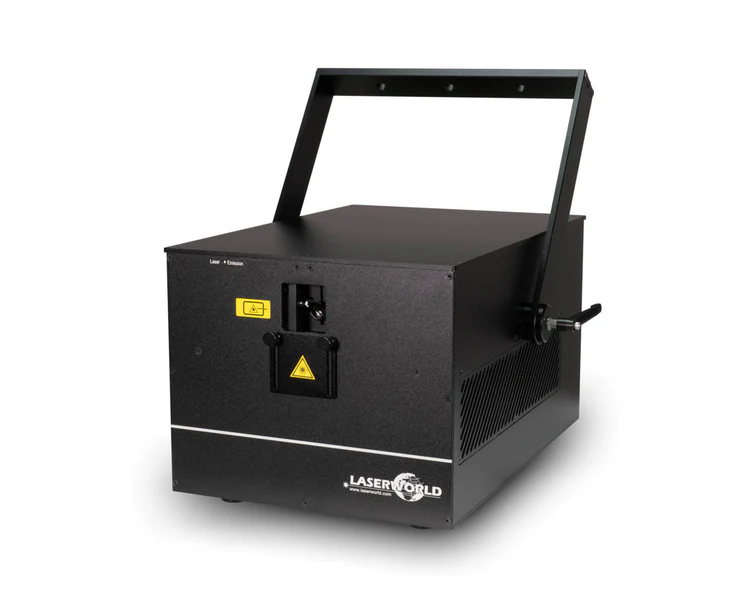

The Laserworld CS-24.000RGB ShowNET also offers direct computer control via Showeditor or Showcontroller. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations. The Laserworld CS-24.000RGB ShowNET show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket.

The bracket allows various mounting positions: both hanging and standing installations are possible – ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling. The Laserworld CS-24.000RGB ShowNET is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.

Features

• 24\’000 mW RGB pure diode laser system
• ShowNET inside
• DMX / ArtNet controllable
• Stand-alone mode
• Computer controllable via ShowNET interface (requires Showeditor or Showcontroller software)
• Basic graphics capability – 30 kpps @ 8° scanners
• Analogue modulation

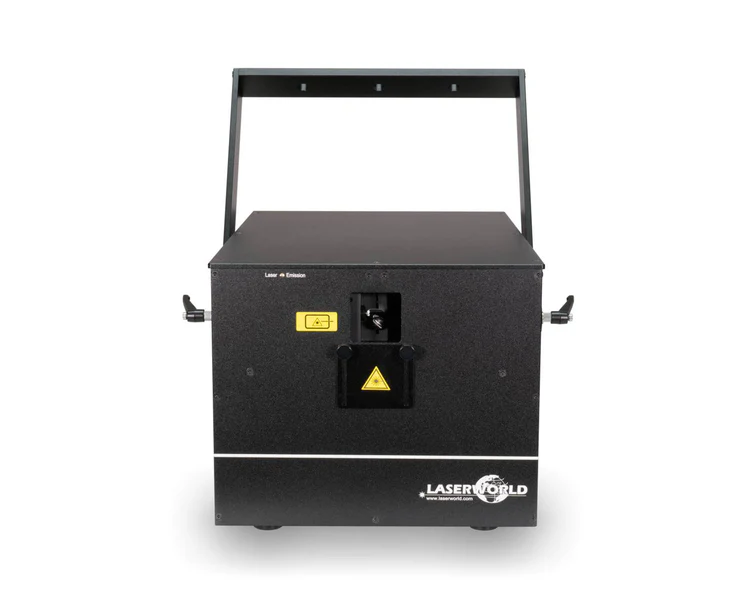

• Laser beam masking plate on front panel
• 360° mounting bracket
• IP54 enclosure

Specifications

• Guaranteed Power: 24\’000 mW
• Power Red: 5\’500 mW / 638 nm
• Power Green: 6\’500 mW / 520 nm
• Power Blue: 12\’000 mW / 450 nm
• Beam Specifications*: ca. 6 mm / 1.3 mrad
• Scanner: 30 kpps @ 8°
• Max. Scan Angle: 50°
• Laser Source: Diode
• Laser Class: 4

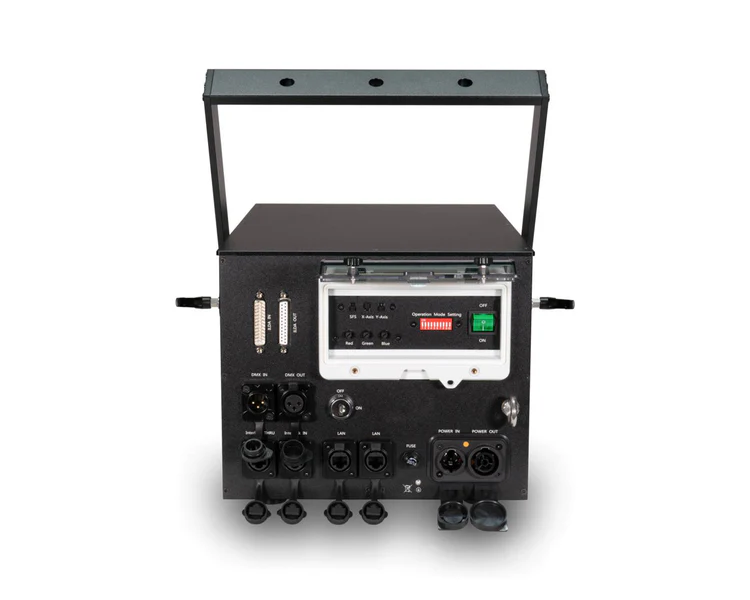

• Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
• Accessories: power cable, manual, interlock, key
• IP rating: IP54
• Power Supply: 85 V – 250 V AC, 50/60 Hz
• Dimensions: 400 x 240 x 220 mm
• Weight: 19.0 kg
