Description

The Laserworld CS-6000RGB is an analogue modulated pure diode multi colour RGB laser system with a total output power of up to and a guaranteed output power of 6\’000 mW. The red laser source has an output power of 1\’000 mW / 638 nm, the green 2\’000 mW / 520 nm and the royal-blue laser source has an output power of 3\’000 mW / 450 nm. The laser sources ensure brilliant colours and powerful laser beams. The projector has good beam specifications with ca. 5 mm / 1.2 mrad. The galvo system has a scan speed of up to 30kpps @ 8°.

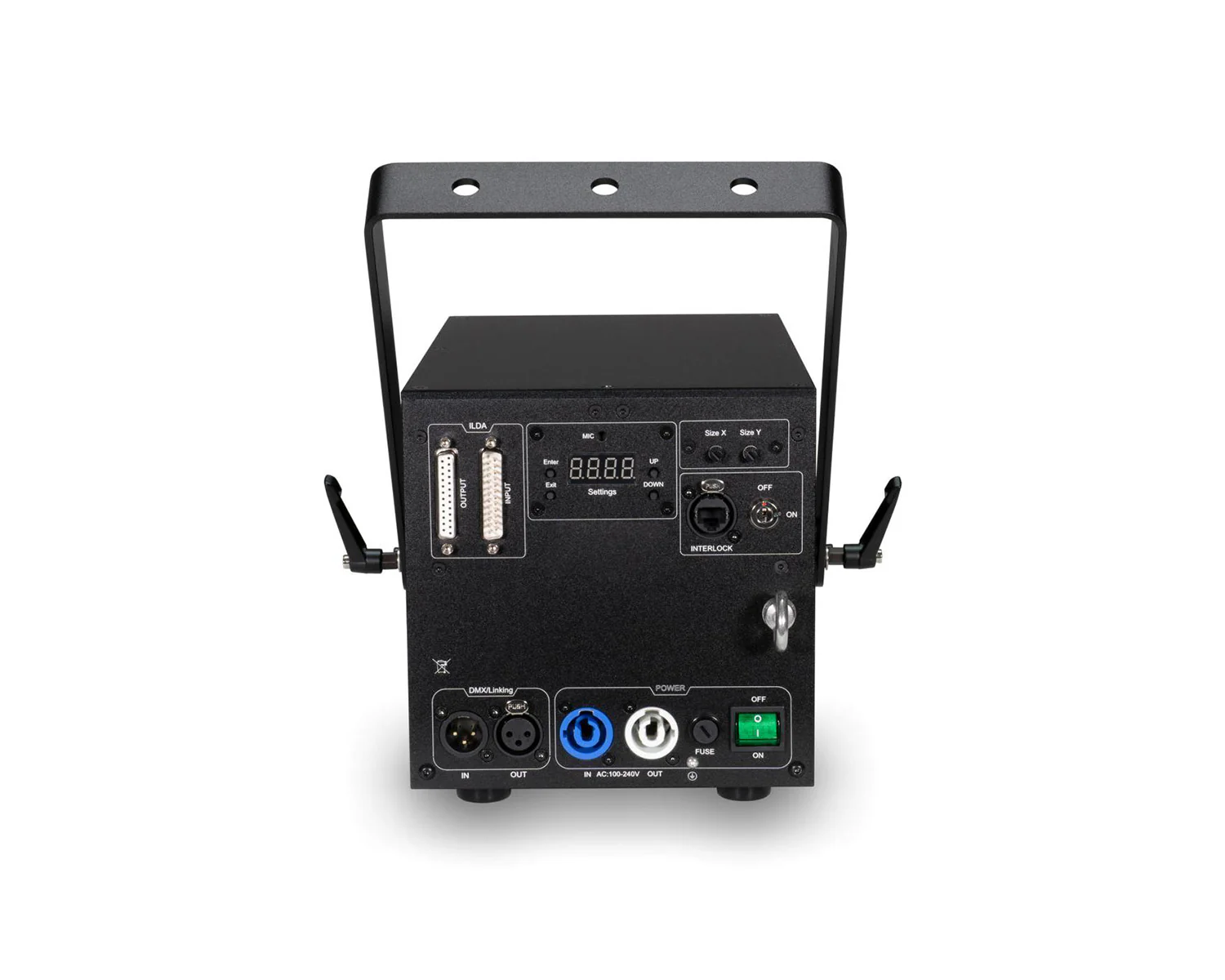

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display. There is no air flow in the optical compartment, the temperature is regulated through a separate compartment with cooling fins. This minimizes maintenance and cleaning requirements.

Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colours and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound. Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-6000RGB is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software. There are safety features like a key switch, an interlock connector and an on-off switch. The Laserworld CS-6000RGB is ideal for small to semi-professional applications and is perfectly suitable in bars, medium to large sized clubs and discos as well as for mobile DJs, private use and in any other party location.

Features

• 6\’000 mW pure diode RGB laser system
• DMX controllable, master-slave operation possible
• Full diode projector – no DPSS anymore
• Computer controllable via ILDA
• Plug & play: Sound-to-light and stand-alone modes
• Capable of basic graphics – 30kpps @ 8° scanners
• Full colour with analogue modulation

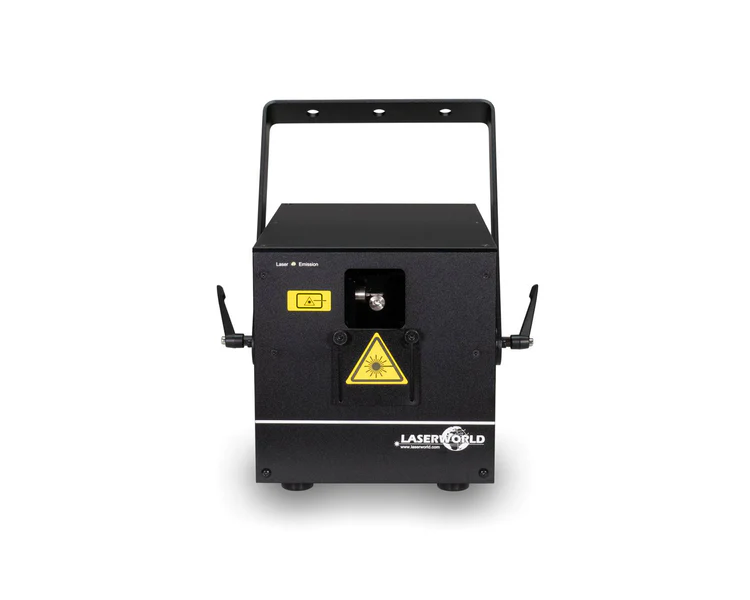

• Front panel laser beam masking plate
• 360° mounting bracket

Specifications

• Guaranteed Power: 6\’000 mW
• Power Red: 1\’000 mW / 638 nm
• Power Green: 2\’000 mW / 520 nm
• Power Blue: 3\’000 mW / 450 nm
• Beam Specifications*: ca. 5 mm / 1.2 mrad
• Scanner: 30kpps @ 8°
• Max. Scan Angle: 40°
• Laser Source: Diode
• Laser Class: 4
• Operation Modes: stand-alone, sound-to-light, DMX, ILDA, master-slave
• Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, interlock, key
• Power Supply: 85 V – 250 V AC, 50/60 Hz
• Power Consumption: 100 W
• Dimensions: 285 x 180 x 190 mm
• Weight: 4.0 kg
