Laserworld CS-6000RGB Full Colour Laser 30kpps



SKU: LASCS6000RGB Categories: , Tags: ,

CS-6000RGB 6000mW Full Colour Laser 30kpps ILDA / DMX

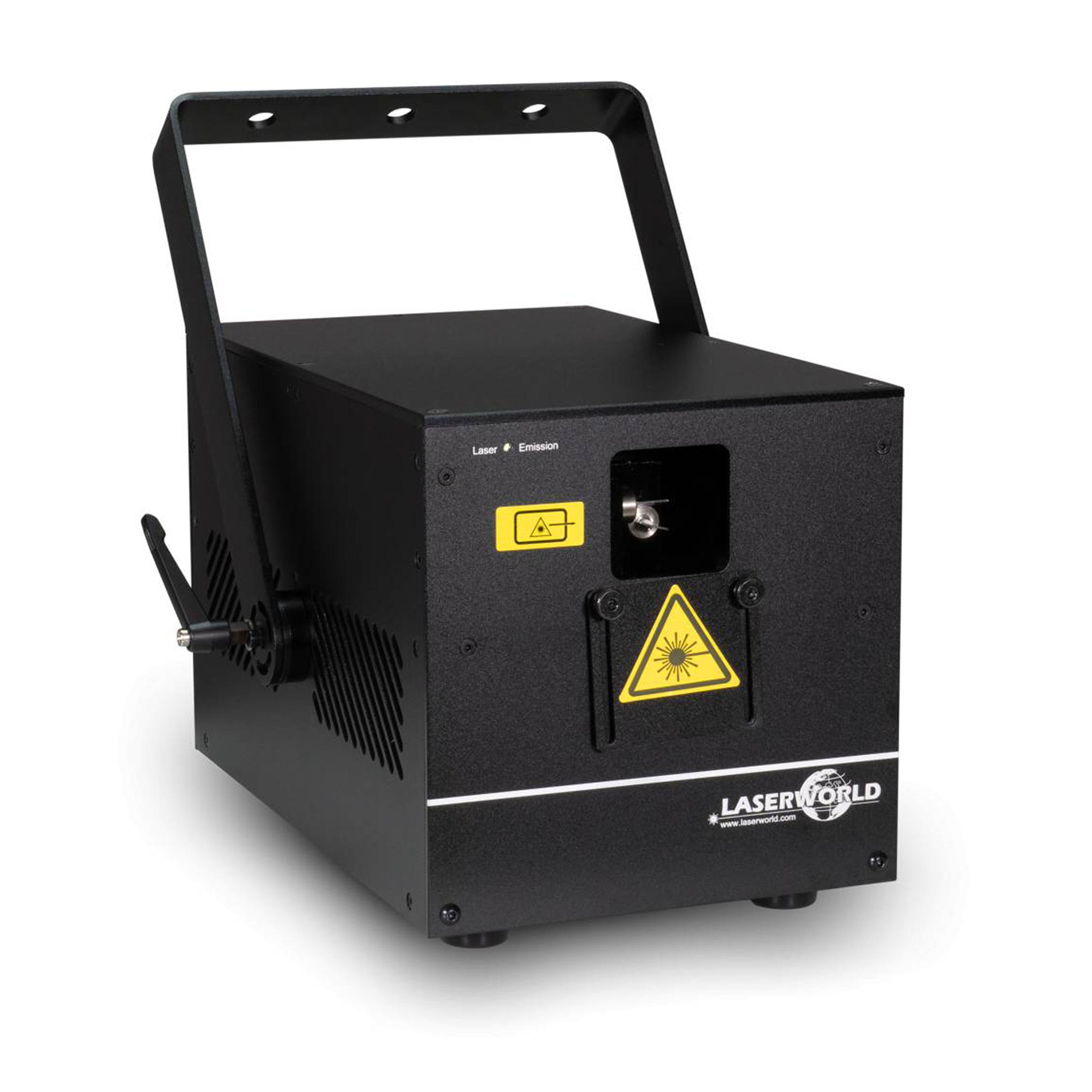

The Laserworld CS-6000RGB show laser projector comes with a completely new designed compact housing, which is light weight and has a stable bracket.

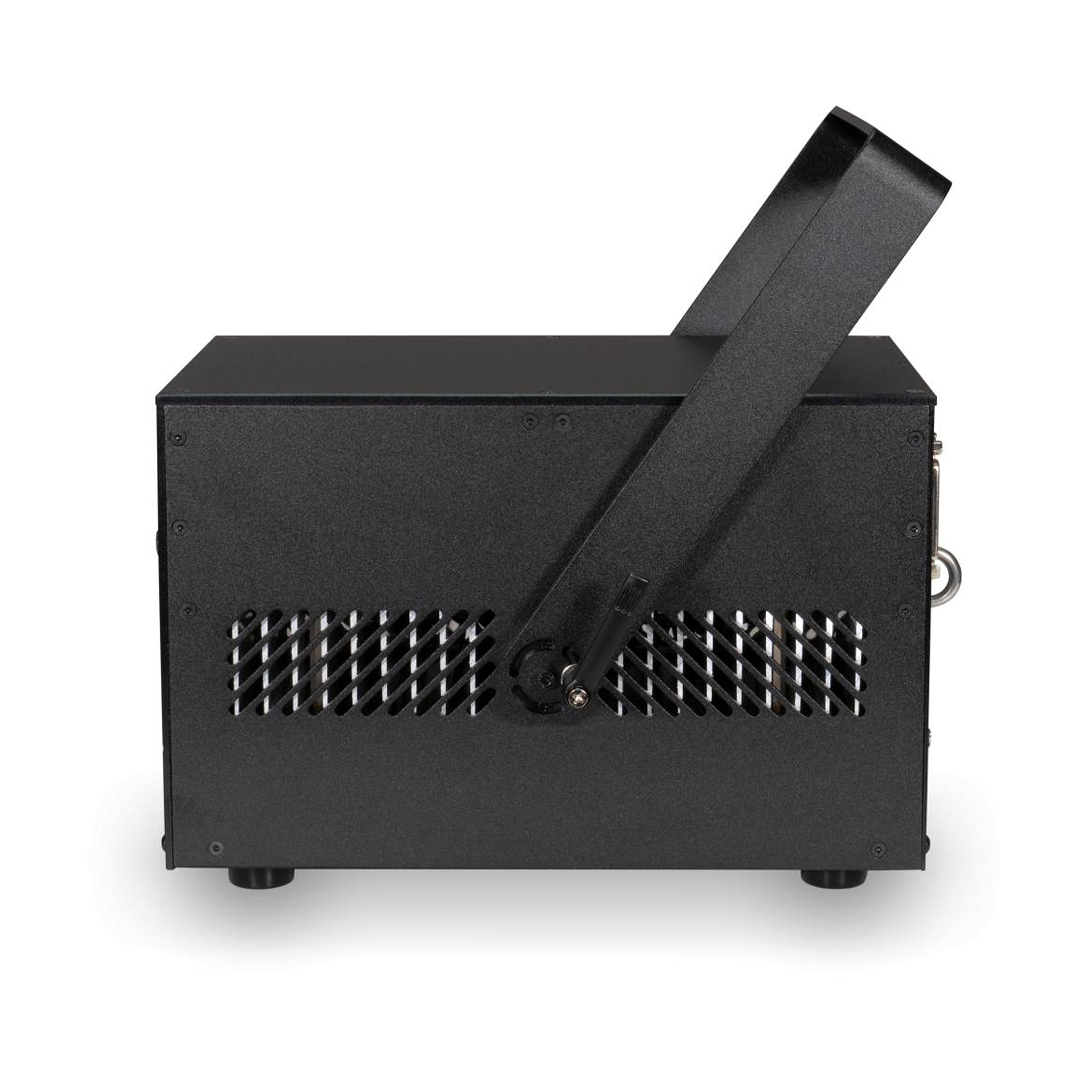

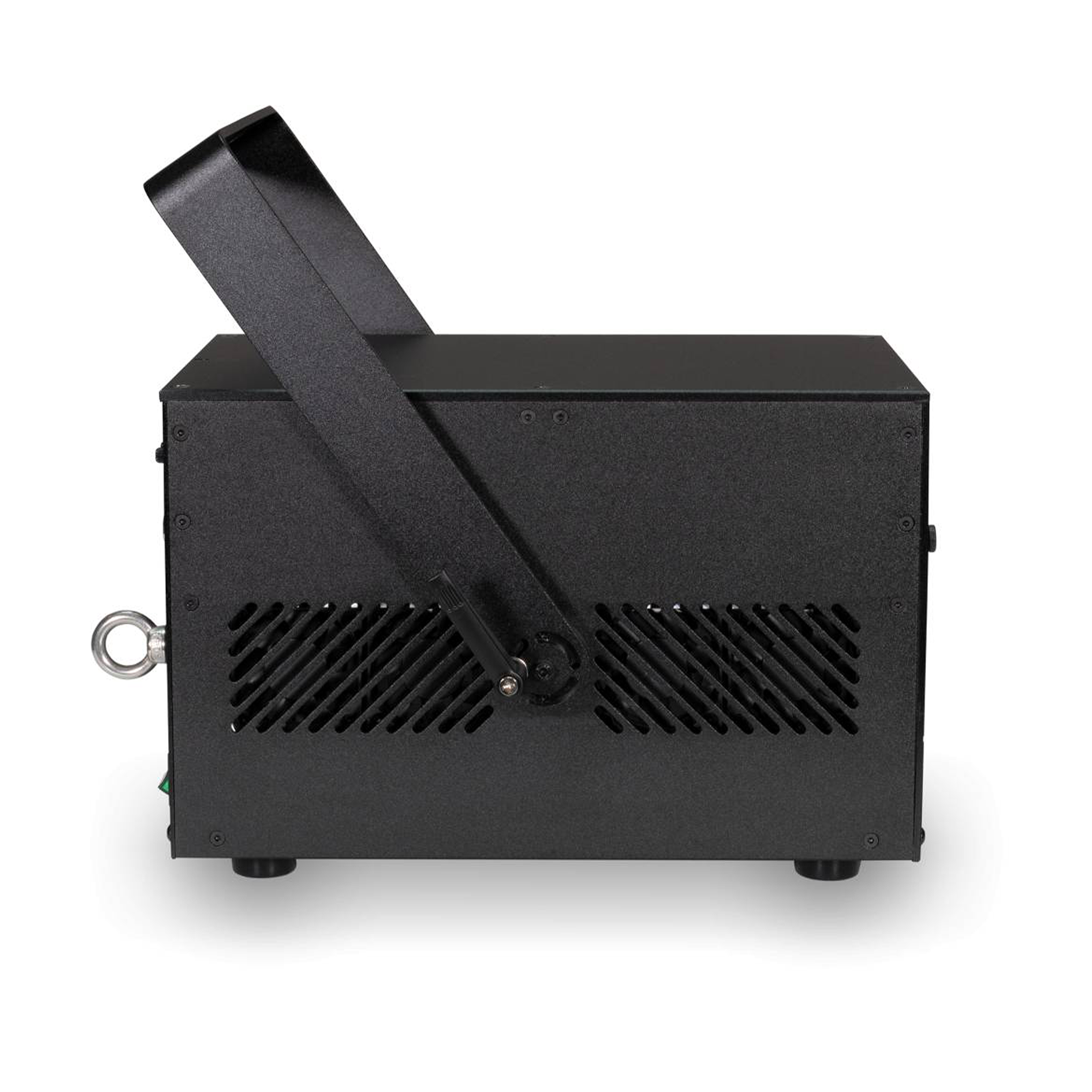

The solid bracket allows for different mounting positions: a hanging as well as a standing installation is possible – ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.



£1,185.77

Description

The Laserworld CS-6000RGB 6,000mW Full Colour Laser 30kpps ILDA / DMX is an analogue modulated pure diode multi colour RGB laser system with a total output power of up to and a guaranteed output power of 6\’000 mW. The red laser source has an output power of 1\’000 mW / 638 nm, the green 2\’000 mW / 520 nm and the royal-blue laser source has an output power of 3\’000 mW / 450 nm. The laser sources ensure brilliant colours and powerful laser beams. The projector has good beam specifications with ca. 5 mm / 1.2 mrad. The galvo system has a scan speed of up to 30kpps @ 8°.

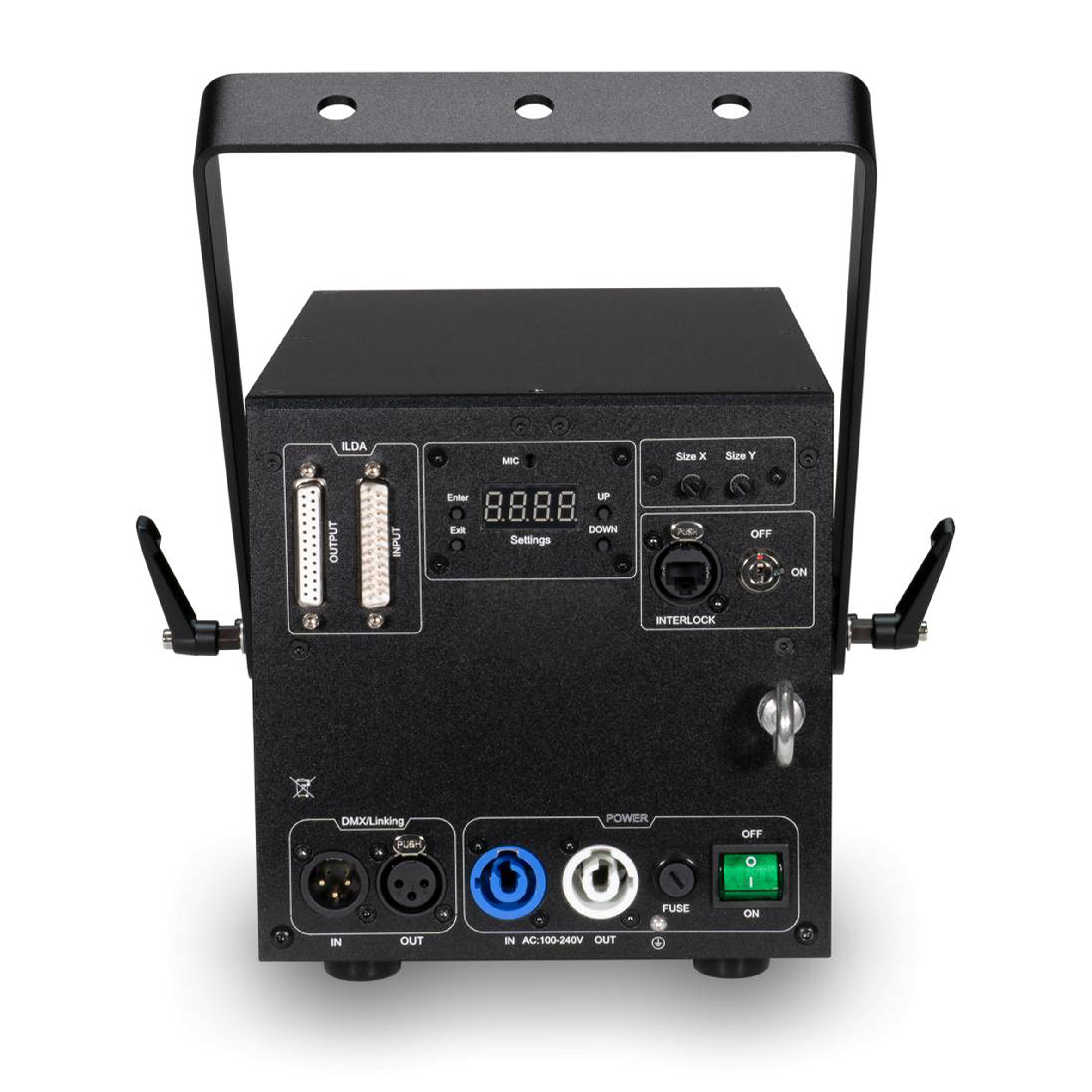

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display. There is no airflow in the optical compartment; the temperature is regulated through a separate compartment with cooling fins. This minimises maintenance and cleaning requirements.

Through DMX, in the automatic mode as well as in the sound-to-light mode, ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colours and at various speeds. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound. Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector), project the same patterns like the master projector.

The Laserworld CS-6000RGB is computer-controllable through a professional ILDA interface. Thus, custom or pre-programmed laser shows, logos, texts or own graphics and animations can be shown in combination with a laser control software. There are safety features like a key switch, an interlock connector and an on-off switch. The Laserworld CS-6000RGB is ideal for small to semi-professional applications and is perfectly suitable in bars, medium to large-sized clubs and discos, as well as for mobile DJs, private use and in any other party location.

Features

  • 6\’000 mW pure diode RGB laser system
  • DMX controllable, master-slave operation possible
  • Full diode projector – no DPSS anymore
  • Computer controllable via ILDA
  • Plug & play: Sound-to-light and stand-alone modes
  • Capable of basic graphics – 30kpps @ 8° scanners
  • Full colour with analogue modulation
  • Front panel laser beam masking plate
  • 360° mounting bracket

Specifications

  • Guaranteed Power: 6\’000 mW
  • Power Red: 1\’000 mW / 638 nm
  • Power Green: 2\’000 mW / 520 nm
  • Power Blue: 3\’000 mW / 450 nm
  • Beam Specifications*: ca. 5 mm / 1.2 mrad
  • Scanner: 30kpps @ 8°
  • Max. Scan Angle: 40°
  • Laser Source: Diode
  • Laser Class: 4
  • Operation Modes: stand-alone, sound-to-light, DMX, ILDA, master-slave
  • Basic Patterns: ca. 130 (layers, tunnels, fences, waves, etc.)
  • Accessories: power cable, manual, interlock, key
  • Power Supply: 85 V – 250 V AC, 50/60 Hz
  • Power Consumption: 100 W

Dimensions

  • Dimensions: (LxWxH) 285 x 180 x 190 mm
  • Weight: 4.0 kg

Additional information

Weight 4.0 kg
Dimensions 28.5 × 18 × 19 cm
