Description

DB 1300 DMX 2 Cell Halogen Blinder – utilising industry standard 650W DWE MFL lamps, wired in series, the 2 cell blinder delivers the warm tones of halogen from a compact, rugged chassis.

The blinder features an integral, 1-channel DMX dimmer, allowing traditional blinders to be added into lighting rigs without bulky dimmer racks.

Features

• 2-year warranty
• Ideal for use on stage
• 2 x 120V 650W DWE lamps wired in series (Order code: LAMP91 – not supplied)
• Beam angle: 40° x 30°
• 7,699 Lux @ 2m (full on)
• DMX channels: 1
• Dimming, auto and master/slave modes
• 0-100% dimming
• Dipswitches
• Captive power connection

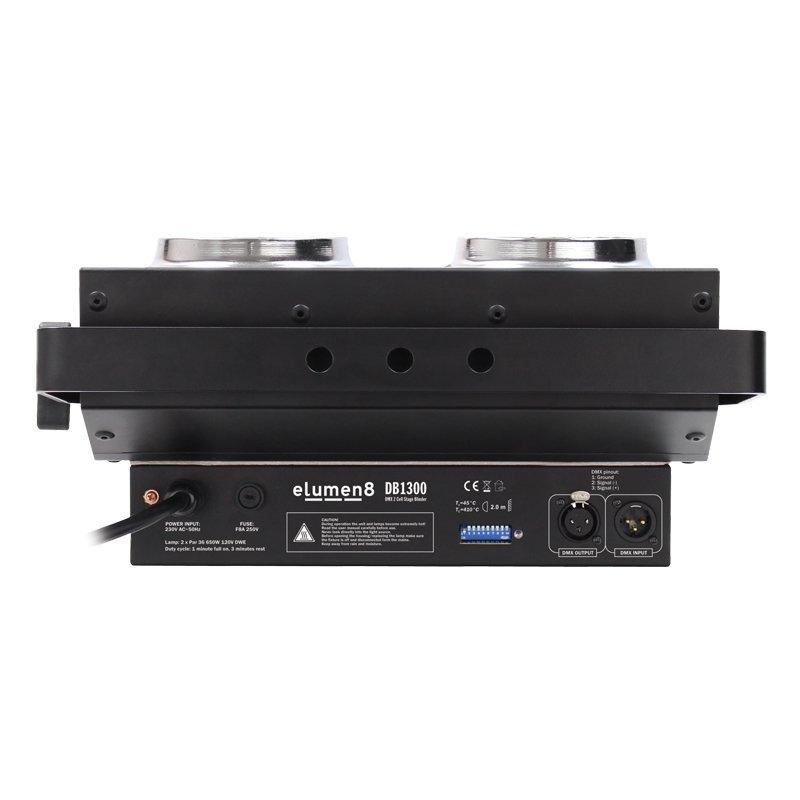

• 3-Pin XLR input/output
• Convection cooled

Specifications

• Power consumption: 1320W
• Max. ambient temperature Ta: 45°C
• Min. distance from flammable surfaces: 0.5m
• Min. distance to lit object: 2m
• Duty cycle: 1 minute (full on)
• Cooling time: 3 minutes
• Power supply: 240V, 50Hz
• Fuse: F8A 250V
• Dimensions (H x W x D): 225 x 390 x 175mm
• Weight: 3.2kg
